As some members from RIP M3forum.net might remember, 6-7 years ago I was selling roll bar kit for E46 M3 Coupe. I am located in Montreal, Quebec, Canada so I would ship pretty much all the kits I sold.
I will start to make another batch soon, I should have 5 kits available by the end of May 2023.
This is not your usual bolt-in roll bar btw so I am aware that a Kirk or Autopower sells for a lot less.
I will sell my roll bar kit with all the tubing already notched and the plates bend. All you need to do is fit and weld it in your car.
-Tubes are DOM 1.75’’x0.095’’
-Base plates for main hoop and rear shock tower are 1/8’’ thick and have at least 20sq-in to respect most rule book
-Rear subframe cover plates are made from 16 gauges plates

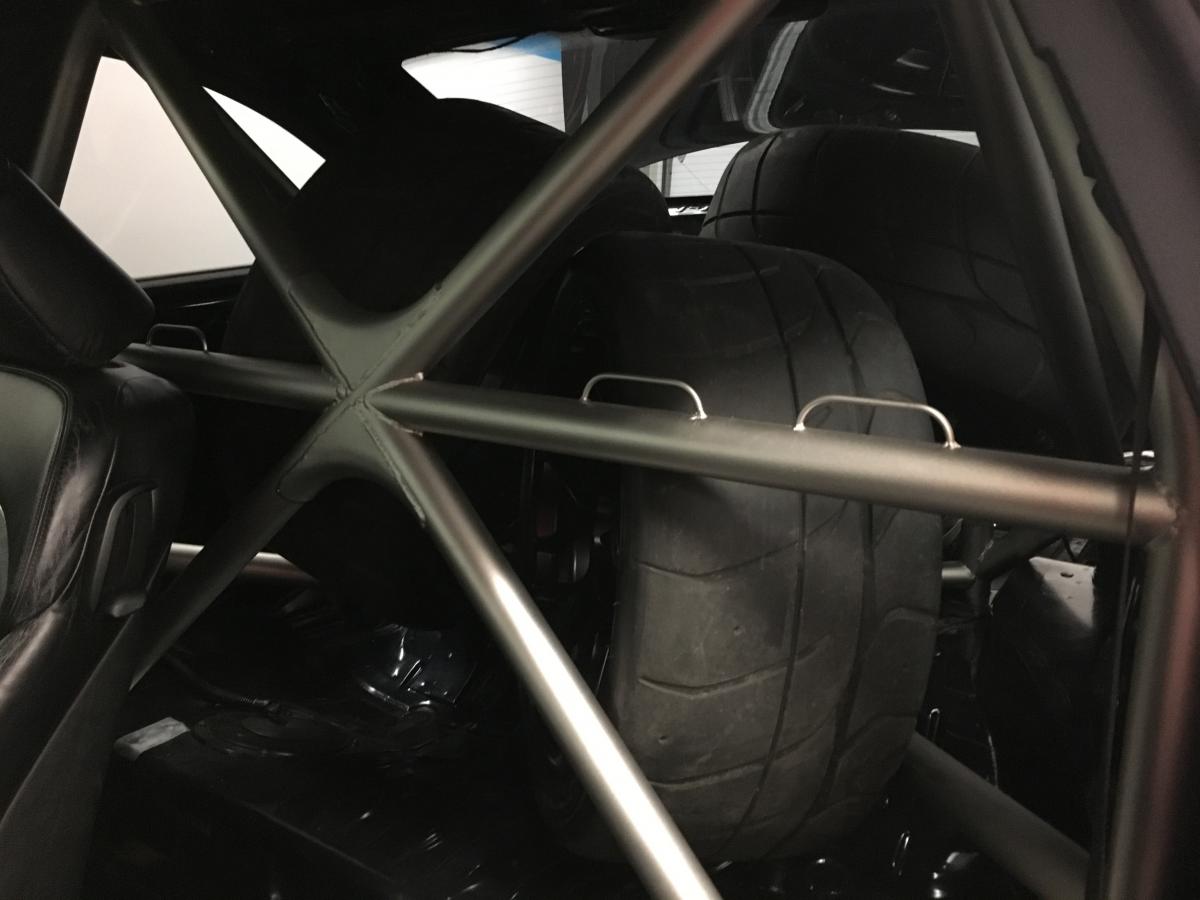

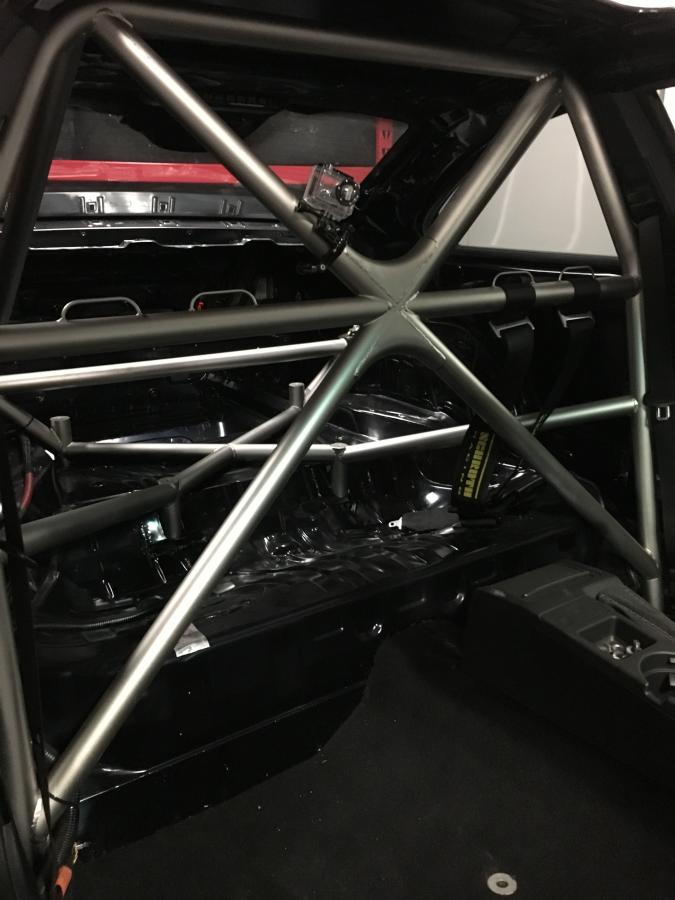

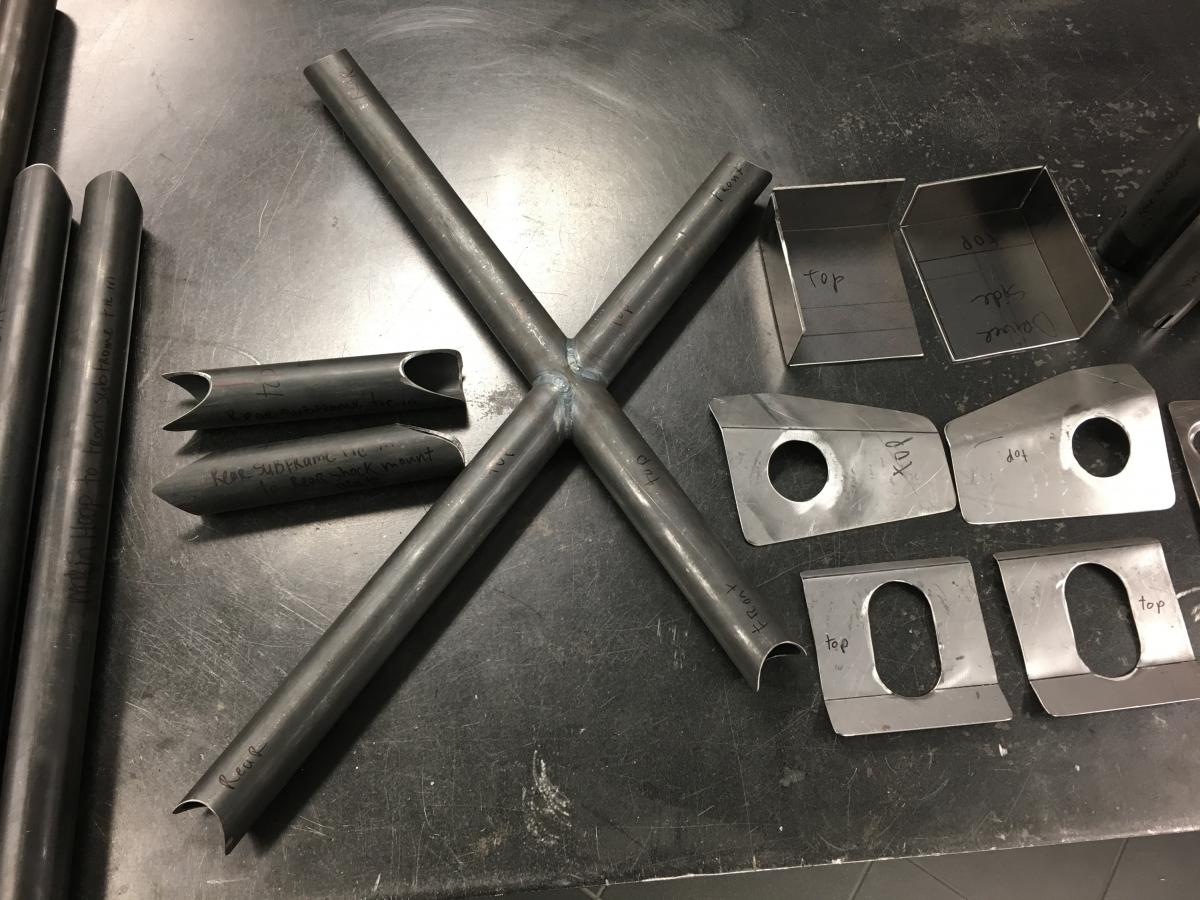

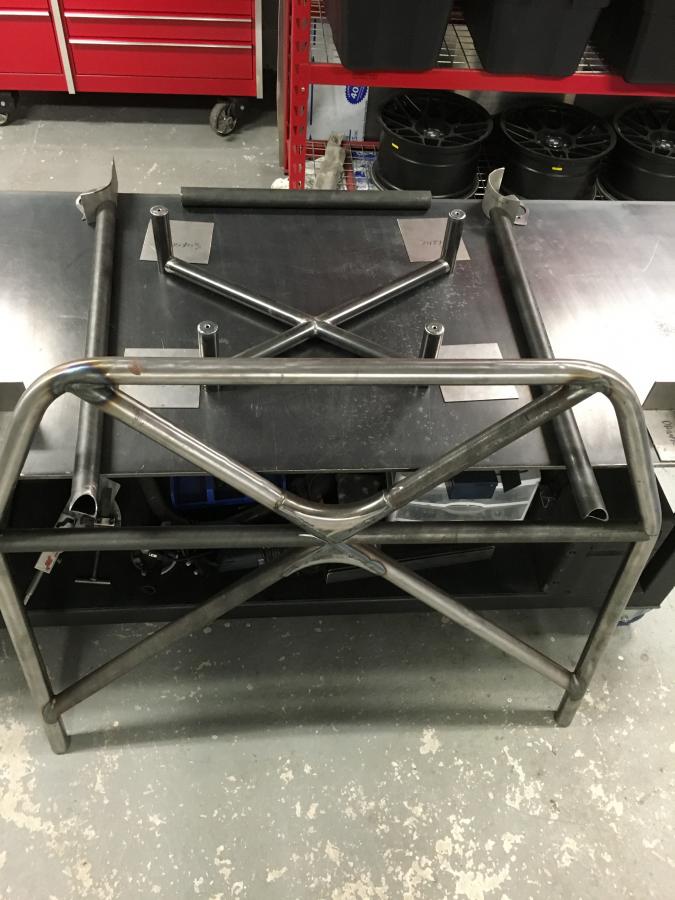

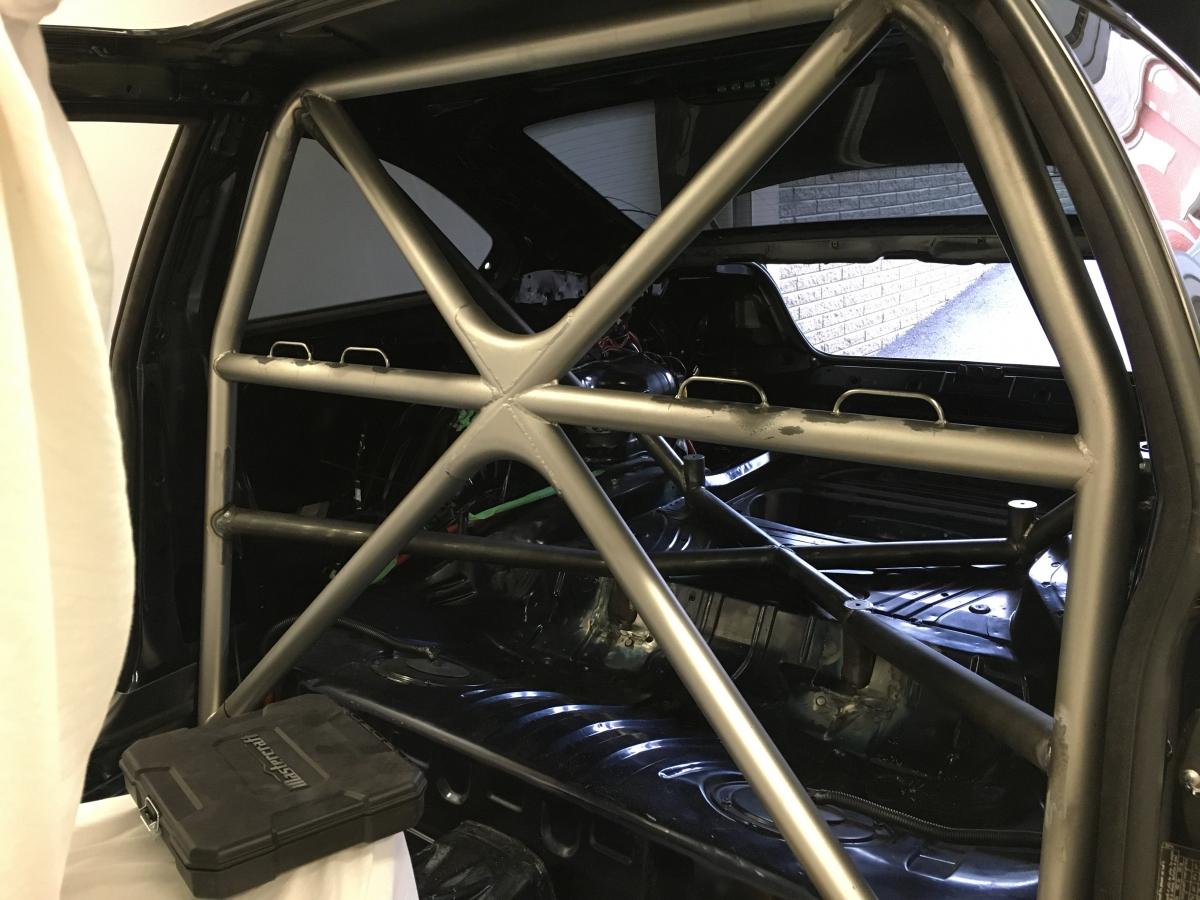

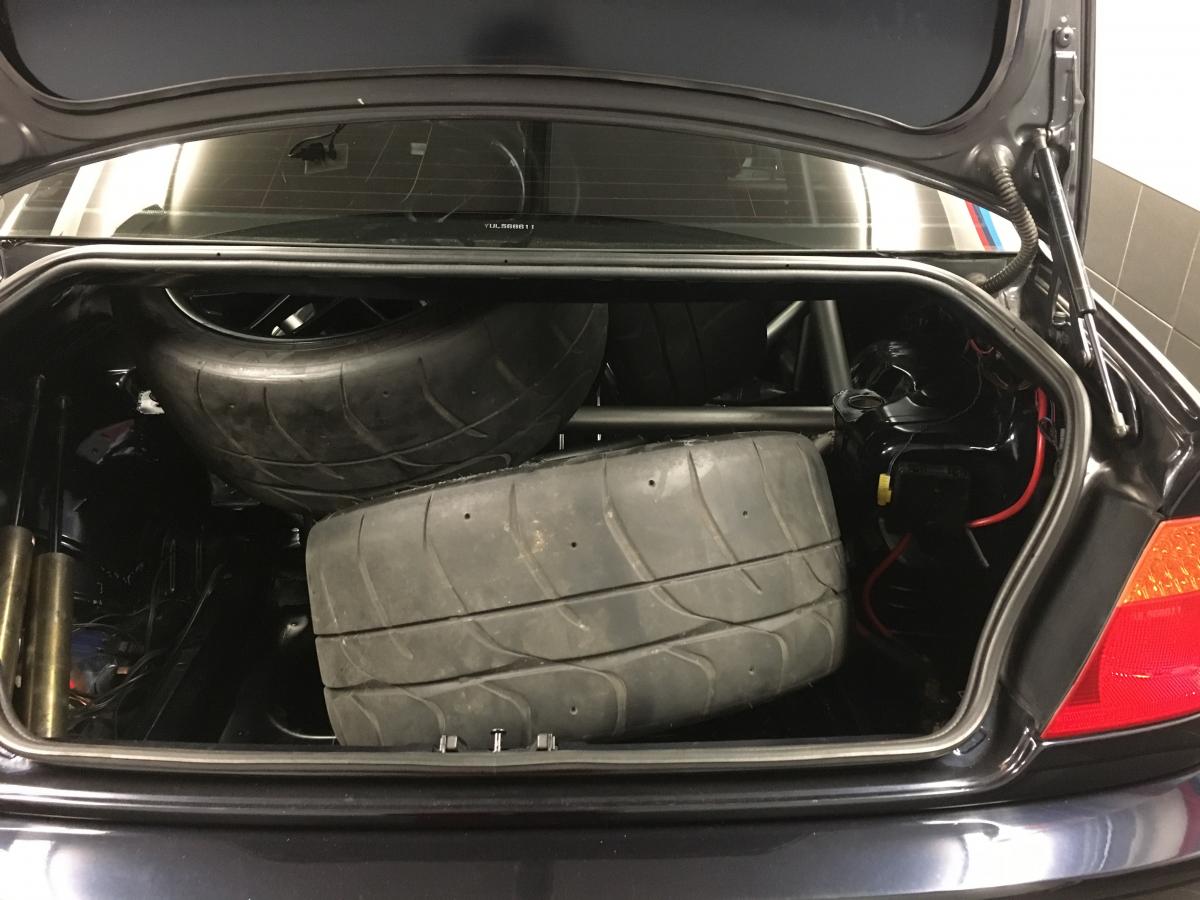

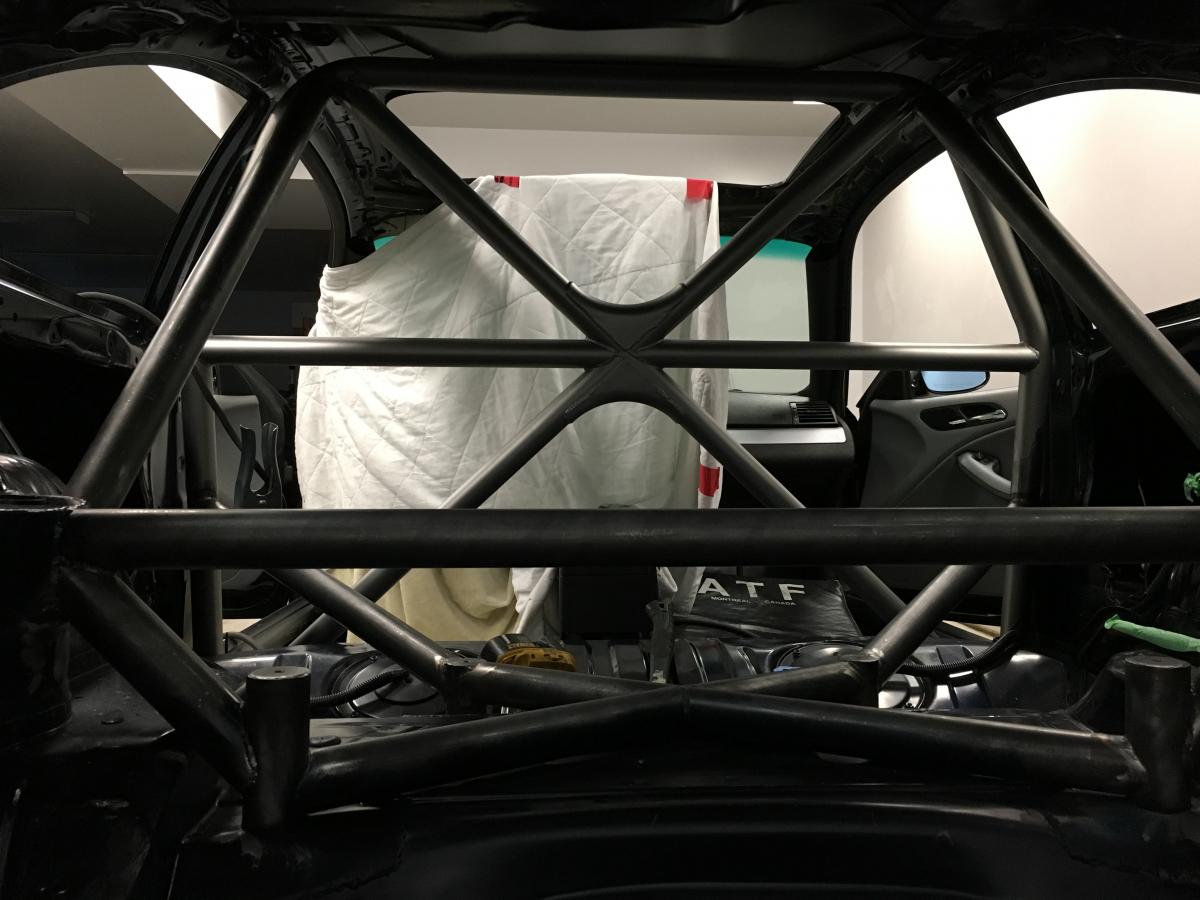

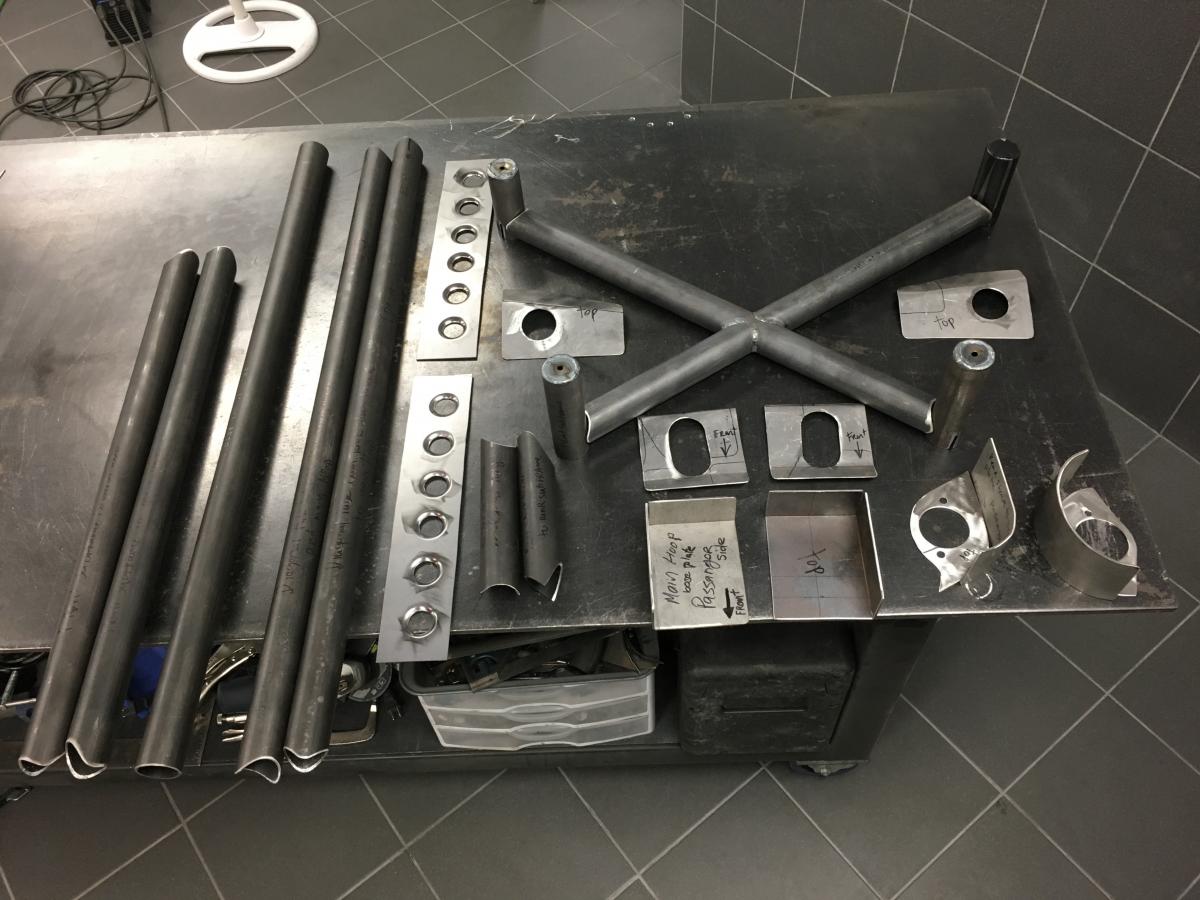

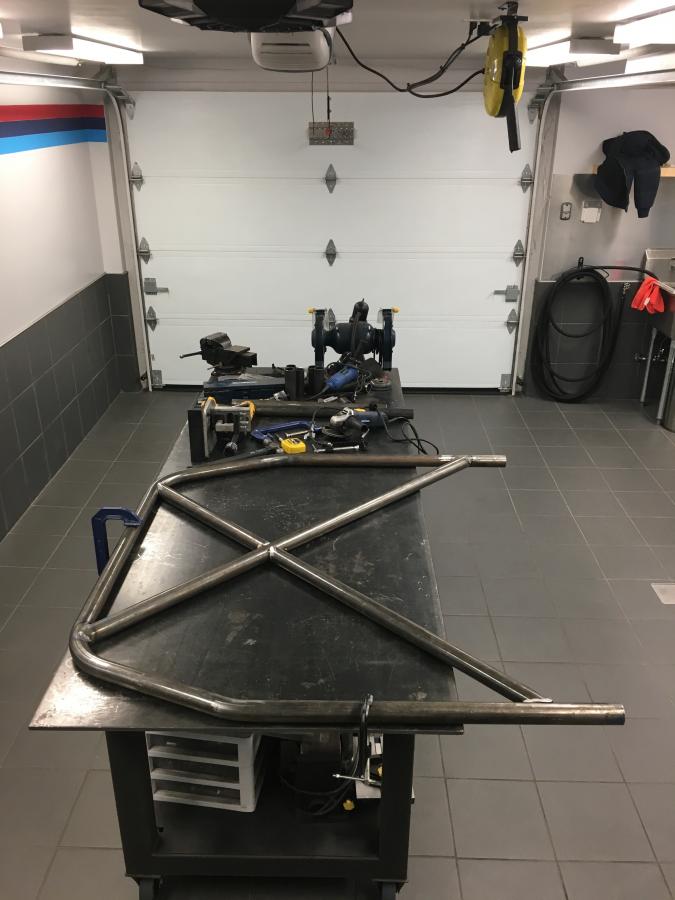

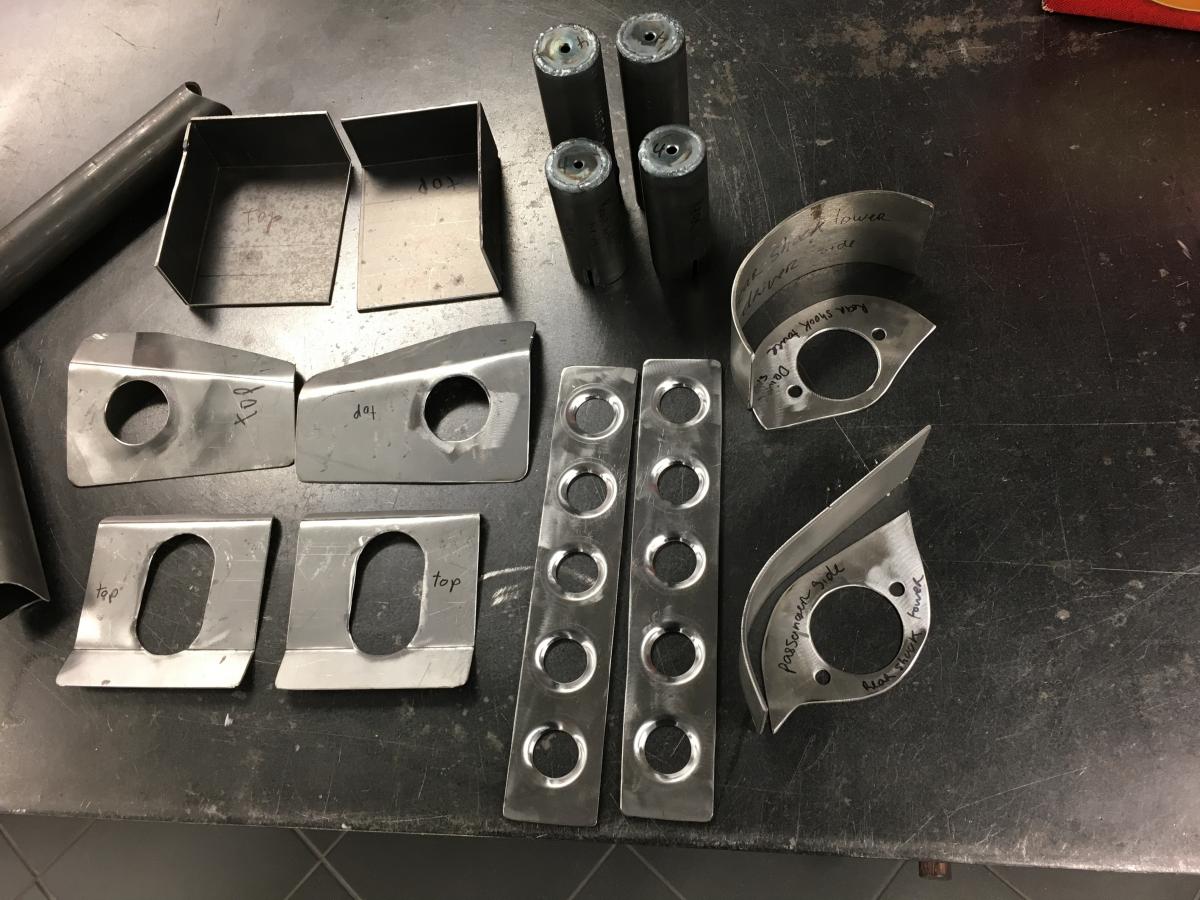

Pictures are just to show what's included. I can make some different variation depending if you have a street car or full dedicated track car, keep B-pillars fabric covers or not, headliner, … cause main hoop will be larger a bit if car fully gutted.

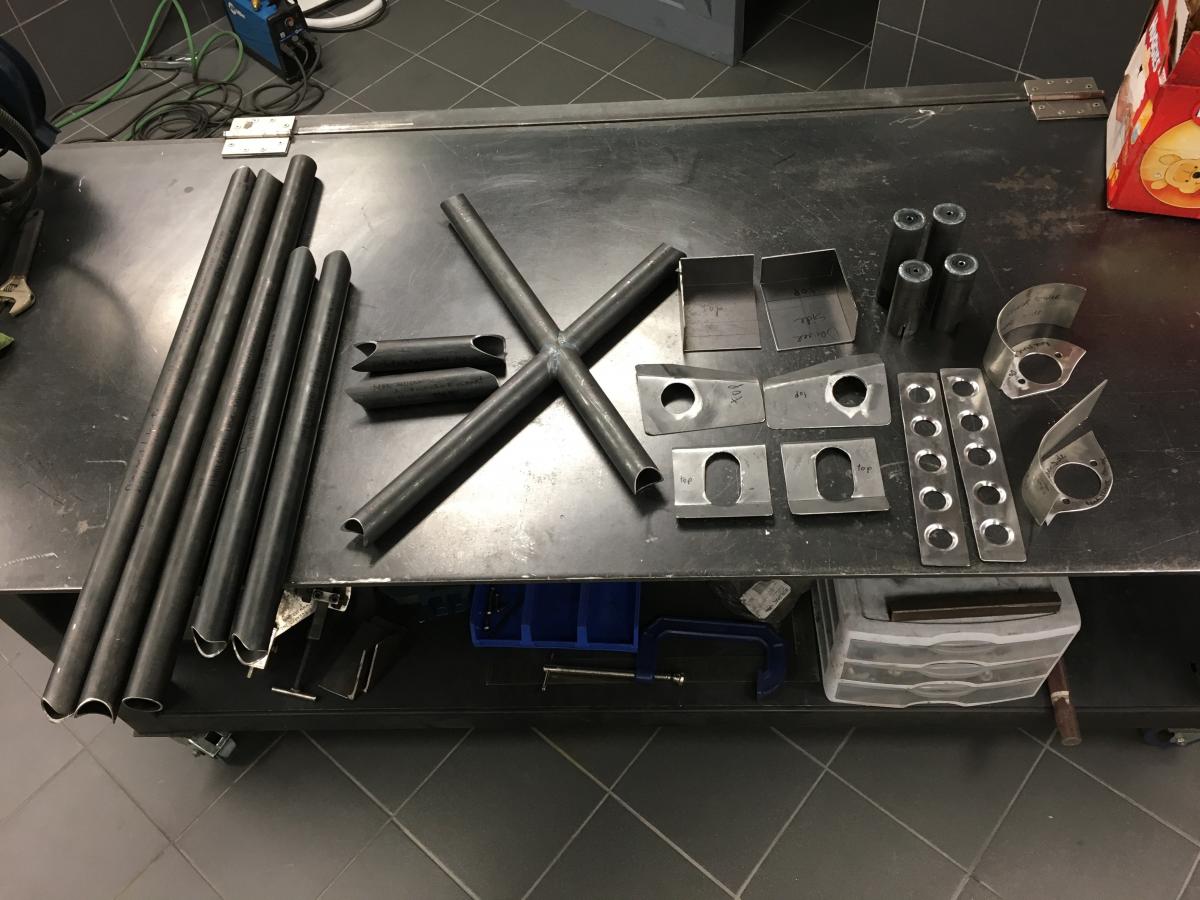

Here is what's included in the kit:
-1x main hoop
-1x horizontal bar between rear shock tower
-2x diagonal bars from main hoop to rear shock tower
-2x diagonal bars from main hoop to front subframe reinforcement tie-in points
-2x diagonal bars from rear shock tower to rear subframe reinforcement tie-in points
-1x X-brace between rear subframe reinforcement tie-in points
-4x bars for subframe reinforcement tie-in points
-2x main hoop base plates
-2x rear shock tower plates
-4x covers for subframe reinforcement tie-in point holes
-2x gussets from main hoop to B-pillars (chassis)
Kit will come with an installation instruction guide and can also make it in PDF if you want.
Price: $2000usd shipping included
I will start to make another batch soon, I should have 5 kits available by the end of May 2023.
This is not your usual bolt-in roll bar btw so I am aware that a Kirk or Autopower sells for a lot less.
I will sell my roll bar kit with all the tubing already notched and the plates bend. All you need to do is fit and weld it in your car.
-Tubes are DOM 1.75’’x0.095’’
-Base plates for main hoop and rear shock tower are 1/8’’ thick and have at least 20sq-in to respect most rule book
-Rear subframe cover plates are made from 16 gauges plates
Pictures are just to show what's included. I can make some different variation depending if you have a street car or full dedicated track car, keep B-pillars fabric covers or not, headliner, … cause main hoop will be larger a bit if car fully gutted.
Here is what's included in the kit:
-1x main hoop
-1x horizontal bar between rear shock tower
-2x diagonal bars from main hoop to rear shock tower
-2x diagonal bars from main hoop to front subframe reinforcement tie-in points
-2x diagonal bars from rear shock tower to rear subframe reinforcement tie-in points
-1x X-brace between rear subframe reinforcement tie-in points
-4x bars for subframe reinforcement tie-in points
-2x main hoop base plates
-2x rear shock tower plates
-4x covers for subframe reinforcement tie-in point holes
-2x gussets from main hoop to B-pillars (chassis)
Kit will come with an installation instruction guide and can also make it in PDF if you want.
Price: $2000usd shipping included
