Add LED for track mode indicator?

[D-O]

I finally got around to enabling track mode. My car was produced in 2003/06 and a careful look with a strong flashlight confirms that I do have the track mode indicator. Unfortunately, it does not light up. I confirmed that both ANZEIGE_HOCKLADEN and DTC_LAMPE are both active and performed the cluster lamp test and still no indicator light. Unless there is something I have missed, it looks like I am going to have to live without it or solder in an LED.

Anyone ever solder in and LED for this? Any links to a good DIY? The one DIY I found was not great.

Any help is appreciated. Thanks in advance.

D-O

[Slideways]

https://forums.m3cutters.co.uk/threads/how-to-change-a-dash-led-for-m-track-mode.41824/

I might have extra 151 surface mount resistors or you can pull them off another circuit board. Use the convertible top LED.

[Cubieman]

I believe mine is setup to show the DSC symbol when in MTM (short button press) and when DSC is 100% off (long press) it then shows both DSC as well as the parking brake lamp in yellow.

The real deal MTM indicator would definitely be much nicer , may have to look into adding a resistor, but the current setup works.

[Motox6]

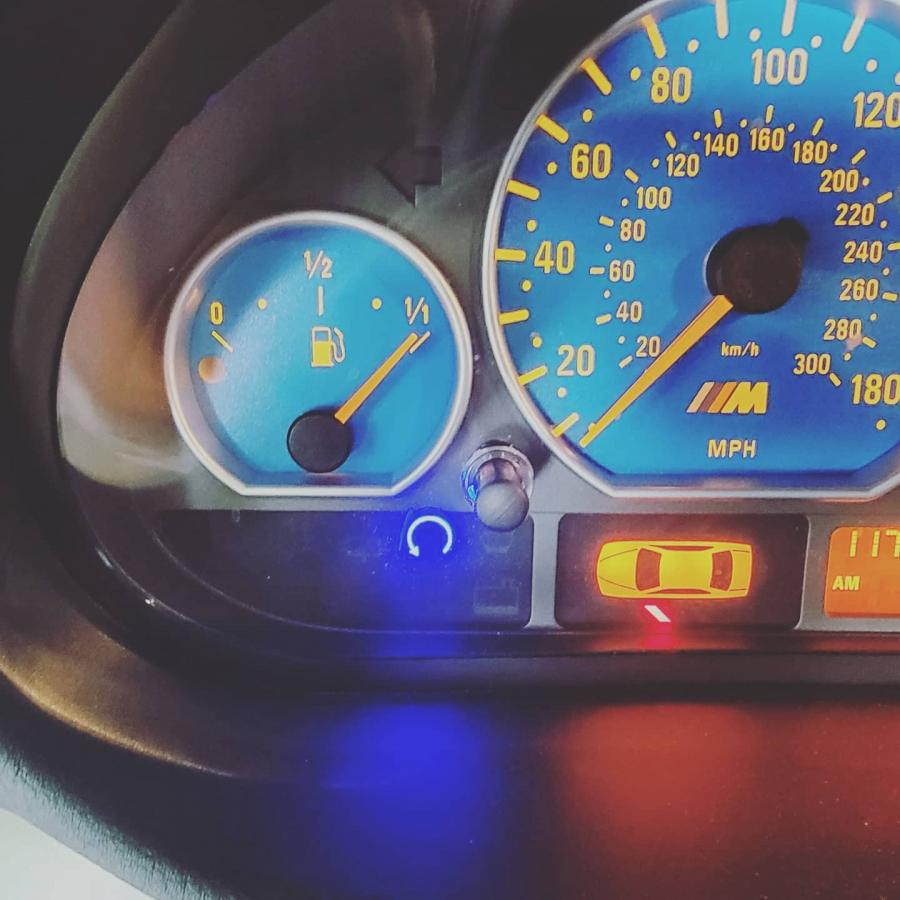

Performed this mod on my car using the procedure....bought the LEDs from Amazon.

[D-O]

I believe mine is setup to show the DSC symbol when in MTM (short button press) and when DSC is 100% off (long press) it then shows both DSC as well as the parking brake lamp in yellow.

The real deal MTM indicator would definitely be much nicer , may have to look into adding a resistor, but the current setup works.

When it became clear that I had no LED I set DTC_LAMPE to not active to get this same configuration. As Cubieman said, works but the LED would be nicer.

[D-O]

Performed this mod on my car using the procedure....bought the LEDs from Amazon.

Very slick. Did you change the LED's for the gauge faces to blue as well?

I am not very experienced at soldering, and am a bit concerned about damaging the board - I have never soldered anything to a PCB. Guess I could get one off ebay and practice first.

[Motox6]

My model year didn't have the LED in place so i ordered the blue LED. I did have solder the led in place but it's not as hard as you think. A decent soldering iron is cheap and like you said just practice a bit before you try.

[old///MFanatic]

Performed this mod on my car using the procedure....bought the LEDs from Amazon.

The purple is the color I planned to go with also. Kind of a BMW Motorsport color that’s not obtrusive. How do you like?

[D-O]

The purple is the color I planned to go with also. Kind of a BMW Motorsport color that’s not obtrusive. How do you like?

Right. Looks like you did more than add the track mode LED. Any more photos?

[Motox6]

I like it alot. I did change the cluster overlay. I will post some additional pictures.
