    Failed vanos test post Beisan

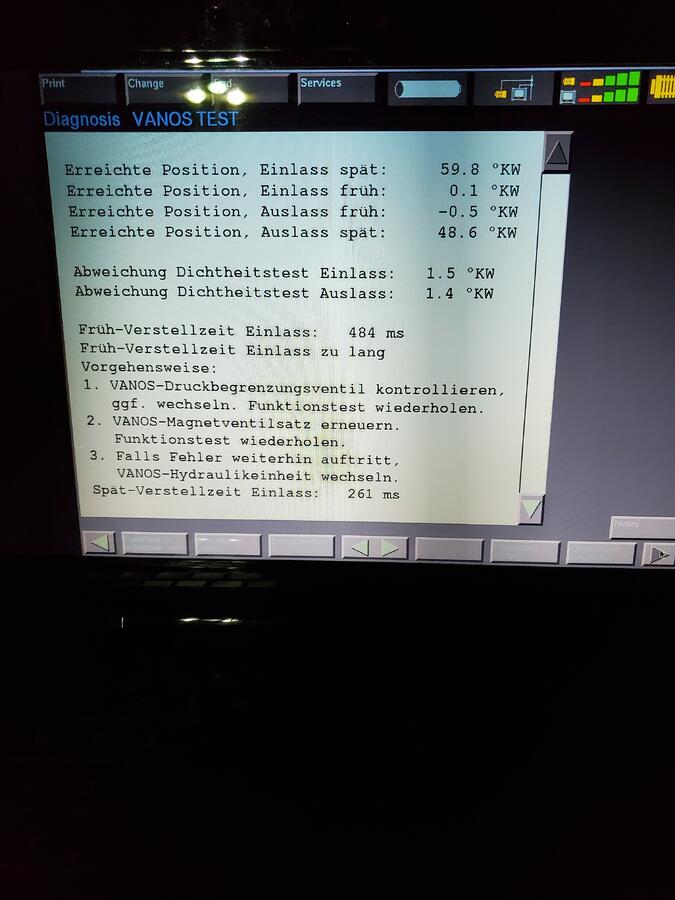

    Click image for larger version  Name:	20210303_213727.jpg Views:	0 Size:	103.6 KB ID:	88798 I drove my car for the first time after my vanos overhaul and it would appear that I failed the vanos test. I did a vanos test previous to the beisan parts being installed and when the test was finished it said "Vanos system in Ordnung", aka, "Vanos system in Order".

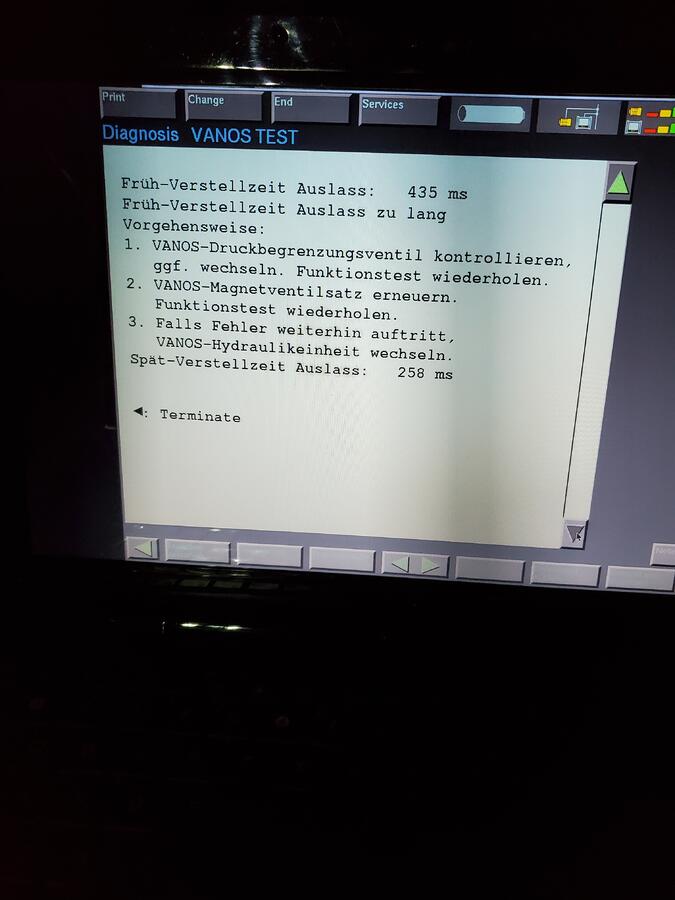

    I did not get the same message "vanos system in order" this time. Here is what follows, I will be trying google what all of these 3 things listed are but any help would be great.

    Also, no errors present.

    Edit: Rough google translation:

    1. Pressure relief valve check switch, repeat function test

    2. Solenoid valve set renew, repeat function test

    3. If error farther occurs hydraulic unit switch

    I reset ALL adaptations via Martyn's tool before the first test drive.
    Click image for larger version  Name:	20210303_211840.jpg Views:	0 Size:	93.3 KB ID:	88786
    Click image for larger version  Name:	20210303_204437.jpg Views:	0 Size:	64.7 KB ID:	88779 Click image for larger version  Name:	20210303_204447.jpg Views:	0 Size:	50.4 KB ID:	88780
    Attached Files
    Last edited by Cubieman; 03-03-2021, 08:57 PM.
    2004 Silbergrau Metallic 6MT
    Karbonius/OEM Snorkel/Flap/HTE Tuned
    Ssv1/Catted Sec. 1/SS 2.5" Sec. 2/SCZA

    OE CSL Bootlid/AS SSK/BC Coils/4.10 Gears/ Sportline 8S Wheels/Cobra Nogaros
    RACP Plates/Vincebar/CMP/Turner RTAB/Beisan

    2006 M6 Black Saphire SMG
    Instagram

    #2
    It would seem the highlighted part means "late adjustment" and on both inlet/exhaust. This is when having CSL software isn't so great.

    Rough translation of the "1,2,3 list":

    1. Pressure relief valve check switch, repeat function test

    2. Solenoid valve set renew, repeat function test

    3. If error farther occurs hydraulic unit switch

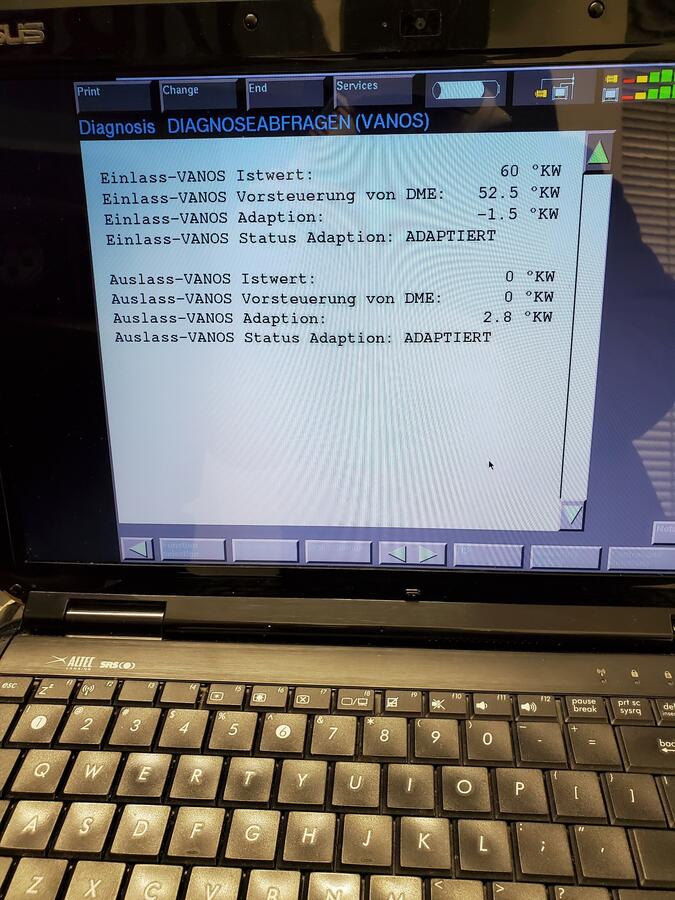

    Click image for larger version  Name:	20210303_204447.jpg Views:	0 Size:	51.4 KB ID:	88797
    Last edited by Cubieman; 03-03-2021, 08:29 PM.
    2004 Silbergrau Metallic 6MT
    Karbonius/OEM Snorkel/Flap/HTE Tuned
    Ssv1/Catted Sec. 1/SS 2.5" Sec. 2/SCZA

    OE CSL Bootlid/AS SSK/BC Coils/4.10 Gears/ Sportline 8S Wheels/Cobra Nogaros
    RACP Plates/Vincebar/CMP/Turner RTAB/Beisan

    2006 M6 Black Saphire SMG
    Instagram

    Comment


      #3
      your vanos is failing to adjust timing within the spec. In your case is taking longer than expected to advance both cams.

      this is the translation

      “early adjustment time outlet/inlet too long”

      in the context of the VANOS it means the advancement took too long. The other adjustment which is retarding the cam is ok, thus it does not generate any errors

      you can see in your results the advancement took 435 (exhaust) and 484 (intake) milliseconds.

      the retardad action took 260ms for both, which is ok. In the case of the Z4M, the tolerance is up to 500ms, but seems for the e46 M3 your values are too slow. Ideally you should see from 180 to 300 ms

      The diagnostics are telling you that

      1. you can swap the oil pressure regulator (the valve next to the vanos). This maintains pressure inside the VANOS at 115 bar

      2. Swap the solenoid valve assembly (valve body with solenoid pack)

      3 Swap the entire VANOS

      So, based on this it seems you are low in pressure which is causing the VANOS to be slow. And everything you did could have affected this. A few potential root causes

      a) You could have a leak on a seal,
      b) you could have a failing valve block
      c) you could have a failing solenoid pack
      d) you could have a failing pressure regulator valve
      c) your oil pump is just weak and does not build pressure for the VANOS to adjust timing quickly enough

      let me ask you this... is your disk a re-drilled one, or a new billet unit from Beisan?

      i have experienced low pressure in my VANOS after my rebuild, and I got a new billet disc, and I have some suspicions about it which I can elaborate.

      if it was me I would buy a manometer and measure the pressure, if under spec, you would know for sure is oil pressure related.

      search for the thread on how to measure VANOS pressure. If you have friend with an M3 you can borrow the regulator and solenoid pack and swap and test, just to discard things before you throw parts at it.

      BUT, and this is a big but, makes no sense you passed before and now you don’t. So it has to be something you changed during the service
      Last edited by maupineda; 03-03-2021, 09:06 PM.

      Comment


        #4
        Originally posted by maupineda View Post
        your vanos is failing to adjust timing within the spec. I. Your case is taking longer than expected to advance both cams.

        this is the translation

        “early adjustment time outlet too long”

        in the context of the VANOS it means the advancement took too long. The other adjustment which is retarding the cam is ok, thus it does not generate any errors

        you can see in your results the advancement took 435 (exhaust) and 484 (intake) milliseconds.

        the retardad action took 260ms for both, which is ok. In the case of the Z4M, the tolerance is up to 500ms, but seems for the e46 M3 your values are too slow. Ideally you should see from 180 to 300 ms

        The diagnostics are telling you that

        1. you can swap the oil pressure regulator (the valve next to the vanos). This maintains pressure inside the VANOS at 115 bar

        2. Swap the solenoid valve assembly (valve body with solenoid pack)

        3 Swap the entire VANOS

        So, based on this it seems you are low in pressure which is causing the VANOS to be slow. And everything you did could have affected this. A few potential root causes

        a) You could have a leak on a seal,
        b) you could have a failing valve block
        c) you could have a failing solenoid pack
        d) you could have a failing pressure regulator valve
        c) your oil pump is just weak and does not build pressure for the VANOS to adjust timing quickly enough

        let me ask you this... is your disk a re-drilled one, or a mew billet unit from Beisan?

        i have experienced low pressure in my VANOS after my rebuild, and I got a new billet disc, and I have some suspicions about it which I can elaborate.

        if it was me I would buy a manometer and measure the pressure, if under spec, you would know for sure is oil pressure related.
        Great information, thank you very much.

        I have the billet disc from Beisan with only 2 holes.
        I am sure I have done something wrong or maybe my beisan re-manned solenoid pack is bad as the vehicle passed a vanos test the day before I took the vanos apart.

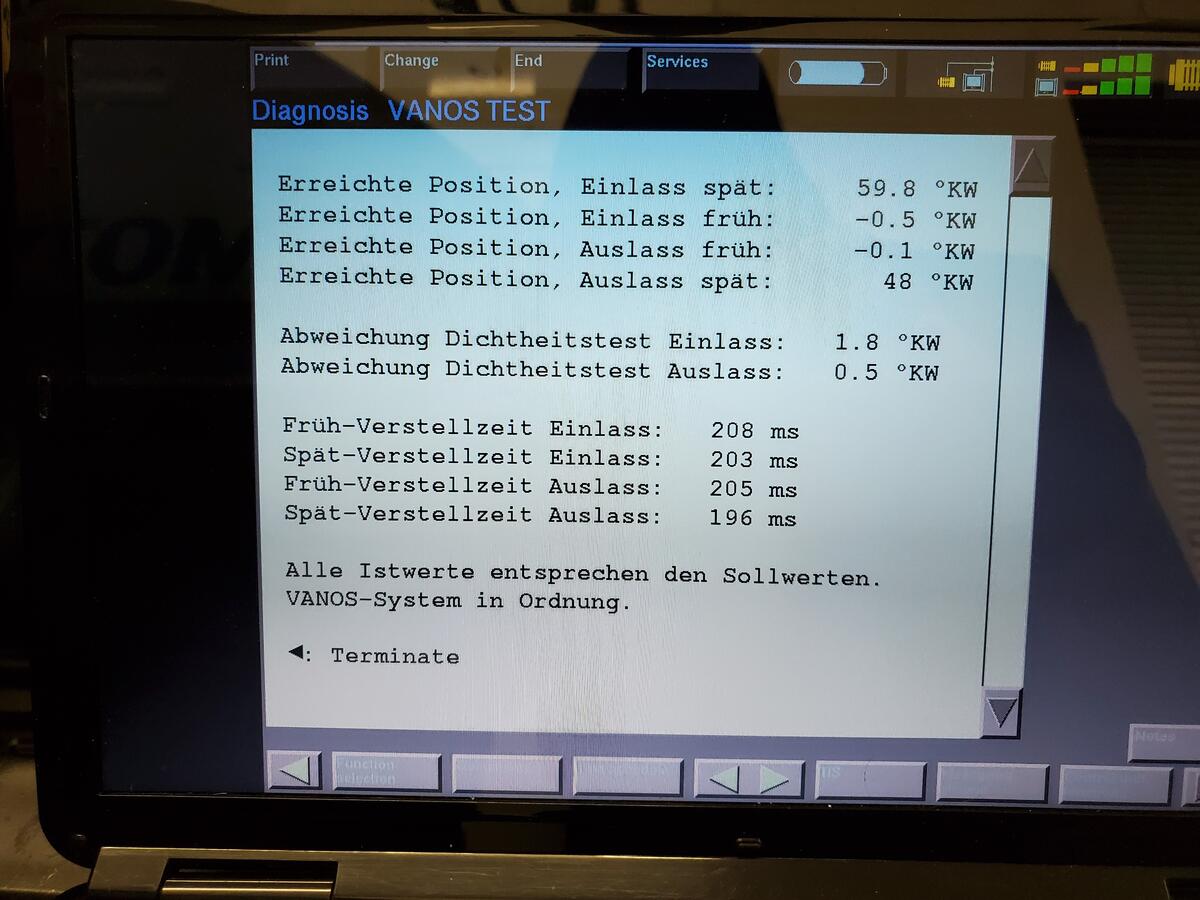

        Here is my vanos test before I took it apart:
        Click image for larger version

Name:	20201112_221600.jpg
Views:	2044
Size:	115.8 KB
ID:	88803
        Last edited by Cubieman; 03-03-2021, 09:12 PM.
        2004 Silbergrau Metallic 6MT
        Karbonius/OEM Snorkel/Flap/HTE Tuned
        Ssv1/Catted Sec. 1/SS 2.5" Sec. 2/SCZA

        OE CSL Bootlid/AS SSK/BC Coils/4.10 Gears/ Sportline 8S Wheels/Cobra Nogaros
        RACP Plates/Vincebar/CMP/Turner RTAB/Beisan

        2006 M6 Black Saphire SMG
        Instagram

        Comment


          #5
          Did you run the test right after driving it?

          Comment


            #6
            Originally posted by Cubieman View Post

            Great information, thank you very much.

            I have the billet disc from Beisan with only 2 holes.
            I am sure I have done something wrong or maybe my beisan re-manned solenoid pack is bad as the vehicle passed a vanos test the day before I took the vanos apart.

            Here is my vanos test before I took it apart:
            Click image for larger version  Name:	20201112_221600.jpg Views:	1 Size:	115.8 KB ID:	88803
            Man your vanos was perfect before!

            i dont think your screwed the seals as you are passing the leak test

            what mileage you have on your car?

            please measure your VANOS pressure, if it is low I fear the culprit is the disc. I have the same problem, but my VANOS passes the test, but I know my pressure is not to spec as I have tested it. I have bought a spare VANOS unit as I may revisit this again to have the pressure issue addressed. this time around I had the disc of the unit I bought re-drilled.

            One thing you will find is that the car drives fine, so this only affects our OCD and yes, not ideal for max performance I guess.
            Last edited by maupineda; 03-03-2021, 09:46 PM.

            Comment


              #7
              Originally posted by Icecream View Post
              Did you run the test right after driving it?
              It was driven, parked, then vanos test was run roughly 5-6 minutes after parking it. Vehicle sat for about 3 months and I drove it carefully tonight. Let it get up to temp. before taking it over 3k, never exceeded 5k during drive tonight.

              Any chance a few spirited drives might "set" the seals etc. or is that just wishful thinking?
              2004 Silbergrau Metallic 6MT
              Karbonius/OEM Snorkel/Flap/HTE Tuned
              Ssv1/Catted Sec. 1/SS 2.5" Sec. 2/SCZA

              OE CSL Bootlid/AS SSK/BC Coils/4.10 Gears/ Sportline 8S Wheels/Cobra Nogaros
              RACP Plates/Vincebar/CMP/Turner RTAB/Beisan

              2006 M6 Black Saphire SMG
              Instagram

              Comment


                #8
                Originally posted by maupineda View Post

                Man your vanos was perfect before!

                i do t think your screwed the seals as you are passing the leak test

                what mileage you have on your car?

                please measure your VANOS pressure, if it is low I fear the culprit is the disc. I have the same problem, but my VANOS passes the test, but I know my pressure is not to spec as I have tested it. I have bought a spare VANOS unit as I may revisit this again to have the pressure issue addressed. this time around I had the disc of the unit I bought re-drilled.

                One thing you will find is that the car drives fine, so this only affects our OCD and yes, not ideal for max performance I guess.
                Yea, I just couldn't leave it alone, just HAD to do the Beisan stuff, well because.

                The vehicle has 67K on it.

                What specific tools are required to test vanos pressure, you mentioned a manometer?

                Do you have a theory that the "new style" beisan disc's may have an issue (low oil press.)?

                Thanks.
                2004 Silbergrau Metallic 6MT
                Karbonius/OEM Snorkel/Flap/HTE Tuned
                Ssv1/Catted Sec. 1/SS 2.5" Sec. 2/SCZA

                OE CSL Bootlid/AS SSK/BC Coils/4.10 Gears/ Sportline 8S Wheels/Cobra Nogaros
                RACP Plates/Vincebar/CMP/Turner RTAB/Beisan

                2006 M6 Black Saphire SMG
                Instagram

                Comment


                  #9
                  Originally posted by Cubieman View Post

                  Yea, I just couldn't leave it alone, just HAD to do the Beisan stuff, well because.

                  The vehicle has 67K on it.

                  What specific tools are required to test vanos pressure, you mentioned a manometer?

                  Do you have a theory that the "new style" beisan disc's may have an issue (low oil press.)?

                  Thanks.
                  Yes, you car is low miles, and so is my Z4M, and in both cases there are symptoms of low pressure. My Vanos takes 300ms to adjust and it should be 200 for a healthy unit. And we both pass leaks, so is not that you screwed the seals. The solenoid pack is unlikely to be the issue or you would have codes, or the VANOS would fail to advance or retard. But if you have a spare, that is easy to test by swapping them out

                  based on all your data you can do the following from less to more expensive

                  Measure pressure
                  borrow and test a pressure regulator valve
                  borrow and test another valve assembly

                  if problem remains after the above, no doubt, your pump does not build pressure.
                  Last edited by maupineda; 03-03-2021, 09:48 PM.

                  Comment


                    #10
                    Originally posted by maupineda View Post

                    Yes, you car is low miles, and so is my Z4M, and in both cases there are symptoms of low pressure. My Vanos takes 300ms to adjust and it should be 200 for a healthy unit. And we both pass leaks, so is not that you screwed the seals. The solenoid pack is unlikely to be the issue or you would have codes, or the VANOS would fail to advance or retard. But if you have a spare, that is easy to test by swapping them out

                    based on all your data you can do the following from less to more expensive

                    Measure pressure
                    borrow and test a pressure regulator valve
                    borrow and test another valve assembly

                    if problem remains after the above, no doubt, your pump does not build pressure.
                    If pump does not build pressure, does that just come down to the disc itself or are there other items to look at? I know I got all 4 springs/"nipples" inserted correctly into the pump disc.

                    Im glad I performed a successful vanos test less than 24 hours before disassembly, and I'm glad to have people on here that are able to help me out, there is no shop locally that will touch my car with CSL firmware.

                    I may need to rent a pressure regulator valve and valve body if anyone would be willing. I would make it worth your while.

                    I sure hope this isn't a problem with the Beisan disc, I sent mine in for a core.
                    2004 Silbergrau Metallic 6MT
                    Karbonius/OEM Snorkel/Flap/HTE Tuned
                    Ssv1/Catted Sec. 1/SS 2.5" Sec. 2/SCZA

                    OE CSL Bootlid/AS SSK/BC Coils/4.10 Gears/ Sportline 8S Wheels/Cobra Nogaros
                    RACP Plates/Vincebar/CMP/Turner RTAB/Beisan

                    2006 M6 Black Saphire SMG
                    Instagram

                    Comment


                      #11
                      Originally posted by Cubieman View Post

                      It was driven, parked, then vanos test was run roughly 5-6 minutes after parking it. Vehicle sat for about 3 months and I drove it carefully tonight. Let it get up to temp. before taking it over 3k, never exceeded 5k during drive tonight.

                      Any chance a few spirited drives might "set" the seals etc. or is that just wishful thinking?
                      Kinda what I was getting at. Oil has to be up to temp too when you run it. Mine failed the first try and passed the second time around.

                      Comment


                        #12
                        Originally posted by Icecream View Post

                        Kinda what I was getting at. Oil has to be up to temp too when you run it. Mine failed the first try and passed the second time around.
                        Oil was most definitely up to temperature. In fact, I ran a second vanos when I got back home and came up with similar results. I contacted Raj at Besian to see if he can shed some light.

                        I'll drive it around more tomorrow and re-test it. Just can't help but mess up a good thing.
                        2004 Silbergrau Metallic 6MT
                        Karbonius/OEM Snorkel/Flap/HTE Tuned
                        Ssv1/Catted Sec. 1/SS 2.5" Sec. 2/SCZA

                        OE CSL Bootlid/AS SSK/BC Coils/4.10 Gears/ Sportline 8S Wheels/Cobra Nogaros
                        RACP Plates/Vincebar/CMP/Turner RTAB/Beisan

                        2006 M6 Black Saphire SMG
                        Instagram

                        Comment


                          #13
                          Originally posted by Cubieman View Post

                          Oil was most definitely up to temperature. In fact, I ran a second vanos when I got back home and came up with similar results. I contacted Raj at Besian to see if he can shed some light.

                          I'll drive it around more tomorrow and re-test it. Just can't help but mess up a good thing.
                          I had that conversation with him and will say I was not just completely sold on. He said his disc is perfect and said my car may have a worn-out pump shaft (where you insert the disc). But how come a car with 43k miles and in very good condition and clean inside, have a worn shaft when the only item that changed was the disc?

                          he even said I could try and change the shaft but after many hours of analyzing how this works I am convinced the low pressure is due to tolerances between features of the shaft and the disc, this interface is very similar to a rod bearing-crank one, in fact more sensitive, as you want disc to build pressure as it spins around the shaft. There are holes in the shaft and disc, as the disc spins and those holes overlap it creates the suck/pumping effect, if these holes do not line up perfectly there will be pumping losses.

                          The best thing one can do is test pressure and VANOS before changing anything and if pressure fine, just have the disc re drilled, that way you know you have a match pair ILO using a disc from who knows what car (miles, service history, etc)

                          many will say there are thousands of successful repairs out there but how many people are actually testing their VANOS after service? I bet veeeery few, so there is no data. And as I said, the car will drive “fine”.

                          there are two pieces of hardware that are key to VANOS that you changed, so not many things to look at. Either a bad solenoid body assembly, or pump issue (disc)

                          your seals are fine as you are passing the leak test with just 1.5 degree deviation, so the system is nice and tight, tolerance here is up to 5 degrees.

                          for the record, a friend and I did the VANOS on his Z4M and we got better results after the service, he had 3 degrees of deviation during leak teat, after the service he had just 1.2 (means he had tired seals, but not completely shot) his time response was unchanged (same as before) but I had him drop the idea of reusing a spare disc he had come by and instead have his own redrilled. In his case we also achieved better timing (smaller adaptations) than before.
                          Last edited by maupineda; 03-04-2021, 04:18 AM.

                          Comment


                            #14
                            Originally posted by maupineda View Post

                            I had that conversation with him and will say I was not just completely sold on. He said his disc is perfect and said my car may have a worn-out pump shaft (where you insert the disc). But how come a car with 43k miles and in very good condition and clean inside, have a worn shaft when the only item that changed was the disc?

                            he even said I could try and change the shaft but after many hours of analyzing how this works I am convinced the low pressure is due to tolerances between features of the shaft and the disc, this interface is very similar to a rod bearing-crank one, in fact more sensitive, as you want disc to build pressure as it spins around the shaft. There are holes in the shaft and disc, as the disc spins and those holes overlap it creates the suck/pumping effect, if these holes do not line up perfectly there will be pumping losses.

                            The best thing one can do is test pressure and VANOS before changing anything and if pressure fine, just have the disc re drilled, that way you know you have a match pair ILO using a disc from who knows what car (miles, service history, etc)

                            many will say there are thousands of successful repairs out there but how many people are actually testing their VANOS after service? I bet veeeery few, so there is no data. And as I said, the car will drive “fine”.

                            there are two pieces of hardware that are key to VANOS that you changed, so not many things to look at. Either a bad solenoid body assembly, or pump issue (disc)

                            your seals are fine as you are passing the leak test with just 1.5 degree deviation, so the system is nice and tight, tolerance here is up to 5 degrees.

                            for the record, a friend and I did the VANOS on his Z4M and we got better results after the service, he had 3 degrees of deviation during leak teat, after the service he had just 1.2 (means he had tired seals, but not completely shot) his time response was unchanged (same as before) but I had him drop the idea of reusing a spare disc he had come by and instead have his own redrilled. In his case we also achieved better timing (smaller adaptations) than before.
                            Your theory on the pump disc/shaft interface makes sense to me, I very much regret sending my original disc in now, I just assumed the Beisan disc is all I would ever need. Not to knock Beisan, that product may have nothing to do with vanos response time going down, but as noted the pump disc is critical to building pressure and as my previous vanos test was done the day before rebuild that could lend to your bad disc theory.

                            Could you possibly give me a bit of info on what specific fittings etc I would need to tap into the vanos to preform and oil pressure test?
                            2004 Silbergrau Metallic 6MT
                            Karbonius/OEM Snorkel/Flap/HTE Tuned
                            Ssv1/Catted Sec. 1/SS 2.5" Sec. 2/SCZA

                            OE CSL Bootlid/AS SSK/BC Coils/4.10 Gears/ Sportline 8S Wheels/Cobra Nogaros
                            RACP Plates/Vincebar/CMP/Turner RTAB/Beisan

                            2006 M6 Black Saphire SMG
                            Instagram

                            Comment


                              #15
                              I think Lang or prob other shops, maybe bimmerworld or RE, have a vanos test setup with fittings and gauge you can buy. Interesting about the pump disc. Mau, are you saying this about the newer, proprietary disc and not the OE ones he would re-drill 90 degrees offset?
                              DD: /// 2011.5 Jerez/bamboo E90 M3 · DCT · Slicktop · Instagram
                              /// 2004 Silvergrey M3 · Coupe · 6spd · Slicktop · zero options
                              More info: https://nam3forum.com/forums/forum/m...os-supersprint

                              Comment
