Karter16's Silbergrau E46 M3 Journal

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • davidinnyc
    replied
    Originally posted by Bry5on View Post
    I might need to borrow this…

    Leave a comment:


  • karter16
    replied
    Originally posted by rtrules View Post
    Nice job! But maybe you will have the same problem as I do, you can't properly open the false floor now, because it could get stuck against the bracing.
    Only a problem if you often want to access the tools below or store some stuff between there.
    But I will have to make bigger cutouts sometime because it's little bit annoying.
    Yeah it's a good point - I accounted for this enough with mine to mean I can lift the floor up enough to get the tray out without having to remove the floor, but you can't tip it all the way up to the trunk lid. Good point though to remember this when doing your cutouts.

    Leave a comment:


  • rtrules
    replied
    Nice job! But maybe you will have the same problem as I do, you can't properly open the false floor now, because it could get stuck against the bracing.
    Only a problem if you often want to access the tools below or store some stuff between there.
    But I will have to make bigger cutouts sometime because it's little bit annoying.

    Leave a comment:


  • Bry5on
    replied
    Wow that came out miraculously well. Nice job.

    Leave a comment:


  • karter16
    replied
    Life has been super busy since August or so. Over the summer break I was mostly prioritising spending time with family and getting things done around the house. This weekend though my wife and kids have been busy with some friends which has given me some free time.

    I've been avoiding doing the trunk interior reinstall after doing the rear RACP brace because I keep changing my mind on the best way to approach it. Finally decided on the following approach.

    1: Modify the stock trunk false floor to fit around the RACP brace.
    2: Make a cutout in each of the side forms just large enough for the brace to protrude through (e.g. side form is installed after the brace is installed), with a vertical cut to aid installation. As far as I can tell from looking at photos this is how BMW did it with the GTR Strassenversion so figured I'd go with the same approach.
    3: Cutouts in the trunk carpet around the vertical tubes for the rear points of the RACP brace.


    First up - the false floor. It's made of a composite shell with a rubber foam core, with a felt-type material over the whole thing. I wanted to make it look as original as possible so experimented with separating the felt layer with a blade and the like. It proved to not be possible to separate the felt that way, so I came up with a truely dumbass idea.

    Click image for larger version

Name:	IMG_3965.jpg
Views:	74
Size:	169.7 KB
ID:	340176

    Prior to this I made a cardboard copy of the false floor and used it to verify the exact shape I needed to cut out of the false floor. I then cut out a shape 10mm smaller, and used a Dremel cutting disk which had 10mm of cutting depth, to slot out the foam and then grind out the composite shell leaving only the felt. I'm as surprised as you are that this actually worked, although I still think it's a dumb idea. I managed to execute this without any mistakes, and was then able to glue and fold over the felt. I then trimmed the edge the following day. If you look at it closely you can tell it's been modified, but from a few feet away you can't tell. I'm pleased with how it turned out. I considered various options like making a replacement false floor, but to get something lightweight enough was getting pretty expensive for something I didn't feel that strongly about, and still wasn't going to have all the perfect form shapes for mating with the polystyrene tool tray like the original has.

    Apparently I didn't take any close up photos, but here's a photo of it installed, which ironically doesn't really show all the effort I went to with felting the edges of my cuts:

    Click image for larger version

Name:	IMG_3967.jpg
Views:	63
Size:	207.5 KB
ID:	340177

    This morning I moved on to the side forms. I'd previously bought a replacement LHS side one that doesn't have the space for the CD changer etc, as I don't need it now I have the Xtrons head unit and I'd rather have the additional trunk space.

    As I mentioned above I spent some time months ago looking at photos of the GTR and figuring out what they had likely done. I think they simply made a cut, and then shaped out around where the tube of the brace protrudes through. I decided the same approach was good enough for me. I didn't want to go the route of having a cut out large enough to install the form first and the brace second - I wanted it to look as OE as possible.

    Fortunately the luggage loops provide an excellent reference point for measurements as the side forms have cuts in them where the loops protrude through. I carefully measured everything up, under cutting to begin with. A few back and forths and I had them fitting very nicely indeed!

    Click image for larger version

Name:	IMG_3967.jpg
Views:	66
Size:	207.5 KB
ID:	340181
    Click image for larger version

Name:	IMG_3968.jpg
Views:	66
Size:	251.8 KB
ID:	340180
    Click image for larger version

Name:	IMG_3969.jpg
Views:	66
Size:	204.4 KB
ID:	340179
    Click image for larger version

Name:	IMG_3970.jpg
Views:	67
Size:	134.3 KB
ID:	340178
    Click image for larger version

Name:	IMG_3971.jpg
Views:	66
Size:	177.4 KB
ID:	340182

    The forms are pretty stiff, so once installed properly it all fits back into place (you can actually see in these photos that the RHS one isn't quite aligned, there was a cable running by the luggage loop that seems to have been misrouted by someone in the past and was making the side form sit slightly funny, relocated that and it looks good. I'm very happy with the outcome - this worked out how I was envisioning - fortunately my execution was good enough!

    Then finally it was on to installing the side trays and the trunk liner.

    Despite a lot of measuring I managed to cut the lining so that it is about 1/3 of an inch too far forward. I rechecked my measurements afterwards and they still seem good to me, so seems to be a case of just the way it lies doesn't quite match up. To be honest you guys and myself are the only people who will ever notice, but I will pick up a replacement liner when I next see one and will redo this to satisfy my own unrealistic standards of myself when it comes to doing things perfectly that I've never done before.


    Here is the finished result:

    Click image for larger version

Name:	IMG_3979.jpg
Views:	64
Size:	191.8 KB
ID:	340186
    Click image for larger version

Name:	IMG_3981.jpg
Views:	66
Size:	203.3 KB
ID:	340189
    Click image for larger version

Name:	IMG_3982.jpg
Views:	68
Size:	200.4 KB
ID:	340184
    Click image for larger version

Name:	IMG_3983.jpg
Views:	66
Size:	214.4 KB
ID:	340185
    Click image for larger version

Name:	IMG_3984.jpg
Views:	68
Size:	200.2 KB
ID:	340183
    Click image for larger version

Name:	IMG_3985.jpg
Views:	66
Size:	253.6 KB
ID:	340188
    Click image for larger version

Name:	IMG_3986.jpg
Views:	69
Size:	252.8 KB
ID:	340187

    Still to do:

    - Trim the rear bench seat sound mat that you can see protruding through.
    - Put the caps on the rear vertical pipe sections of the brace.
    - Install the push pins things that keep the side forms in place.
    - Clean the carpets now that I've finished messing around with install.


    Leave a comment:


  • karter16
    replied
    I'm super happy with how these turned out!

    Laser-cut genuine Alcantara Soft (9002 Anthracite).

    Click image for larger version

Name:	IMG_3895.jpg
Views:	106
Size:	222.7 KB
ID:	338329

    Click image for larger version

Name:	IMG_3897.jpg
Views:	108
Size:	228.0 KB
ID:	338331

    Click image for larger version

Name:	IMG_3899.jpg
Views:	116
Size:	179.9 KB
ID:	338328

    Click image for larger version

Name:	IMG_3898.jpg
Views:	108
Size:	202.7 KB
ID:	338330

    Leave a comment:


  • karter16
    replied
    Originally posted by heinzboehmer View Post

    Should be fine if you don't plan on taking it apart too much, but these things are pretty nice: https://cnckitchenus.store/collections/metric-inserts-1
    Those are indeed very nice. Hmm I wonder if I should go this route. Then again, I'm planning to assemble this once and leave it like that for the rest of time, so it might be overkill (doesn't sounds like me at all )

    Leave a comment:


  • karter16
    replied
    Soldered the BDM headers today. Hands slightly less steady than when I was 20, but got the job done alright.

    Click image for larger version

Name:	IMG_3849.jpg
Views:	129
Size:	120.4 KB
ID:	333148

    Click image for larger version

Name:	IMG_3846.jpg
Views:	126
Size:	163.2 KB
ID:	333149

    Still waiting for the programmer to arrive. Sent them another email today asking at what point they're prepared to accept it's got lost in the post.

    Leave a comment:


  • heinzboehmer
    replied
    Originally posted by karter16 View Post

    It's just a regular PLA in forest green, but for some reason ALWAYS prints like that (other PLA's come out lovely). Dad calls it "prototyping green" and is using it up on test prints where it doesn't really matter.

    Yep the plan for the fasteners is self tapping screws directly into the plastic. This isn't something that I'm planning on needing to disassemble very often so should be fine in terms of robustness. (unless you have a better suggestion?)
    Should be fine if you don't plan on taking it apart too much, but these things are pretty nice: https://cnckitchenus.store/collections/metric-inserts-1

    Leave a comment:


  • karter16
    replied
    Originally posted by heinzboehmer View Post
    What material is that printed in? I totally get why your dad doesn't like it

    What's your plan for the fasteners? Self tappers directly into the plastic?
    It's just a regular PLA in forest green, but for some reason ALWAYS prints like that (other PLA's come out lovely). Dad calls it "prototyping green" and is using it up on test prints where it doesn't really matter.

    Yep the plan for the fasteners is self tapping screws directly into the plastic. This isn't something that I'm planning on needing to disassemble very often so should be fine in terms of robustness. (unless you have a better suggestion?)

    Leave a comment:


  • heinzboehmer
    replied
    What material is that printed in? I totally get why your dad doesn't like it

    What's your plan for the fasteners? Self tappers directly into the plastic?

    Leave a comment:


  • karter16
    replied
    Test print of the final SMG bracket design:

    Click image for larger version

Name:	IMG_3833.jpg
Views:	166
Size:	188.1 KB
ID:	332705

    Click image for larger version

Name:	IMG_3834.jpg
Views:	163
Size:	183.0 KB
ID:	332706

    I'm really pleased with how this design has turned out. I'll run this for a while and make sure all is well. Hopefully at some point others are keen to give this a go as need to test it with Karb and OE snorkels to make sure clearance is still all good with those.

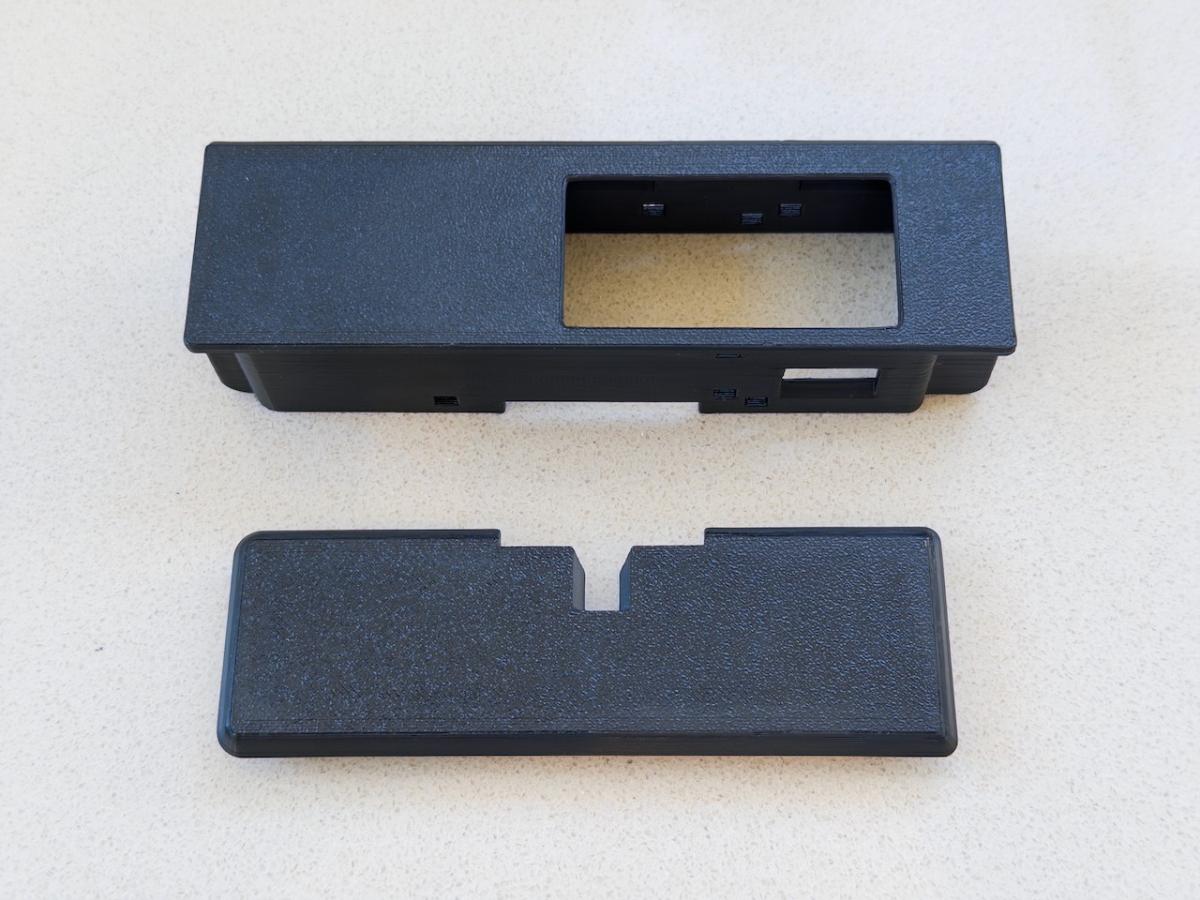

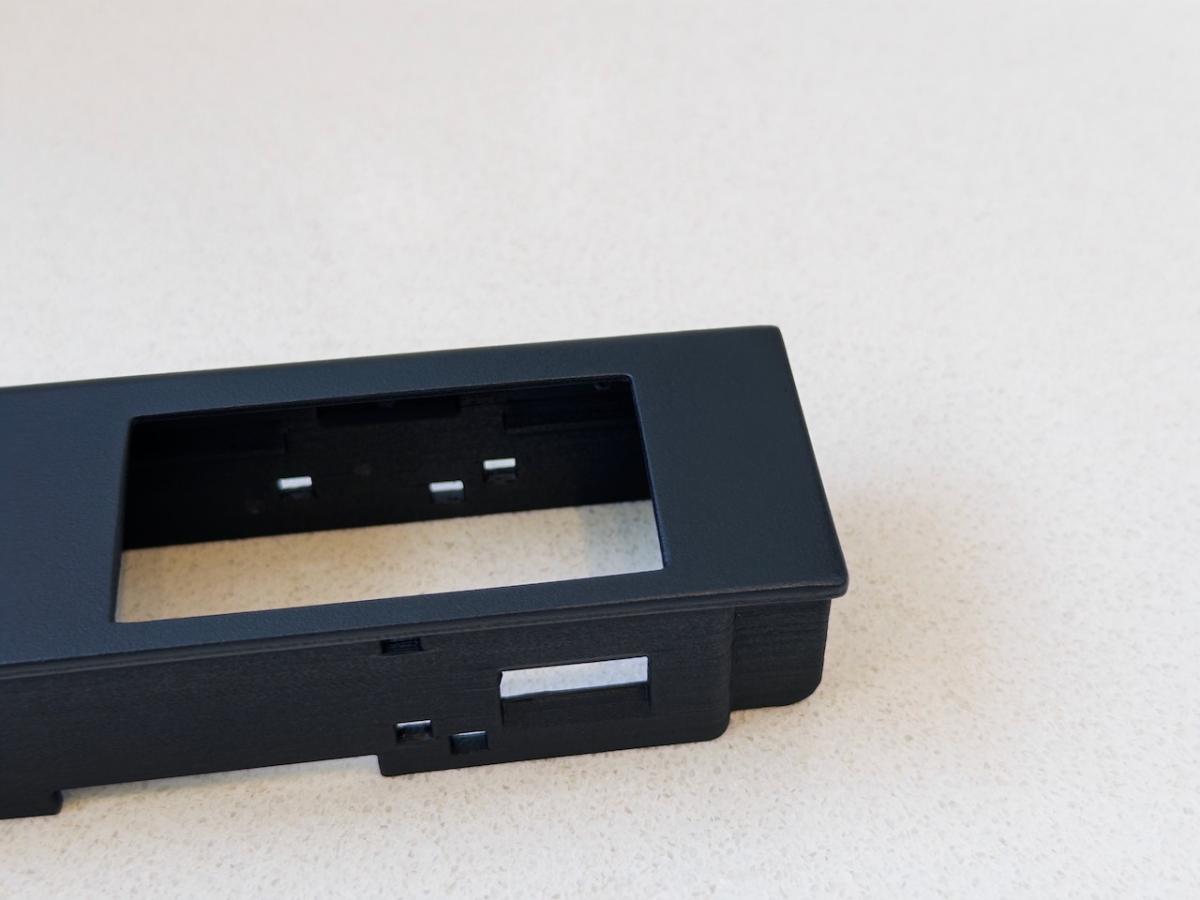

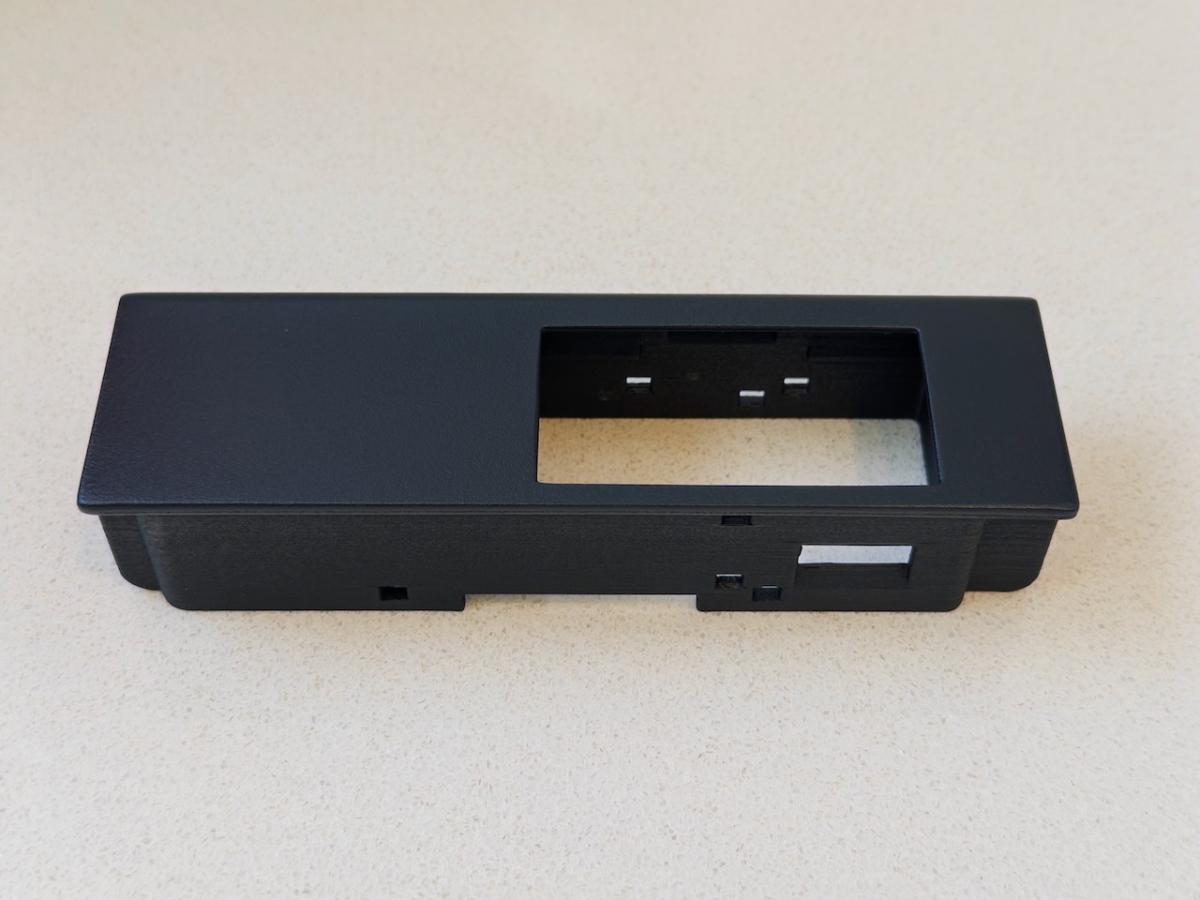

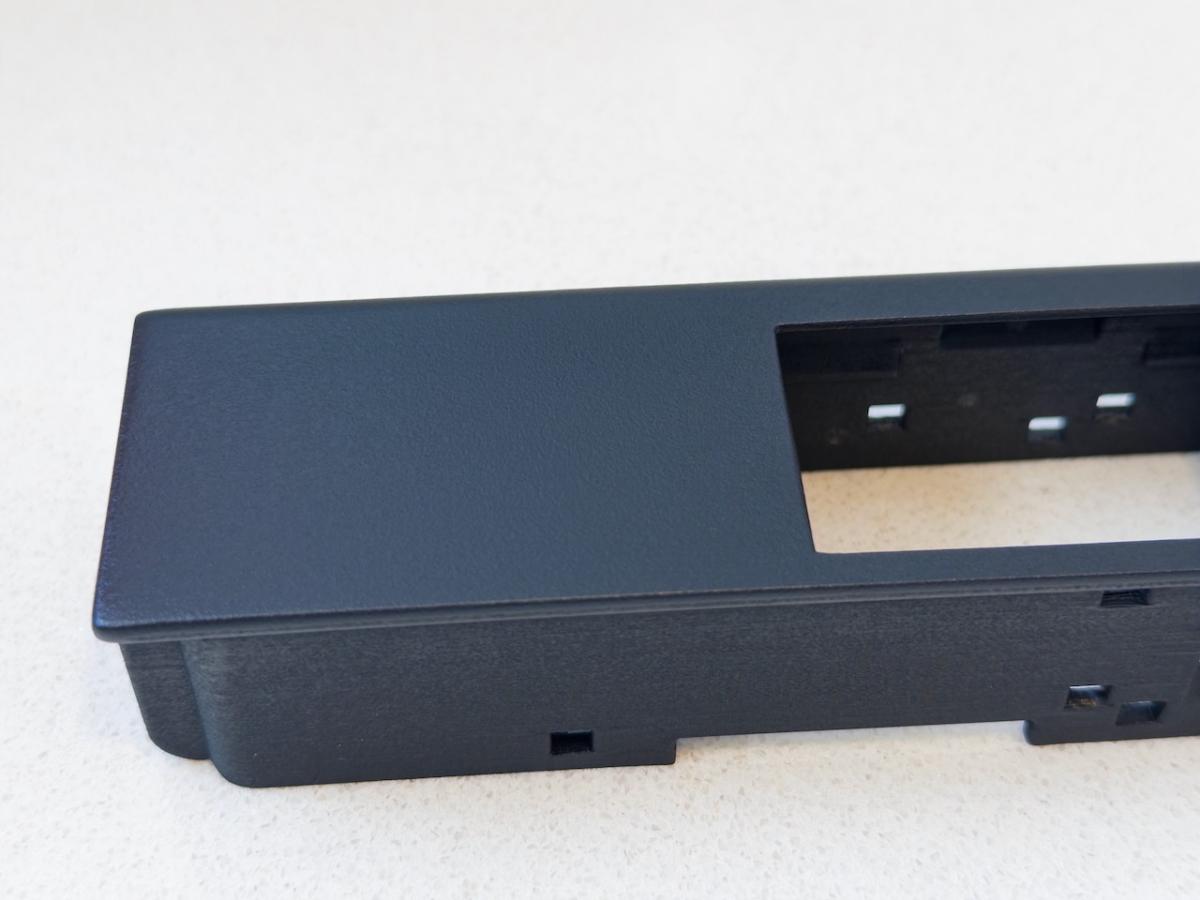

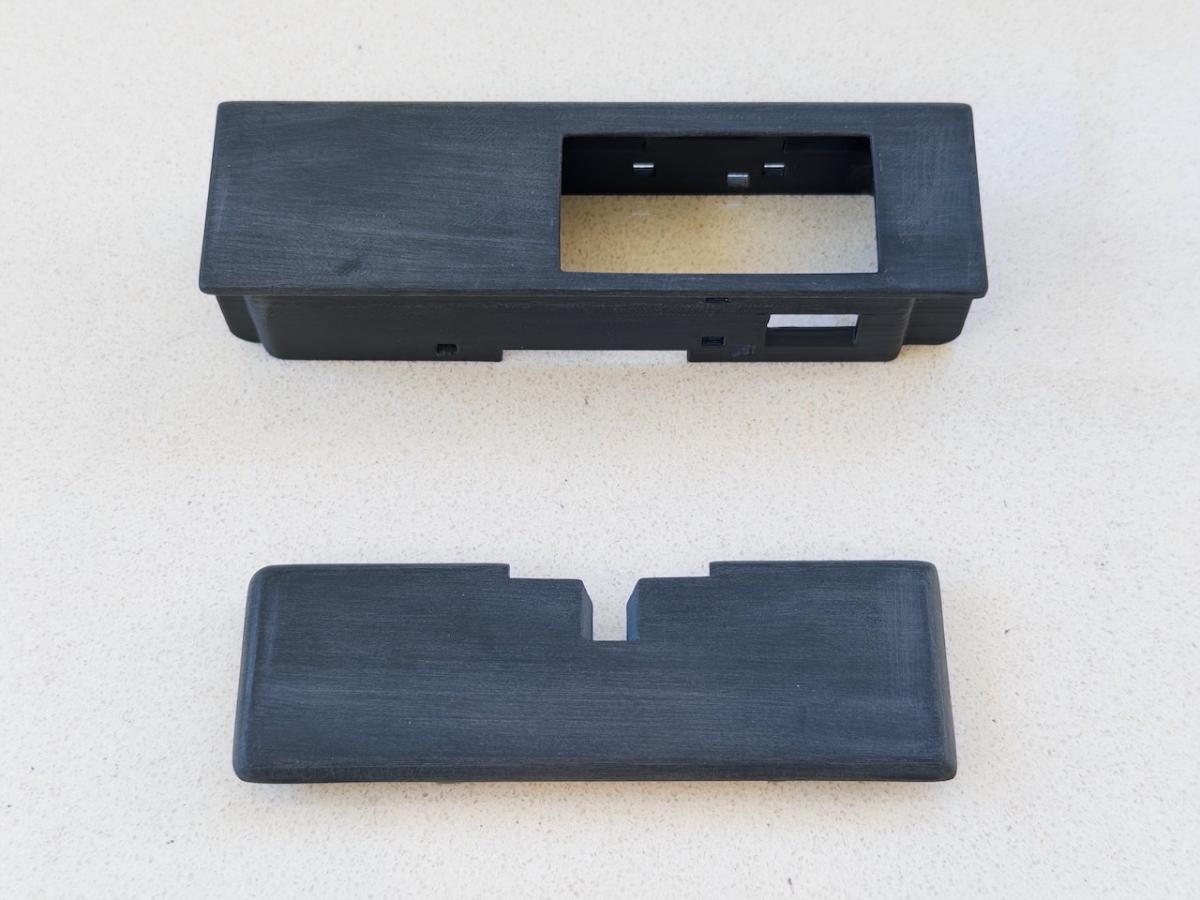

    Also completed assembly test of the Gauge.S enclosure (You can see in the photos why it's Dad's least-favourite filament). Everything fits great thought and I think this is now ready for me to do a final design now that I have the packaging confirmed.

    Click image for larger version

Name:	IMG_3826.jpg
Views:	160
Size:	259.0 KB
ID:	332711
    Click image for larger version

Name:	IMG_3827.jpg
Views:	162
Size:	161.0 KB
ID:	332707
    Click image for larger version

Name:	IMG_3828.jpg
Views:	161
Size:	173.7 KB
ID:	332709
    Click image for larger version

Name:	IMG_3829.jpg
Views:	158
Size:	199.6 KB
ID:	332710
    Click image for larger version

Name:	IMG_3830.jpg
Views:	158
Size:	194.6 KB
ID:	332708
    Click image for larger version

Name:	IMG_3831.jpg
Views:	157
Size:	171.9 KB
ID:	332712

    Leave a comment:


  • karter16
    replied

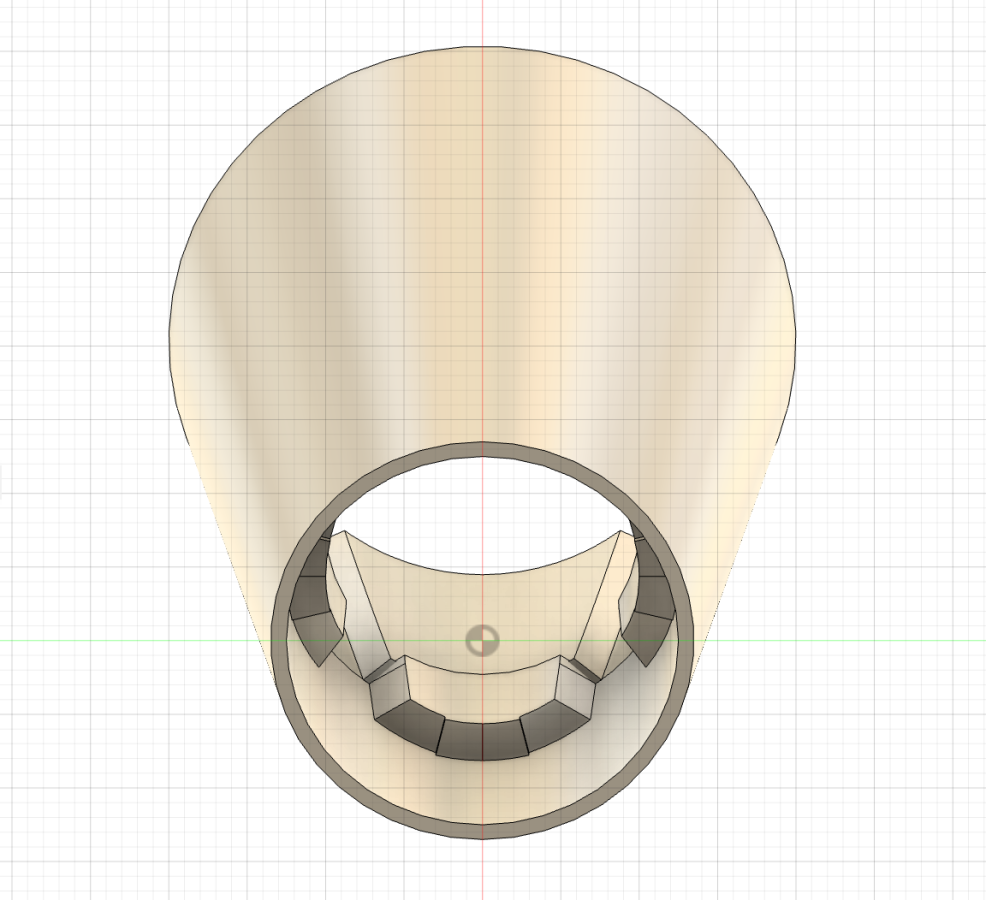

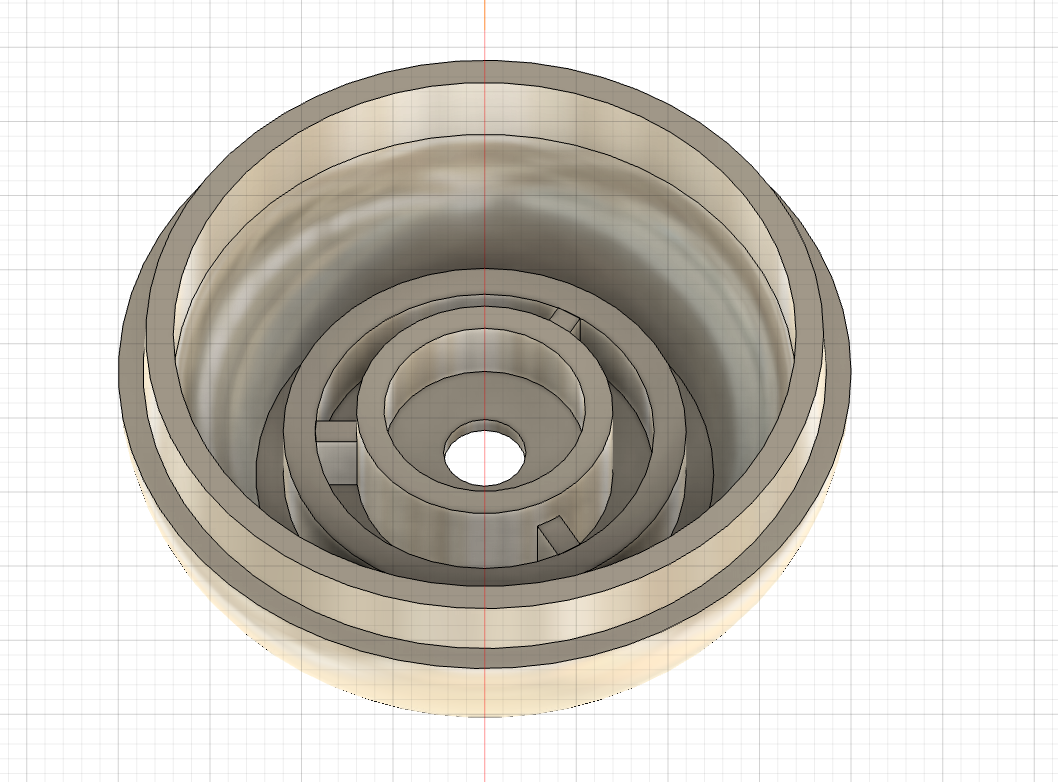

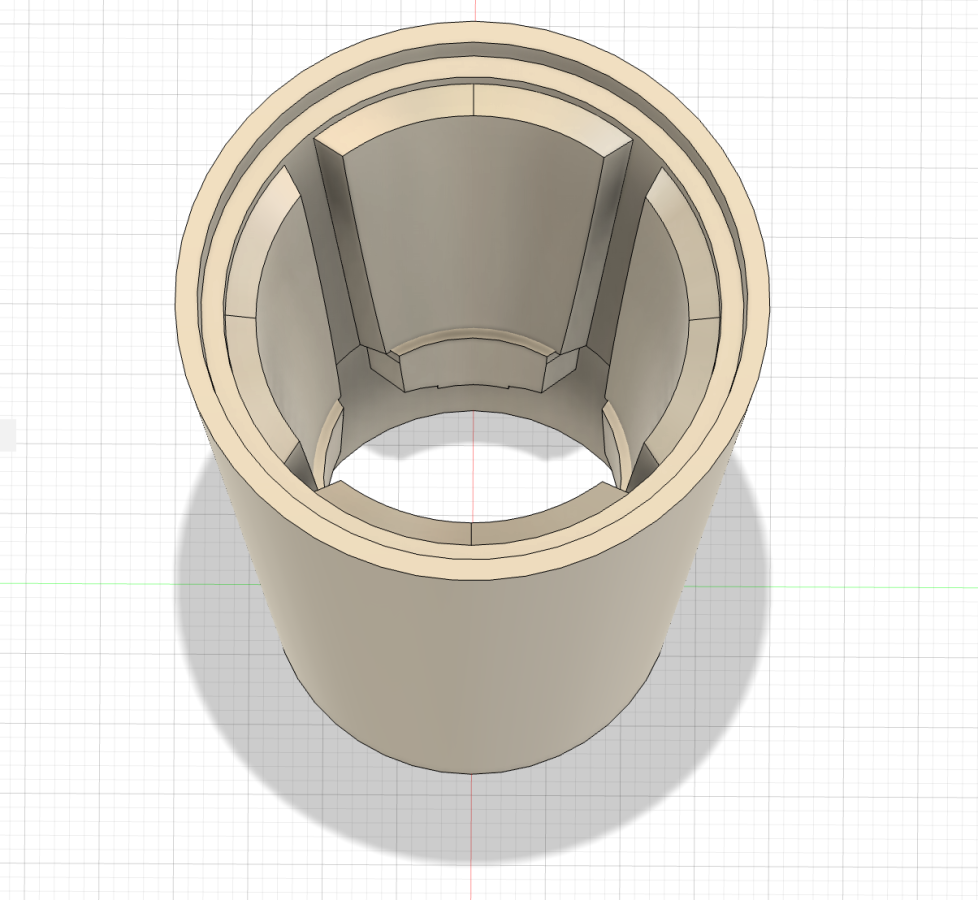

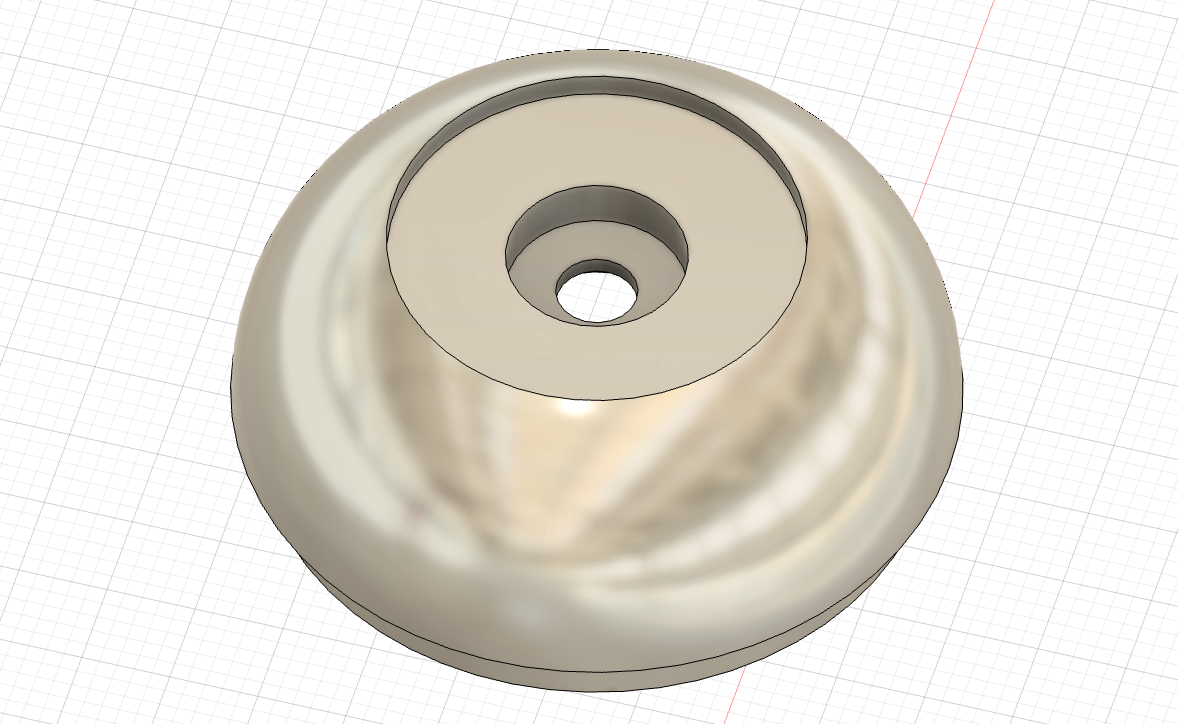

    Final version is out for printing!



    Click image for larger version

Name:	Screenshot 2026-01-04 at 11.29.33 AM.png
Views:	183
Size:	285.9 KB
ID:	332090
    Click image for larger version

Name:	Screenshot 2026-01-04 at 11.29.52 AM.png
Views:	186
Size:	211.2 KB
ID:	332091

    Click image for larger version

Name:	Screenshot 2026-01-04 at 11.30.02 AM.png
Views:	185
Size:	140.6 KB
ID:	332089

    Click image for larger version

Name:	Screenshot 2026-01-04 at 11.30.17 AM.png
Views:	192
Size:	145.6 KB
ID:	332088

    Leave a comment:


  • Arclitgold
    replied
    Originally posted by Bry5on View Post
    YES! Thank you Bry5on!

    also looking forward to see how yours pans out karter16

    Leave a comment:


  • karter16
    replied
    ​Finally! v7467 (exaggerated) is the one!



    Now that I've got the placement spot on I'll take those datum planes/points and model up a final clean version.

    Leave a comment:
