    #16
    E83 and E85/86 DSP amps are exactly the same in hardware. They just change the outputs depending on coding.

    The rear door speakers are used normally, just the trunk ones are missing due to the subs.

    E85/86 coding has Front: High/Mid/Low and Back:High&Mid door only and Subwoofers (highpower)

    E83 is Front: High/Mid/Centralbass (highpower) and Rear: Door High/Mid

    Comment


      #17

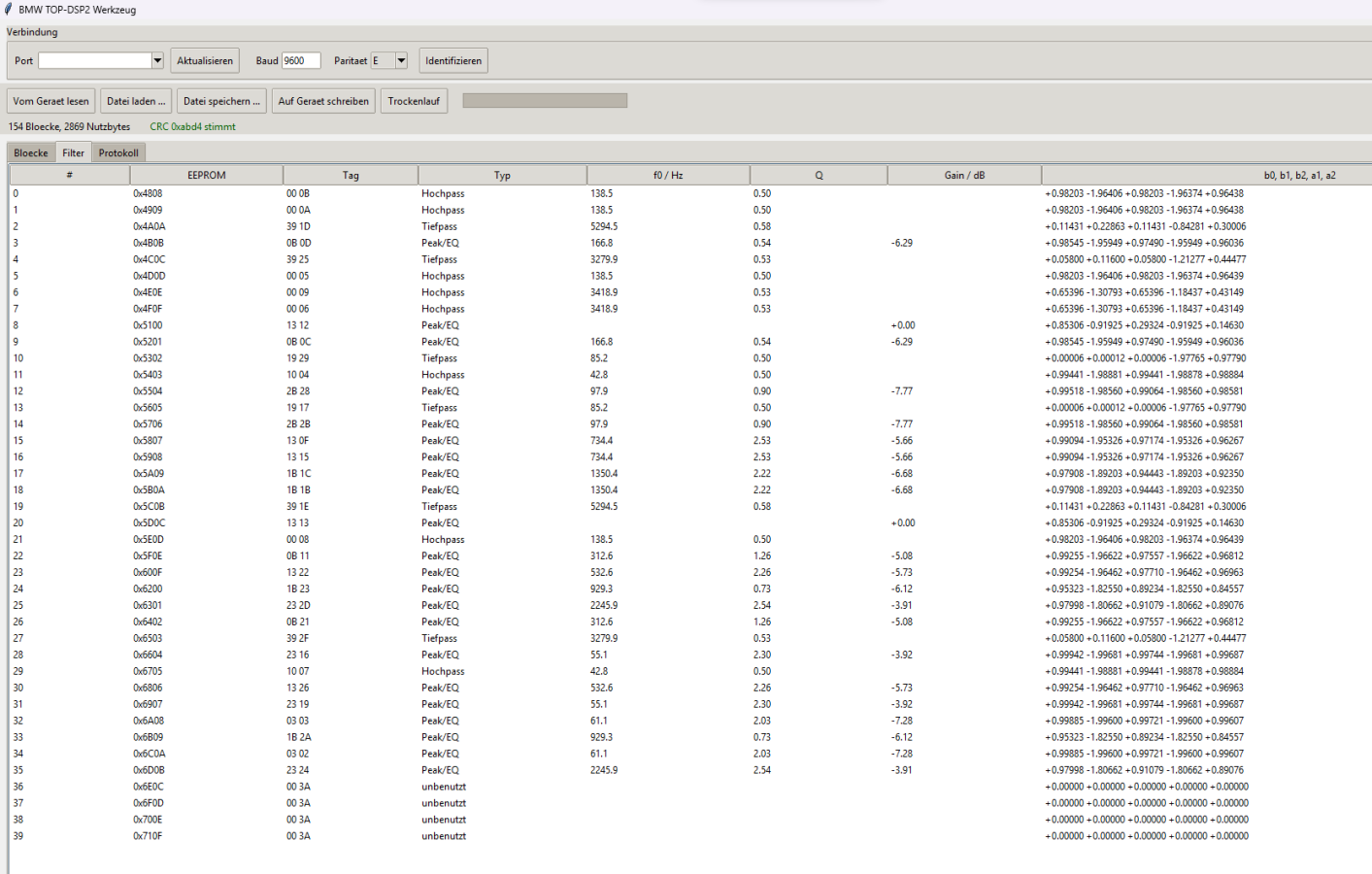

      I am still working on this! Latest update is on the software side, it is now possible to read and write the DSP2 module without having to rely on INPA or BMWScanner.

      With the help of Claude I managed to find almost all filter settings in the BMW coding data. Now I just have to figure out what filter is used with which channel connecting to which speaker.

      Click image for larger version

Name:	{F9BBB060-D2A2-4DAF-827F-27F8ACCE3028}.png
Views:	157
Size:	374.2 KB
ID:	363033​

      Hopefully I can create a complete suite to have a openly configurable 10ch DSP amp in the end

      Stay tuned

      Comment


        #18
        What are you using to read and write the data if not using pasoft or INPA

        Assuming you are still using the inpa dkan cable?


        ​​​​​​ I was actually just thinking about this this morning. Trying to use Claude to figure out a way to read and write data to the ehc2 module in my 4.8is I have dual axle air suspension.

        I would love to be able to write some custom software using Claude that would allow me to quickly flash different height settings much quicker and on the go than loading up a laptop and with ncs expert to do it

        And then having an interface wrapped up in a Android application that communicated via OBD using an elm Bluetooth adapter

        Comment


          #19
          Yes, its a normal K-Line interface like for Inpa and co. The DSP uses the BMW DS2 protocol to read and write. It's relayed by the cluster to the I-bus.

          And I integrated a read/write process into the application so you can directly read the eeprom content, modify and write back to the DSP from it.

          It's on hold currently because I am moving flats and my shop. Next step is measuring the frequency and delay with measuring microphone to find the channels for each filter.

          Comment


            #20
            Okay some further information about the DSP2 (in before, i'll publish everything on Github once its done).

            It is powered by a MC9S12DT256 microprocessor. This unit controls two DSPB56364AF100 DSPs. The first one (DSP1) is directly controlled over K-Line by the bord monitor or radio unit depending on coding to account for the user input like treble/bass/balance and the 7-band EQ. The second (DSP2) is completely programmable over the NCS coding data. (where we want to take control over)

            There are 4 input channels (coming from radio) and an additional stero PCM digital input (via AK4112B) from the CD changer.

            There are 12 possible outputs channels divided into two Analog Devices AD1836 and AD1833 DACs with 10 channels routed to actual amp modules and the output panel. Note: With an additional pair of amps on the board we could utilize all 12 channels of an E46 sedan or run the coupe/cab fully active.

            Hall/Echo data is stored in a Samsung K6R1008V-TI10 SRAM module connected to DSP1.

            The DSP networks works with 44.1kHz due to the digital input (connected to AUX1 of the AD1836) giving its clock to all the other components.

            Loudness is triggered by the radio module, and only the parameters are changeable. Its depending on vehicle speed.

            Here is a screenshot of the current status. Yes, its AI supported, but still involved a lot of manual PCB tracing and soldering.
            ​
            Click image for larger version

Name:	grafik.png
Views:	74
Size:	162.8 KB
ID:	613152​

            Comment


              #21
              Nice work! Glad you're still on it.

              You think this will be easy enough to set up different gains to run with factory e46 touring speakers, or at least the bavsound ones?
              ‘02 332iT / 6 | ‘70 Jaguar XJ6 electric conversion

              Comment


                #22
                Thats my whole goal I can measure presets for E46 sedan and touring. The subwoofer channels can be linked into a single chassis with dual voicecoils.

                I found out that there are no delays in the coding data except for the rear delay. It might be necessary to flash a different firmware if total control over the DSP functions is wanted.

                Edit: ​Here is the BDM connection

                Click image for larger version

Name:	grafik.png
Views:	59
Size:	1.04 MB
ID:	613192​
                Last edited by sda2; 10-23-2026, 04:51 AM.

                Comment


                  #23
                  Originally posted by sda2 View Post
                  Thats my whole goal I can measure presets for E46 sedan and touring. The subwoofer channels can be linked into a single chassis with dual voicecoils.

                  I found out that there are no delays in the coding data except for the rear delay. It might be necessary to flash a different firmware if total control over the DSP functions is wanted.

                  Edit: ​Here is the BDM connection

                  Click image for larger version

Name:	grafik.png
Views:	59
Size:	1.04 MB
ID:	613192​
                  Interesting - so it’s mostly just frequency tuning and crossover cutoffs? Do you know if that’s true for e83, e85/6, etc?
                  ‘02 332iT / 6 | ‘70 Jaguar XJ6 electric conversion

                  Comment


                    #24
                    Yes, they have several filters there for each channel depending on chassis. Final version will be in English obviously but here you get an idea.

                    Click image for larger version

Name:	{253BE440-07B1-4992-A736-2694CB891D90}.png
Views:	51
Size:	267.9 KB
ID:	613220​

                    Next questions is if I can crossflash the firmware between the units so both run the newer version.

                    I found a way to read and write the DSP over K-Line, so no BDM flashing necessary any more. Unfortunately no baudrate switching implemented in the stock firmware so a full read or write takes ~7-8 minutes.

                    The whole setup is not that difficult, im wondering if I can maybe even create a whole new firmware with more flexibility in it.

                    Comment


                      #25
                      Originally posted by sda2 View Post
                      Yes, they have several filters there for each channel depending on chassis. Final version will be in English obviously but here you get an idea.

                      Click image for larger version

Name:	{253BE440-07B1-4992-A736-2694CB891D90}.png
Views:	51
Size:	267.9 KB
ID:	613220​

                      Next questions is if I can crossflash the firmware between the units so both run the newer version.

                      I found a way to read and write the DSP over K-Line, so no BDM flashing necessary any more. Unfortunately no baudrate switching implemented in the stock firmware so a full read or write takes ~7-8 minutes.

                      The whole setup is not that difficult, im wondering if I can maybe even create a whole new firmware with more flexibility in it.
                      Awesome. Well I’ve got a bench setup here which makes that part easy. My thought is to replace just the 6x9 touring ‘woofers’ and run those as subs. I’ve got a 3D scanner and am thinking about closing out the openings in the rear fenders to make those into an effective sealed enclosure for no weight or packaging penalty. I also have an M3 trunk floor but I like storing things down there
                      ‘02 332iT / 6 | ‘70 Jaguar XJ6 electric conversion

                      Comment


                        #26
                        Definately doable! Iirc the rear woofers are already connected to the correct wires going left and right in the trunk. just make sure to use 8 Ohm chassis, as the amp modules powering that channel run in bridged mode. Ill translate it to english and upload a first version to my Github this weekend, so you can tinker around with it.

                        The Carver subs are quite potent for its size, but too high to mount them in those spots.

                        Click image for larger version

Name:	grafik.png
Views:	50
Size:	25.8 KB
ID:	613225​

                        Here is a frequency graph of the Hifi System in an E46.

                        Comment


                          #27
                          Cool! Is this from a mic setup that you had in the car, or some model that you pulled from somewhere? My car originally had HK and now has bavsound speakers installed by the previous owner. I’m sure it’ll need a proper EQing - fortunately I have a nice mic for this
                          ‘02 332iT / 6 | ‘70 Jaguar XJ6 electric conversion
