          Ok, thanks to EthanolTurbo the driveshaft is in my hands. Some info:

          Measurements (~ +/-2mm):

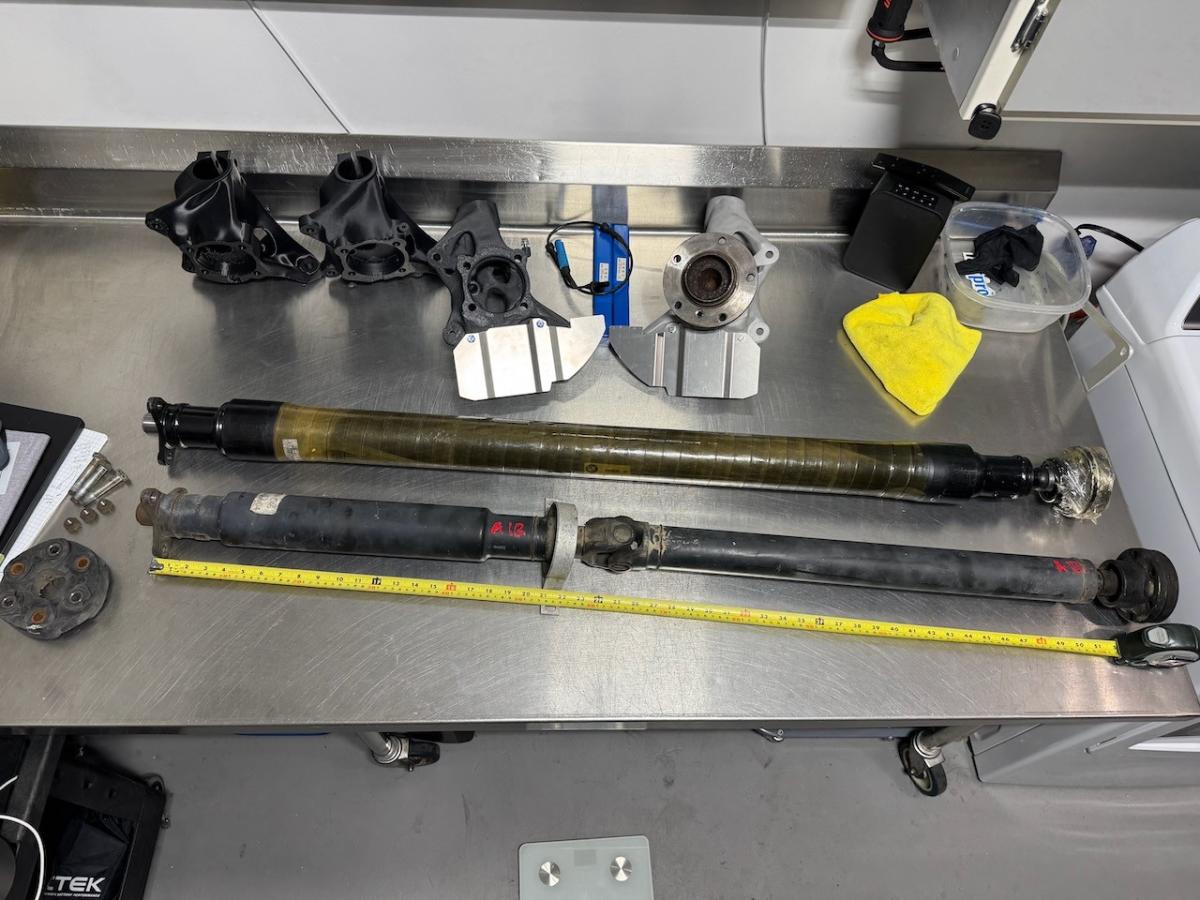

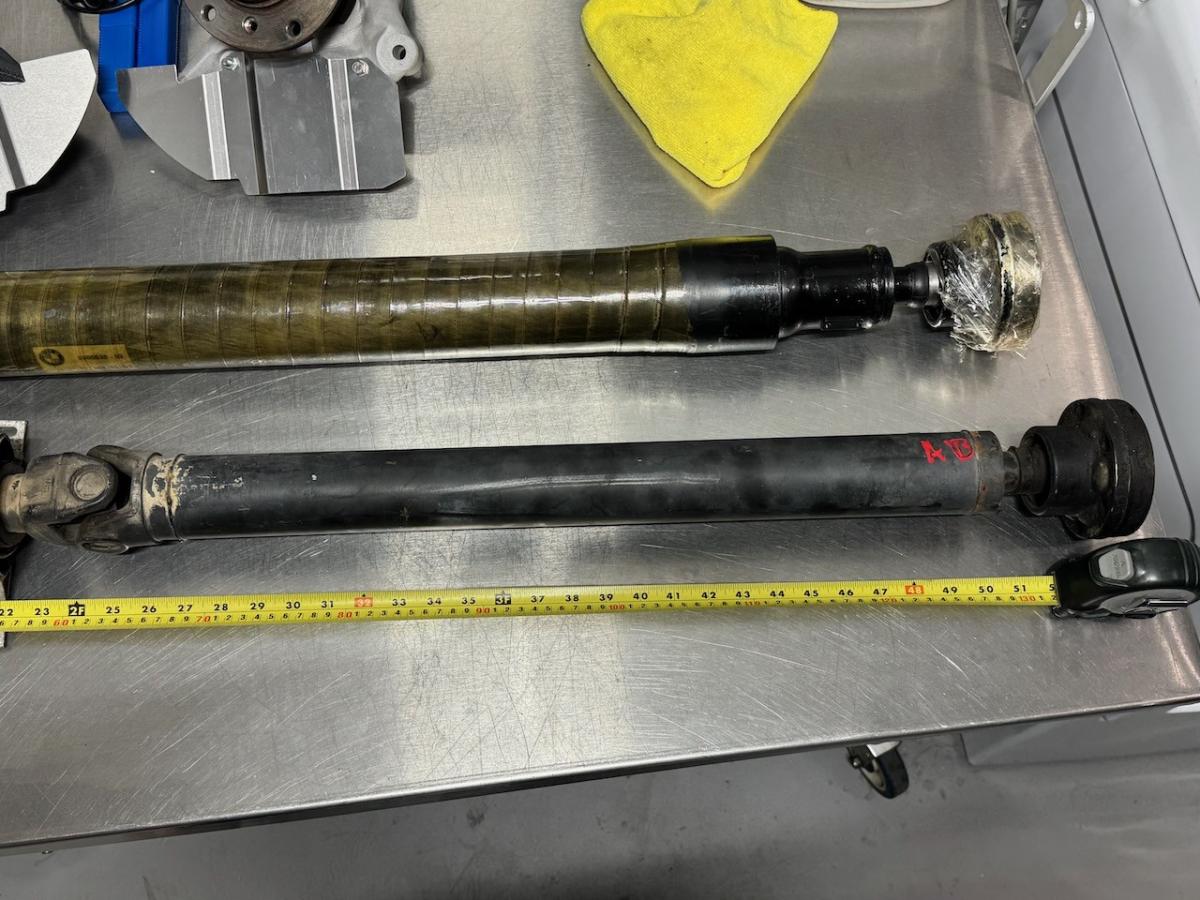

          Stock driveshaft: 1365mm
          Modified F80-e46 carbon driveshaft: 1360mm

          Weights, like-for-like naked with rear CV only (bathroom scale, using me as tare weight, repeated 6x each alternating back and forth between driveshafts, ~ +/- 0.1lb):
          Stock driveshaft: 17.5lb
          Modified F80-e46 carbon driveshaft: 14.1lb

          Weight savings: 3.4lb, 19%

          Extra measurements:

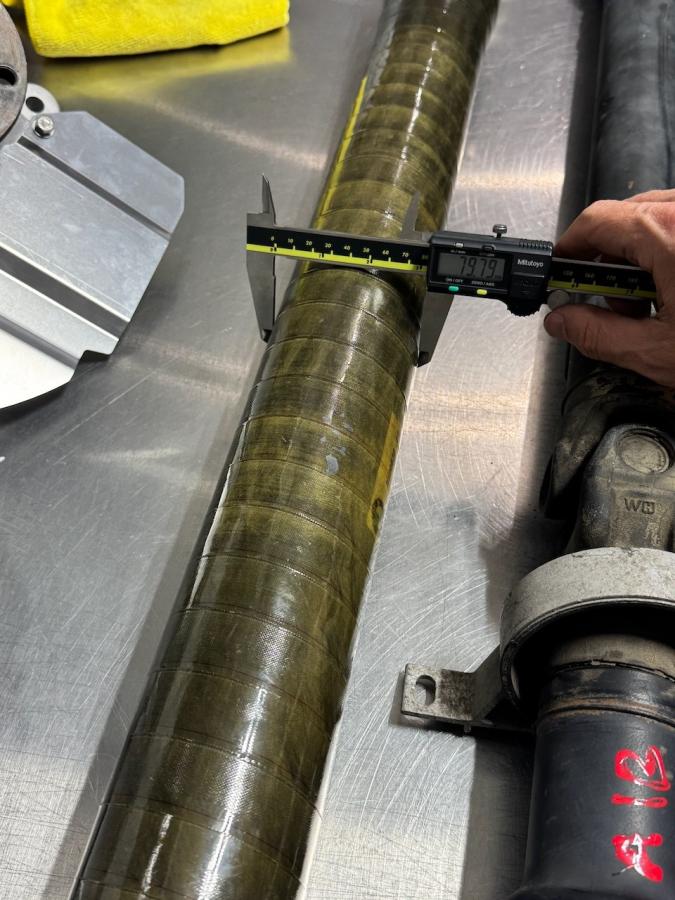

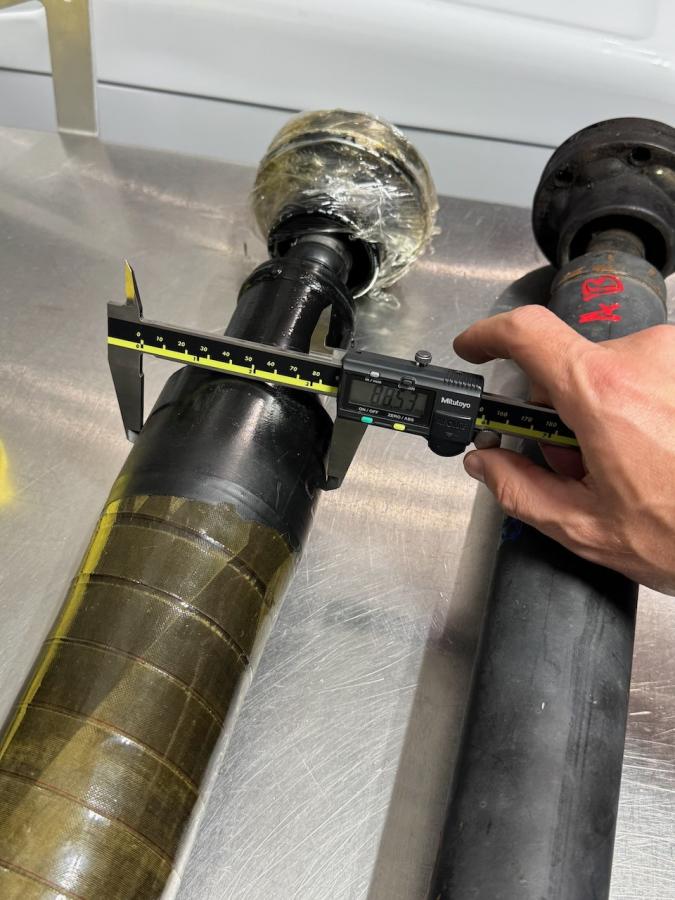

          Diameter, carbon center shaft: 79.8mm

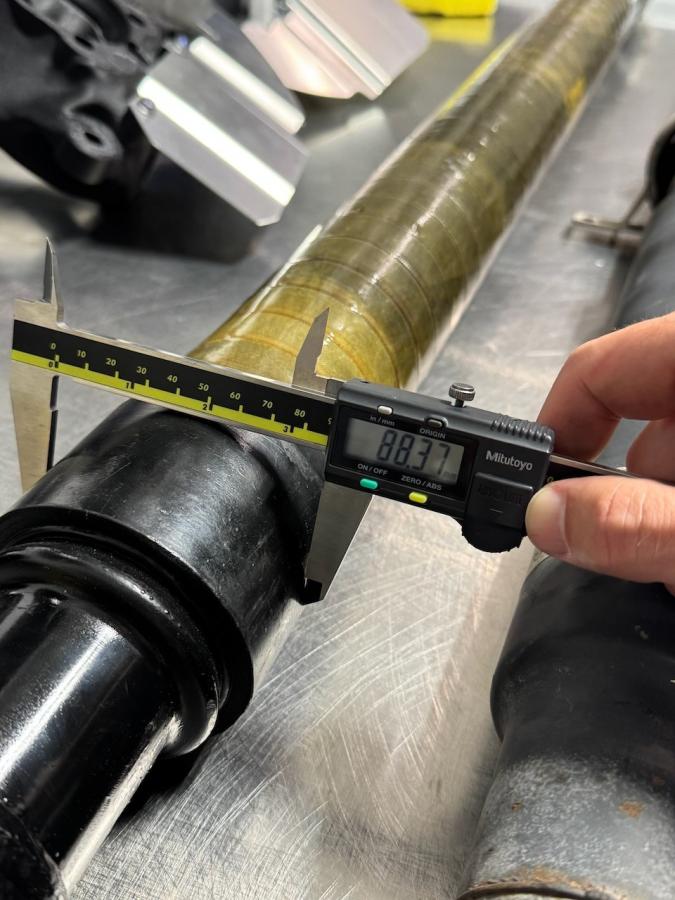

          Diameter, carbon steel ends: 88.5mm

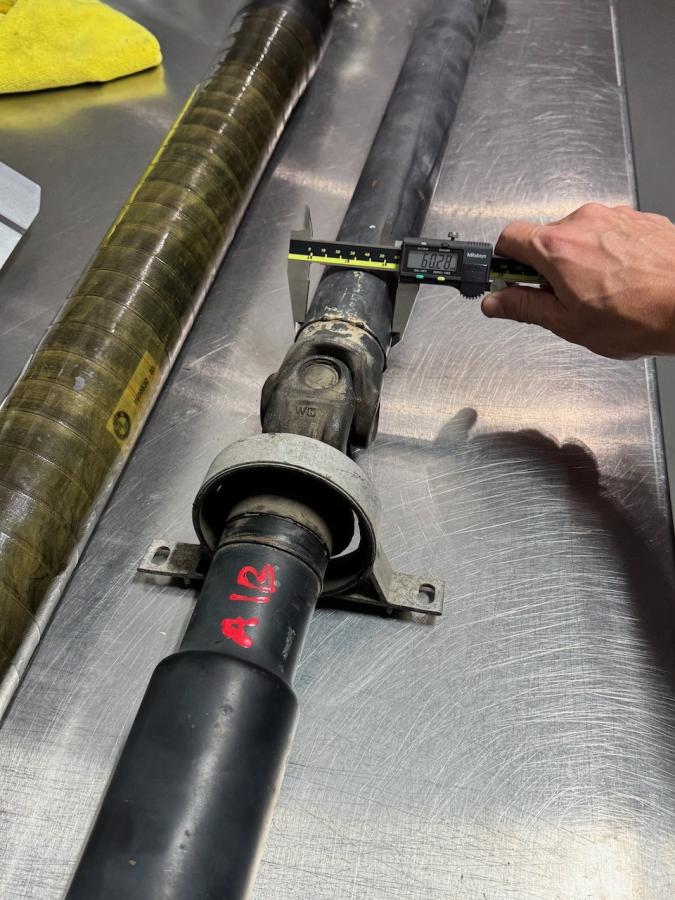

          Diameter, e46 front: 75.1mm

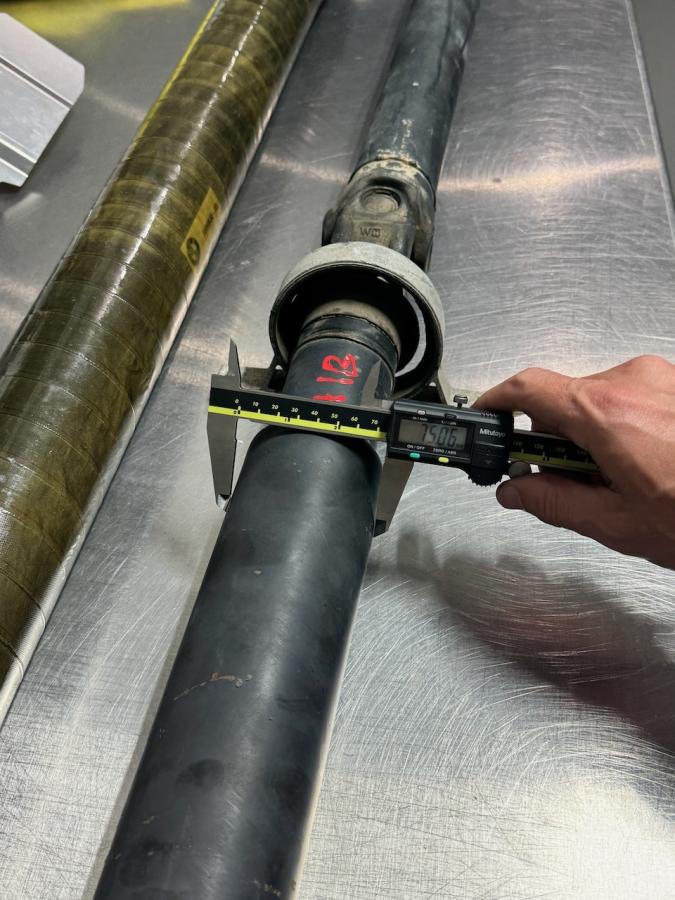

          Diameter, e46 rear: 60.3mm

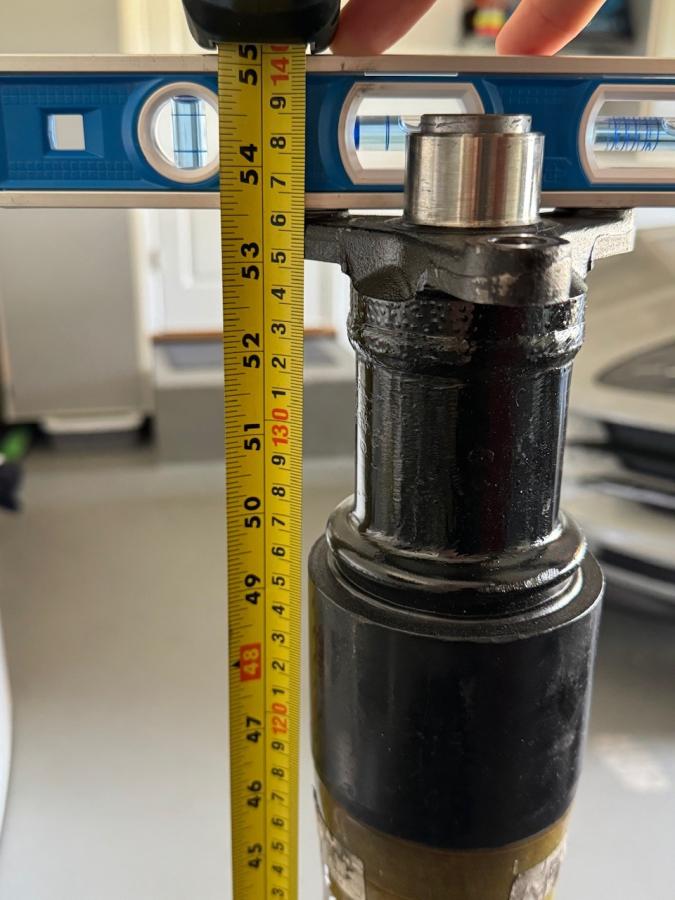

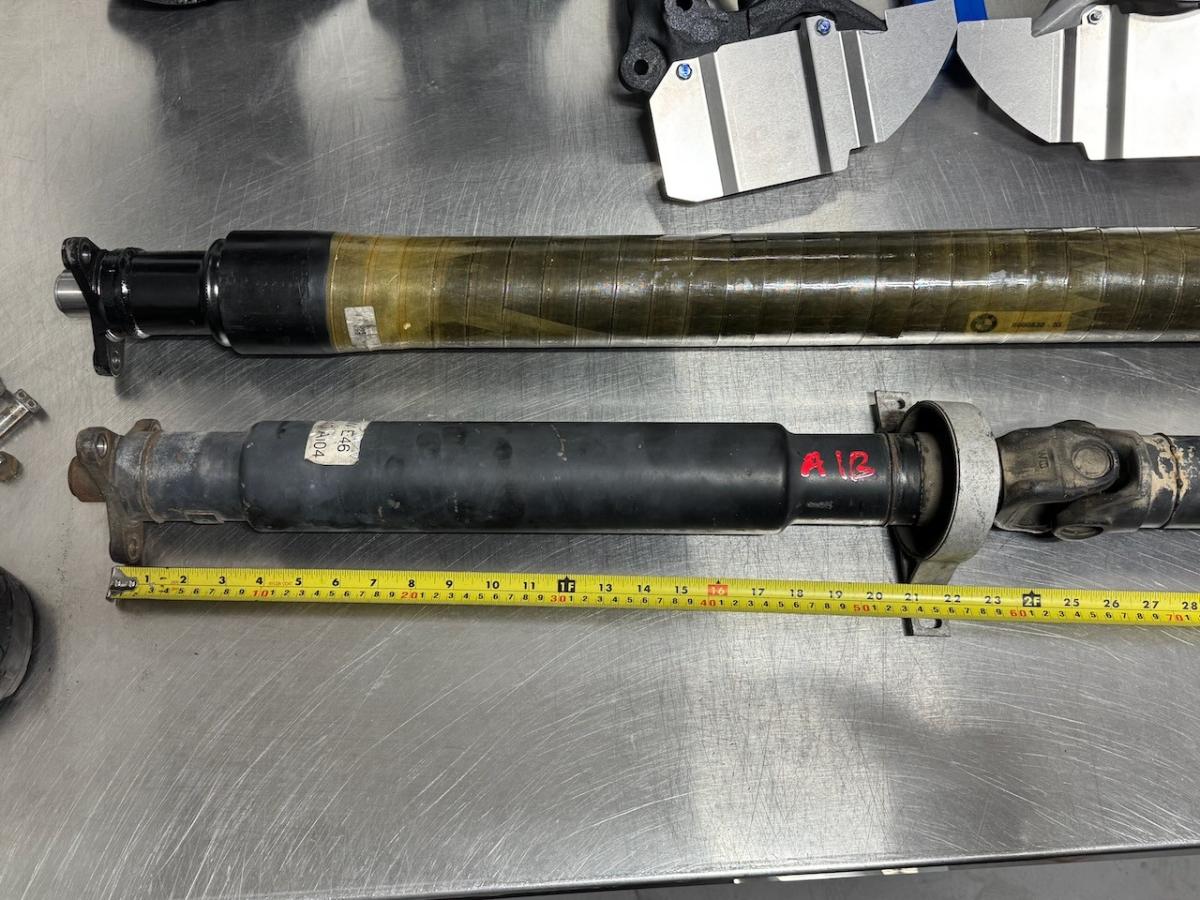

          Length, e46 front section, from flange as in photos: ~635mm

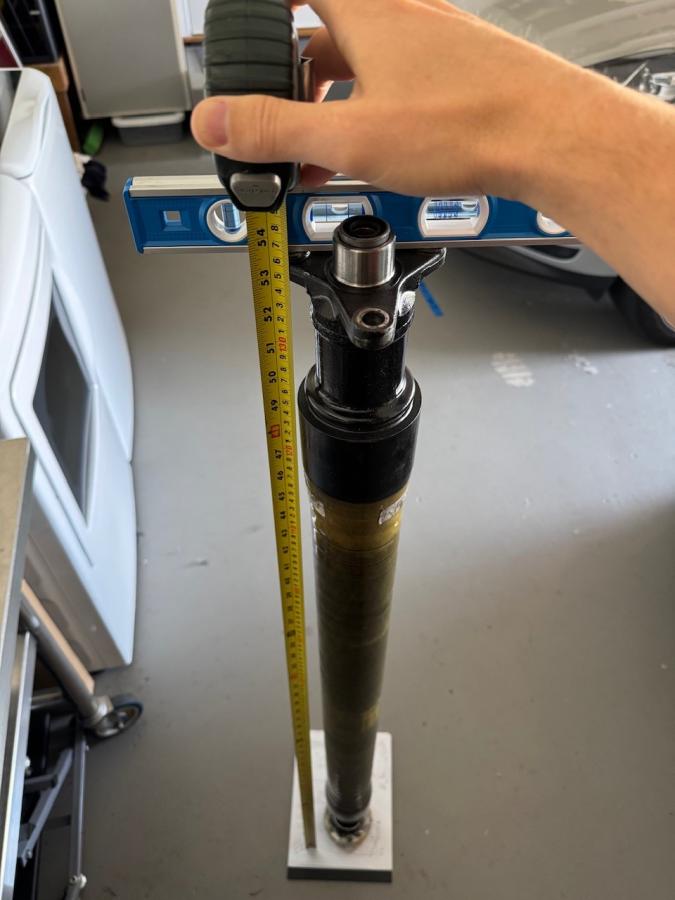

          Length, e46 rear section, to solid end of shaft (not CV): ~730mm

          Hope this clears some things up. Will try to measure runout and get to a test fit as soon as I get the chance. I'm betting that being 5mm short doesn't end up being an issue because I'm running solid subframe bushings and there's more than 5mm of play in the subframe bushings alone.

          Edit: I don't think this has a moment of inertia benefit, so this *shouldn't* feel like a lightweight flywheel in first gear. So we'll see what the difference is with the stiffer shaft and fewer moving joints.

          Click image for larger version  Name:	IMG_6519.jpg Views:	0 Size:	167.1 KB ID:	318953Click image for larger version  Name:	IMG_6513.jpg Views:	0 Size:	97.6 KB ID:	318952 Click image for larger version  Name:	IMG_6514.jpg Views:	0 Size:	93.3 KB ID:	318950 Click image for larger version  Name:	IMG_6515.jpg Views:	0 Size:	91.3 KB ID:	318949 Click image for larger version  Name:	IMG_6516.jpg Views:	0 Size:	80.5 KB ID:	318947 Click image for larger version  Name:	IMG_6517.jpg Views:	0 Size:	81.5 KB ID:	318946Click image for larger version  Name:	IMG_6520.jpg Views:	0 Size:	147.4 KB ID:	318951Click image for larger version  Name:	IMG_6521.jpg Views:	0 Size:	129.2 KB ID:	318948
          ‘02 332iT / 6 | ‘70 Jaguar XJ6 electric conversion

          Comment


            Bry5on please indicate the exact points you measured the length from.
            2006 Silber Grau Metalizat ZCP 6 MT
            M-texture (F2AT) - Turner CSL V2/CatCams 280 272/SSv1/SS Sec1/Sec2 dual res/SS Race 63.5mm - FatCat stage 3 ult 400f/784r - Vorshlag - EC7r 18x9.5 ET35/CRS 275/35/18 - PFC ZR45/31 BBK/MileEnd CSL bumper/Vorsteiner Trunk/Cobra Nogaro Circuit Mtexture/GC RCA/YURKan Cages/Hotchkiss/BW/MRT full rear eccentric bushing set

            IG: https://www.instagram.com/htrlo/

            Comment


              Originally posted by CrisSilberGrau View Post
              Bry5on please indicate the exact points you measured the length from.
              I did that above, but reiterating for the sake of clarity:
              front: guibo flange surface
              rear: solid end of the driveshaft

              You do not need a rear CV joint installed to build one of these using the dimensions above. So no nonsense about whether the CV joint is fully or partially extended or anything like that.

              Click image for larger version

Name:	IMG_6522.jpg
Views:	216
Size:	71.0 KB
ID:	319015 Click image for larger version

Name:	IMG_6523.jpg
Views:	229
Size:	53.5 KB
ID:	319014
              Last edited by Bry5on; 09-15-2025, 09:04 AM.
              ‘02 332iT / 6 | ‘70 Jaguar XJ6 electric conversion

              Comment


                Bry5on Thank you I appreciate it, that clears it up.
                2006 Silber Grau Metalizat ZCP 6 MT
                M-texture (F2AT) - Turner CSL V2/CatCams 280 272/SSv1/SS Sec1/Sec2 dual res/SS Race 63.5mm - FatCat stage 3 ult 400f/784r - Vorshlag - EC7r 18x9.5 ET35/CRS 275/35/18 - PFC ZR45/31 BBK/MileEnd CSL bumper/Vorsteiner Trunk/Cobra Nogaro Circuit Mtexture/GC RCA/YURKan Cages/Hotchkiss/BW/MRT full rear eccentric bushing set

                IG: https://www.instagram.com/htrlo/

                Comment


                  Awesome work, THANK YOU!!

                  Comment


                    Alright, I had a few free hours this morning and there was an open lift, so here we go!

                    How it started:​
                    Click image for larger version

Name:	IMG_6788.jpg
Views:	109
Size:	119.9 KB
ID:	322569

                    A few minutes later:
                    Click image for larger version

Name:	IMG_6791.jpg
Views:	109
Size:	80.6 KB
ID:	322566
                    Click image for larger version

Name:	IMG_6789.jpg
Views:	121
Size:	60.5 KB
ID:	322565
                    Click image for larger version

Name:	IMG_6794.jpg
Views:	116
Size:	109.3 KB
ID:	322568

                    And another 30 minutes after that, we're all buttoned up again and ready for a test drive:
                    Click image for larger version

Name:	IMG_6796.jpg
Views:	111
Size:	118.1 KB
ID:	322567

                    This is the F80 driveshaft that EthanolTurbo had modified with e46 M3 flex disc and CV joints. It is exactly 5mm shorter than a factory M3 driveshaft. Because it's shorter, I did not have to unbolt or drop the diff or subframe to install it, as you can see above. This is a tradeoff, as there will be less spline engagement with the driveshaft and CV joint. I think 2-3mm shorter than stock would be the sweet spot if you're not using the telescoping F80 version of the shaft (which is a better solution overall, in my opinion). Install was easy, just like any other driveshaft, only made difficult by the shitty supersprint header joint.

                    We measured before that this shaft is 80mm OD, versus the 75mm max OD stock shaft, so the math says that this carbon shaft should be much stiffer (bigger diameter, 50% stiffer material, likely also thicker wall) than the original and also bring in some of the inherent damping that carbon weaves have that steel does not. It's also one piece, although I don't think this is likely to have any real noticeable effect from the seat. We measured that it's 3.5lb lighter than the steel part, which I also don't think will be too seat of the pants noticeable, because inertially these math out to be very similar due to the larger OD of the carbon shaft.

                    Because this shaft is larger OD, it's a very tight fit. This is only suitable for cars with non-raised, solid subframe bushings. My car has *non-raised* & solid subframe bushings with reinforcement plates (4-5mm thick, which helps gain clearance) and I had about 8mm clearance to the transmission tunnel. Any displacement of the subframe/diff under acceleration or due to adding subframe raising solid bushings is likely to put you at risk of hitting the transmission tunnel and disintegrating your driveshaft. Consider this fair warning if you choose to go carbon, and I cannot stress this enough. Carbon does not fail subtly or slowly.​



                    Good news, I did not have to make any clearance to my unmodified exhaust heat shield.

                    So what's the verdict? My initial thoughts say a very minor positive difference versus steel.

                    First of all, since I'm in San Diego it's easy for me to make a quick trip to Mexico where I tested the car up to 120mph (with stock gearing) and had absolutely no noticeable vibration. I'm sensitive to vibration. Sort of OCD about it. In fact, I'd say that the car is ever so slightly quieter at speed. I was expecting this as it's a common noted difference, so there may be a bit of placebo here.

                    When I initially took the car for a drive, I was pretty hopeful because I couldn't detect any semblance of the m-clunk. This changed once the car had warmed up. I'd say this was a mild improvement to the clunk (more of a thud now in my car), definitely less of an improvement than the rear end bracing made (my touring cabin X-brace and subframe-v-brace). Any improvement here is welcome, but it's not a magic bullet. Shift & shifter quality is largely the same, just with slightly less of the thud on a hard 1-2 shift.

                    There is also an improvement during clutch take-up, it just feels smoother and a bit more direct - in the direction of, but not equivalent to, a Porsche. This is maybe the most detectable and biggest difference.

                    There is no perceptible increase in the car accelerating quicker or revving faster that I can tell. Note that the math also generally agrees with this.

                    On just one occasion, it did seem that I was able to excite some natural frequency somewhere around 40-50mph under WOT second gear acceleration after a 1-2 shift. It felt similar to a failing CSB, but I wasn't able to reproduce this, so it could have been coming from the road, as I was on a highway onramp in a landfill area.

                    So overall I'd say this is mostly a smoothness, directness and NVH improvement, in that order. All effects are relatively minor but if you're OCD about NVH and needed a driveshaft balance like me anyway, I'd say go for it. It's an improvement. If you don't need a driveshaft, maybe wait until your next 'while I'm in there' opportunity. If you're debating whether to do this or a chassis stiffening mod first, *definitely* do the chassis stiffening mods first, you'll feel those a lot more.

                    Hope that's helpful!​
