AiM Dash Display install

[elbert]

I already installed RS3 on my computer and looked through it, seems very intuitive. But I will wait with the praise until the dash is installed and working 😂

When I think about it, RS3 isn't too bad from a device setup point of view. I was thinking more about the data analysis part, as I was coming from RS2, which was a bit different. Had I started from RS3 from the beginning, it would be fine.

Fuel level is not on the CAN Bus, that only started with E9x cars. The level sensors are individually hardwired to the cluster and even if it was on the bus without the cluster there is nothing to transmit the signal.

Actually same for the outside temp sensor as well.

Water temp is the only useful temp on the Bus. IIRC rad out temp is on there too.

I attached a screenshot of the data streams.
I'm getting fuel level and outside temp data. I don't know if it's calculated or not, but AIM getting it from somewhere, and the values do change. From what I remember, the values were reasonably close.
For comparison, it also shows gearbox temp, but it is always at 32.0 F, regardless of what weekend.

The wideband/AFR and oil pressure are from add on sensors.
And please ignore the slow laptime, I was not driving that well.

[George Hill]

If you weren't aware, AIM can get the outside temp, water temp, and fuel level from the car's canbus, so you won't need to figure that part out.
It can also get the oil temp from the car -- I wasn't aware it was calculated, so as you know, you will need to add a sensor for a direct reading, as well as one each for oil and fuel pressure.

With the Aim software (Race Studio 3), it is fairly easy to set up the calibration curves of the sensors once you get the hang of RS3.

Fuel level is not on the CAN Bus, that only started with E9x cars. The level sensors are individually hardwired to the cluster and even if it was on the bus without the cluster there is nothing to transmit the signal.

Actually same for the outside temp sensor as well.

Water temp is the only useful temp on the Bus. IIRC rad out temp is on there too.

[Altaran]

Traditionally the fuel level sensor signals are combined and routed from the AiM to the ground, I guess you would just jump them together at X1175 and then route to ground from that connector as well?

Same with the outside temp sensor as it doesn't just go to ground but the signal goes out and comes back to the cluster as well.

Yeah, I will figure that out as I do the change.

I like the MXG as well, just put one in an E36, it is what I would put in my car too. Knowing you have to retain all of the OE functions adds a ton of work to the install and you are going to have a bunch of extra inputs that most people don't require. Sounds very interesting, are you planning to document the install here?

Yes, I was going to write a summary once I get it done. It goes in the list of other mods I am planning to document on here as they are not that common (EMU Black, Standalone Race ABS, and feedback on the CF driveshaft after I get on the track again...). I did a lot during the past year at once, it will likely take another month till I get it on the dyno and then on the track 🙄

If you weren't aware, AIM can get the outside temp, water temp, and fuel level from the car's canbus, so you won't need to figure that part out.
It can also get the oil temp from the car -- I wasn't aware it was calculated, so as you know, you will need to add a sensor for a direct reading, as well as one each for oil and fuel pressure.

With the Aim software (Race Studio 3), it is fairly easy to set up the calibration curves of the sensors once you get the hang of RS3.

Oh thats good information, would save me some time. Do you know which module sends this information through the Can Bus? As I was aware it is the cluster sending out the fuel level on the bus, but I could be wrong...

I will be installing the Bosch 0261230340 sensor, which is a combo sensor giving temp and pressure. Also needs an adapter piece, as it uses a M10x1,0 thread and the S54 Oil Filter housing has M12x1,5 slots.

I already installed RS3 on my computer and looked through it, seems very intuitive. But I will wait with the praise until the dash is installed and working 😂

[elbert]

If you weren't aware, AIM can get the outside temp, water temp, and fuel level from the car's canbus, so you won't need to figure that part out.
It can also get the oil temp from the car -- I wasn't aware it was calculated, so as you know, you will need to add a sensor for a direct reading, as well as one each for oil and fuel pressure.

With the Aim software (Race Studio 3), it is fairly easy to set up the calibration curves of the sensors once you get the hang of RS3.

[George Hill]

That´s why I was planning to make an adapter for the OE connector as that's all in there. (Link to the Pinout: https://www.bmwgm5.com/E46_IKE_Connections.htm)

Traditionally the fuel level sensor signals are combined and routed from the AiM to the ground, I guess you would just jump them together at X1175 and then route to ground from that connector as well?

Same with the outside temp sensor as it doesn't just go to ground but the signal goes out and comes back to the cluster as well.

For lighting, I need all the info that normally goes to the OE Cluster as my car retains street legality: Activation of headlights (parking light, low beam, high beam), turn signals, rear fog light. Since my car is an early model the pinout lists an analog lighting connection, not sure yet, but I may be able to pull all of that through the k-bus. In addition I will also add a Bosch Motorsport Oil Level and pressure sensor, as I want accurate data (OE Oil temp is calculated so its not accurate) and I may add a fuel pressure sensor at some point.

I ordered an AiM MXG 1.3. Its a 7" Dash, Animalracing has a cluster mount so it drops in nicely into the OE position. I ordered the race version, as it has a larger amount of inputs and I want the datalogging features for the track. Price is stupid high, but I was not able to find suitable alternatives. The strada version will work if you do not plan on using datalogging and it has different connectors with less inputs. But you can get the race version with street symbols on the side. (https://www.aimtechnologies.com/aim-mxg/)

I like the MXG as well, just put one in an E36, it is what I would put in my car too. Knowing you have to retain all of the OE functions adds a ton of work to the install and you are going to have a bunch of extra inputs that most people don't require. Sounds very interesting, are you planning to document the install here?

[Altaran]

Interesting... what dash are you using? I like the idea but thats going to take up a bunch of inputs requiring at least one expansion module as well (assuming you are using some non OE sensors as well AFR, Oil PSI, etc)?

How are you planning to wire the outside temp and fuel level sensors so the wiring can be reversed?

What lighting info are you going to pull?

I have a Solo2 that I am replacing a Solo1 with and will add some additional sensors, one day a dash will be on the to do list.

That´s why I was planning to make an adapter for the OE connector as that's all in there. (Link to the Pinout: https://www.bmwgm5.com/E46_IKE_Connections.htm)

For lighting, I need all the info that normally goes to the OE Cluster as my car retains street legality: Activation of headlights (parking light, low beam, high beam), turn signals, rear fog light. Since my car is an early model the pinout lists an analog lighting connection, not sure yet, but I may be able to pull all of that through the k-bus. In addition I will also add a Bosch Motorsport Oil Level and pressure sensor, as I want accurate data (OE Oil temp is calculated so its not accurate) and I may add a fuel pressure sensor at some point.

I ordered an AiM MXG 1.3. Its a 7" Dash, Animalracing has a cluster mount so it drops in nicely into the OE position. I ordered the race version, as it has a larger amount of inputs and I want the datalogging features for the track. Price is stupid high, but I was not able to find suitable alternatives. The strada version will work if you do not plan on using datalogging and it has different connectors with less inputs. But you can get the race version with street symbols on the side. (https://www.aimtechnologies.com/aim-mxg/)

In case anyone else is considering this in the future, there is a dash from Ecumaster (the ADU 7) that has a considerably lower price point and has most of the same features. However, the ADU only lets you change frequencies on one of the two CAN connections, on is fixed to 1mbps. Since I run a standalone ABS, I need both CAN circuits at 500kbps, so I cannot use this part. The abs has a different bit length, so I cant put them on one circuit.

The other option is a Bosch Motorsport Dash (DDU 10) that BMW uses on the M4 GT3 Racecar. For me, €8k was a bit too much to spend on a dash.

On the M4 GT4 BMW also uses the AiM MXG, so this works for me.

[inlinesix123]

Okay, well, it doesn't fit. It's very close though and you should be able to use it if you modify it slightly so it doesn't interfere with the keys on the cluster connector.

I just want to give you a heads up for always willing to help, I see you offering advice/assistance to so many people. You're a cutie.

[George Hill]

Interesting... what dash are you using? I like the idea but thats going to take up a bunch of inputs requiring at least one expansion module as well (assuming you are using some non OE sensors as well AFR, Oil PSI, etc)?

How are you planning to wire the outside temp and fuel level sensors so the wiring can be reversed?

What lighting info are you going to pull?

I have a Solo2 that I am replacing a Solo1 with and will add some additional sensors, one day a dash will be on the to do list.

[Altaran]

I plan to also connect other inputs regularly going to the OE dash such as outside temperature, lighting, fuel tank sensors, oil level and coolant level. Otherwise you are right, tapping in the can bus on another location would be easier.

Gesendet von meinem Pixel 7 mit Tapatalk

[George Hill]

No tapping in per se, I am getting rid of the OE instrument panel all together. To make it easy I will build an adapter for the OE connectors to the Aim connector.

The other option is to cut the OEM connectors off and crimp terminals directly on for the Aim connector.

Gesendet von meinem Pixel 7 mit Tapatalk

Sorry, "tapping" I meant as in connecting to the circuit. You can accomplish the same thing at the steering angle sensor if you only need B+, B-, CAN Hi/Lo. I usually just snip the connectors off a car at the junkyard, then splice them together to make the sub harness.

Works the same way you are proposing just thought it might be easier as you can buy something off the shelf too.

*Here's one I use for logging CAN bus info (only CAN connections)

[karter16]

For the 26 pin you want BMW 6909077 - AMP 1-965056-2A

legend!

[Altaran]

No tapping in per se, I am getting rid of the OE instrument panel all together. To make it easy I will build an adapter for the OE connectors to the Aim connector.

The other option is to cut the OEM connectors off and crimp terminals directly on for the Aim connector.

Gesendet von meinem Pixel 7 mit Tapatalk

[George Hill]

For the 26 pin you want BMW 6909077 - AMP 1-965056-2A

Why are you tapping into that location?

* I have my AiM there as well, but if I was doing it again its very easy/ there are kits for tapping B+, B-, CAN Hi/Lo from the steering angle sensor below there.

https://www.moreheadspeedworks.com/product/e46-canbus-plug-n-play-adapter/

[Altaran]

Thanks both, I'll give those a try.

PCB mounted should not be an issue. I can just use female connectors and fix them with non-conductive glue.

Gesendet von meinem Pixel 7 mit Tapatalk

[karter16]

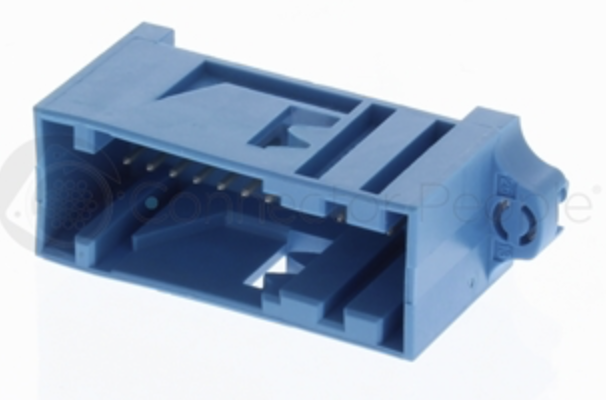

For the 26 pin connector I think what you're after is TE Connectivity Part No 953472-2. It seems that this only comes as a PCB mounted header, (e.g. there doesn't appear to be a Cable-Cable version).
