    #16

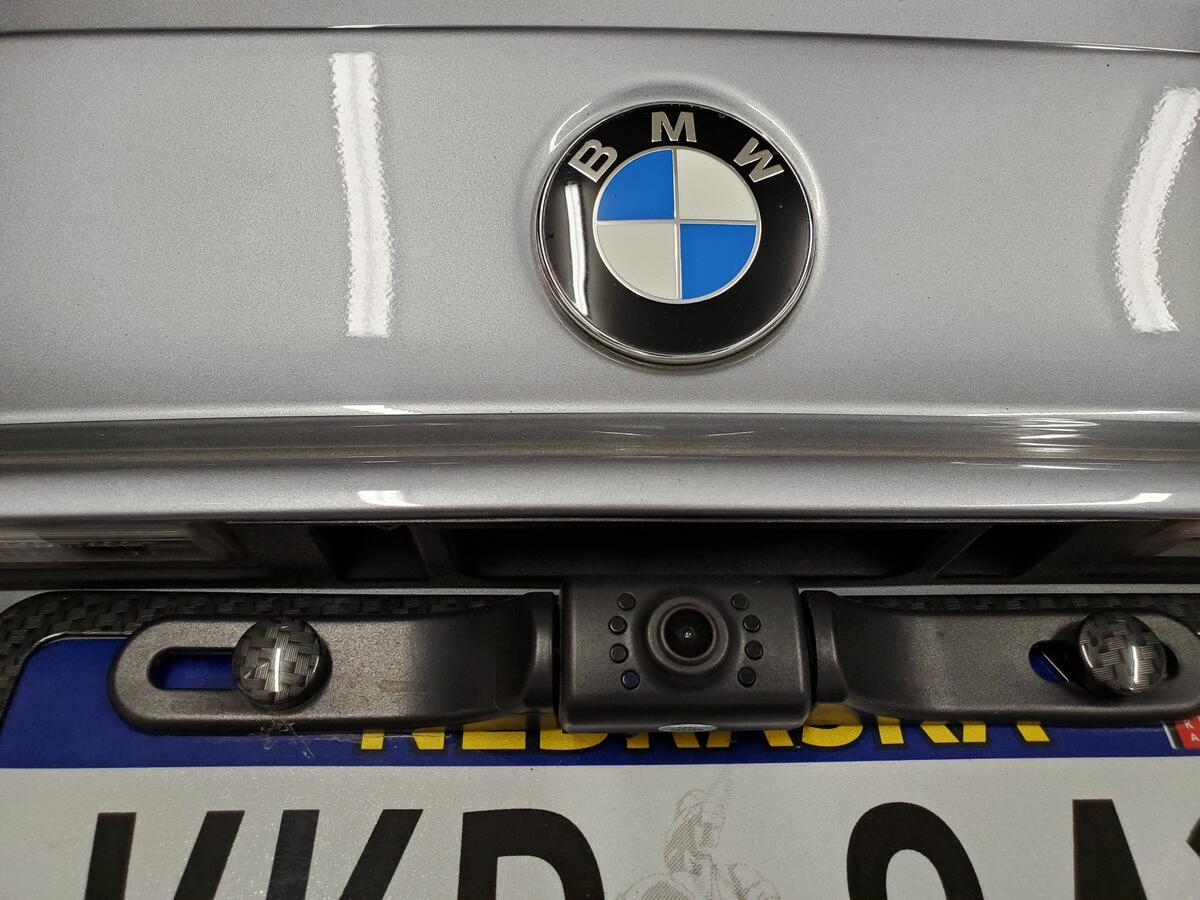

    I wonder if I could cut/splice my backup camera if I got a new CSL trunk so I wouldn't have to string it all the way back to the head unit.
    Anyone know if there is just 1 or 2 wires in these things or 5-6 tiny impossible to splice wires?
    Click image for larger version

Name:	20200524_162521.jpg
Views:	408
Size:	134.0 KB
ID:	27955 Click image for larger version

Name:	20200524_162531.jpg
Views:	390
Size:	70.9 KB
ID:	27956
    2004 Silbergrau Metallic 6MT
    Karbonius/OEM Snorkel/Flap/HTE Tuned
    Ssv1/Catted Sec. 1/SS 2.5" Sec. 2/SCZA

    OE CSL Bootlid/AS SSK/BC Coils/4.10 Gears/ Sportline 8S Wheels/Cobra Nogaros
    RACP Plates/Vincebar/CMP/Turner RTAB/Beisan

    2006 M6 Black Saphire SMG
    Instagram

    Comment


      #17
      there are two part numbers for the csl trunk. 41007895884 and 41007897435 (japan version). according to the schmiedmann pictures the japan version has different placed holes for the licence plate. does anyone know if this is still the case for new produced parts? the japan version is also cheaper.
      2003 AW/BLK 6MT - Instagram

      Comment


        #18
        ECS wants $189 to ship the trunk/install pack...weak. $49 free shipping my ass.

        Click image for larger version

Name:	Screenshot_20200524-200334_Chrome.jpg
Views:	380
Size:	47.1 KB
ID:	28017
        2004 Silbergrau Metallic 6MT
        Karbonius/OEM Snorkel/Flap/HTE Tuned
        Ssv1/Catted Sec. 1/SS 2.5" Sec. 2/SCZA

        OE CSL Bootlid/AS SSK/BC Coils/4.10 Gears/ Sportline 8S Wheels/Cobra Nogaros
        RACP Plates/Vincebar/CMP/Turner RTAB/Beisan

        2006 M6 Black Saphire SMG
        Instagram

        Comment


          #19
          Originally posted by Titaniu//M View Post

          Somewhere around $500-600 in my area
          I got quoted about $500 a panel in my area as well.

          Comment


            #20
            Originally posted by Titaniu//M View Post
            OEM Electrical Connector 2 61131378149 BMW of Fairfax $2.49
            OEM CSL Trunk Lining 1 51497896451 BMW of Fairfax $124.20
            OEM Trunk Roundel 1 51148219237 BMW of Fairfax $38.59
            OEM CSL License Plate Lamp 2 63267165646 BMW of Fairfax $12.81
            OEM Lock Cylinder Gasket 1 51248223104 BMW of Fairfax $7.89
            OEM Receptacle 4 61130007449 FCP Euro $3.63
            OEM Plug Housing w/Lead 0.2-0.5 MM 4 61130005197 BMW of Fairfax $2.91
            OEM Emblem Grommet 2 51148209932 BMW of Fairfax $0.53
            OEM Blind Rivet Nut 2 46632347012 BMW of Fairfax $5.36
            OEM Screw 2 51181813015 BMW of Fairfax $5.20
            OEM Plug Housing 1 61136931929 BMW of Fairfax $1.91
            OEM Pin Contact 2 61130006664 FCP Euro $3.63
            OEM Rep Kit for Socket Housing 2 61132360043 BMW of Fairfax $10.93
            This is my list, I bought a trunk back in February but have been procrastinating on getting it installed. Prices are per unit, you would need to multiply by quantities listed. Total is roughly $300 and change. US dealers cannot order the trunk liner, I ended up sourcing from Schmiedmann. You can reuse your stock one to save cost, but would either need to be okay with a hole where the tool kit is, or dremel mounting points into the csl trunk for the tool kit.
            I don't think ECS kit includes these two items off the list, although I think you could still wire it up without these two.
            OEM Plug Housing w/Lead 0.2-0.5 MM 4 61130005197 BMW of Fairfax $2.91
            OEM Rep Kit for Socket Housing 2 61132360043 BMW of Fairfax $10.93

            Current:

            1997 BMW M3 - Boston Green/Modena
            2003 BMW M3 · Coupe · 6MT - Alpine White/M-Texture Alcantara

            Comment


              #21
              Originally posted by Cubieman View Post
              ECS wants $189 to ship the trunk/install pack...weak. $49 free shipping my ass.

              Click image for larger version

Name:	Screenshot_20200524-200334_Chrome.jpg
Views:	380
Size:	47.1 KB
ID:	28017
              “Free shipping $49 and up” is only for small items, as it says on their website. Shipping gets charged when the object is bigger than a certain dimension.

              Comment


                #22
                Originally posted by Cubieman View Post
                APmotorsport has them for 827GBP = $1006. I contacted them to check stock.
                damn just checked they sold out.

                Comment


                  #23
                  Originally posted by erickhoyos View Post

                  “Free shipping $49 and up” is only for small items, as it says on their website. Shipping gets charged when the object is bigger than a certain dimension.
                  Yea, I read that, shouldn't have flamed them as it is what it is. Pulled the trigger on it!
                  Now the waiting game begins
                  2004 Silbergrau Metallic 6MT
                  Karbonius/OEM Snorkel/Flap/HTE Tuned
                  Ssv1/Catted Sec. 1/SS 2.5" Sec. 2/SCZA

                  OE CSL Bootlid/AS SSK/BC Coils/4.10 Gears/ Sportline 8S Wheels/Cobra Nogaros
                  RACP Plates/Vincebar/CMP/Turner RTAB/Beisan

                  2006 M6 Black Saphire SMG
                  Instagram

                  Comment


                    #24
                    Probably will go fast and IDK the rules on posting this. I just bought one myself. GL. https://www.ebay.com/itm/Genuine-BMW...53.m2749.l2649

                    Update:
                    Seller could not fulfill my order. Cancelled for now, explained it was damaged and could possibly get more in the future.
                    Last edited by e46mpwrd; 06-16-2020, 03:56 PM.
                    '06 IB/BLK 6SPD PN66072

                    Comment


                      #25
                      Just orderded one through Schmiedmann, their website said in stock, that ebay link is a better deal though for sure, as long as it's in stock and in the US..and legit.
                      2004 Silbergrau Metallic 6MT
                      Karbonius/OEM Snorkel/Flap/HTE Tuned
                      Ssv1/Catted Sec. 1/SS 2.5" Sec. 2/SCZA

                      OE CSL Bootlid/AS SSK/BC Coils/4.10 Gears/ Sportline 8S Wheels/Cobra Nogaros
                      RACP Plates/Vincebar/CMP/Turner RTAB/Beisan

                      2006 M6 Black Saphire SMG
                      Instagram

                      Comment
