    E46 M3 S54 Vanos pressure tests

    Results from my Vanos tests carried out recently, (UK custom guage kit off EBay).
    Its somewhat more thorough than the one I'd posted out back in 2016, where I had faults causing v low vanos oil pressure and Ive defined some simple benchmarks, this so that with others data, we could look at establishing indicators that can help us determine whether our systems are at full health.
    Am keen to get your feedback (and data points) to work this one further up, please comment.



    #2

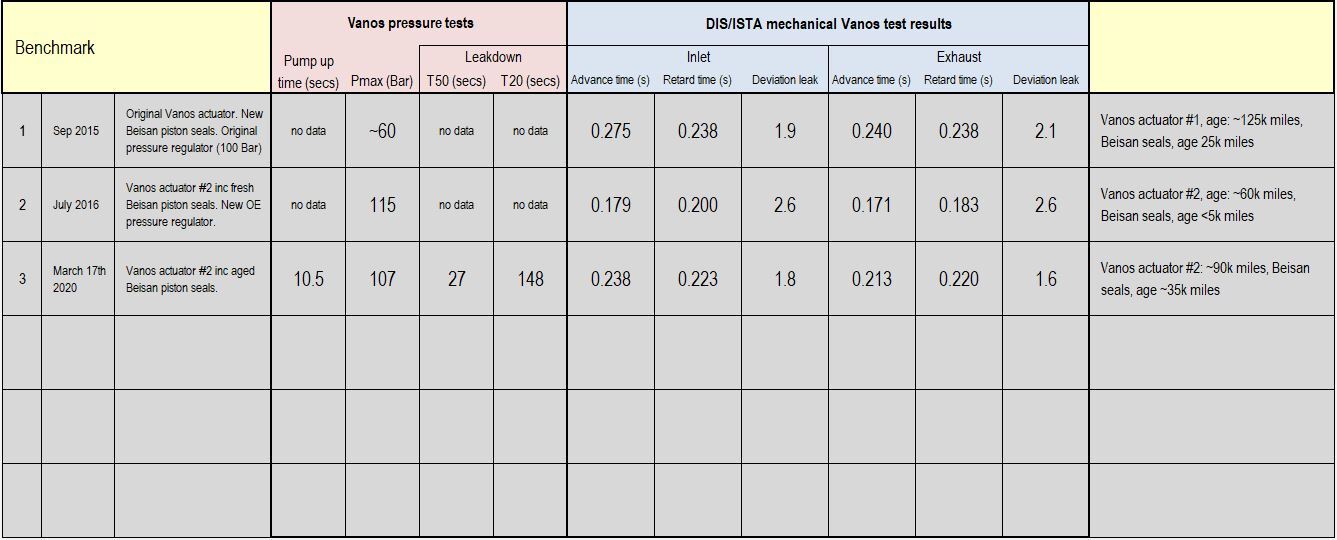

    Here are the results, (graph & results table inc two Id done a while back).
    Because my pressure has fallen a little, and the mechanical response times have slowed slightly, I think Im now ready for fresh Beisan piston seals.
    Last edited by 911Fiddler; 03-26-2020, 12:11 PM.

    Comment


      #3
      Having a little trouble uploading a revised pic for the benchmark table onto the original post.

      Click image for larger version

Name:	Revised.JPG
Views:	4576
Size:	77.6 KB
ID:	2177

      Comment


        #4
        Originally posted by 911Fiddler View Post
        Results from my Vanos tests carried out recently, (UK custom guage kit off EBay).
        Its somewhat more thorough than the one I'd posted out back in 2016, where I had faults causing v low vanos oil pressure and Ive defined some simple benchmarks, this so that with others data, we could look at establishing indicators that can help us determine whether our systems are at full health.
        Am keen to get your feedback (and data points) to work this one further up, please comment.

        Would you add the link for the uk custom guage kit in ebay.

        Sent from my SM-G930F using Tapatalk

        Comment


          #5
          The video shows the pressure reached 140 bars which is too high. Should be 115 bars max.

          The graph shows the accumulator (not actuator as in the data table) seems to be fine with pressure slowly drop over 1 minute. Bad ACC would cause the pressure to drop very fast.

          Edited: I was wrong: the video shows 114 bars which is OK, not 140.
          Last edited by sapote; 08-15-2020, 11:03 PM.

          Comment


            #6
            Need more information about the vanos fitting adapter size ,where could find online.

            Comment


              #7
              Originally posted by Ahmed.Alghoul View Post
              Need more information about the vanos fitting adapter size ,where could find online.
              This is what I bought.

              Fitting: https://www.ebay.com/itm/M10-x-1-0-S...t/361110675174
              Gauge: https://www.ebay.com/itm/201L-158O-1...i/172993590870

              Works completely fine, but does require you to remove the beauty cover, otherwise the gauge hits it when being screwed in. Maybe get an extension fitting so this isn't an issue.
              2002 Topasblau M3 - Coupe - 6MT - Karbonius CSL Airbox - MSS54HP Conversion - Kassel MAP - SSV1 - HJS - PCS Tune - Beisan - MK60 Swap - ZCP Rack - Nogaros - AutoSolutions - 996 Brembos - Slon - CMP - VinceBar - Koni - Eibach - BlueBus - Journal

              2012 Alpinweiss 128i - Coupe - 6AT - Slicktop - Manual Seats - Daily - Journal

              Comment


                #8
                Originally posted by heinzboehmer View Post

                This is what I bought.

                Fitting: https://www.ebay.com/itm/M10-x-1-0-S...t/361110675174
                Gauge: https://www.ebay.com/itm/201L-158O-1...i/172993590870

                Works completely fine, but does require you to remove the beauty cover, otherwise the gauge hits it when being screwed in. Maybe get an extension fitting so this isn't an issue.
                Perfect
                thank you

                Comment


                  #9
                  Originally posted by heinzboehmer View Post

                  This is what I bought.

                  Fitting: https://www.ebay.com/itm/M10-x-1-0-S...t/361110675174
                  Gauge: https://www.ebay.com/itm/201L-158O-1...i/172993590870

                  Works completely fine, but does require you to remove the beauty cover, otherwise the gauge hits it when being screwed in. Maybe get an extension fitting so this isn't an issue.

                  Are you sure that S54 Vanos banjo bolt fit size is M10x1.0
                  I read in another forum that it requires M12x1.5

                  ​​​​​​​please confirm it and if anybode else have the exact answer please let us know

                  Comment


                    #10
                    Originally posted by Ahmed.Alghoul View Post


                    Are you sure that S54 Vanos banjo bolt fit size is M10x1.0
                    I read in another forum that it requires M12x1.5

                    please confirm it and if anybode else have the exact answer please let us know
                    I'm not sure what the banjo bolt specs are, but those are the exact listings I bought from (pulled them from my purchase history) and they fit the engine just fine.
                    2002 Topasblau M3 - Coupe - 6MT - Karbonius CSL Airbox - MSS54HP Conversion - Kassel MAP - SSV1 - HJS - PCS Tune - Beisan - MK60 Swap - ZCP Rack - Nogaros - AutoSolutions - 996 Brembos - Slon - CMP - VinceBar - Koni - Eibach - BlueBus - Journal

                    2012 Alpinweiss 128i - Coupe - 6AT - Slicktop - Manual Seats - Daily - Journal

                    Comment


                      #11
                      Hi, in your table the pressure is at 107, are you planning to adjust to see if you can set it to 115? or you are just trying to assess seal life.

                      Comment


                        #12
                        Hi,

                        I tested my vanos oil pressure and the gauge shows 35-40 bars. Tried to adjust the pressure regulator but response was minimal. Replaced both the regulator (11367838080) and regulating valve (11367830341) but the pressure is still the same. My vanos has been overhauled by BMW specialist using all of Beisan's spare parts.


                        Any ideas?

                        Comment


                          #13
                          Originally posted by gorilla69 View Post
                          Hi,

                          I tested my vanos oil pressure and the gauge shows 35-40 bars. Tried to adjust the pressure regulator but response was minimal. Replaced both the regulator (11367838080) and regulating valve (11367830341) but the pressure is still the same. My vanos has been overhauled by BMW specialist using all of Beisan's spare parts.


                          Any ideas?
                          Was the vanos unit pressure tested on the bench before it was installed? If not there is no way to know whether the beisan seal job was succesful or not.

                          Are you chasing a specific problem or just doing the pressure test for fun?


                          Sent from my iPhone using Tapatalk

                          Comment


                            #14
                            Originally posted by eacmen View Post

                            Was the vanos unit pressure tested on the bench before it was installed? If not there is no way to know whether the beisan seal job was succesful or not.

                            Are you chasing a specific problem or just doing the pressure test for fun?


                            Sent from my iPhone using Tapatalk
                            No it wasn't bench tested (how can you test it like this?), I did the pressure test because after the overhaul it won't pass the vanos test. I 've covered 2.500kms since then.

                            Comment


                              #15
                              Originally posted by gorilla69 View Post
                              Hi,

                              I tested my vanos oil pressure and the gauge shows 35-40 bars. Tried to adjust the pressure regulator but response was minimal. Replaced both the regulator (11367838080) and regulating valve (11367830341) but the pressure is still the same. My vanos has been overhauled by BMW specialist using all of Beisan's spare parts.


                              Any ideas?
                              This sounds like you have a bad leaky vanos piston seal; could be damaged seal during installation. Or not having enough oil supply from the head: caused by a blockage regulator (the one between the head and vanos).

                              Comment
