heinzboehmer's 2002 Topaz 6MT Coupe

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • heinzboehmer
    replied

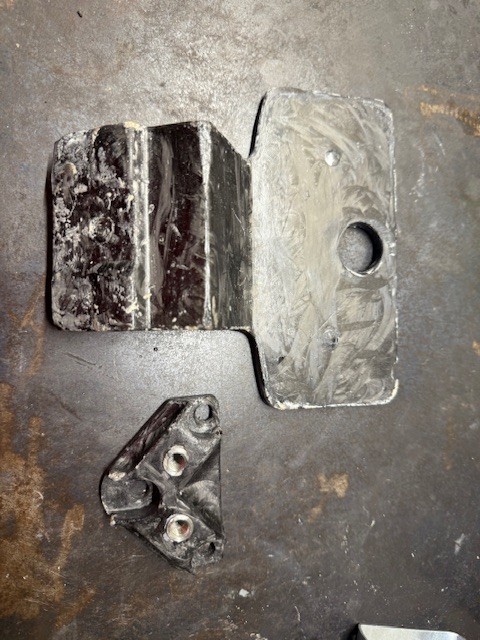

    Last piece of the validation puzzle arrived:

    Click image for larger version

Name:	20250426_111538.jpg
Views:	267
Size:	110.6 KB
ID:	303290

    Time to run through an entire mock install, just to make sure there isn't some small detail I overlooked.

    Started by printing exactly what is going to be sent out to be machined and installing the timeserts:

    Click image for larger version

Name:	20250426_112114.jpg
Views:	248
Size:	82.5 KB
ID:	303291
    Click image for larger version

Name:	20250426_112354.jpg
Views:	245
Size:	79.4 KB
ID:	303292

    Car then got disassembled and piece installed:

    Click image for larger version

Name:	20250427_171453.jpg
Views:	250
Size:	196.0 KB
ID:	303293
    Click image for larger version

Name:	20250427_171512.jpg
Views:	247
Size:	147.3 KB
ID:	303294

    I also printed out a cutaway of the piece to check (for the last time) that the profile of my design matches the chassis:

    Click image for larger version

Name:	20250427_172651.jpg
Views:	252
Size:	147.2 KB
ID:	303295

    Everything seems to check out!

    I forgot to take pics, but I also validated that there's enough tool clearance for the cap head screws that hold the brace attachment point to the main windshield piece. Regular hex bits are a little long, but stubby ones fit just fine!

    Was a bit nerve-racking, but this thing has officially been sent out to be machined! ETA is about 30 days, which gives me enough time to finish up the strut tower brackets.

    Also worth mentioning that I did a couple of small maintenance items while the car was taken apart:
    1. Replaced the main throttle actuator pull rod just for preventative maintenance reasons.
    2. Found a leak coming from the timing chain tensioner, so swapped that crush washer and retorqued. Was as enjoyable of a job as it always it. Let's see how long it takes before it starts leaking again.

    Leave a comment:


  • heinzboehmer
    replied
    Originally posted by Bry5on View Post

    Important to note that if you’re going the weld route, absolutely do not use 7075, as it is prone to cracking in the heat affected zone! 6061 for welded, 7075 or 6061 for machined. Agree that the small premium for large piece of mind (strength) is worth it here. You could also machine this from various steels and thin the walls to mitigate some of the mass hit. But the machined design should be mega stiff so there’s not much benefit to the stiffer steel material.
    Oh that's good to know! I wasn't aware that 7075 was prone to cracking when welded.

    Leave a comment:


  • Bry5on
    replied
    Originally posted by heinzboehmer View Post
    Clearances looking good, ready for a test fit:

    Couple things I should also mention:

    Some fab shops (the type that seem to sponsor every single electronics-related youtube video) are way, WAY cheaper than others. Like $300 for everything, it's insane. However, none of these cheap vendors specify T6 for their materials, so who knows what they're using. I think I'm not gonna risk it and instead I'll go with a vendor that tells me the exact material composition of what I'll be getting.

    Also, I ran some quick quotes to compare cost for the laser cut + machined version of the windshield piece I briefly discussed above. Bottom line is that I don't think it's worth it, unless you're good at welding aluminum.

    For 7075-T6:
    • Machined in one piece: $641.42
    • Multiple pieces: $409.49 (machined main body) + $40.25 (laser cut bottom sheet) + ~$100 (welding + machining bottom flat labor) = $549.74
    So roughly $100 less for the windshield piece if you go the multiple piece route. Even less if you use a cheaper vendor for the machining. I'm personally gonna stick to the fully machined version. Yes, it seems a little crazy to carve away that much material for the flat part, but the extra overhead involved with the other approach is not worth the $100 saved for me.

    All this is to say that you could technically get this all made for <$300, but I'm not going to.
    Important to note that if you’re going the weld route, absolutely do not use 7075, as it is prone to cracking in the heat affected zone! 6061 for welded, 7075 or 6061 for machined. Agree that the small premium for large piece of mind (strength) is worth it here. You could also machine this from various steels and thin the walls to mitigate some of the mass hit. But the machined design should be mega stiff so there’s not much benefit to the stiffer steel material.

    Leave a comment:


  • heinzboehmer
    replied
    Got the full SimSolid analysis going to check the stresses on the adhesive. Largest load was with both braces in either tension or compression:

    Click image for larger version

Name:	Capture.png
Views:	290
Size:	225.5 KB
ID:	303108

    Since everything is either gonna be steel or aluminum, I think I'm gonna use 3M 07333. Datasheet says that ultimate tensile strength of the adhesive is 35 MPa, so we're good! Will run this latest design through all my mechanical engineer friends just as a final check, but it's looking pretty final!

    Leave a comment:


  • heinzboehmer
    replied
    Did what George Hill suggested and ran the analysis on the earliest version possible. Note that this version is actually fairly recent, but unfortunately, I hadn't modeled the brace attachment point in any previous versions. Previous ones did not have the fasteners in line with the load paths, so they would have definitely performed worse.

    I'm not gonna show all the cases like I did before cause it's gonna cause a bunch more clutter. Instead, I'll show the worst one, which turned out to be the "one tension, one compression" case. Material was set to 6061-T6 for all of the following.

    Stresses:

    Click image for larger version

Name:	One tension, one compression.png
Views:	313
Size:	245.5 KB
ID:	302845
    Click image for larger version

Name:	One tension, one compression Open Box.png
Views:	309
Size:	231.2 KB
ID:	302846

    Piece that attaches to the windshield is still alright, which isn't super surprising, as this was one of the overkill versions. The other piece is definitely not alright, though! Max stress is higher than the yield strength of 6061.

    Safety factor:

    Click image for larger version

Name:	One tension, one compression Safety Factor.png
Views:	310
Size:	220.1 KB
ID:	302847
    Click image for larger version

Name:	One tension, one compression Safety Factor Open Box.png
Views:	311
Size:	215.2 KB
ID:	302848

    Same story here, windshield piece is fine, attachment point is not. 0.87 is not good.

    Definitely cool to see the progress!

    Leave a comment:


  • heinzboehmer
    replied
    Clearances looking good, ready for a test fit:

    Click image for larger version  Name:	20250423_160732.jpg Views:	6 Size:	82.1 KB ID:	302821
    Click image for larger version  Name:	20250423_161105.jpg Views:	6 Size:	58.1 KB ID:	302822

    Originally posted by heinzboehmer View Post
    And finally, ran some quotes and the one that made the most sense was right around $950 all in for 6061-T6 (materials, labor, taxes, shipping, etc.) and $1000 for 7075-T6. $50 extra for 7075? Uh, yes please!
    Couple things I should also mention:

    Some fab shops (the type that seem to sponsor every single electronics-related youtube video) are way, WAY cheaper than others. Like $300 for everything, it's insane. However, none of these cheap vendors specify T6 for their materials, so who knows what they're using. I think I'm not gonna risk it and instead I'll go with a vendor that tells me the exact material composition of what I'll be getting.

    Also, I ran some quick quotes to compare cost for the laser cut + machined version of the windshield piece I briefly discussed above. Bottom line is that I don't think it's worth it, unless you're good at welding aluminum.

    For 7075-T6:
    • Machined in one piece: $641.42
    • Multiple pieces: $409.49 (machined main body) + $40.25 (laser cut bottom sheet) + ~$100 (welding + machining bottom flat labor) = $549.74
    So roughly $100 less for the windshield piece if you go the multiple piece route. Even less if you use a cheaper vendor for the machining. I'm personally gonna stick to the fully machined version. Yes, it seems a little crazy to carve away that much material for the flat part, but the extra overhead involved with the other approach is not worth the $100 saved for me.

    All this is to say that you could technically get this all made for <$300, but I'm not going to.
    Last edited by heinzboehmer; 04-23-2025, 07:29 PM.

    Leave a comment:


  • heinzboehmer
    replied
    Originally posted by George Hill View Post
    IF you still have time on your simulation trial it might be fun to see how your first design stacks up against the final design. Would show what you learned and how it affected everything starting with a design that "seemed" good to now.
    That's an excellent idea. I'll run that analysis soon.

    Leave a comment:


  • George Hill
    replied
    IF you still have time on your simulation trial it might be fun to see how your first design stacks up against the final design. Would show what you learned and how it affected everything starting with a design that "seemed" good to now.

    Leave a comment:


  • heinzboehmer
    replied
    Originally posted by ethan View Post

    I've had good luck with these ties so far with my set of Bry5on ducts. Only street and one track day so far though - fingers crossed.

    McMaster-Carr is the complete source for your plant with over 595&#44;000 products. 98% of products ordered ship from stock and deliver same or next day.
    Thanks! That's basically exactly what I bought

    Should have known better than to throw some cheapo ties at them...

    Leave a comment:


  • heinzboehmer
    replied
    Back to chassis mods. Be warned, there are LOTS of pictures in this one, but as previously mentioned, my FEA SW is on a free trial, so documenting all the results here

    Discussed the design of the piece that bonds under the windshield with Bryson and we (mostly him, if I'm being honest) came up with some alternative designs/construction methods.

    First did the buckling calcs in an effort to get some more realistic loads for the braces. Approximated wall thickness by measuring the thickness of the flat part, dividing by 2 and then rounding up to the nearest value that made sense (flat is wider than OD of bar, so I'm assuming it's squished out a bit). Flat measured in at 2.75 mm, so I used 1.5 mm for the calcs:

    E = 2 x 10^11 Pa (these things are made out of some sort of steel)
    I = (pi / 4)(r2^2 - r1^2) = (pi / 4)(0.01275^4 - 0.01125^4) m^4 = 8.175 x 10^-9 m^4
    L = 0.45 m
    K = 1 (you can see in the above Z4 crash images that the brace buckles right after the flat, so counting that as rotation free and translation fixed)

    Plugged that all into Euler's formula:

    F = (pi^2 * 2 x 10^11 * 8.175 x 10^-9) / (1 * 0.45)^2 = 79.686 kN

    Which is, unfortunately, ~3x higher than the shear strength of the bolts used on the Z4. i.e. Useless

    Guess that notch weakens the braces much more than I expected, so time for some more involved analysis. Talked to Bryson and he walked me through the statics of this problem. I don't presently feel comfortable enough with the theory to try and explain it, so I'll just use the number he arrived at for the FEA

    Statics says it will take ~21 kN to buckle the notched brace, which tells us the max x component (front to back) of the load is ~15.8 kN and the max y component (side to side) is ~13.9 kN (for each brace).

    Alright time to test the new designs. First up, a boxed + welded version of the previous design:

    Click image for larger version

Name:	Screenshot 2025-04-23 at 12.42.36 PM.png
Views:	202
Size:	294.3 KB
ID:	302771
    Click image for larger version

Name:	Screenshot 2025-04-23 at 12.42.54 PM.png
Views:	187
Size:	345.9 KB
ID:	302772
    In this design, the CF sheet is replaced with an aluminum one, the ribs are entirely removed and wall thickness is decreased to 2 mm. The two pieces are meant to be welded together, which is what gives it its strength. Despite this being constructed entirely out of aluminum, it's lighter than the previous design! Weighs in at 450 g (0.993 lb) for all three pieces. FEA results follow:

    Both braces in compression:​

    Click image for larger version

Name:	Boxed Both Compression.png
Views:	187
Size:	244.9 KB
ID:	302773
    Click image for larger version

Name:	Boxed Both Compression Open Box.png
Views:	187
Size:	262.4 KB
ID:	302774

    One brace in compression, one in tension:

    Click image for larger version

Name:	Boxed One Tension One Compression.png
Views:	184
Size:	236.6 KB
ID:	302775
    Click image for larger version

Name:	Boxed One Tension One Compression Open Box.png
Views:	184
Size:	272.2 KB
ID:	302776

    Both braces in tension:

    Click image for larger version

Name:	Boxed Both Tension.png
Views:	185
Size:	233.0 KB
ID:	302777
    Click image for larger version

Name:	Boxed Both Tension Open Box.png
Views:	184
Size:	264.9 KB
ID:	302778

    (Ignoring brace attachment point piece for now, as it needs work at this point. More on that later.)

    As you can see, the piece that gets bonded to the chassis is a beast. Biggest stress concentrations are at the bosses, but those can likely be mitigated with some design tweaks. However, this is where I stopped iterating on this design and moved on to the other one.

    Next up is a fully machinable, one piece design that gets pocketed from the front/sides instead of from the bottom. The result is a V shape that is super strong along the load paths and also cuts down significantly on weight.

    This design can also be extended to be a two piece, weldable assembly (machined top part + laser cut sheet metal bottom part). This should help cut the cost due to the sheet metal part, but for now, I'm just gonna go ahead with the fully machined version.

    Click image for larger version

Name:	Screenshot 2025-04-23 at 12.41.20 PM.png
Views:	186
Size:	335.0 KB
ID:	302779
    A little heavier, but nothing that makes me want to trade strength for weight. Both pieces weigh in at a total of 499 g (1.099 lb). FEA results follow:

    Both braces in compression:​

    Click image for larger version

Name:	V Both Compression.png
Views:	186
Size:	253.8 KB
ID:	302780
    Click image for larger version

Name:	V Both Compression Only Windshield Piece.png
Views:	185
Size:	213.0 KB
ID:	302781

    One brace in compression, one in tension:

    Click image for larger version

Name:	V One Tension One Compression.png
Views:	186
Size:	256.4 KB
ID:	302782
    Click image for larger version

Name:	V One Tension One Compression Only Windshield Piece.png
Views:	185
Size:	216.8 KB
ID:	302783

    Both braces in tension:

    Click image for larger version

Name:	V Both Tension.png
Views:	183
Size:	252.3 KB
ID:	302784
    Click image for larger version

Name:	V Both Tension Only Windshield Piece.png
Views:	185
Size:	210.5 KB
ID:	302785

    The part that the braces mount to is the component under the most stress, but I am less concerned about this piece, as it is easily replaceable. I iterated on it a bunch based on the feedback from the previous FEA runs and this is about as good as it's going to get without having to modify the braces. As mentioned before, the braces are not flat up top and this piece has to accommodate for that. I could take a big hammer (really, a press) to them and flatten them, but this seems like it would make it significantly easier to bend the brace at the interface between the flat and cylindrical sections, so I'd rather avoid it. If I run into issues with the current design, then I'll likely have to go this route.

    Quick look at safety factor analysis as well, starting with 6061-T6:

    Both braces in compression:​

    Click image for larger version

Name:	V 6061 Both Compression Safety Factor.png
Views:	187
Size:	237.9 KB
ID:	302786
    Click image for larger version

Name:	V 6061 Both Compression Safety Factor Only Windshield Piece.png
Views:	185
Size:	206.3 KB
ID:	302787

    One brace in compression, one in tension:

    Click image for larger version

Name:	V 6061 One Tension One Compression Safety Factor.png
Views:	188
Size:	238.2 KB
ID:	302788
    Click image for larger version

Name:	V 6061 One Tension One Compression Safety Factor Only Windshield Piece.png
Views:	185
Size:	209.2 KB
ID:	302789

    Both braces in tension:

    Click image for larger version

Name:	V 6061 Both Tension Safety Factor.png
Views:	186
Size:	233.9 KB
ID:	302790
    Click image for larger version

Name:	V 6061 Both Tension Safety Factor Only Windshield Piece.png
Views:	185
Size:	203.4 KB
ID:	302791

    Not bad. Min safety factor is 1.3 for the brace attachment point and 2.5 for the windshield piece.

    Also ran this analysis with 7075-T6:

    Both braces in compression:

    Click image for larger version

Name:	V 7075 Both Compression Safety Factor.png
Views:	188
Size:	234.4 KB
ID:	302792
    Click image for larger version

Name:	V 7075 Both Compression Safety Factor Only Windshield Piece.png
Views:	188
Size:	197.8 KB
ID:	302793

    One brace in compression, one in tension:

    Click image for larger version

Name:	V 7075 One Tension One Compression Safety Factor.png
Views:	187
Size:	236.3 KB
ID:	302794
    Click image for larger version

Name:	V 7075 One Tension One Compression Safety Factor Only Windshield Piece.png
Views:	185
Size:	183.4 KB
ID:	302796

    Both braces in tension:

    Click image for larger version

Name:	V 7075 Both Tension Safety Factor.png
Views:	191
Size:	231.8 KB
ID:	302795
    Click image for larger version

Name:	V 7075 Both Tension Safety Factor Only Windshield Piece.png
Views:	186
Size:	180.2 KB
ID:	302797

    As expected, it's much stronger. Min safety factor jumps up to 2.4 for the brace attachment point and 4.6 for the windshield piece.

    Happy with the V design. Highly likely that this is going to be what's going into my car. I do want to run one final analysis with the full fledged SimSolid just to double check that the panel bond adhesive isn't going to be subject to loads higher than what it's designed for, but I think it'll be alright.

    And finally, ran some quotes and the one that made the most sense was right around $950 all in for 6061-T6 (materials, labor, taxes, shipping, etc.) and $1000 for 7075-T6. $50 extra for 7075? Uh, yes please!

    Leave a comment:


  • ethan
    replied
    Originally posted by heinzboehmer View Post
    First up, the zip tie that holds the right side brake duct upright broke and allowed it to pivot down. Was scraping nicely on the wheel when turning:
    I've had good luck with these ties so far with my set of Bry5on ducts. Only street and one track day so far though - fingers crossed.

    McMaster-Carr is the complete source for your plant with over 595&#44;000 products. 98% of products ordered ship from stock and deliver same or next day.

    Leave a comment:


  • heinzboehmer
    replied
    Originally posted by bigjae46 View Post
    Not sure what exact part is the issue but GSR Motorsports makes a sturdy aluminum part that holds the lower fender liner in place.

    https://gsrmotorsports.net/products/spec-e46-coupe-splash-shield-brackets
    Ah this brake scoop attaches to the control arm, not the stock brake duct bracket. But thanks for the link, good to know that exists,.

    Leave a comment:


  • bigjae46
    replied
    Not sure what exact part is the issue but GSR Motorsports makes a sturdy aluminum part that holds the lower fender liner in place.

    https://gsrmotorsports.net/products/spec-e46-coupe-splash-shield-brackets

    Leave a comment:


  • heinzboehmer
    replied
    Wait what am I doing. I just need to print the entire tab laying down...

    Click image for larger version

Name:	Screenshot 2025-04-19 at 4.45.31 PM.png
Views:	192
Size:	284.5 KB
ID:	302294

    Leave a comment:


  • heinzboehmer
    replied
    Drove the car a good amount today and broke a couple things.

    First up, the zip tie that holds the right side brake duct upright broke and allowed it to pivot down. Was scraping nicely on the wheel when turning:

    Click image for larger version

Name:	20250419_151612.jpg
Views:	192
Size:	137.7 KB
ID:	302287
    Click image for larger version

Name:	20250419_151615.jpg
Views:	174
Size:	74.2 KB
ID:	302288

    Will need to print another one and reattach it with higher quality zip ties, that Bryson recommended.

    I also snapped the top piece of my phone holder:

    Click image for larger version

Name:	20250419_153845.jpg
Views:	178
Size:	92.9 KB
ID:	302289

    Of course it landed inside the dash, so retrieving it was fun:

    Click image for larger version

Name:	20250419_133523.jpg
Views:	174
Size:	119.7 KB
ID:	302290
    Click image for larger version

Name:	20250419_153811.jpg
Views:	179
Size:	81.7 KB
ID:	302291

    This is a tricky piece to print since it needs to be strong along multiple orthogonal axes. I considered experimenting with printing it at an angle, but instead decided to try this approach:

    Click image for larger version

Name:	Screenshot 2025-04-19 at 4.11.27 PM.png
Views:	179
Size:	173.9 KB
ID:	302292

    Blue piece will be printed upright (as seen in the screenshot) and yellow will be printed laying down. Yellow is designed to press fit into blue and should help to keep it from breaking again in the same way it did today.

    Leave a comment:

Working...
X
