    Finally some euro cubby progress.

    Started by modeling and printing a perimeter that represents the smallest hole I can cut in the inner dash layer, while still allowing the front of the compartment to fully articulate. Clearance between the reference perimeter and cubby is way tighter than I actually want to make it, but this piece is just meant to serve as a real world, tangible reference for myself:

    Click image for larger version

Name:	Screenshot 2025-02-19 at 11.02.26 PM.png
Views:	365
Size:	208.9 KB
ID:	295004
    Click image for larger version

Name:	20250219_220755.jpg
Views:	341
Size:	72.0 KB
ID:	295005
    Click image for larger version

Name:	20250219_220809.jpg
Views:	338
Size:	81.0 KB
ID:	295006

    Next came the cutting template for the inner layer. I modeled the inside of the dash (actually a negative of it) using one of the many scans Bry5on and I took as a reference. Then did my best to approximate the cut lines using images of the euro dash:

    Click image for larger version

Name:	Screenshot 2025-02-19 at 11.06.05 PM.png
Views:	353
Size:	743.7 KB
ID:	295007
    Click image for larger version

Name:	Screenshot 2025-02-19 at 11.00.59 PM.png
Views:	347
Size:	186.8 KB
ID:	295008
    Click image for larger version

Name:	Screenshot 2025-02-19 at 11.01.51 PM.png
Views:	346
Size:	153.4 KB
ID:	295009

    Managed to nail the geometry on the first try!

    Guess that's kind of the expectation when referencing a very accurate scan, but still felt great to pull this thing out of the printer and have it just fit:

    Click image for larger version

Name:	20250219_220919.jpg
Views:	341
Size:	90.5 KB
ID:	295010
    Click image for larger version

Name:	20250219_220939.jpg
Views:	343
Size:	82.6 KB
ID:	295011
    Click image for larger version

Name:	20250219_220958.jpg
Views:	340
Size:	92.1 KB
ID:	295012

    Hard to tell from the pics above, but the template indexes on a couple of the dash features and is held in place by the screws that normally hold in the footwell plastics. This should make the cutting operation fairly precise and very repeatable.

    (also, photographing matte black plastic is no fun...)

    I then grabbed another (cracked) section of a dash, verified that the template fits just as well on that and marked the cut lines with a sharpie:

    Click image for larger version

Name:	20250219_221011.jpg
Views:	344
Size:	99.1 KB
ID:	295013

    Looking more and more similar to bmwfnatic's dash!

    Click image for larger version

Name:	IMG_6329.jpg
Views:	345
Size:	202.5 KB
ID:	295015

    I also checked the cut marks using the reference perimeter piece from before. Keep in mind that the cut will happen on the outside edge of the sharpie marks, but the minimum perimeter corresponds to the inside edge of the reference piece:

    Click image for larger version

Name:	20250219_221041.jpg
Views:	338
Size:	112.1 KB
ID:	295014

    I might open up the tolerance on the cut lines just a bit, but still not sure. Placing and fastening the cutting template seems pretty repeatable, but I'm going to need to practice on a few dashes before I can say for sure that the cut lines always end up in basically the same spot. If they do, then I can keep them where they are. If they don't, I'm gonna need to mess with them a bit.

    The one thing that I cannot move around is the bottom cut line (closest to the existing screw holes). The cubby has two tabs that hook onto that edge and keep it in place. Too much space between the cubby and that edge means its bottom will slide forward when you go to open it.

    Next up is actually cutting that section of the inner layer out, digging out the foam from underneath and starting to mess with the vinyl. I should be able to cut out most of the vinyl and just push the cubby in to give myself an idea of how much the vinyl needs to be reshaped.

    Leave a comment:


  • heinzboehmer
    replied
    Old headliner foam removed. I opted to buy some dish brushes and try to remove it manually in an attempt to cut down on the mess. The brushes I got had some plastic scrapers built into their heads which worked extremely well for scraping the foam up. I then used the actual brush part for the harder to reach areas.

    Click image for larger version

Name:	20250211_184331.jpg
Views:	403
Size:	123.2 KB
ID:	294455
    Click image for larger version

Name:	20250211_184451.jpg
Views:	376
Size:	170.2 KB
ID:	294456
    Click image for larger version

Name:	20250211_194259.jpg
Views:	379
Size:	122.0 KB
ID:	294457

    The foam was easy enough to remove, but there's still a layer of old glue on the thing. I don't think I can remove it without damaging the material underneath, so just going to leave it.

    There was also a bit of mold staining on the bottom corners. Tried spraying with some isopropyl alcohol and then hitting it with the brush. Got most of the stains out, but was also starting to mess up the material underneath, so I stopped. Good enough:

    Click image for larger version

Name:	20250211_194401.jpg
Views:	379
Size:	172.2 KB
ID:	294459
    Click image for larger version

Name:	20250215_182232.jpg
Views:	377
Size:	101.5 KB
ID:	294458

    That's it for now on the headliner. Once I manage to buy the fabric, I'll give it a quick pass with the drill brush attachment (to get any foam that I might have missed by hand), stick it in a bag with the ozone generator, give it a quick scuff with some sandpaper and reupholster it.

    Also, since the slicktop homelink bracket is NLA, I decided to just get a homelink mirror instead. Ended up with a ridiculous amount of them, as I also retrofitted a homelink 4 module into a friend's mirror:

    Click image for larger version

Name:	20250215_134230.jpg
Views:	380
Size:	147.9 KB
ID:	294460

    Along with the mirror, I also built an E8x/E9x dashcam adapter harness thing for said friend:

    Click image for larger version

Name:	20250215_170438.jpg
Views:	380
Size:	146.1 KB
ID:	294462

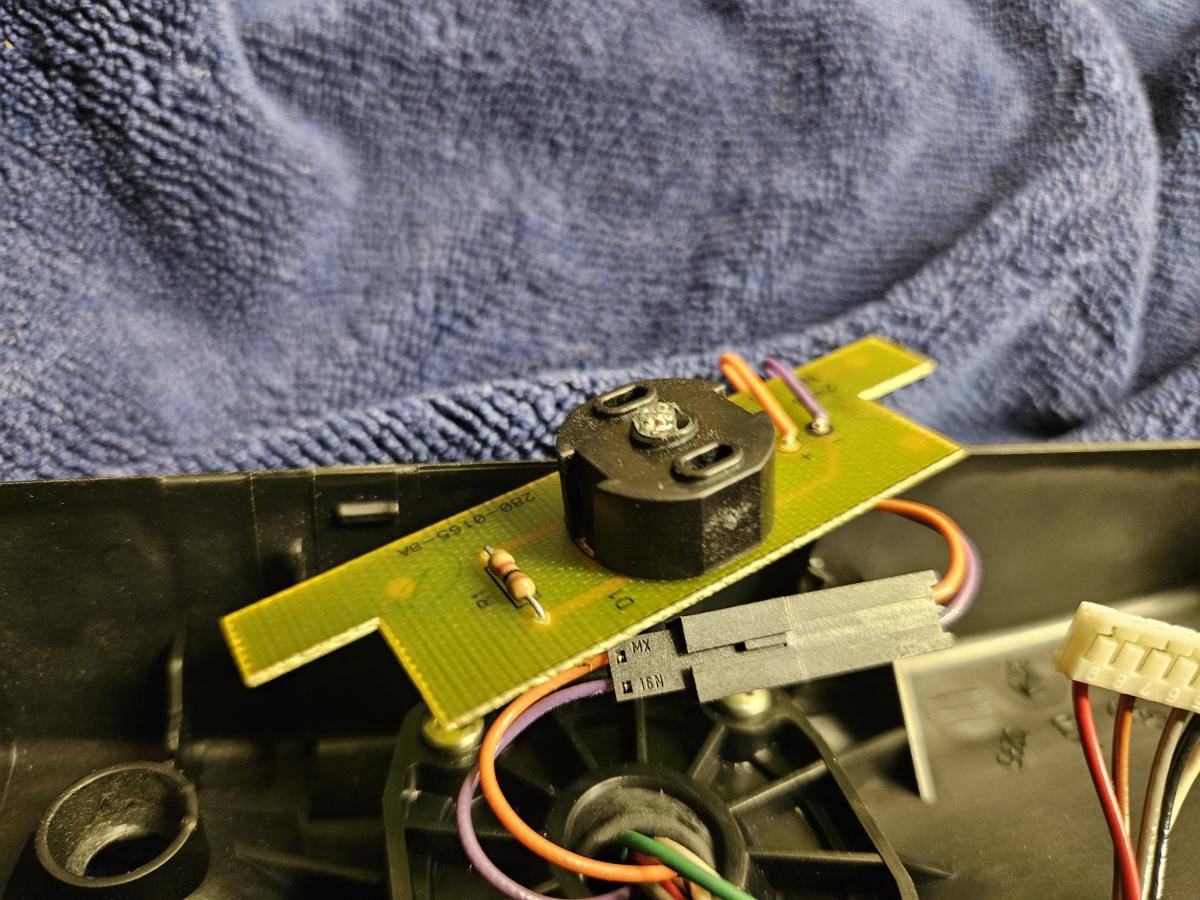

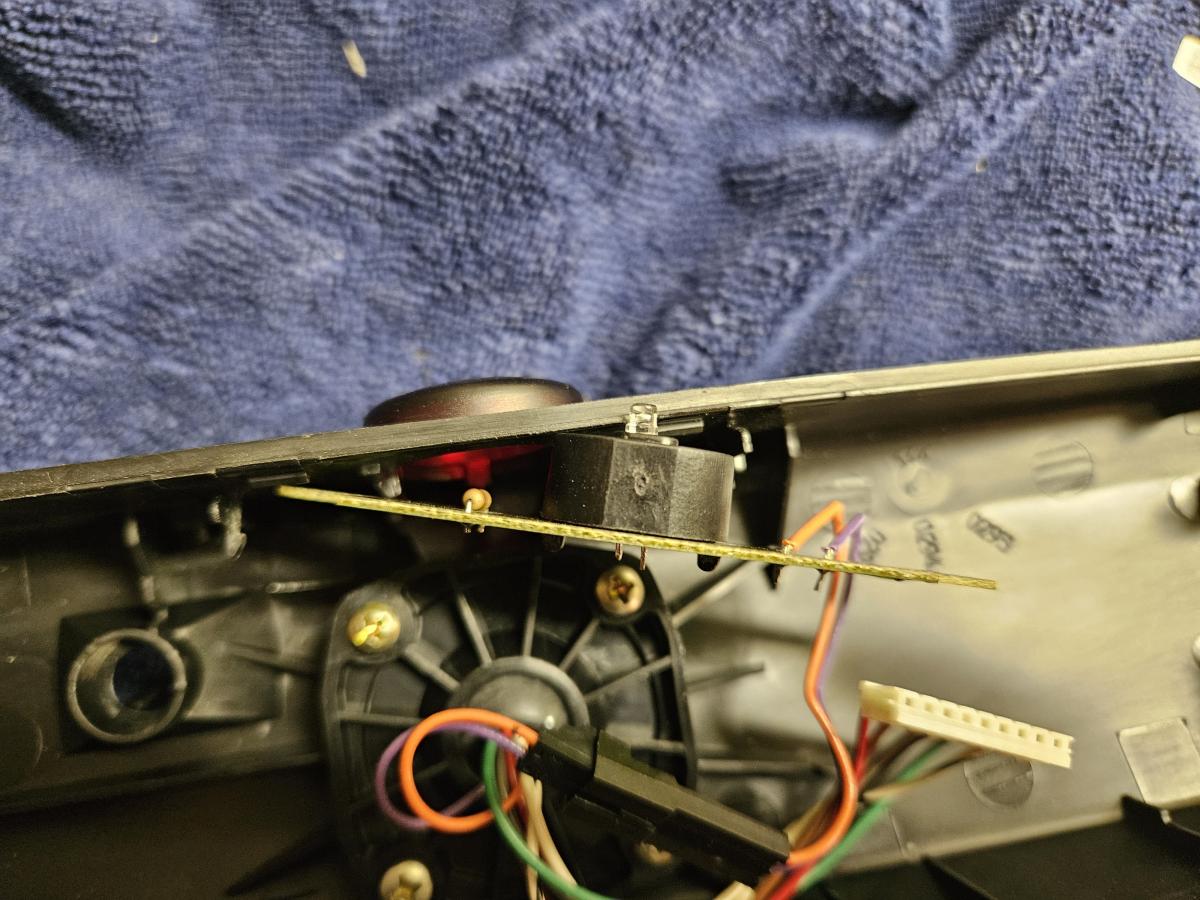

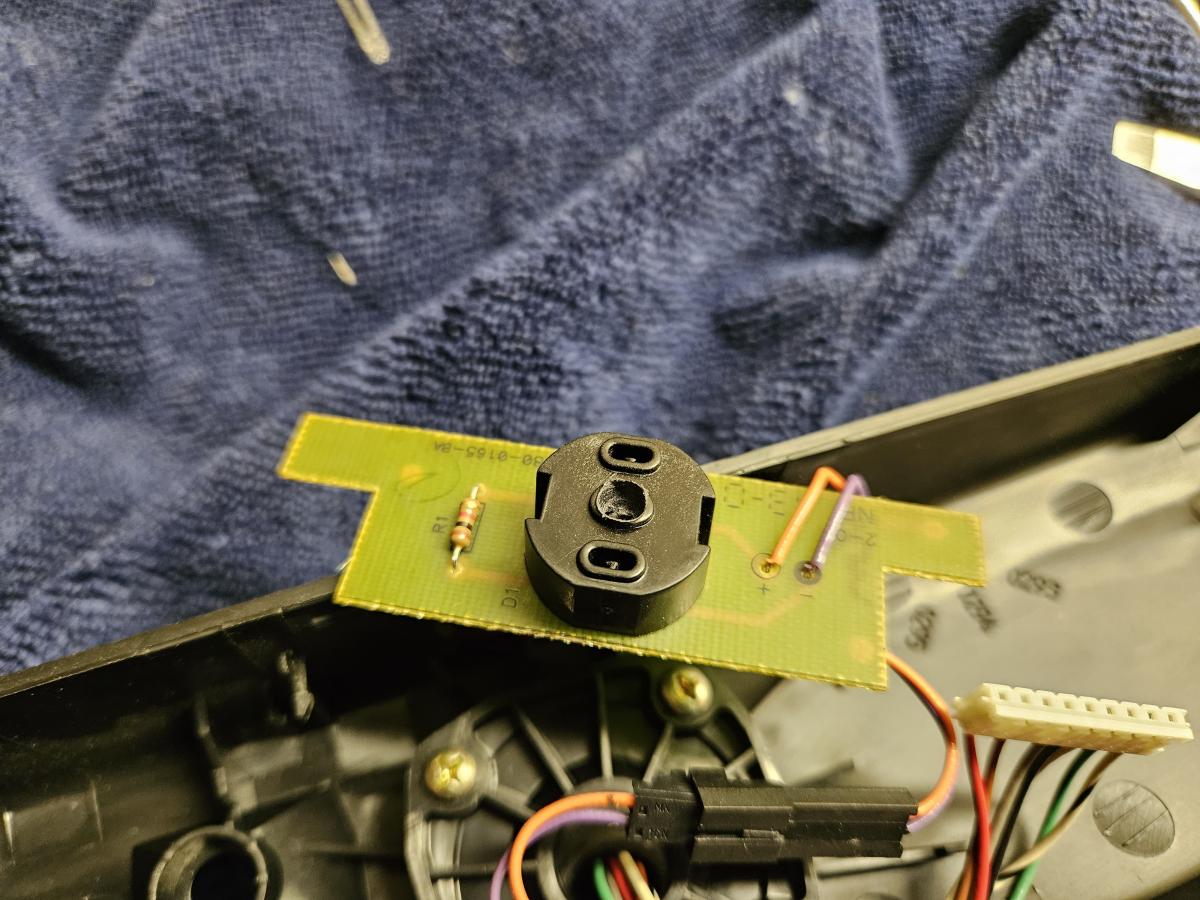

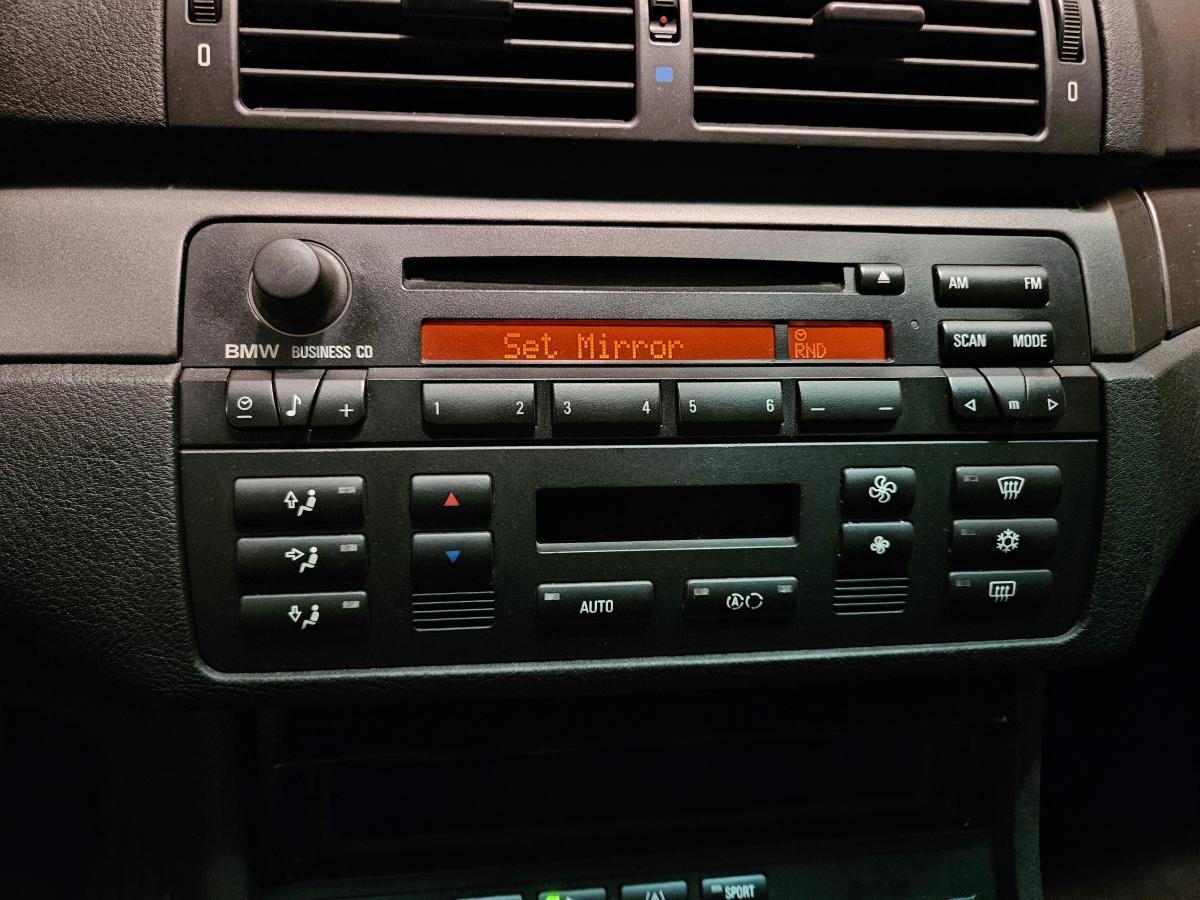

    M3 got a short, grey clown nose mirror with the homelink buttons. It also came with a compass, but I decided to disable it. TIS wiring diagrams made it seem like the compass runs off of the shared 12V rail in the mirror, so I didn't even try pulling wires from the connector to see if one of them disabled it. Instead, I just removed the GND jumper from the daughter board of the compass screen (J6) so that it can't turn on. I also put some tesa tape on top of the screen, as you can just barely make out its outline if the light hits the mirror just right. much harder to do so with the tape:
