  • Bry5on
    replied
    Cross-posting from here because it's so interesting:

    Today I learned:
    1) The steering model is not just a ratio model, it is built alongside the vehicle cornering model
    2) The ZCP model has very few changes from the M3 model
    3) The ZCP model has a significant change to the expected yaw calculation at around 65mph that *goes with the steering ratio model that we set in NCS* - and this change is to a table that is not editable with NCS Expert
    4) My too-early DSC interventions all happen about 65mph where the calculated expected yaw and actual yaw values differ by ~4deg/s
    5) The DSC intervention threshold in normal DSC mode is ~4deg/s (variable and above 15deg/s in m-track mode)

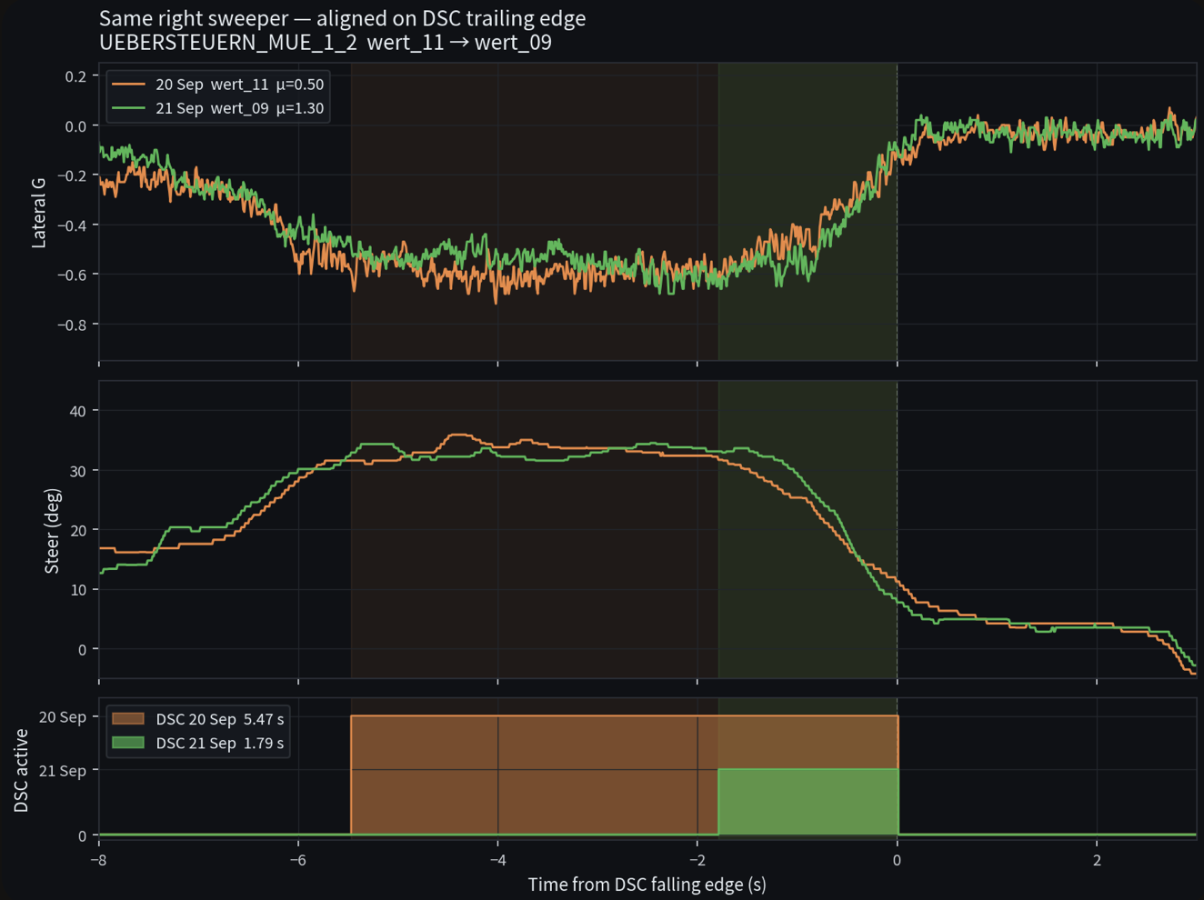

    Why is this significant? In my build thread I've been chasing (and datalogging) DSC interventions and trying to figure out why I have this issue with the non-m (same ratio as ZCP) steering rack even though I'd coded the rack's ratio. The learnings above explain why Heinz, who has a ZCP MK60, has not been able to reproduce these symptoms.

    Here is a graphic to help tell the story (snippet of my datalogs here, pulled from CAN MK60 datalogs of expected and measured yaw). ZCP calculation in red, M3+ZCP rack calculation in blue, actual value in black, DSC trigger threshold in dotted blue:​
    Click image for larger version  Name:	65mph DSC intervention.png Views:	0 Size:	301.2 KB ID:	616030

    edit: here's a plot that shows the differences between the two calculations ZCP vs M3+ZCP rack:
    Click image for larger version

Name:	ZCP v M3 error.png
Views:	2
Size:	272.1 KB
ID:	616035
    Last edited by Bry5on; Yesterday, 10:38 PM.

    Leave a comment:


  • Bry5on
    replied
    For those that haven't been following along, there's been a yearlong header design project going on in this thread and I've finally completed a true equal length, stepped header design tuned for mid-high rpm peak power and mid-rpm torque that will be 3D printed from 316L stainless after George Hill and I verify fitment. Here's the completed design and the first parts in the printer:
    Click image for larger version

Name:	Screenshot 2026-11-17 at 6.19.56 PM.png
Views:	35
Size:	577.3 KB
ID:	615999
    Click image for larger version

Name:	Screenshot 2026-11-17 at 6.19.48 PM.png
Views:	35
Size:	743.8 KB
ID:	616000
    Click image for larger version

Name:	IMG_1208.jpg
Views:	39
Size:	69.6 KB
ID:	616004


    Also, the PCBAs for mirror dimming (both sides) showed up. I designed a generic enclosure for just the board that clips into either the mic location or the spot next to it. It's minuscule. I'll be replacing my handmade board with this at some point as it has some extra protection to prevent over-volting the dimming gel. It also uses BMW connector pins of course, six position in this case.
    Click image for larger version

Name:	IMG_1184.jpg
Views:	41
Size:	123.2 KB
ID:	616002 Click image for larger version

Name:	IMG_1186.jpg
Views:	41
Size:	57.7 KB
ID:	616003 Click image for larger version

Name:	IMG_1195.jpg
Views:	39
Size:	155.9 KB
ID:	616005 Click image for larger version

Name:	IMG_1189.jpg
Views:	40
Size:	34.0 KB
ID:	616001

    Leave a comment:


  • Bry5on
    replied
    Got to some more weight savings while waiting for starship livestream to finish its last orbit and reentry (how about it for that ship catch!!! Next. level.) - Girodisc rear rotors. These allow us to use the actual 996 pads front and rear, rather than using a front 986 pad out back to sweep the rotor face. This means that both the pads and the rotor are lighter.

    Worn (18.8mm) M3 rear rotor pair weight (in girodisc boxes): 32.8lb
    Worn ~50% tall rear pads: 1.27kg (2.8lb)

    New (20mm) rear girodisc rotor pair weight (in girodisc boxes): 27.6lb
    New 996 rear pads: 1.24kg (2.7lb)

    So just versus the worn parts, I'm saving 5.3lb total. Versus new parts this is something more like 8lb of mostly rotating unsprung weight. Pretty good! The fronts are only ~1.3lb/side lighter than my current ZCP rotors so I'll wait for those to wear down before swapping.
    ​ Click image for larger version

Name:	IMG_1141.jpg
Views:	43
Size:	99.6 KB
ID:	615465
    Click image for larger version

Name:	IMG_1143.jpg
Views:	46
Size:	46.0 KB
ID:	615464
    Click image for larger version

Name:	IMG_1151.jpg
Views:	43
Size:	106.2 KB
ID:	615466
    Click image for larger version

Name:	IMG_1153.jpg
Views:	48
Size:	126.4 KB
ID:	615463

    Leave a comment:


  • Bry5on
    replied
    Alright, guess we're not done with the mirror dimming just yet. Here's the schematic for the dimmer that works (both sides)
    Click image for larger version

Name:	Mirror Dimm Schematic.png
Views:	68
Size:	271.8 KB
ID:	614871

    And why not design a little tiny PCBA that does both sides, just because we can
    Click image for larger version

Name:	Mirror Dim PCBA Layout View.png
Views:	83
Size:	202.2 KB
ID:	614868 Click image for larger version

Name:	Mirror Dim PCBA Top View.png
Views:	83
Size:	116.2 KB
ID:	614869 Click image for larger version

Name:	Mirror Dim PCBA ISO View.png
Views:	81
Size:	267.6 KB
ID:	614870 Click image for larger version

Name:	Mirror Dim PCBA 3D Connector View.png
Views:	82
Size:	30.6 KB
ID:	614867

    And an enclosure for it
    Click image for larger version

Name:	MirrorBox Closed ISO.png
Views:	84
Size:	412.3 KB
ID:	614864 Click image for larger version

Name:	MirrorBox Open ISO.png
Views:	84
Size:	674.6 KB
ID:	614866 Click image for larger version

Name:	MirrorBox Bottom ISO.png
Views:	83
Size:	546.1 KB
ID:	614865 Click image for larger version

Name:	MirrorBox Section.png
Views:	85
Size:	96.2 KB
ID:	614863

    Ordered a handful of these PCBAs, so at least they can be recreated for retrofits in the future

    Leave a comment:


  • heinzboehmer
    replied
    Man, that's super tidy. Good stuff!

    Leave a comment:


  • Bry5on
    replied
    Okay, well we left off with the knowledge that we had to move the PCBA to the rear view mirror area. And while I was waiting for the boards to show up, I decided to test the handmade board directly in the car … and promptly roasted the dimming glass on the drivers side. Turns out these things draw up to 200mA of current, which is more than my little opamp circuit could deliver, so it pulled voltage high and killed the electrochromic gel. Good times, and back to the drawing board.

    So now that the mirror is toast, no harm in tearing it down to reverse engineer it and properly identify what’s going on inside. So here we go, this is the plastic mirror backing removed with IPA and a plastic blade:​
    Click image for larger version  Name:	IMG_1026.jpg Views:	0 Size:	186.7 KB ID:	614764
    Click image for larger version  Name:	IMG_1027.jpg Views:	0 Size:	111.5 KB ID:	614768

    Then separating the layers, this is the heater circuit (Red Pin 3 is positive, Brown Pin 4 is ground). The heater measures 28ohms on my multimeter, and driving the circuit with 13V measured 1.2A for 11 ohms at steady state. Note that the ground has a separate trace that follows the perimeter of the glass and terminates at that wire at the bottom. This is actually the mirror gel ground, it just lives on the heater layer.
    Click image for larger version  Name:	IMG_1028.jpg Views:	0 Size:	174.6 KB ID:	614763

    Here we have the second layer, this one is for the dimming gel and this is where it gets interesting. Pin 1 has a trace that follows the perimeter of the mirror and terminates at the positive gel wire. Pin 2 has a squiggly resistor just like the heater that also measures 28 ohms, but it terminates to Pin 1.
    Click image for larger version  Name:	IMG_1030.jpg Views:	0 Size:	168.9 KB ID:	614769
    Click image for larger version  Name:	IMG_1031.jpg Views:	0 Size:	170.1 KB ID:	614765

    What does this tell us? Well Pin 1 will drive the mirror dimmer directly and Pin 2 will drive it through a current limiting resistor. My working theory is that the factory module drives through Pin 2 and closes the loop by measuring voltage at Pin 1. Well I’m just going to drive Pin 1 directly because I think that’s easier. So we can ignore Pin 2 entirely. Only one wire needs run per side to retrofit dimming in the end.

    And now back to the circuitry. The boards arrived and look sweet! But unfortunately they’re not usable given the opamp learnings above.​
    Click image for larger version  Name:	IMG_1038.jpg Views:	0 Size:	150.1 KB ID:	614762

    So I got to work on hand-fabbing a board that does the same function and passes current through a transistor instead of through the opamp. I also neatly designed an enclosure that clips into the sunroof mic cover, which also includes a dual USB-A output for the dash cam. Much tidier than what I had before and uses factory pins and factory-like connectors. Here’s that:​
    Click image for larger version  Name:	IMG_0998.jpg Views:	0 Size:	171.7 KB ID:	614766
    Click image for larger version  Name:	IMG_0972.jpg Views:	0 Size:	162.8 KB ID:	614767
    Click image for larger version  Name:	IMG_1001.jpg Views:	0 Size:	103.9 KB ID:	614760 Click image for larger version  Name:	IMG_1002.jpg Views:	0 Size:	104.2 KB ID:	614759

    I actually don’t have a photo of it final installed as it looks like there’s nothing there B) And voila! We now have auto-dimming side mirrors and functional mirror heating again.

    in the next chapter we’ll get to work on mirror tilt.​
    Click image for larger version  Name:	IMG_1047.jpg Views:	0 Size:	80.0 KB ID:	614761
    Last edited by Bry5on; 11-07-2026, 10:06 AM.

    Leave a comment:


  • Bry5on
    replied
    Alright, I probed around this evening with the door panel off to see what we can do for a KL15 ignition source. Unfortunately there isn't one - The X623 Pin 5 that I was hoping was a digital version of KL15 is 10.6V at idle and 12.5+ vehicle voltage on ignition. The mirror position sensing voltage is the closest thing to ignition but it's 5.1V and I just don't want to pull any current from that line.

    So instead of putting the boards in the door module, I'll print an enclosure and put them above the rear view mirror in the headliner. We'll pick up the dimmer signals there, plus the garage door opener ignition and ground source (my opener is the later style rolling code version in the rear view mirror), then pass the dimmer voltage and 12V mirror turn on signal along the existing two wires that are already run to the mirrors. That should work just fine as I ran 20ga wires and the single enclosure for 2 boards is in the printer now.

    While I was poking around, I did verify two things.
    Click image for larger version

Name:	Screenshot 2026-10-28 at 10.56.57 AM.png
Views:	129
Size:	209.2 KB
ID:	614028

    1) The resistor ladder and method of operation of the mirror switch. The PCBA has 4 220 ohm resistors on it, is supplied a ground, a +5.1V rail, and has an output wire with another resistor on it that floats at 5.1V when open. It also has an open/close switch for selecting driver/passenger side. When you choose a direction on the mirror control, it closes the resistor ladder in 1 of 4 positions, creating a voltage divider that varies from 1/5 * 5.1V to 4/5 * 5.1V (remember, 5/5 * 5.1V is the idle state).
    Click image for larger version

Name:	IMG_0921.jpg
Views:	132
Size:	73.7 KB
ID:	614030 Click image for larger version

Name:	IMG_0920.jpg
Views:	134
Size:	61.3 KB
ID:	614031

    Well, there's one more possible state, which is 0/5*5.1V = 0V. This one is fun. That state is the mirror fold motor control state. So if you are retrofitting folding mirrors and can't get a hold of the correct purple switch, but want to control the mirrors with a button, just short pins 2 (ground) and 4 (switch position) briefly. That's all the extra little button on the mirror control does.

    2) I verified the wiring and available pins in the mirror control module. Dropping this table here with my notes in case it's useful to someone else later. My notes still show that I as going to use X18171 pins 3, 6, 9 and 12 but that's no longer the case because of the lack of KL15.
    Click image for larger version

Name:	Screenshot 2026-10-29 at 6.29.53 PM.png
Views:	121
Size:	196.9 KB
ID:	614029

    Leave a comment:


  • Bry5on
    replied
    Originally posted by heinzboehmer View Post

    Do you need to run new wiring for the folding motor? If not, you shouldn't even need to remove the door panel. Just disconnect the wires at the mirror adjustment motor/heating element side inside the mirror housing and done.
    You run two wires that terminate at the mirror control module. The circuitry to control them (polarity inversion for defined time period) is already on the board but there are no wires for the motor itself. The motor wires do not need to pass through the narrow part of the mirror like the rest of the harness does.

    So yeah, door panel comes off but no changes necessary to either the module or coding - other than coding auto-fold/unfold.

    Leave a comment:


  • heinzboehmer
    replied
    Originally posted by Bry5on View Post
    Now mirror folding is much easier! Just door panels and mirror removal.
    Do you need to run new wiring for the folding motor? If not, you shouldn't even need to remove the door panel. Just disconnect the wires at the mirror adjustment motor/heating element side inside the mirror housing and done.

    Leave a comment:


  • YoitsTmac
    replied
    Originally posted by Bry5on View Post

    It’s definitely not for the faint of heart as you’ve got to run wires from the central mirror, down the pillars, into the doors, and up into the mirrors. Since I was in there for the roof/windshield/headliner conversion, mirror conversion, and window regulator replacement it made it an easy add-on.

    Now mirror folding is much easier! Just door panels and mirror removal.



    It is a totally separate module? I wonder what it’s looking for on the bus as the central rear view mirror isn’t on the bus - it just puts out two analog voltage pairs. Seems to me that integrating the F30 might be unnecessarily complicated? Maybe e90 would be easier, but I don’t think the control modules are packaged in a similar way..​​
    Ah that’s right. I originally explored it as a potential alternative way to control the folding mirrors while also providing dimming, all in the same module. But yes, would need a controller all the same to send these commands. E90 IIRC is controlled by the JBE in the fuse box or else I’d agree.

    Leave a comment:


  • Bry5on
    replied
    Originally posted by Ramage View Post
    I'll be curious to hear your feedback on the folding mirror kit. It’s one of those totally unnecessary mods that I’ve always wanted to do!

    Looks like I need to order some e90 auto-dimming mirrors
    It’s definitely not for the faint of heart as you’ve got to run wires from the central mirror, down the pillars, into the doors, and up into the mirrors. Since I was in there for the roof/windshield/headliner conversion, mirror conversion, and window regulator replacement it made it an easy add-on.

    Now mirror folding is much easier! Just door panels and mirror removal.

    Originally posted by YoitsTmac View Post
    I really wish I had more time, absorbed by iDrive but I feel like an F30 mirror module is what you want. It can do all motor ops sure but most crucially it does dimming and heating and manages voltages. All you need is power, ground and LIN. It only needs one of two signals: car on/off and lights on/off
    It is a totally separate module? I wonder what it’s looking for on the bus as the central rear view mirror isn’t on the bus - it just puts out two analog voltage pairs. Seems to me that integrating the F30 might be unnecessarily complicated? Maybe e90 would be easier, but I don’t think the control modules are packaged in a similar way..​​

    Leave a comment:


  • YoitsTmac
    replied
    I really wish I had more time, absorbed by iDrive but I feel like an F30 mirror module is what you want. It can do all motor ops sure but most crucially it does dimming and heating and manages voltages. All you need is power, ground and LIN. It only needs one of two signals: car on/off and lights on/off

    Leave a comment:


  • Ramage
    replied
    I'll be curious to hear your feedback on the folding mirror kit. It’s one of those totally unnecessary mods that I’ve always wanted to do!

    Looks like I need to order some e90 auto-dimming mirrors

    Leave a comment:


  • Bry5on
    replied
    Okay, after studying the WDS wiring diagrams and finding there is no clean fused KL15 source​, three quick updates:

    1) I will cut the trace going to the MOSFET and wire it directly to KL30 at the mirror module, which is fused as Fuse 57
    2) I'm planning to snag what looks like the digital 'KL15 equivalent' on pin 5 of X623 going to the mirror itself to power the analog circuit driving the dimmer control and MOSFET on/off. I believe this pin may get power with KL15 k-bus and also under conditions where ignition is off but mirror motors are being commanded (unlocking with key memory, for example). Probing will tell, otherwise I still need to find a KL15 source to prevent parasitic analog drain.
    3) Mirror motors are available new as a kit now, so I've ordered those to perform the power folding retrofit while I'm in there. I will not be retrofitting the button, just automatic fold/unfold with lock/ignition. My XTRONS headunit has a fold feature if needed. Bought these: https://www.ebay.com/itm/295814912637

    Click image for larger version  Name:	Screenshot 2026-10-28 at 10.56.57 AM.png Views:	0 Size:	209.2 KB ID:	613876
    Click image for larger version  Name:	Screenshot 2026-10-28 at 12.22.23 PM.png Views:	0 Size:	140.9 KB ID:	613875
    Last edited by Bry5on; 10-28-2026, 12:46 PM.

    Leave a comment:


  • Bry5on
    replied
    Originally posted by heinzboehmer View Post
    Awesome! Been a while since I traced through an op amp circuit.

    Does the mirror draw any meaningful amount of current from `Dimm Active 12V`? Asking cause the Q3 source is connected after the 100ohm resistor, so the voltage may sag if it does.

    Also, not concerned about leaving the Q3 drain floating when dimming is off? Unsure if the mirror has an internal pulldown or similar.
    Nah not really meaningful current wise, maybe 100mA steady state. But that’s a good thought. I’ll check voltage across that resistor during operation.

    edit: on second thought I can just move the source over to 12V IGN with a quick trace cut and solder bridge. I think I’ll do that instead, damn.

    And regarding leaving Q3 drain open, I’d figured that either it has a pull down or it’ll just consume power until it’s drained. Guess I’ll find out if the mirror stays on for a while
    Last edited by Bry5on; 10-28-2026, 08:31 AM.

    Leave a comment:
