In addition to adding another CAN frame I've also been having a think about how to make this feature a bit more generic.
We have limited frames we can use, and without a major rewrite to dynamically swap frames that is quite frankly beyond my capability and current understanding, that isn't going to change. I can already think of enough things that would be interesting to log (particularly during tuning, etc.) that they won't all fit into the available frames at once. Likewise I'm sure others will encounter similar situations.
I mentioned previously that I thought it would be possible to create the ability to provide for some degree of configuration which would mean 1 standard program binary with the ability to somewhat configure the messages via the partial binary. Having made 0x7D0 work and having done some more thinking around this I'm pretty sure that the following would be fairly easy - it would look something like this:
Master Program ROM
Master Tune Binary
And I think it's as simple as that. I initially was thinking that there would need to be logic to split up 16/32 bit values where required, but given the 68k is byte addressed it's actually very simple. If you want to send the word (2 bytes) at 0x1000 for example it's just two move byte instructions the first referencing 0x1000 and the second referencing 0x1001.
With the disassembly work that's been done it will be possible to make available a table of all valid variables in the Master + dual-ported-ram which users can then choose from themselves. Any variables from slave that aren't on the DPR would have to be inserted into the DPR (if there's any space left, I don't actually know yet) as a change to the Slave Program ROM, but again this could be done as a generic program rom change.
Edit: This approach also means that the tune binary remains backwards compatible with the standard 0401 program ROM. e.g. you could flash back to the original ROM without having to also change your tune binary. Likewise running the custom ROM with a standard 0401 tune would also be supported - 0x7D0 and 0x7D1 would simply be disabled.
What are the downsides of this
Anyway - keen for feedback on this idea/proposal
We have limited frames we can use, and without a major rewrite to dynamically swap frames that is quite frankly beyond my capability and current understanding, that isn't going to change. I can already think of enough things that would be interesting to log (particularly during tuning, etc.) that they won't all fit into the available frames at once. Likewise I'm sure others will encounter similar situations.
I mentioned previously that I thought it would be possible to create the ability to provide for some degree of configuration which would mean 1 standard program binary with the ability to somewhat configure the messages via the partial binary. Having made 0x7D0 work and having done some more thinking around this I'm pretty sure that the following would be fairly easy - it would look something like this:
Master Program ROM

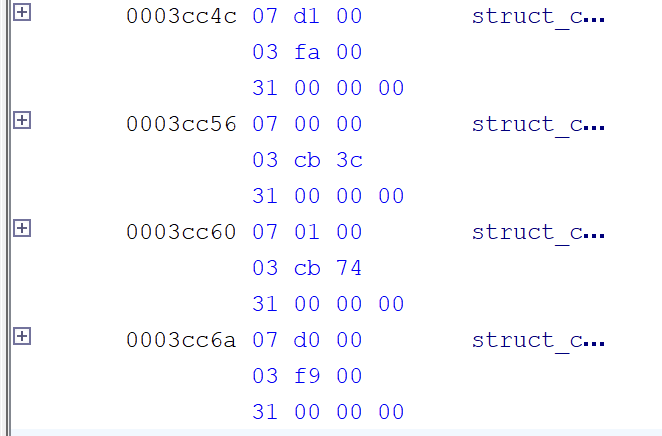

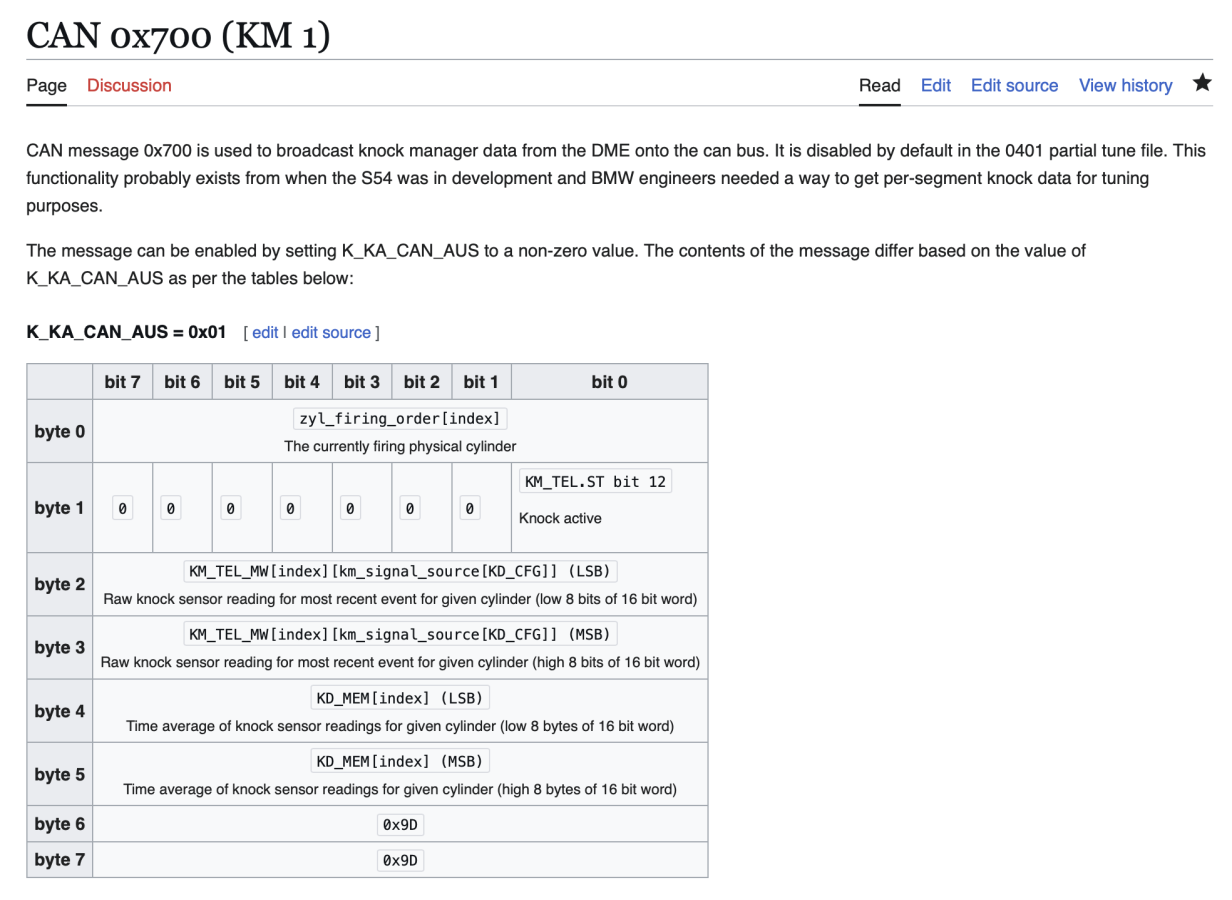

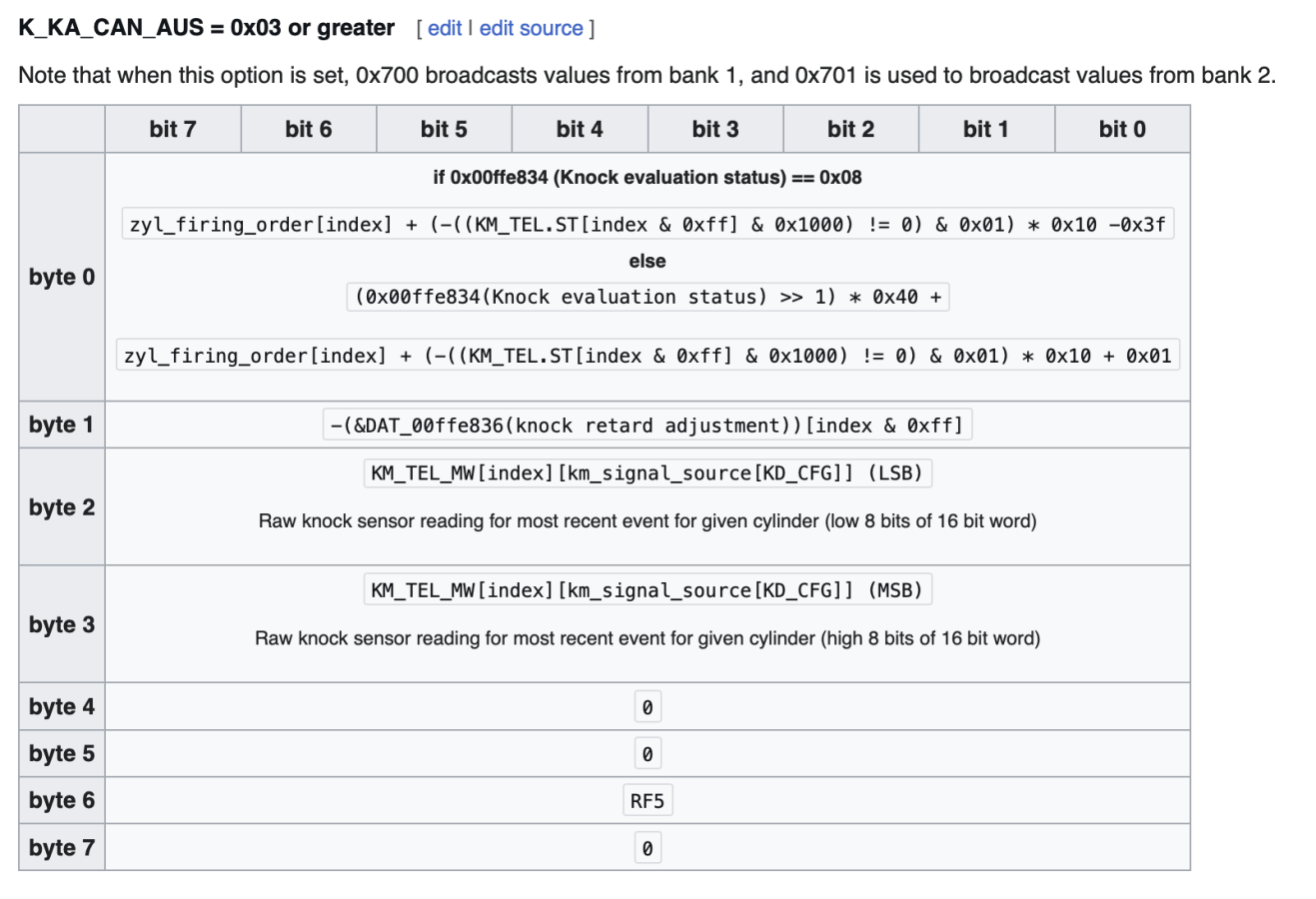

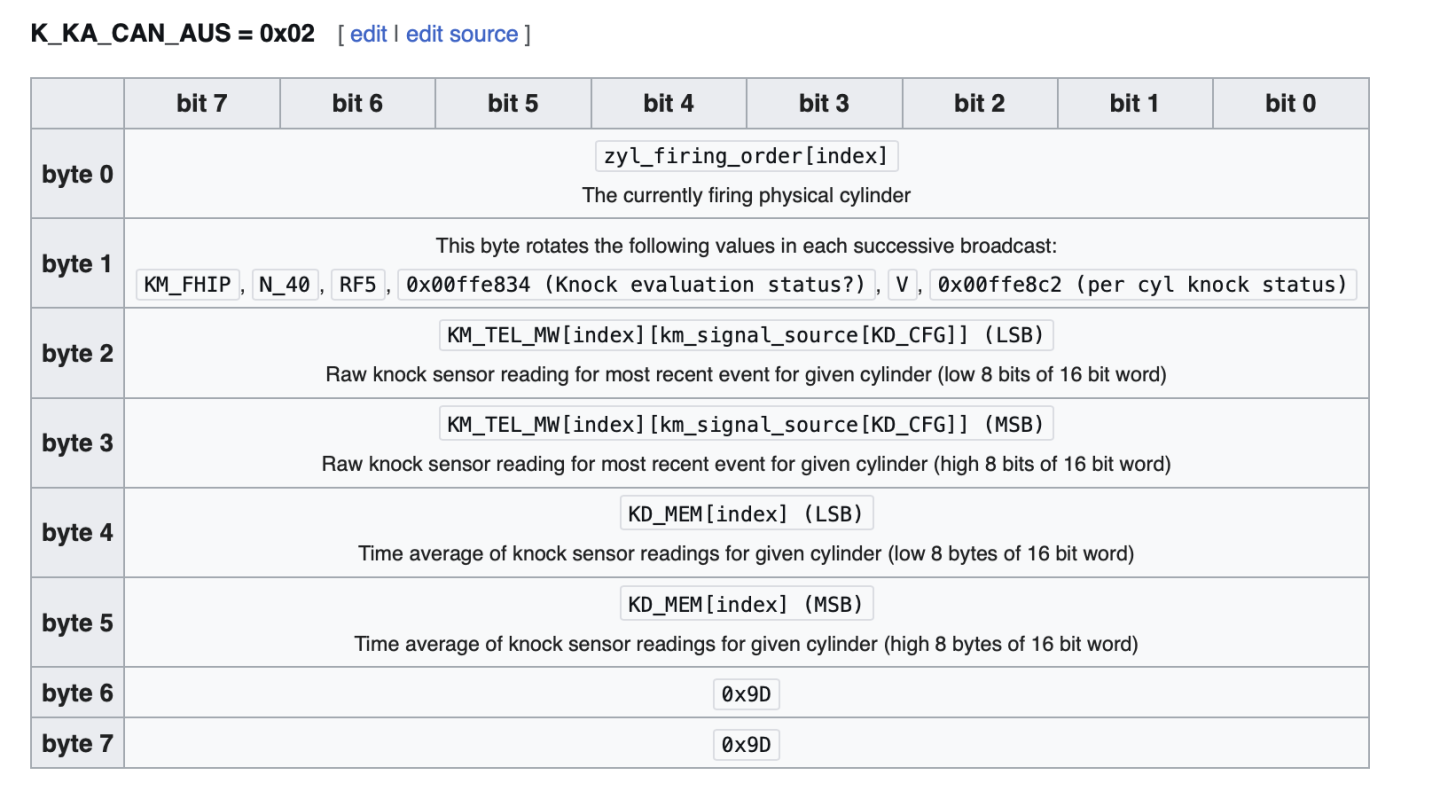

- Custom Program ROM with modified CAN table repurposing unused messages (propose using 0x701 as the current version does as well as 0x62F which is another safe option for the E46)

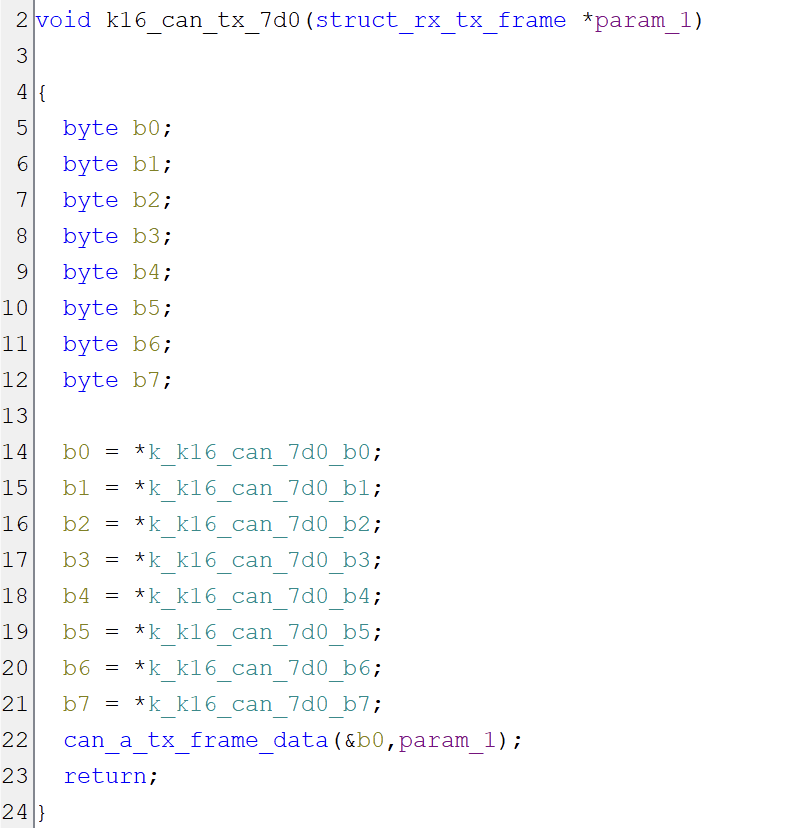

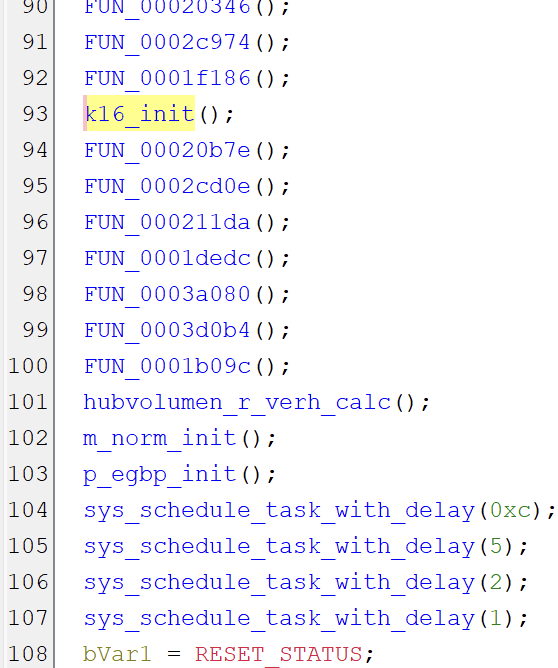

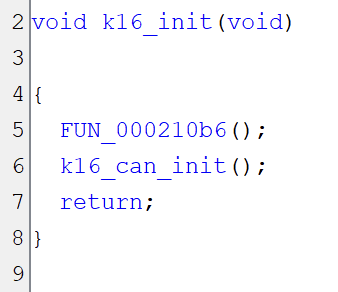

- Modify existing handler for 0x7D0 to genericise functionality

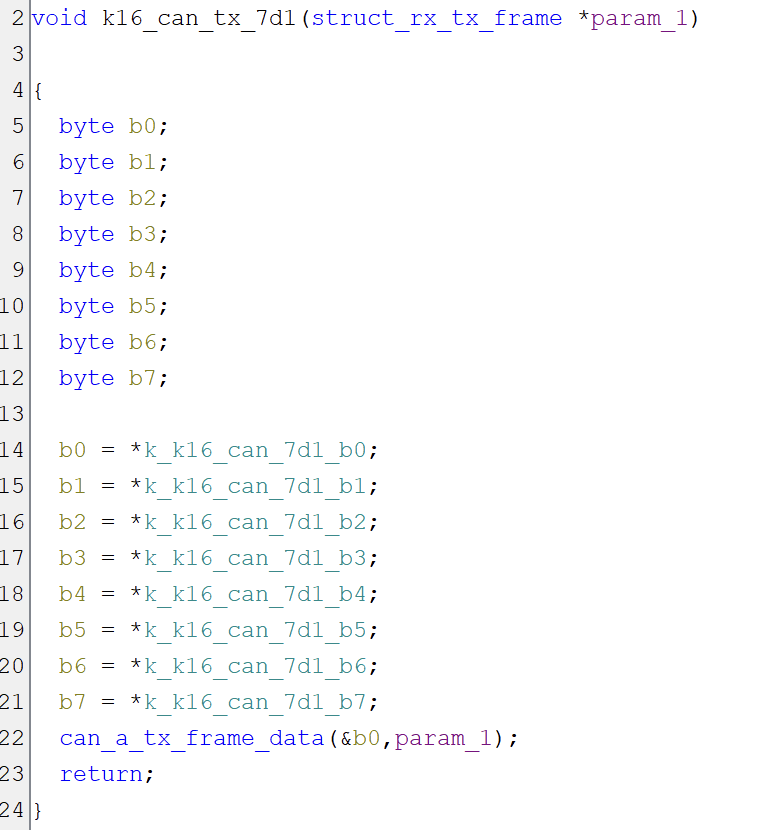

- Create new handler for "0x7D1" with generic functionality

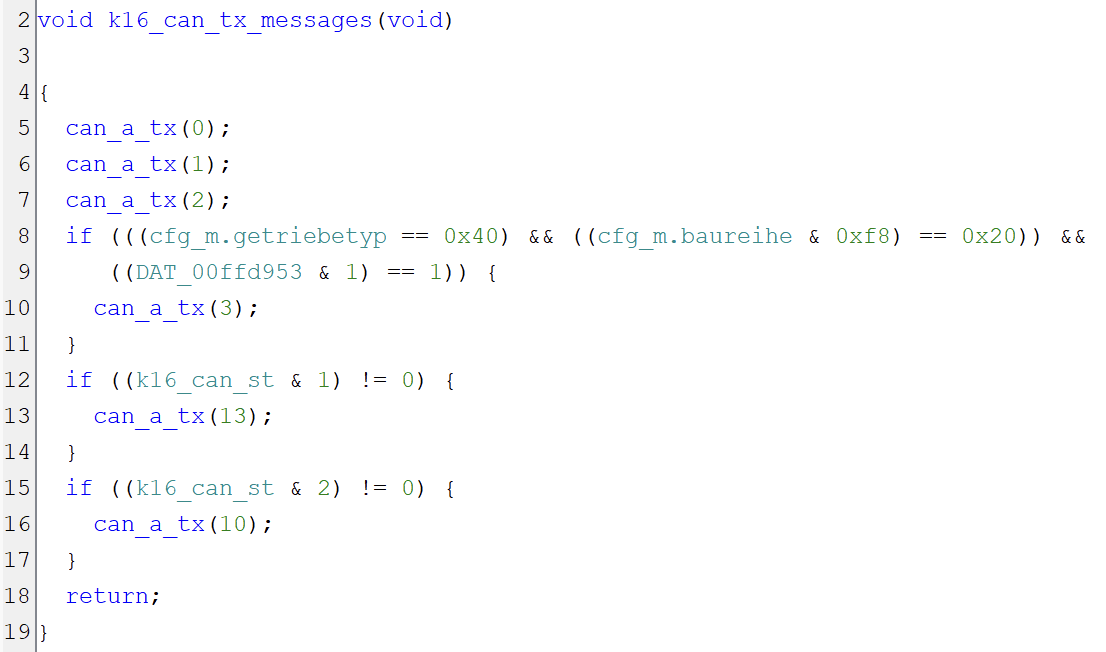

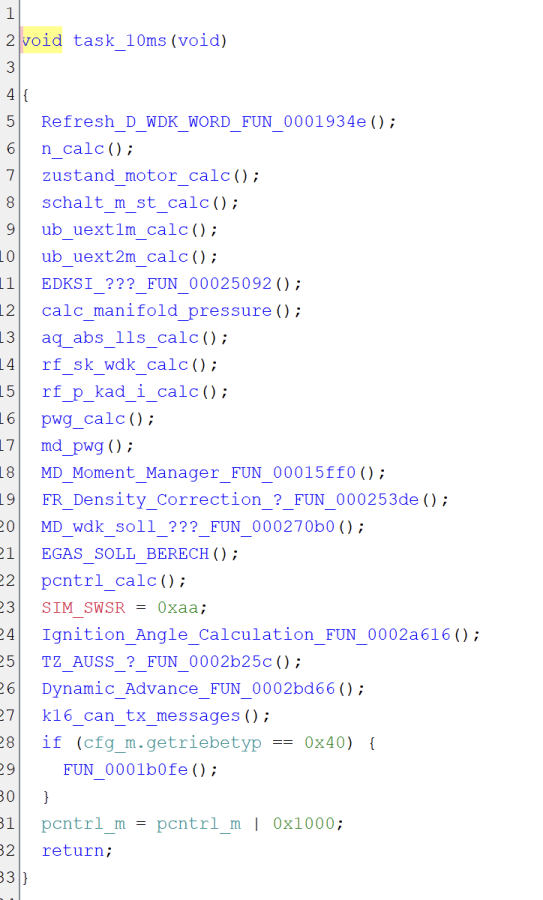

- Insert call into CAN_Send_DME_ARBIDs_karter16 to send 0x7D1 as well and wrap both in conditional logic based on k_can_karter16_cfg
Master Tune Binary
- New parameters defined as follows:
- k_can_karter16_cfg (bitfield to enable/disable 0x7D0 and 0x7D1)
- An array of 8 32bit values which hold the addresses of the 8 bytes to be mapped to the 0x7D0 message
- An array of 8 32bit values which hold the addresses of the 8 bytes to be mapped to the 0x7D1 message

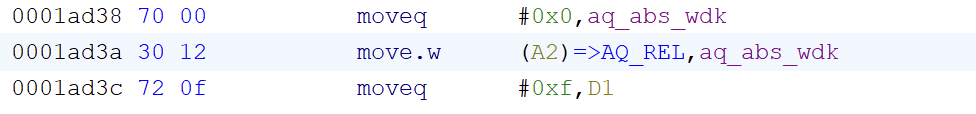

And I think it's as simple as that. I initially was thinking that there would need to be logic to split up 16/32 bit values where required, but given the 68k is byte addressed it's actually very simple. If you want to send the word (2 bytes) at 0x1000 for example it's just two move byte instructions the first referencing 0x1000 and the second referencing 0x1001.
With the disassembly work that's been done it will be possible to make available a table of all valid variables in the Master + dual-ported-ram which users can then choose from themselves. Any variables from slave that aren't on the DPR would have to be inserted into the DPR (if there's any space left, I don't actually know yet) as a change to the Slave Program ROM, but again this could be done as a generic program rom change.
Edit: This approach also means that the tune binary remains backwards compatible with the standard 0401 program ROM. e.g. you could flash back to the original ROM without having to also change your tune binary. Likewise running the custom ROM with a standard 0401 tune would also be supported - 0x7D0 and 0x7D1 would simply be disabled.
What are the downsides of this
- It unfortunately doesn't solve the problem of restoring the standard functionality of 0x771 and 0x62F when the cfg parameter is disabled. I want to think more about whether this is possible.
- While the benefit is the ability to craft your own CAN messages, it means that everyone's definition of what 0x7D0 and 0x7D1 are will be different. I'm not sure whether this is a potential negative when it comes to sharing information, configs, etc.
- I'm still vaguely bothered that 0x771 might be some sort of required mechanism for some sort of BMW diagnostic process. I admit it seems unlikely, but I'm very wary of screwing up anything for anyone.
Anyway - keen for feedback on this idea/proposal
