DIY: Z3 Non-M gauge cluster to Z3M S54 Conversion

[JBanzhaf]

sorry for late response, yes you are right the main eeprom data has been lost with wrong reading. i am using dsp3+ programmer and the cluster for e36 m3. so i need your help to send me dump for both eeprom so i can flash it.

It looks like that’s a late model E36 non-M euro cluster. Unfortunately I don’t have any EEPROM dumps from any of those. I’m not sure if it’ll work, but I can get you an EEPROM dump from a US spec M3 cluster. Then maybe you can code it back to euro spec non-M using NCS Expert.

[burhan]

thank you for response, please if you can try to send me us spec m3 cluster epprom dumps. atleast my half job will be done.

[JBanzhaf]

Burhan, I just sent you an EEPROM dump from a US spec E36 M3 cluster. It should match the odometer mileage on your coding plug. So it should not have a tamper dot illuminated. Hopefully this works for you.

Thanks,
Joel

[burhan]

Burhan, I just sent you an EEPROM dump from a US spec E36 M3 cluster. It should match the odometer mileage on your coding plug. So it should not have a tamper dot illuminated. Hopefully this works for you.

Thanks,
Joel

Thank you so much, i will write it and update you soon

[burhan]

Burhan, I just sent you an EEPROM dump from a US spec E36 M3 cluster. It should match the odometer mileage on your coding plug. So it should not have a tamper dot illuminated. Hopefully this works for you.

Thanks,
Joel

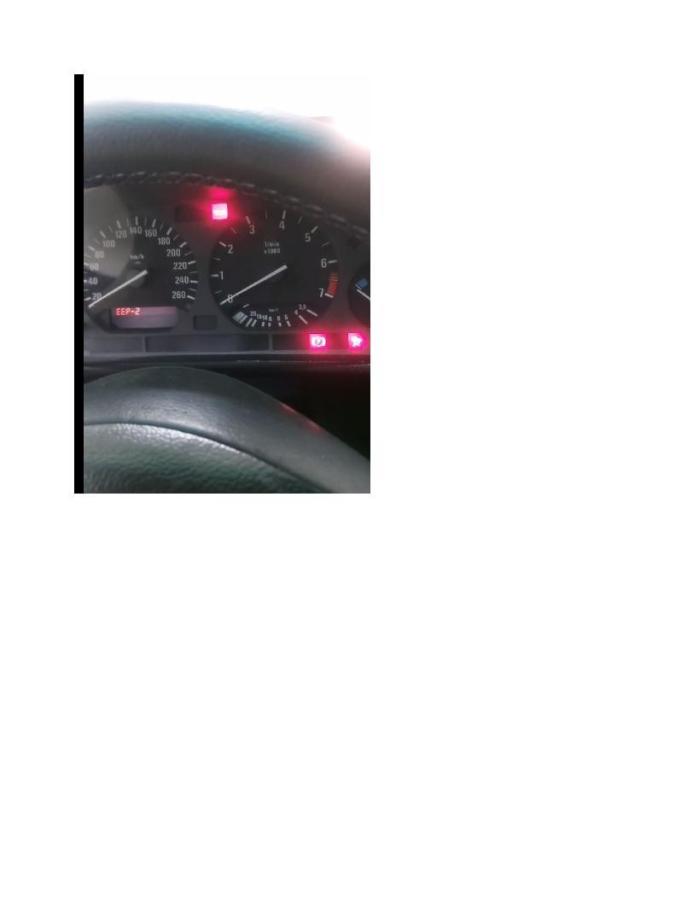

i tried with the dump but it is showing code eep2. also the guage is not working at all. what to do now. appreciate your help.

[JBanzhaf]

i tried with the dump but it is showing code eep2. also the guage is not working at all. what to do now. appreciate your help.

The EEP-2 fault refers to an issue with the internal EEPROM. It can be either a hardware fault, or an issue with the binary on the chip. In your case, it’s most likely an issue with the binary. Read the dump from the EEPROM again, and verify that it perfectly matches the dump I sent you. Sometimes when you flash these EEPROMs, it doesn’t flash all of the sectors correctly. This will cause this issue. If it still doesn’t work after making 100% sure that it matches the dump I sent you, you’ll probably need a dump off of an identical cluster. In that case, the dump I sent is not compatible.

[Steezyz3]

Hey, I was hoping you could send me the EPROM file for a z3 to z3m conversion, I've just recently swapped a S54 into my Z3 and need to get the gague cluster to have the right range response. I've already read and saved the EPROM file that was stored. If you can help with the coding plug too the mileage that was pulled from the car was 107305 but any help you can give would be great.
Thanks
-Steve

[JBanzhaf]

Hey, I was hoping you could send me the EPROM file for a z3 to z3m conversion, I've just recently swapped a S54 into my Z3 and need to get the gague cluster to have the right range response. I've already read and saved the EPROM file that was stored. If you can help with the coding plug too the mileage that was pulled from the car was 107305 but any help you can give would be great.
Thanks
-Steve

Ijust sent you a DM with the EEPROM dumps you're asking for. If it's going in the original cluster from the car, and the mileage already matches the chassis, you won't need to flash the coding plug. Just in case that's not the case, I also sent you a coding plug dump with your mileage on it. Follow the instructions in the first post. After completed, you'll still have to "sync" to mileage from the coding plug to the internal EEPROM to clear the tamper dot.

[Steezyz3]

You're the best, thank you so much!

[AnthoZ3]

Hello everyone, this is a very interesting topic. I just bought a 2001 S54 Z3 M. Since I couldn't find one in France, I bought it in Canada. I just received it, and to get it approved, I need to modify the lighting, because currently, as soon as the engine is running, the low beams and parking lights (sidelights) work. Canadian standards apply. I've contacted three or four dealerships, and they can't help me. I can't believe it!
I've read several messages talking about coding, but these messages weren't specific to my model. Do you have any ideas? Thanks in advance.

[JBanzhaf]

Hello everyone, this is a very interesting topic. I just bought a 2001 S54 Z3 M. Since I couldn't find one in France, I bought it in Canada. I just received it, and to get it approved, I need to modify the lighting, because currently, as soon as the engine is running, the low beams and parking lights (sidelights) work. Canadian standards apply. I've contacted three or four dealerships, and they can't help me. I can't believe it!
I've read several messages talking about coding, but these messages weren't specific to my model. Do you have any ideas? Thanks in advance.

Hi AnthoZ3,

I’m really not sure on the specifics of what’s required for you to get it approved. A good start is to see what coding options are available in NCS Expert, for the general module. That should have what you’re looking for.

[AnthoZ3]

Hi JBanzhaf, Thank you for your message. With what tools (diagnostic case) can I see this?

[JBanzhaf]

Hi JBanzhaf, Thank you for your message. With what tools (diagnostic case) can I see this?

NCS Expert and NCS Dummy are the programs used for coding E36’s. There are some decent guides online that will teach you how to use them. They are relatively difficult programs to get started with. You’ll also need some type of interface to connect the car to a computer (K+Dcan cable or ICom).

[AnthoZ3]

Apparently, the 2001 model doesn't have any coding for the lighting. So I have to modify the wiring and install a new relay.

[JMH083]

Hi.
I am new on this forum I am wondering if I can get you support.

As I had a pb with my old odometer of my Z3, so I have bought a New one.

My idea will be to copy dump of my old odometer then to copy on internal eeprom if new odometer, my objective will be to recover my mileage and my vin number.

As I know this internal eeprom is protected so I would like to get your opinion
Thanks
