    #61
    Originally posted by eacmen View Post

    I’m with you but surely setting to full retard after rotation shouldnt change the results at all. Right?

    Then there is the infamous chain slop issue.

    If I am being candid I think people chase perfection here when as long as you’re within a couple degrees its not going to affect performance as dual VANOS can easily correct it. The check engine light doesnt even come on unless the mechanical timing is like 10 degrees off. That being said it is definitely something you need to do the best you can to get right.
    It shouldn't change the results however I wrenched hard on the EX cam one time in any effort to fully retard following Beisan instructions and it did turn the crank ever so slightly CCW skewing the initial set timing.
    The crank lock pin was more or less dead center but after wrenching on the EX cam hard it turned the crank CCW enough to were the lock pin was now touching the left side of the "locking hole" as opposed to dead center were it was.

    I personally would leave the cams alone, after turning the crank a number of times they can't be anything but fully retarded, but I may be incorrect.
    Maybe if the plugs are left in cylinder compression could "kick back" the crank CCW a bit as its turned by hand, then throw in the chain slack you might have a scenario were making sure the cams are fully retarded could be worthwhile.
    2004 Silbergrau Metallic 6MT
    2007 E92 335i Space Grey Metallic 6MT

    Karbonius/OEM Snorkel/Flap/HTE Tuned
    Ssv1/Catted Sec. 1/SCZA

    OE CSL Bootlid/AS SSK/BC Coils/4.10 Gears/ Sportline 8S Wheels
    RACP Plates/Vincebar/CMP/Turner RTAB/Beisan
    Instagram

    Comment


      #62
      Originally posted by eacmen View Post
      After rotating the engine the procedure calls for rocking the cams back and forth to ensure they are back at full retard before checking timing. If the cams were at full retard when timing was set rocking the cams should simply reset them back to the original state they were in when the engine was timed.

      Are you claiming that after rotating the engine by hand adjusting the cams back to full retard is not necessary?
      * After setting the timing (torqued down the vanos module and all of the hubs bolts), one needs to rotate the crank 2, 4, 6 even numbers of turns and set crank at TDC, then just check if the cam holes fit to the bridge pin or how little it is off. One should not rock, turn, or touch the cams.

      Rocking the cams is to turn them for the purpose of setting the cams at TDC (by fitting the bridge pin to the cam hole). That's it, one should never need to touch the cam again.



      Comment


        #63
        Originally posted by eacmen View Post
        I’m with you but surely setting to full retard after rotation shouldnt change the results at all. Right?

        Then there is the infamous chain slop issue..
        During bolting down the vanos module with the hubs already pretensioned, the only way the hubs could be pushed (by the vanos module) and rotated CCW (a few degrees) is that the vanos pistons are bottomed in the module (with the solenoid plate removed). Therefore the cams should be at their most retarded position already, and rocking them won't help but might cause error (turn the crank).

        There should be no chain slack in this case, as slowly rotating the crank CW (to TDC) should take out all chain slack.



        Comment


          #64
          What exactly is the reason to switch to the S62 diaphragm springs? I'm not finding a lot of definitive info other than: "people do it" something something "rattle". Is there evidence that swapping to these springs is actually beneficial?

          Comment


            #65
            Originally posted by Pklauser View Post
            What exactly is the reason to switch to the S62 diaphragm springs? I'm not finding a lot of definitive info other than: "people do it" something something "rattle". Is there evidence that swapping to these springs is actually beneficial?
            Because someone sells them. I think the stock spring plate is just fine.

            Comment


              #66
              This is a very informative thread . . . I don't know why this is not a sticky so others who come to this forum can have easy access to this information... Why make things more difficult for people new to the M3 to look for info when you can have a sticky?

              Comment


                #67
                Interesting I thought Liam “Stickied” this thread when we rebuilt it after the M3 Forum went down. What a PITA that was, it took me days to gather all this info.

                Moderators can we possibly get this placed under the “S54 Dyno Database” thread? Thanks…

                TTFS Engine/SMG Tune - CSL 255 - SGT Headers/Sect 1/SCZA
                Brembo 996 - ARC-8's - BWS 500S 9k/11k - Valentine 1 - BlueBus - Orion V4's
                Evolve Eventuri
                - VIS XTS CF Hood - CF Lip/Console/Diffuser/CSL Trunk

                Comment


                  #68
                  Originally posted by WOLFN8TR View Post
                  Interesting I thought Liam “Stickied” this thread when we rebuilt it after the M3 Forum went down. What a PITA that was, it took me days to gather all this info.

                  Moderators can we possibly get this placed under the “S54 Dyno Database” thread? Thanks…

                  You can find it under the DIYs section. DIYs > Engine > S54 Vanos info

                  https://nam3forum.com/forums/forum/m...2006/2747-diys
                  Formally SWRTstang_M3 on M3forum.net with a join date of 07/2004

                  Comment


                    #69
                    I have a question regarding the rocking the cams back and forth with the crank locked at TDC. I am able to rock the intake cam back and forth and see the vanos piston move in and out of the vanos housing. When I try rocking the exhaust cam back and forth, it just moves within the slack of the timing chain. No matter how hard I try rocking it back and forth, the vanos piston does not move. Is this something I should be concerned about? I did change the exhaust hub to the Beisan systems unit, and I didn't lube the splines.
                    2004 Alpine White / Cinnamon E46 M3 6MT
                    1993 Brilliant Black FD Rx7
                    IG: @gearheadtwins

                    Comment


                      #70
                      The instructions seem to say that you replace either the oil disc or the exhaust hub depending on if the tabs on the stock hub are cracked. Is there any harm or benefit in replacing both items? Does replacing both make the vanos bulletproof or would I just be waisting money?

                      Comment


                        #71
                        Originally posted by YoungDinosaur View Post
                        The instructions seem to say that you replace either the oil disc or the exhaust hub depending on if the tabs on the stock hub are cracked. Is there any harm or benefit in replacing both items? Does replacing both make the vanos bulletproof or would I just be waisting money?
                        I replaced both for peace of mind. There's no harm in replacing both. If your original oil pump disc has a bunch of chatter marks on there, that would likely mean the exhaust hub tabs have taken a lot of abuse and should be replaced. My oil pump disc was clean, so I probably didn't need to replace my hub. But my car has 168k on it, so I figure I should just replace it while everything was apart.
                        2004 Alpine White / Cinnamon E46 M3 6MT
                        1993 Brilliant Black FD Rx7
                        IG: @gearheadtwins

                        Comment


                          #72

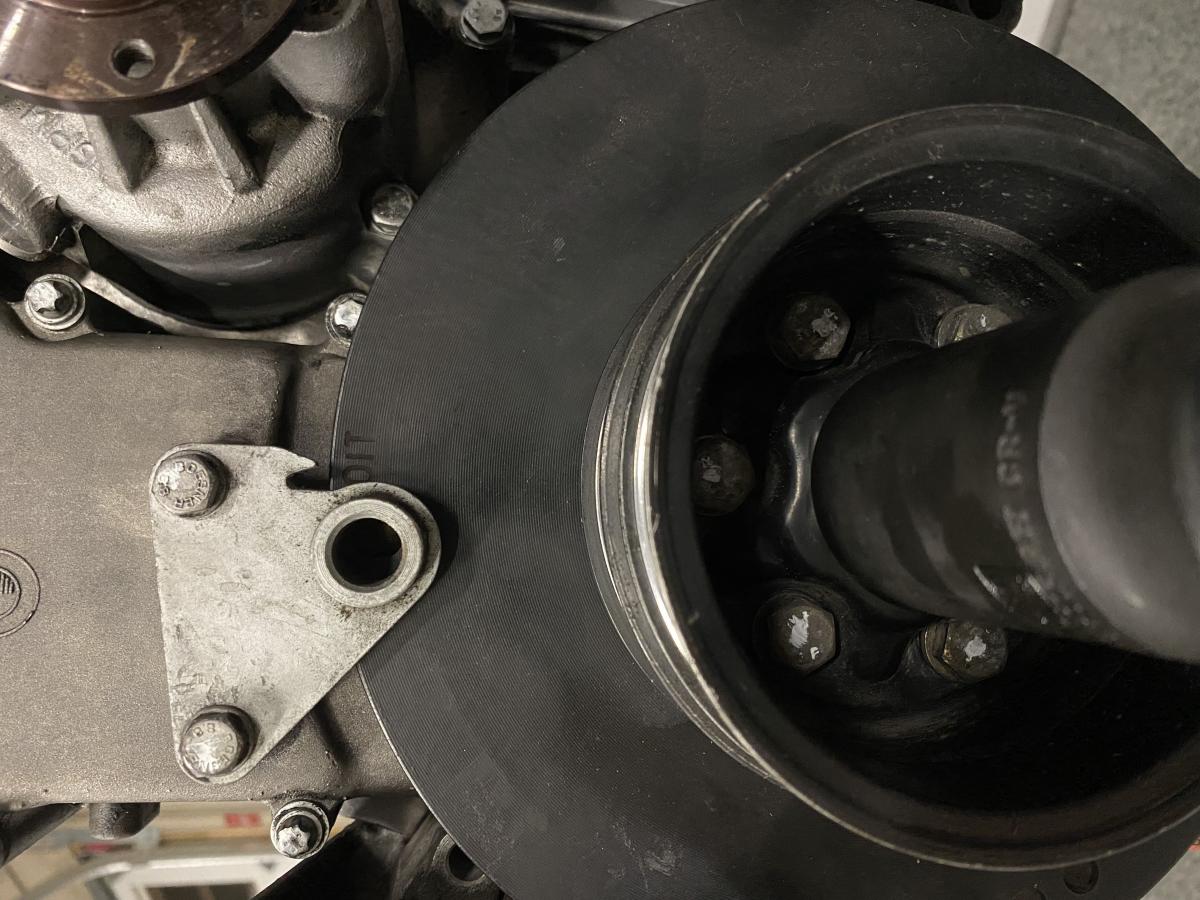

                          I did the timing, rotated the engine and the cams line up perfect when the crank is between the 1 and O. I can move the crank back a tiny bit without moving the cams and it all lines up. Is this close enough or should I do it again?

                          picture is without moving the crank back to line up.

                          Click image for larger version  Name:	FF4C78B3-233E-4EA1-BBCA-0C45F2AE58C1.jpg Views:	0 Size:	140.8 KB ID:	174299
                          Mspir3d
                          Senior Member
                          Last edited by Mspir3d; 06-30-2022, 09:38 PM.
                          IG: https://www.instagram.com/mspir3d/

                          Comment


                            #73
                            Originally posted by Mspir3d View Post
                            I did the timing, rotated the engine and the cams line up perfect when the crank is between the 1 and O. I can move the crank back a tiny bit without moving the cams and it all lines up. Is this close enough or should I do it again?

                            Click image for larger version  Name:	FF4C78B3-233E-4EA1-BBCA-0C45F2AE58C1.jpg Views:	0 Size:	140.8 KB ID:	174299
                            To avoid chain slack, always turn the crank CW in the last 1/2" or more to land on the TDC mark. The line between O and T is the mark you want to land on.

                            Comment


                              #74
                              Originally posted by sapote View Post

                              To avoid chain slack, always turn the crank CW in the last 1/2" or more to land on the TDC mark. The line between O and T is the mark you want to land on.
                              That’s about what raj had in his directions. The picture was without inducing any slack in the chain. I know the car can adjust timing my gut says this is close enough but my ocd says it’s not perfect.

                              IG: https://www.instagram.com/mspir3d/

                              Comment


                                #75
                                Originally posted by Mspir3d View Post
                                I know the car can adjust timing my gut says this is close enough but my ocd says it’s not perfect.
                                What do you mean -- the software tool said the crank was not at TDC? or it said vanos timing was off? Setting crank and cam at TDC is not the same as saying vanos timing is correct -- it depends on the position of the vanos pistons at that moment.

                                Comment
