    Is this effectively an air scoop grabbing from the bottom of the wheel well? I can kind of make out the rough shape of the tire and the control arm but having trouble figuring out my xyz reference.

    Leave a comment:


  • 0-60motorsports
    replied
    Originally posted by Bry5on View Post

    This will fit all M3s, and will provide effective brake cooling for a car with a CSL bumper especially. It's also designed to clear 17" wheels and the highest possible wheel offsets that won't hit the strut. Bigger wheels will just have more clearance.
    Thats awesome! Looking forward to it. I would love to return brake cooling to my CSL Bumpered M3 again.

    Leave a comment:


  • Bry5on
    replied
    Originally posted by 0-60motorsports View Post

    Oh Will this fit cars with OE CSL intake setup and CSL bumper?
    This will fit all M3s, and will provide effective brake cooling for a car with a CSL bumper especially. It's also designed to clear 17" wheels and the highest possible wheel offsets that won't hit the strut. Bigger wheels will just have more clearance.

    Leave a comment:


  • 0-60motorsports
    replied
    Originally posted by Bry5on View Post
    More rainy day projects, I started working on a brake duct that'll be much much better than the one I removed to install the CSL intake duct. Here's a first draft in CAD, and tomorrow afternoon I should have the prototype all printed up.



    Click image for larger version

Name:	Screenshot 2024-02-17 at 6.49.01 PM.png
Views:	595
Size:	1.04 MB
ID:	253965 Click image for larger version

Name:	Screenshot 2024-02-17 at 6.50.04 PM.png
Views:	608
Size:	1.13 MB
ID:	253966 Click image for larger version

Name:	Screenshot 2024-02-17 at 6.50.16 PM.png
Views:	608
Size:	1.05 MB
ID:	253964
    Oh Will this fit cars with OE CSL intake setup and CSL bumper?

    Leave a comment:


  • Bry5on
    replied

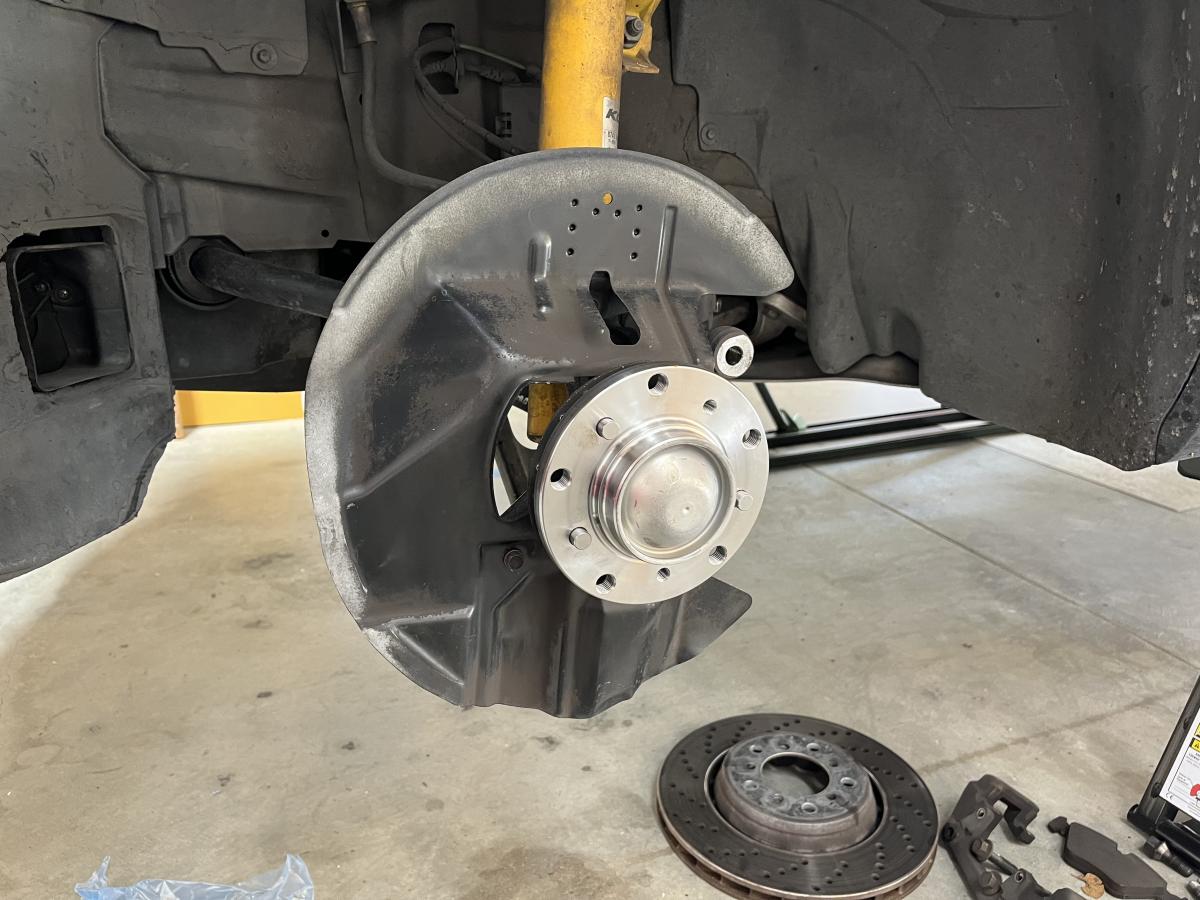

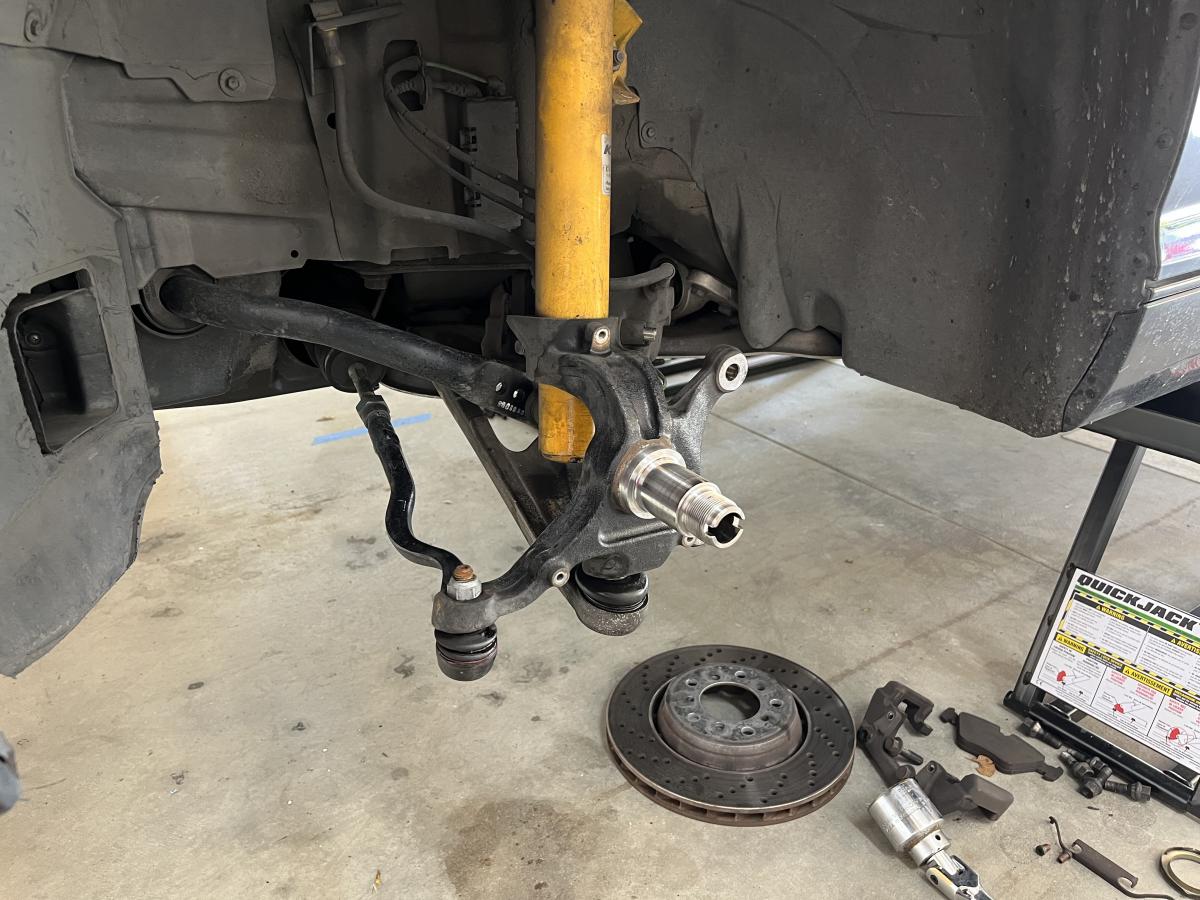

    More rainy day projects, I started working on a brake duct that'll be much much better than the one I removed to install the CSL intake duct. Here's a first draft in CAD, and tomorrow afternoon I should have the prototype all printed up.



    Click image for larger version

Name:	Screenshot 2024-02-17 at 6.49.01 PM.png
Views:	595
Size:	1.04 MB
ID:	253965 Click image for larger version

Name:	Screenshot 2024-02-17 at 6.50.04 PM.png
Views:	608
Size:	1.13 MB
ID:	253966 Click image for larger version

Name:	Screenshot 2024-02-17 at 6.50.16 PM.png
Views:	608
Size:	1.05 MB
ID:	253964

    Leave a comment:


  • kaiv
    replied
    Originally posted by Bry5on View Post
    Progress continues..


    After that insert as practice, I turned to the real project. A ZHP bumper brake duct to CSL airbox inlet duct and accordion flex boot. First I masked off the area to get some good measurements and a 3D scan with the iPhone faceid lidar sensor, which gave me the local area and surfaces I needed to route a duct:
    Click image for larger version Name:	IMG_1395.jpg Views:	0 Size:	124.0 KB ID:	252250

    Then off to the 3D printer for a first iteration. I used the entire build height of the printer, and actually needed a few mm more, so I nipped the top 5mm off of the printed part of the duct. You'll see below why this didn't really matter after installing the TPU printed flexible accordion boot. This is actually version 2:
    Click image for larger version Name:	IMG_1407.jpg Views:	0 Size:	56.4 KB ID:	252244
    Click image for larger version Name:	IMG_1411.jpg Views:	0 Size:	107.0 KB ID:	252252

    It helped having an extra CSL flap to get dimensions, as this is an odd shape:
    Click image for larger version Name:	IMG_1428.jpg Views:	0 Size:	87.2 KB ID:	252245

    And after adding some mounting points to V3, we're in business. This piece uses two factory mounting points to secure in place along with the bumper opening to locate itself in 3D space. From there, the CSL airbox is installed from the top just as it is on the factory CSL. The flexible TPU piece in between has a groove that locks into the CSL flap just like stock, and is flexible enough to snap/pop in place on install. It also has double walls to locate on the duct itself to make sure it stays positioned, even as the engine vibrates at high revs. So, here it is:
    Click image for larger version Name:	IMG_1460.jpg Views:	0 Size:	64.0 KB ID:	252242 Click image for larger version Name:	IMG_1461.jpg Views:	0 Size:	64.6 KB ID:	252241 Click image for larger version Name:	IMG_1464.jpg Views:	0 Size:	120.4 KB ID:	252248
    Click image for larger version Name:	IMG_1452.jpg Views:	0 Size:	172.5 KB ID:	252253

    You can see here how the flexible boot fully encompasses the section of print I had to notch out:
    Click image for larger version Name:	Screenshot 2024-02-06 at 9.28.56 AM.png Views:	0 Size:	582.1 KB ID:	252254
    Incredible work Bryson! Can't wait to get mine! 😄

    Leave a comment:


  • Bry5on
    replied
    Well well well, it appears those BMW engineers really were on to something with that flap ducting.

    Background: I have both the pre-and post-flap ducting connected (ie: with the flap closed I'm drawing air from behind the left side of the bumper, but not with any sort of ram effect). You can see the termination of the post-flap intake duct in some of the photos above.

    Tonight, on my drive home, I datalogged at a reasonably constant speed and rpm (~3500rpm, 5th gear, ~65mph) a drive with the flap open (briefly), then closed, then open again. At this constant speed and engine load, I saw an 8*C (14*F) in 1 minute, 15 seconds, with most of the drop happening in the first 15-20 seconds. This is a rather impactful change! Definitely more than I expected, as I already had a low temperature air source and I didn't see this behavior before doing the duct.

    In the stock CSL firmware in sport mode the flap opens at 3300rpm in gears 1, 2, 3 (41mph) and at 40mph in gears 4, 5, 6. Seems logical.

    Vertical yellow bars in the datalog below are when the flap opened/closed.
    Click image for larger version  Name:	IAT closed.png Views:	0 Size:	515.6 KB ID:	252417 Click image for larger version  Name:	IAT open.png Views:	0 Size:	719.4 KB ID:	252418

    Leave a comment:


  • Will
    replied
    Amazing work! Thanks for documenting and sharing with us.

    Leave a comment:


  • Projecte46m3
    replied
    Doing god's work in here!!

    Leave a comment:


  • Bry5on
    replied
    Progress continues..

    First, I picked up the isofix cover that I had retrimmed in some e46 natural brown leather that heinzboehmer and I came across a few months back, finally:
    Click image for larger version  Name:	IMG_1335.jpg Views:	0 Size:	94.6 KB ID:	252238 Click image for larger version  Name:	IMG_1337.jpg Views:	0 Size:	164.8 KB ID:	252239

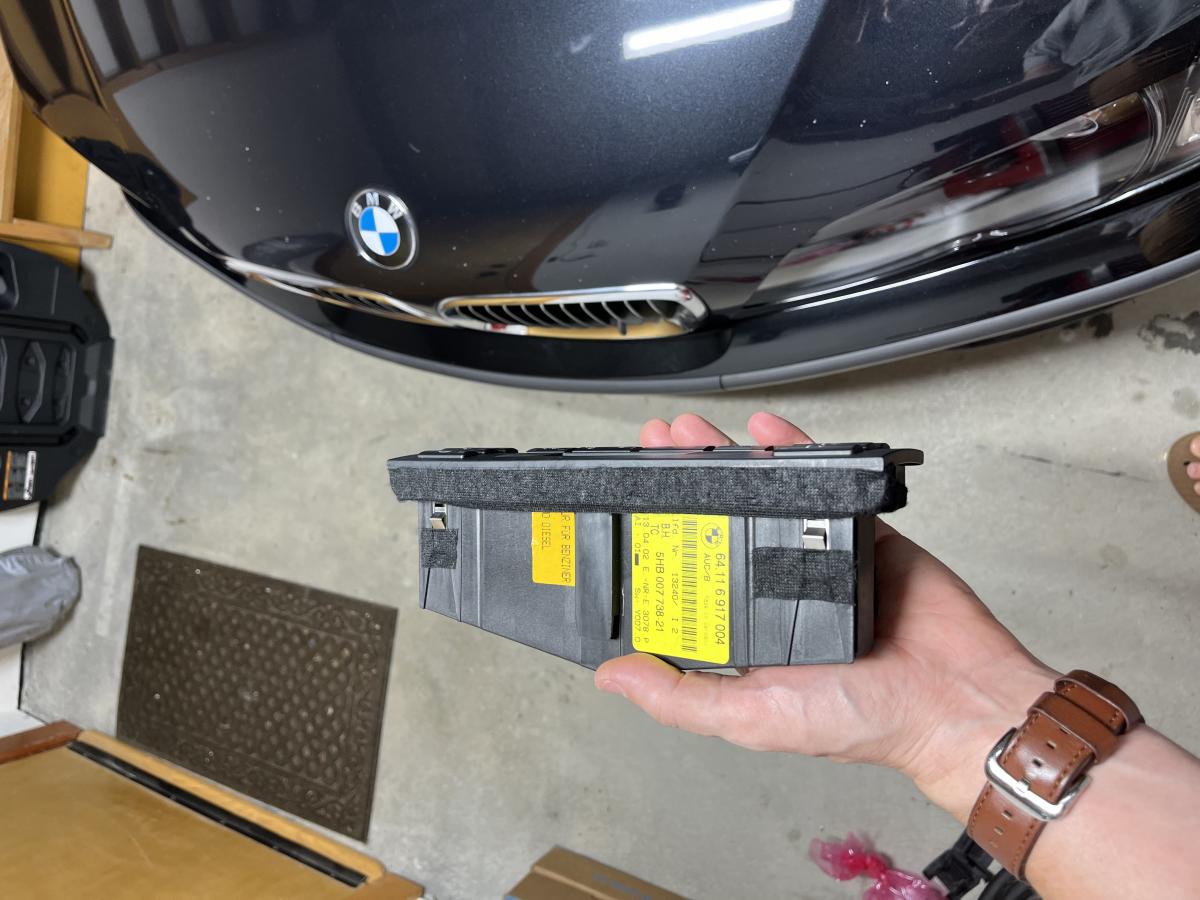

    Up next, we move back to 3D printing. I managed to fit the bigger screen into the ash tray dimensions, as above, and added some USB-C CarPlay and charge ports while I was at it. I tried to capture a bunch of photos to give a sense of the lighting match. It's actually pretty damn good, but the camera really struggles to capture it the same way as your eyes.

    Open:
    Click image for larger version  Name:	IMG_1343.jpg Views:	0 Size:	164.3 KB ID:	252240
    Closed:
    Click image for larger version  Name:	IMG_1344.jpg Views:	0 Size:	160.8 KB ID:	252249

    Click image for larger version  Name:	IMG_1351.jpg Views:	0 Size:	125.9 KB ID:	252246 Click image for larger version  Name:	IMG_1356.jpg Views:	0 Size:	163.4 KB ID:	252243
    Click image for larger version  Name:	IMG_1418.jpg Views:	0 Size:	33.7 KB ID:	252247

    After that insert as practice, I turned to the real project. A ZHP bumper brake duct to CSL airbox inlet duct and accordion flex boot. First I masked off the area to get some good measurements and a 3D scan with the iPhone faceid lidar sensor, which gave me the local area and surfaces I needed to route a duct:
    Click image for larger version  Name:	IMG_1395.jpg Views:	0 Size:	124.0 KB ID:	252250

    Then off to the 3D printer for a first iteration. I used the entire build height of the printer, and actually needed a few mm more, so I nipped the top 5mm off of the printed part of the duct. You'll see below why this didn't really matter after installing the TPU printed flexible accordion boot. This is actually version 2:
    Click image for larger version  Name:	IMG_1407.jpg Views:	0 Size:	56.4 KB ID:	252244
    Click image for larger version  Name:	IMG_1411.jpg Views:	0 Size:	107.0 KB ID:	252252

    It helped having an extra CSL flap to get dimensions, as this is an odd shape:
    Click image for larger version  Name:	IMG_1428.jpg Views:	0 Size:	87.2 KB ID:	252245

    And after adding some mounting points to V3, we're in business. This piece uses two factory mounting points to secure in place along with the bumper opening to locate itself in 3D space. From there, the CSL airbox is installed from the top just as it is on the factory CSL. The flexible TPU piece in between has a groove that locks into the CSL flap just like stock, and is flexible enough to snap/pop in place on install. It also has double walls to locate on the duct itself to make sure it stays positioned, even as the engine vibrates at high revs. So, here it is:
    Click image for larger version  Name:	IMG_1460.jpg Views:	0 Size:	64.0 KB ID:	252242 Click image for larger version  Name:	IMG_1461.jpg Views:	0 Size:	64.6 KB ID:	252241 Click image for larger version  Name:	IMG_1464.jpg Views:	0 Size:	120.4 KB ID:	252248
    Click image for larger version  Name:	IMG_1452.jpg Views:	0 Size:	172.5 KB ID:	252253

    You can see here how the flexible boot fully encompasses the section of print I had to notch out:
    Click image for larger version  Name:	Screenshot 2024-02-06 at 9.28.56 AM.png Views:	0 Size:	582.1 KB ID:	252254

    And lastly, a bit less exciting, the bracket for the PDC and trailer modules showed up from Europe, so I dropped that in:
    Click image for larger version  Name:	IMG_1466.jpg Views:	0 Size:	209.0 KB ID:	252251

    All in all, a solid update I think.
    Last edited by Bry5on; 02-06-2024, 07:01 PM.

    Leave a comment:


  • Bry5on
    replied
    So I recently bought a 3D printer and I’ve been practicing by making smaller things to learn the ropes before I jump into printing the ZHP-CSL duct and isolator boot.

    So far I’ve experimented with TPA, ASA and ABS. I expect ABS will be my most popular material, and to that end, here’s an ash tray insert that I designed to hold a smaller 1.54” screen, along with gauge.s circuit board and GPS receiver. A print just finished for the bigger screen version (which clears to the half millimeter basically everywhere) that might replace this one, but here’s how it looks so far:

    Click image for larger version  Name:	Screenshot 2024-01-28 at 9.41.43 PM.png Views:	0 Size:	665.2 KB ID:	251236 Click image for larger version  Name:	Screenshot 2024-01-28 at 9.41.30 PM.png Views:	0 Size:	717.0 KB ID:	251237 Click image for larger version  Name:	IMG_1294.jpg Views:	0 Size:	88.6 KB ID:	251238 Click image for larger version  Name:	IMG_1299.jpg Views:	0 Size:	190.6 KB ID:	251240 Click image for larger version  Name:	IMG_1302.jpg Views:	0 Size:	141.7 KB ID:	251239

    Here’s the big one:
    Click image for larger version

Name:	IMG_1303.jpg
Views:	478
Size:	89.1 KB
ID:	251241
    Last edited by Bry5on; 01-29-2024, 10:43 AM.

    Leave a comment:


  • Bry5on
    replied
    On to the next project - does anyone have a 3D scanner in the Bay Area so I can get these dimensions right?

    Click image for larger version

Name:	Screenshot 2024-01-27 at 10.58.05 PM.png
Views:	622
Size:	324.0 KB
ID:	251106 Click image for larger version

Name:	Screenshot 2024-01-27 at 11.02.11 PM.png
Views:	617
Size:	389.4 KB
ID:	251105
    Click image for larger version

Name:	Screenshot 2024-01-27 at 11.02.24 PM.png
Views:	625
Size:	503.5 KB
ID:	251104 Click image for larger version

Name:	Screenshot 2024-01-27 at 11.02.00 PM.png
Views:	608
Size:	404.6 KB
ID:	251107
    Last edited by Bry5on; 01-27-2024, 10:11 PM.

    Leave a comment:


  • 0-60motorsports
    replied
    I have the same rear view mirror and love it. Dont even care where i threw the oval one LOL

    Leave a comment:


  • Bry5on
    replied
    I was home with a cold this weekend, so I made myself useful by tackling a couple little projects.
    1: I repaired my black 996 calipers with the same fix I did to the red ones by bonding in the loose pins
    Click image for larger version

Name:	IMG_1242.jpg
Views:	531
Size:	172.0 KB
ID:	250266
    Click image for larger version

Name:	IMG_1243.jpg
Views:	530
Size:	169.3 KB
ID:	250263
    Click image for larger version

Name:	IMG_1247.jpg
Views:	533
Size:	130.1 KB
ID:	250261

    2: I disassembled my M3 mirrors and created a functional bench setup for auto-dimming, along with wire harnesses that will be trimmed to length
    Click image for larger version

Name:	IMG_1249.jpg
Views:	527
Size:	110.2 KB
ID:	250264
    Click image for larger version

Name:	IMG_1250.jpg
Views:	531
Size:	112.2 KB
ID:	250265
    Click image for larger version

Name:	IMG_1255.jpg
Views:	538
Size:	156.1 KB
ID:	250267

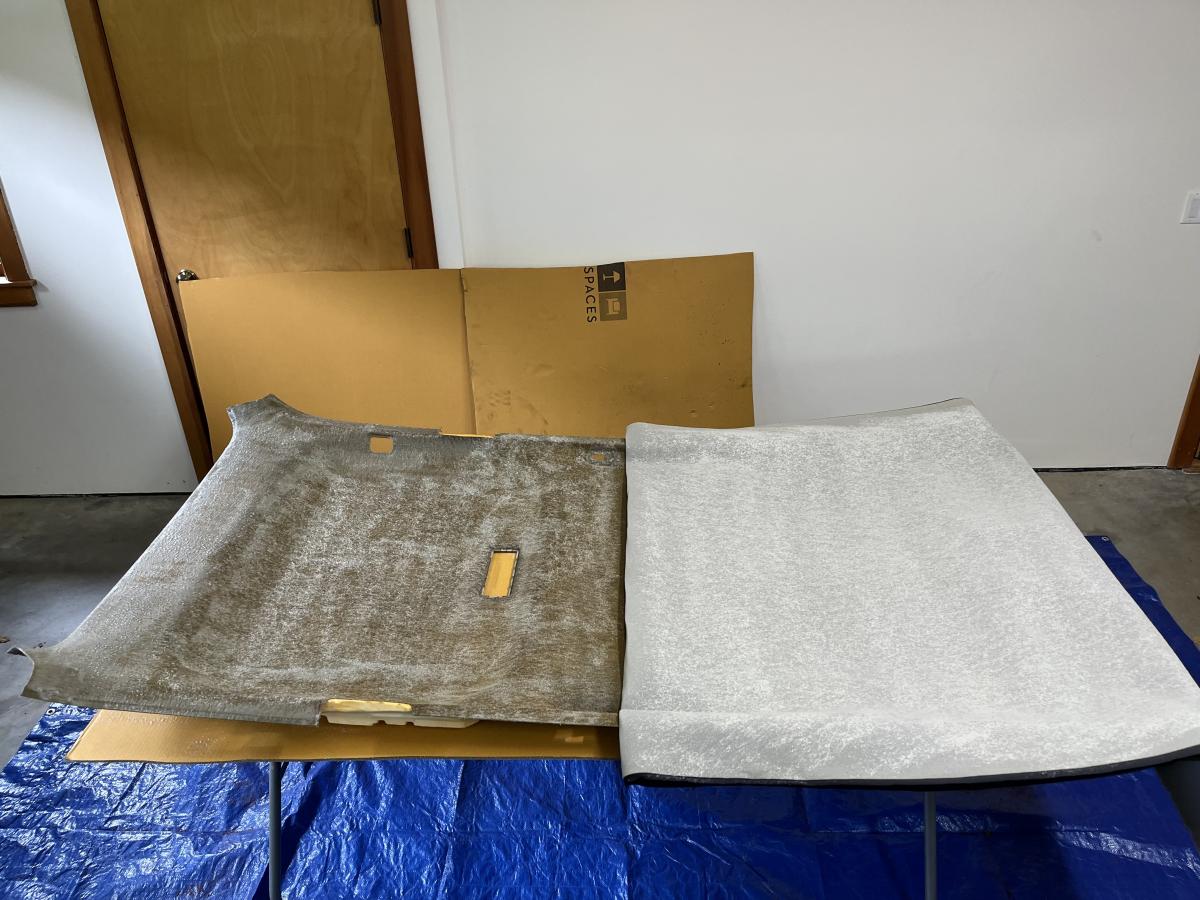

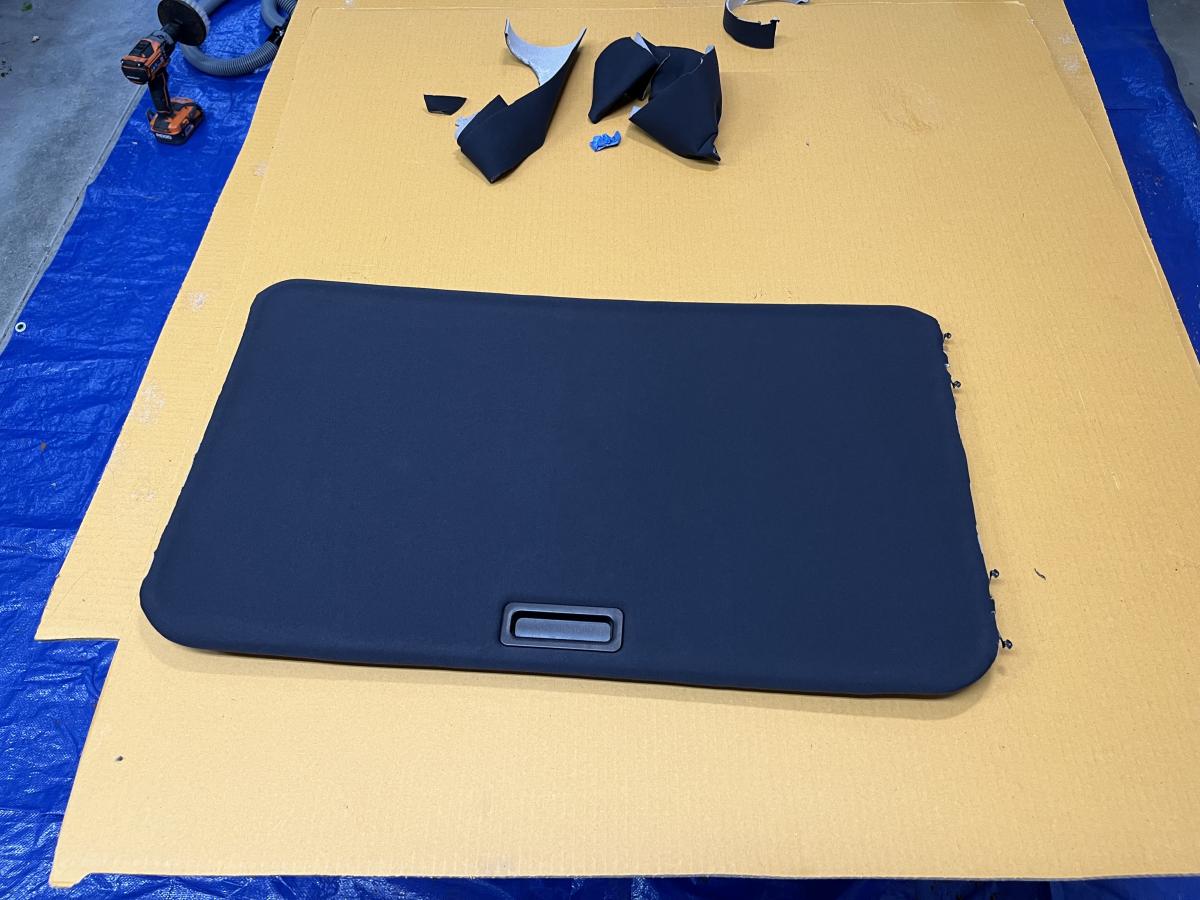

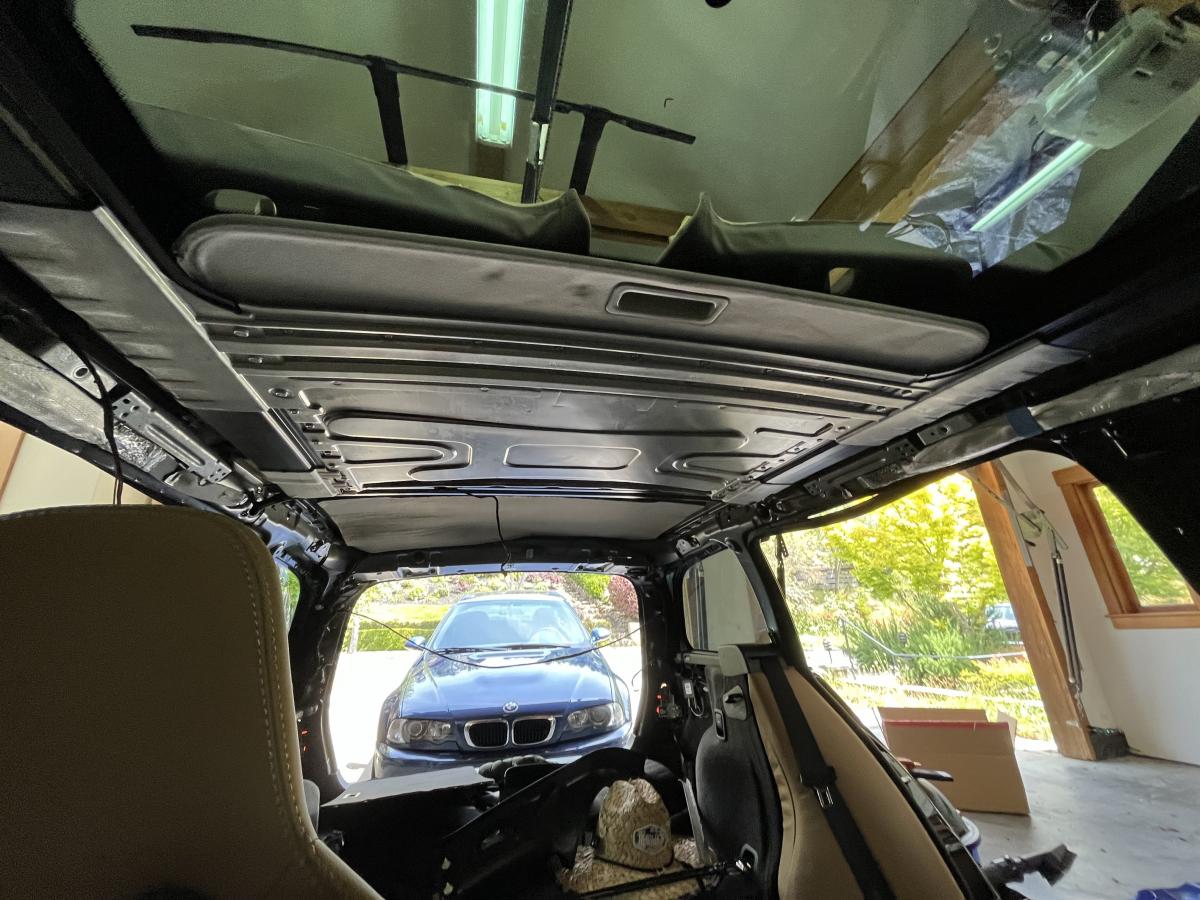

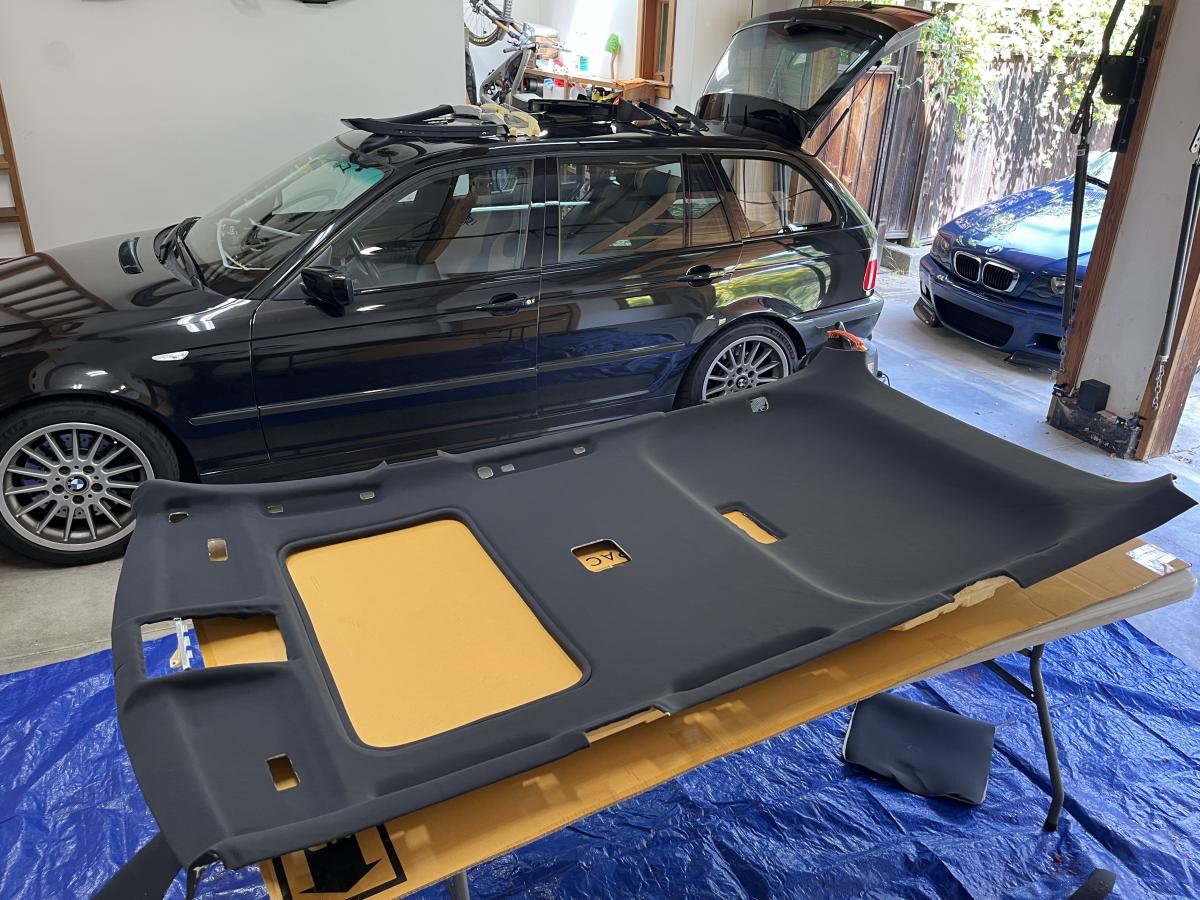

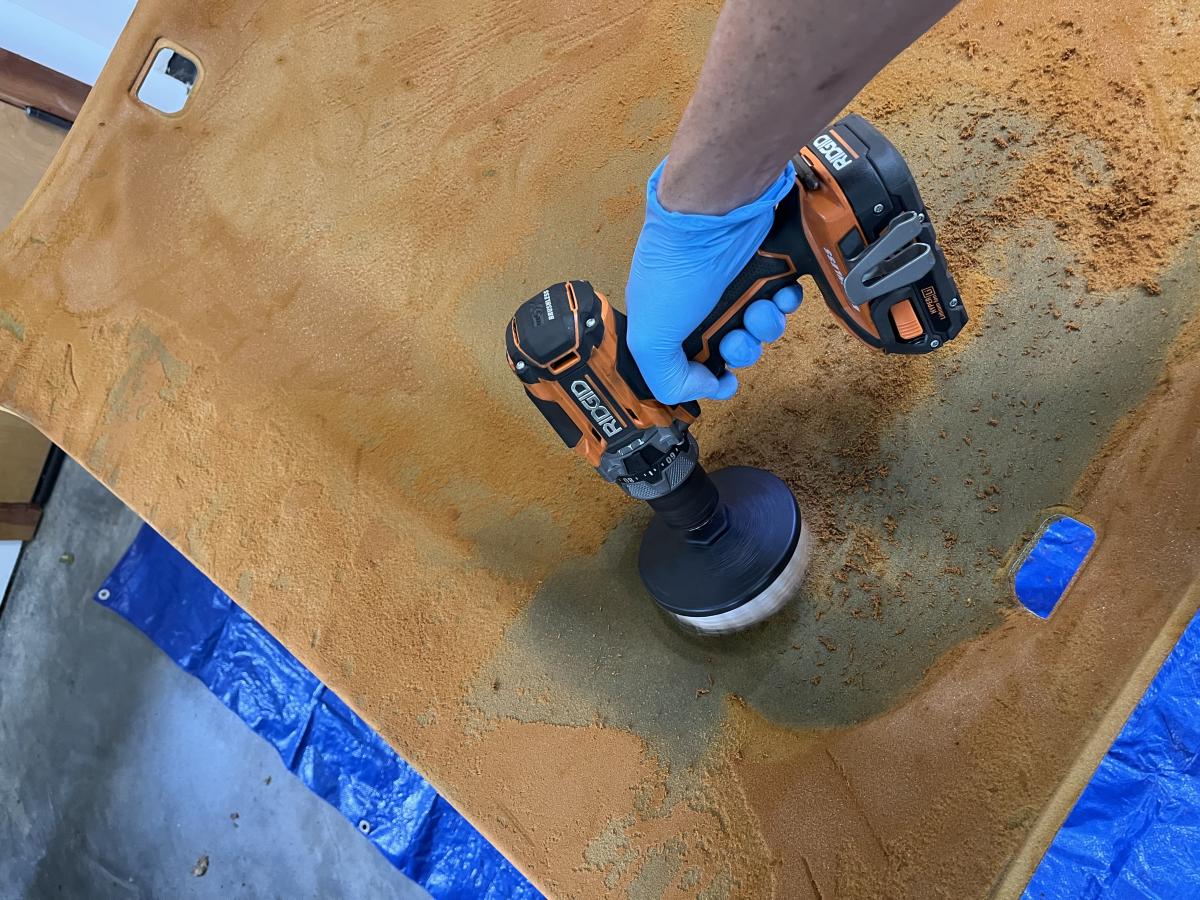

    3: I pulled the roof rail trim off and double-stick taped it to mimic what the factory did. I used 1/8" (3.2mm) tape, where the factory looked like 2mm. It fit just fine as the land for the tape is 3-3.5mm, a wagon takes about 10 yards.
    Click image for larger version

Name:	IMG_1258.jpg
Views:	531
Size:	102.5 KB
ID:	250262
    Click image for larger version

Name:	IMG_1260.jpg
Views:	549
Size:	146.5 KB
ID:	250259
    Click image for larger version

Name:	IMG_1263.jpg
Views:	529
Size:	57.7 KB
ID:	250260

    Leave a comment:


  • Bry5on
    replied
    Originally posted by jrgatfh View Post

    I love following your progress man, it’s like watching a rocket scientist lol

    I really appreciate how skilled your are. Kudos.
    Thank you! I really enjoy the process of learning and this project really helps keep the skills sharp (enough) because you can dig into so many different disciplines.

    And I’ve got one more victory claim before the weekend is over. The front PDC retrofit is complete. It works great, but was a bit of a bear specifically to modify the bumper beam. Other than that, everything went together as planned with the wire harness routed down the passenger side of the car. Now I can give my back some rest.

    Click image for larger version

Name:	IMG_1185.jpg
Views:	577
Size:	148.5 KB
ID:	249218 Click image for larger version

Name:	IMG_1187.jpg
Views:	579
Size:	136.5 KB
ID:	249219 Click image for larger version

Name:	IMG_1199.jpg
Views:	587
Size:	165.7 KB
ID:	249221 Click image for larger version

Name:	IMG_1201.jpg
Views:	585
Size:	197.4 KB
ID:	249220 Click image for larger version

Name:	IMG_1202.jpg
Views:	584
Size:	189.3 KB
ID:	249216 Click image for larger version

Name:	IMG_1203.jpg
Views:	576
Size:	162.8 KB
ID:	249217

    Leave a comment:
