    The super knuckle has a CNC machined admirer! Looks like they’re using the same insert strategy too. This one is for 25mm lowered cars (probably most M3s) and claims to correct geometry. Good idea but at 25mm lower it’s probably moving the KPI and scrub radius in order to not impact or be too close to the rotor. I also wonder what the weight is! Using the same e60 wheel bearing & sensor which is pretty heavy. Very cool!


    230 likes, 12 comments - strommotorsports on November 15, 2025: "Our new E46 Uprights have been in daily testing on our E46 street car but now get the race car curb jumping treatment in an upcoming two day test at Chuckwalla and Thermal. While we spent a lot of time in CAD optimizing these with FEA there is nothing like validating the real thing. These uprights will fit an E36 or E46 with a press in stainless steel insert and provide 25mm of correction for the control arm and tie rod on a lowered car to remove bump steer and improve the camber curve meaning you can run less static camber. They are meant to replace arms that use a long bolt and spacers to both increase the amount of correction and also not try to wreck you randomly. They are also much stronger than the stock cast steel factory upright which we have had bend many times in hard racing or from even minor contact. They have an E46 M3 caliper mount and use an E92 M3 wheel bearing or similar and with the early E60 wheel speed sensor your ABS will still operate normally. Ready to go for Nov 19-20 and if all validation goes well then it’s time for release. Retail pricing will be $2399 for a set but we will have a reduced price initial group buy like we did with our E9x uprights. #strommototsports #e46uprights #billet".

    Click image for larger version

Name:	IMG_7047.png
Views:	243
Size:	454.3 KB
ID:	327168

    Leave a comment:


  • 3staxontheradio
    replied
    Yeah I printed the carrier and a selector rod. All pivot surfaces are delrin, reamed holes, and high tolerance shoulder bolts. Zero slop or play. I did a gs6-37bz conversion on my e36 s54 car and originally I had an off the shelf conversion kit/carrier but the carrier fit really badly with my setup and needed a ton of rubber bushing deflection to even install in the car, and that prevented me from using stiffer carrier bushings. Also the pivot height and giubo clearance made for a super tall shift throw. I don't want to crap up your thread but I have more info here:
    Hi All, I just bought this 97 m3 with an S54 https://www.youtube.com/watch?v=RhMODcDJ-q8 Details: S54 Swap using second gen can interface from gpeterson PO did rod bearings with WPC treated OEM and new rod bolts, vanos rebuilt, and valve lash checked Getrag 420g out of a euro s50b32 car 3.64 LSD PO did all bushings, ball

    Leave a comment:


  • Bry5on
    replied
    Originally posted by 3staxontheradio View Post
    I haven't used them yet. I have used ProtoTI and 3DPNXT also on craftcloud. I started adding a production note asking them to leave 1-2mm of all support interfaces attached so I could grind them off myself. I think these places are pumping out parts and they aren't that careful with post processing. My first shift lever revision the ball was so out of round from being overground I couldn't use it.


    This is what it looked like with the support remnants and after I did the removal:
    Click image for larger version

Name:	SupportRemoval.jpg
Views:	326
Size:	120.2 KB
ID:	324018
    Clever idea to do a shifter. Did you go full ham and put bearings in it? Looks like there’s a grub screw hole there. Did you also print the carrier, and if so did you do the e39 M5 style double grommet trick with the extended bitch clip? Always wondered if that would help the M3 shift quality.

    Definitely more printed parts in my future - I really want an excuse to do something from Ti too.

    Leave a comment:


  • 3staxontheradio
    replied
    I haven't used them yet. I have used ProtoTI and 3DPNXT also on craftcloud. I started adding a production note asking them to leave 1-2mm of all support interfaces attached so I could grind them off myself. I think these places are pumping out parts and they aren't that careful with post processing. My first shift lever revision the ball was so out of round from being overground I couldn't use it.


    This is what it looked like with the support remnants and after I did the removal:
    Click image for larger version

Name:	SupportRemoval.jpg
Views:	326
Size:	120.2 KB
ID:	324018

    Leave a comment:


  • Bry5on
    replied
    Originally posted by 3staxontheradio View Post
    Who did the printing for your uprights? The support removal looks really good and not excessive like I have had on some of my parts.
    I used Shenzhen 3D Innovate through Craftcloud. The second article (other side) had a little more excess removal than the first, so I may have to give the bearing surface a grind to make it nice and flat.

    On closer inspections the holes didn’t come in under by .2mm, they were holding cylindricity of about .2mm. The ream operation made that clear.

    Otherwise they both came out pretty well.

    Leave a comment:


  • 3staxontheradio
    replied
    Who did the printing for your uprights? The support removal looks really good and not excessive like I have had on some of my parts.

    Leave a comment:


  • Arclitgold
    replied
    Wow this car keeps getting better and better! Nice work and keep it up!

    houses are endless sources of… well lots of good and bad! Haha

    Leave a comment:


  • Bry5on
    replied
    Alright, I had a few free hours this morning and there was an open lift, so here we go!

    How it started:
    Click image for larger version

Name:	IMG_6788.jpg
Views:	302
Size:	119.9 KB
ID:	322558

    A few minutes later:
    Click image for larger version

Name:	IMG_6791.jpg
Views:	344
Size:	80.6 KB
ID:	322556 Click image for larger version

Name:	IMG_6789.jpg
Views:	308
Size:	60.5 KB
ID:	322557 Click image for larger version

Name:	IMG_6794.jpg
Views:	306
Size:	109.3 KB
ID:	322559

    And another 30 minutes after that, we're all buttoned up again and ready for a test drive:
    Click image for larger version

Name:	IMG_6796.jpg
Views:	305
Size:	118.1 KB
ID:	322560

    This is the F80 driveshaft that EthanolTurbo had modified with e46 M3 flex disc and CV joints. It is exactly 5mm shorter than a factory M3 driveshaft. Because it's shorter, I did not have to unbolt or drop the diff or subframe to install it, as you can see above. This is a tradeoff, as there will be less spline engagement with the driveshaft and CV joint. I think 2-3mm shorter than stock would be the sweet spot if you're not using the telescoping F80 version of the shaft (which is a better solution overall, in my opinion). Install was easy, just like any other driveshaft, only made difficult by the shitty supersprint header joint.

    We measured before that this shaft is 80mm OD, versus the 75mm max OD stock shaft, so the math says that this carbon shaft should be much stiffer (bigger diameter, 50% stiffer material, likely also thicker wall) than the original and also bring in some of the inherent damping that carbon weaves have that steel does not. It's also one piece, although I don't think this is likely to have any real noticeable effect from the seat. We measured that it's 3.5lb lighter than the steel part, which I also don't think will be too seat of the pants noticeable, because inertially these math out to be very similar due to the larger OD of the carbon shaft.

    Because this shaft is larger OD, it's a very tight fit. This is only suitable for cars with non-raised, solid subframe bushings. My car has *non-raised* & solid subframe bushings with reinforcement plates (4-5mm thick, which helps gain clearance) and I had about 8mm clearance to the transmission tunnel. Any displacement of the subframe/diff under acceleration or due to adding subframe raising solid bushings is likely to put you at risk of hitting the transmission tunnel and disintegrating your driveshaft. Consider this fair warning if you choose to go carbon, and I cannot stress this enough. Carbon does not fail subtly or slowly.



    Good news, I did not have to make any clearance to my unmodified exhaust heat shield.

    So what's the verdict? My initial thoughts say a very minor positive difference versus steel.

    First of all, since I'm in San Diego it's easy for me to make a quick trip to Mexico where I tested the car up to 120mph (with stock gearing) and had absolutely no noticeable vibration. I'm sensitive to vibration. Sort of OCD about it. In fact, I'd say that the car is ever so slightly quieter at speed. I was expecting this as it's a common noted difference, so there may be a bit of placebo here.

    When I initially took the car for a drive, I was pretty hopeful because I couldn't detect any semblance of the m-clunk. This changed once the car had warmed up. I'd say this was a mild improvement to the clunk (more of a thud now in my car), definitely less of an improvement than the rear end bracing made (my touring cabin X-brace and subframe-v-brace). Any improvement here is welcome, but it's not a magic bullet. Shift & shifter quality is largely the same, just with slightly less of the thud on a hard 1-2 shift.

    There is also an improvement during clutch take-up, it just feels smoother and a bit more direct - in the direction of, but not equivalent to, a Porsche. This is maybe the most detectable and biggest difference.

    There is no perceptible increase in the car accelerating quicker or revving faster that I can tell. Note that the math also generally agrees with this.

    On just one occasion, it did seem that I was able to excite some natural frequency somewhere around 40-50mph under WOT second gear acceleration after a 1-2 shift. It felt similar to a failing CSB, but I wasn't able to reproduce this, so it could have been coming from the road, as I was on a highway onramp in a landfill area.

    So overall I'd say this is mostly a smoothness, directness and NVH improvement, in that order. All effects are relatively minor but if you're OCD about NVH and needed a driveshaft balance like me anyway, I'd say go for it. It's an improvement. If you don't need a driveshaft, maybe wait until your next 'while I'm in there' opportunity. If you're debating whether to do this or a chassis stiffening mod first, *definitely* do the chassis stiffening mods first, you'll feel those a lot more.

    Hope that's helpful!

    Leave a comment:


  • heinzboehmer
    replied
    Originally posted by Bry5on View Post
    Still struggling for blocks of time - setting up the house is taking priority.
    Man, I feel that. It's no fun.

    X brace looks great in black though.

    Leave a comment:


  • Bry5on
    replied

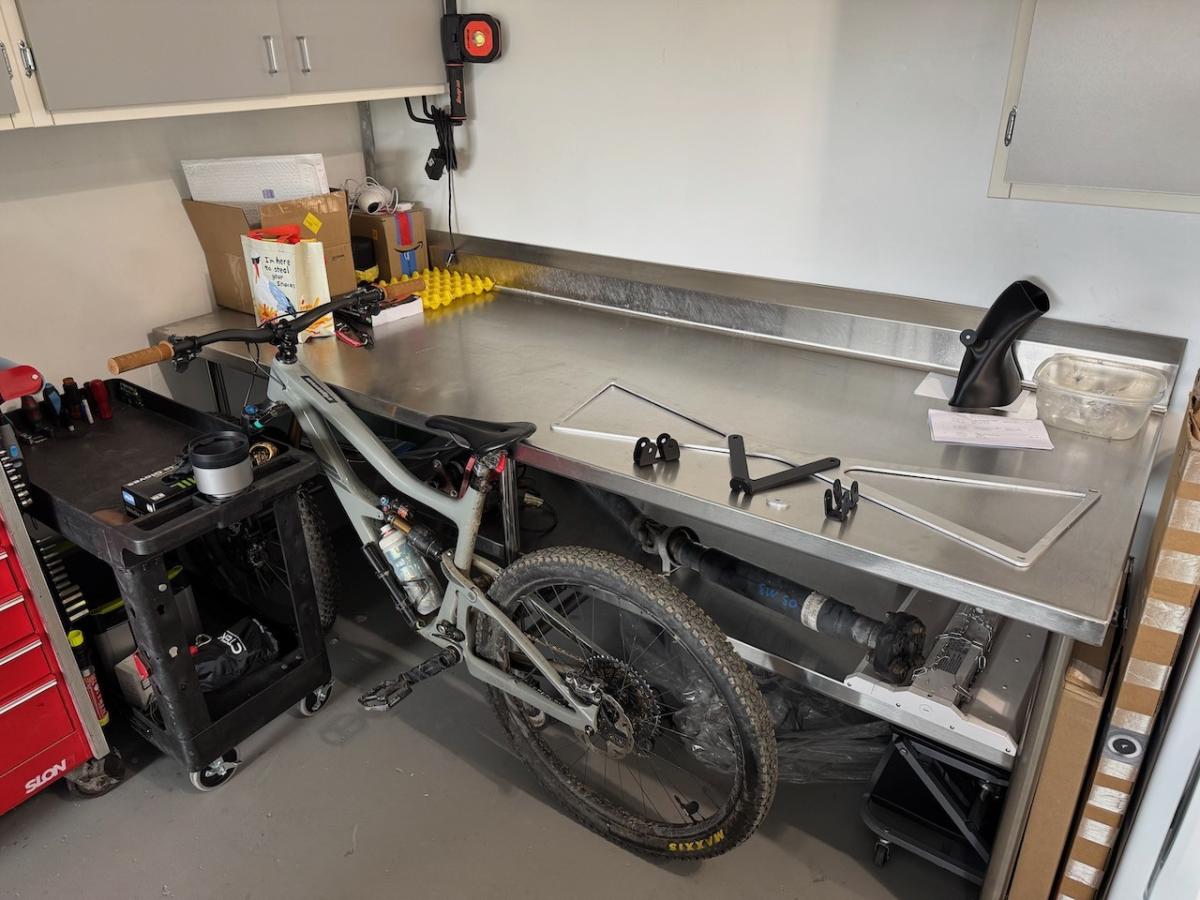

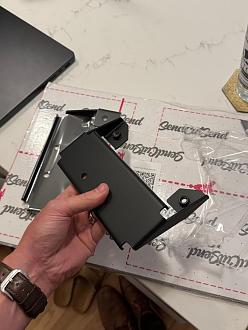

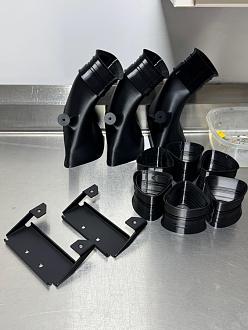

    Still struggling for blocks of time - setting up the house is taking priority.

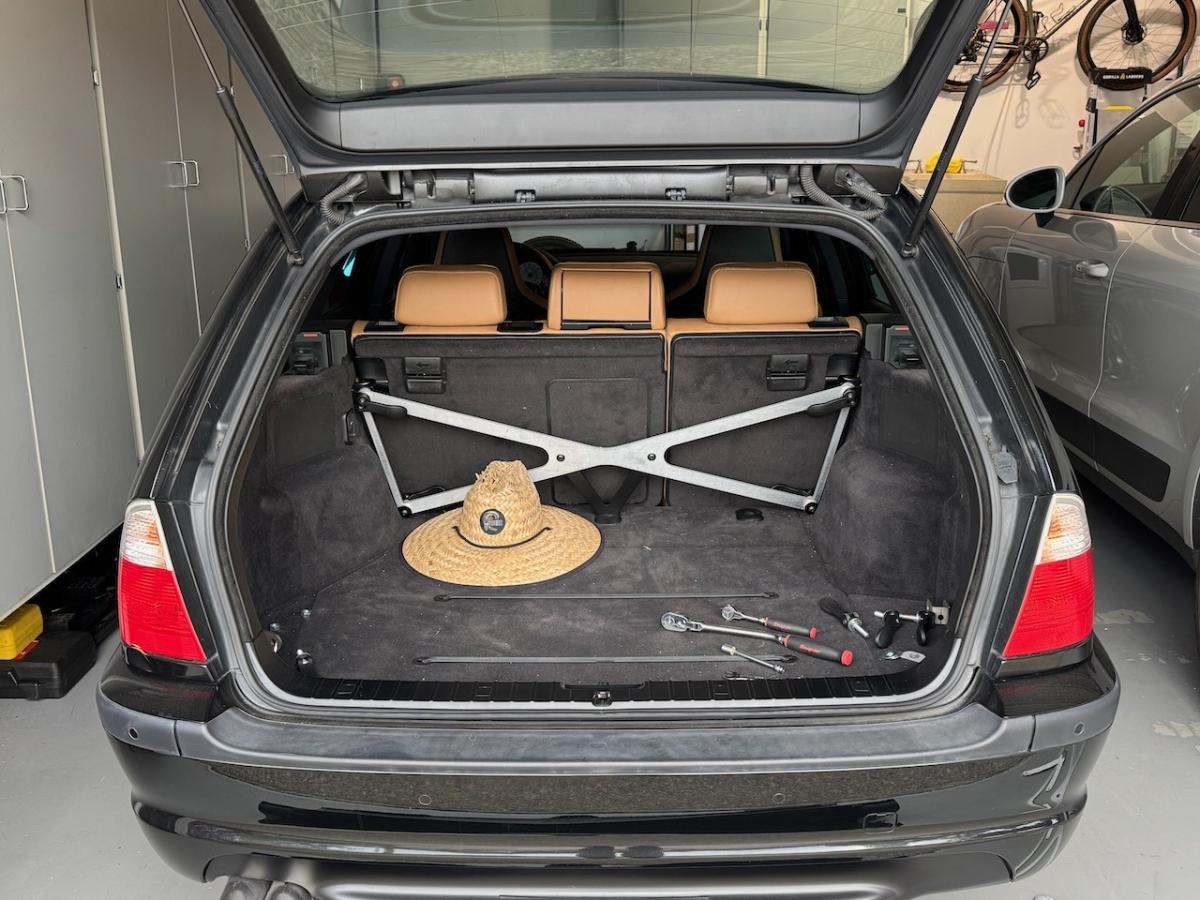

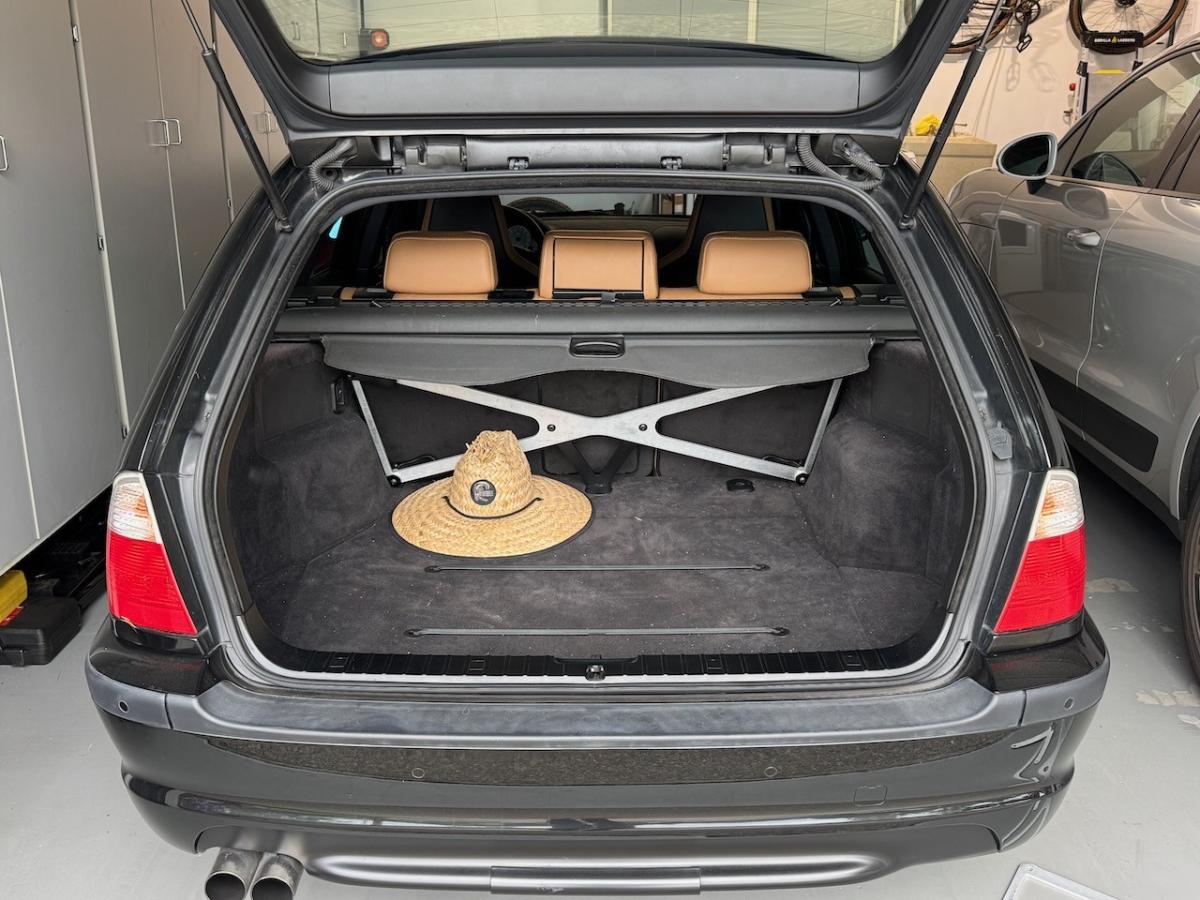

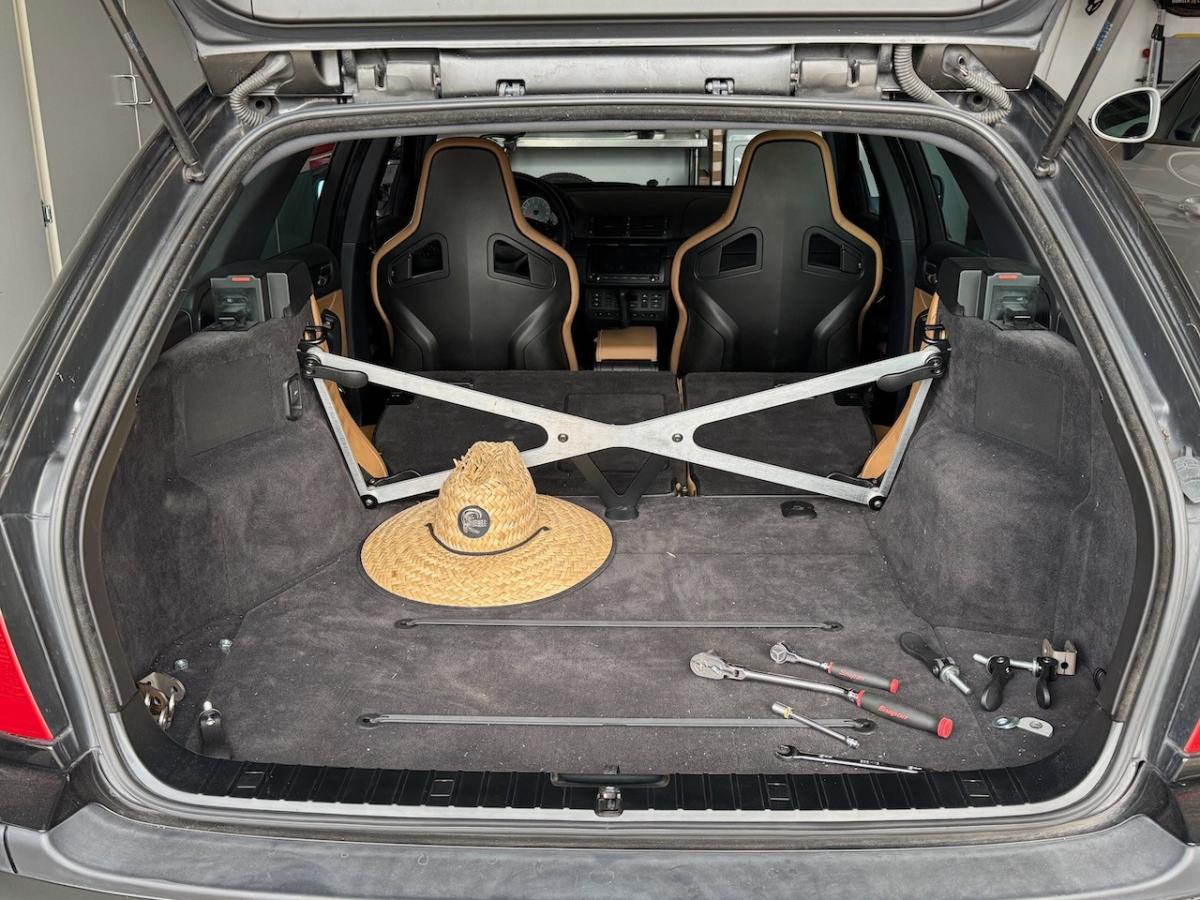

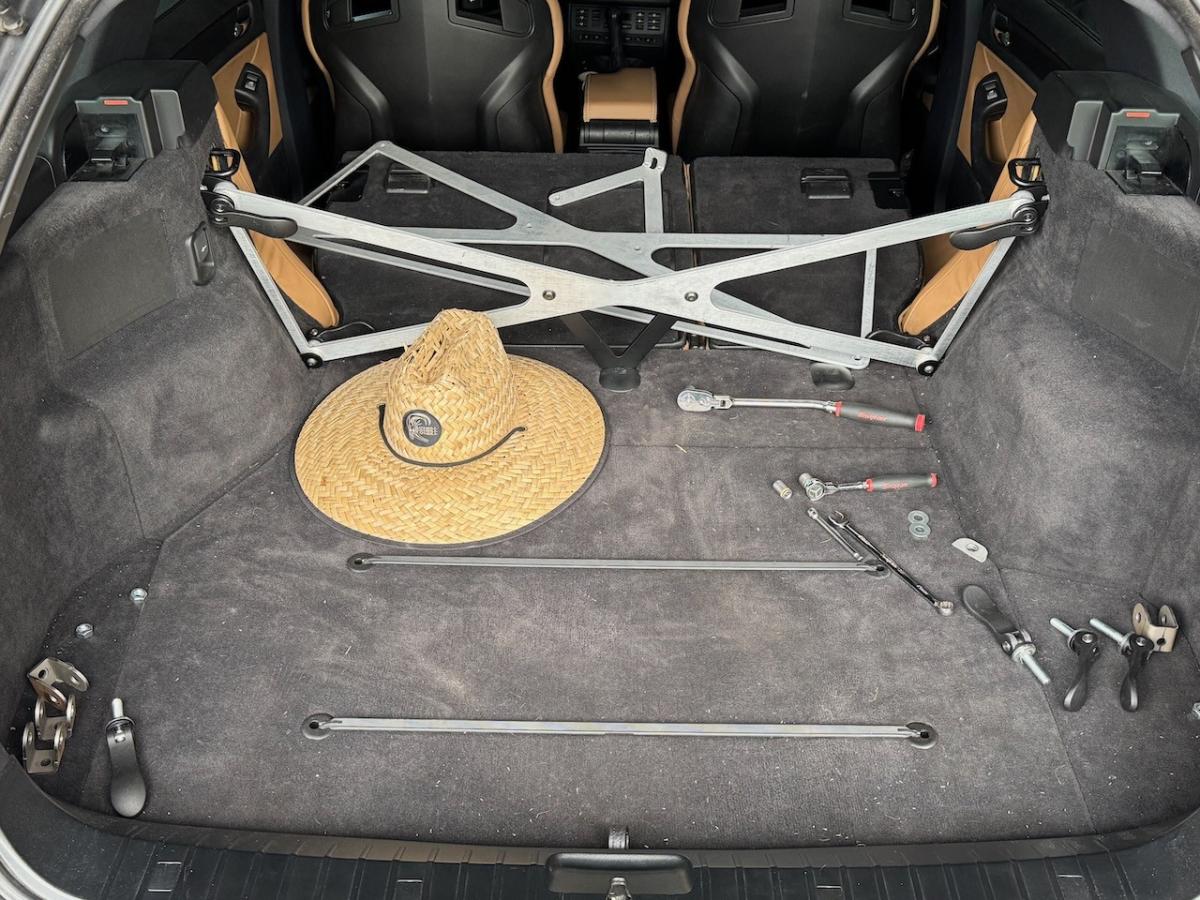

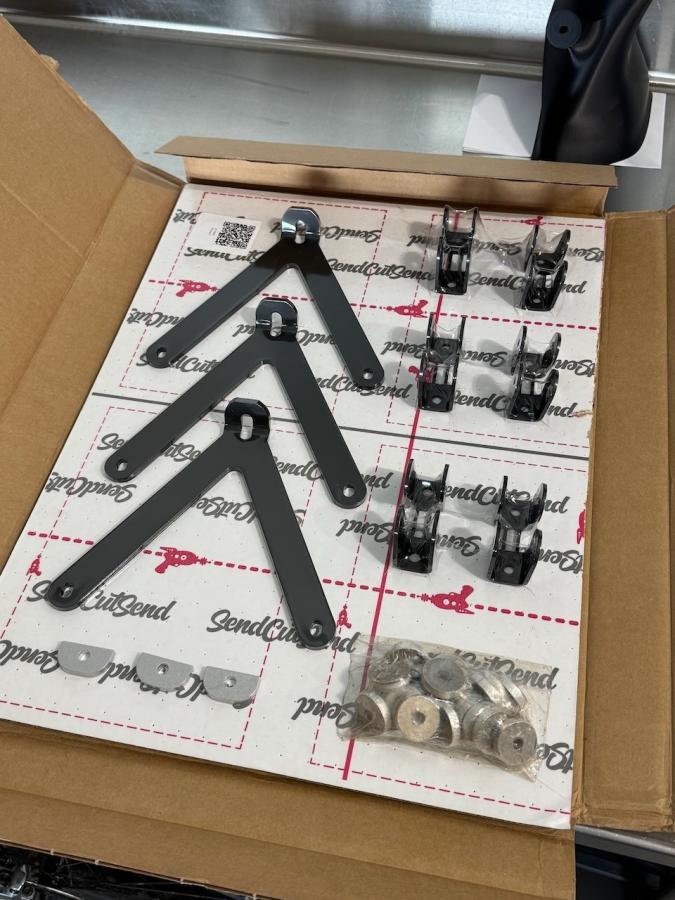

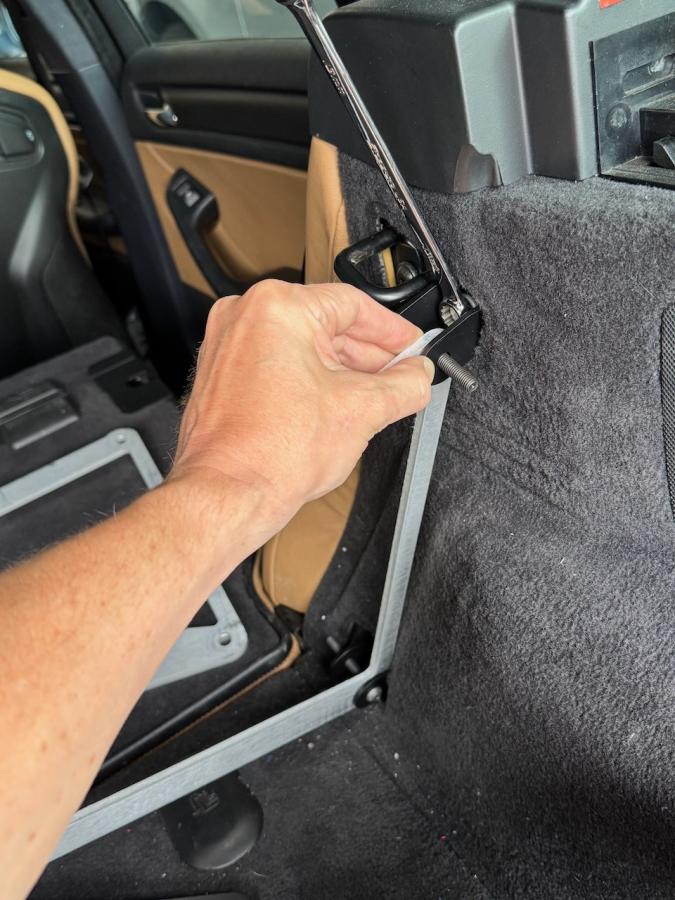

    But I did get a chance to powder coat the rear x-brace, and while it was out I had to drive the car without it for a week, on my regular commute, so I’ve got some reverse observations.
    1) the car is smoother on hard impacts without the brace but there’s more after-bump ‘noise’ that’s not generated by the road. Sort of like a ripple after effect.
    2) steering precision with the brace is definitely better
    3) the m-clunk came right back on removal and turned back to an m-thud on reinstallation. I’m convinced that the clunk is exacerbated by the flexy trunk floor. Constraining it with the combo of the rear x-brace and the subframe-v-brace does the trick, and I think you need both to net the results. This also supports my theory that bracing to the center isofix attach point is necessary.​

    Click image for larger version  Name:	IMG_6784.jpg Views:	9 Size:	151.9 KB ID:	322509 Click image for larger version  Name:	IMG_6786.jpg Views:	9 Size:	140.7 KB ID:	322508

    Next up we’ve got to see if the carbon driveshaft from EthanolTurbo eliminates the rest of the clunk because of the damping effect that carbon has.
    Last edited by Bry5on; 10-11-2025, 09:52 AM.

    Leave a comment:


  • Bry5on
    replied
    Originally posted by heinzboehmer View Post

    Print a fixture! Then a boring bar on the lathe/mill and good to go.
    Always coming at me with the logic. Of course!

    Leave a comment:


  • heinzboehmer
    replied
    Originally posted by Bry5on View Post
    3) I opened up the strut clamp bore on the new part and probably shouldn't have. The holes came in a little ovaled, and now I think I'll need to find an actual solution to this problem to make them round. Aluminum tape will do for shimming the oversized hole, but I'll need a way to fixture it straight which could be challenging.
    Print a fixture! Then a boring bar on the lathe/mill and good to go.

    Leave a comment:


  • Bry5on
    replied
    Okay, good news and bad news. Good news is that I ordered the other side printed knuckle and it's already on its way over the pacific to me.

    Bad news unfortunately is more than the good news:
    1) I neglected to realize that I couldn't simply mirror the ABS mounting orientation, as the sensor is not centered through its bore. I'll need to come up with a solution for this, have some ideas, but it's an annoying problem to have.
    2) The large hand reamers showed up and I reamed the bores for the LCA and tie rod inserts. The bores *did not* clean up with the reamers. So it looks like my caliper measurements were wrong and the bores did not come in undersized like I thought. We'll see if the next batch is the same. Currently debating whether I order some adjustable hand reamers, or chance it and use a press-fit adhesive to take up the slack.
    3) I opened up the strut clamp bore on the new part and probably shouldn't have. The holes came in a little ovaled, and now I think I'll need to find an actual solution to this problem to make them round. Aluminum tape will do for shimming the oversized hole, but I'll need a way to fixture it straight which could be challenging.

    Click image for larger version

Name:	IMG_6481.jpg
Views:	325
Size:	172.3 KB
ID:	318961 Click image for larger version

Name:	IMG_6485.jpg
Views:	330
Size:	106.0 KB
ID:	318959 Click image for larger version

Name:	IMG_6483.jpg
Views:	379
Size:	138.8 KB
ID:	318955

    I also got to an oil change this weekend. Well, turns out that the preventative timesert that I did in my oil pan drain plug hole didn't swage in properly, or I used the wrong grip length. It was pulling out instead of the fastener.

    I wasn't prepared to deal with that problem, so I change the oil from the top by sucking it from the dipstick tube. And well I use the CSL dipstick tube, so that meant removing the Slon brace and the front half of the intake. Normally not a big deal, but the vacuum port on my karbonius airbox had debonded a while back, and I knew I'd have to fix this next time the airbox was off, or I wouldn't be able to reconnect that vacuum tube.

    Click image for larger version

Name:	IMG_6475.jpg
Views:	326
Size:	204.7 KB
ID:	318960 Click image for larger version

Name:	IMG_6476.jpg
Views:	331
Size:	122.1 KB
ID:	318956

    So, some epoxy later and that was fixed. And that 15 minute oil change was done 3.5 hours later.

    Click image for larger version

Name:	IMG_6477.jpg
Views:	328
Size:	182.6 KB
ID:	318962 Click image for larger version

Name:	IMG_6478.jpg
Views:	324
Size:	133.5 KB
ID:	318957 Click image for larger version

Name:	IMG_6480.jpg
Views:	238
Size:	192.3 KB
ID:	318958

    I also learned something very interesting. The e46 cabrio uses different seat mount points. Mount points that are 40mm narrower on the outside vs the non-cab. *checks math* - why yes, that's the same dimension as the e90/f80/etc seats.. so you're telling me there's a way to run the lovely vented/heated M3cs seats in the e46 if we use cabrio seat mounts? I'm intrigued.

    Click image for larger version

Name:	IMG_6486.jpg
Views:	324
Size:	189.3 KB
ID:	318964 Click image for larger version

Name:	IMG_6487.jpg
Views:	324
Size:	114.4 KB
ID:	318963 Click image for larger version

Name:	IMG_6490.jpg
Views:	315
Size:	203.2 KB
ID:	318965

    And one more thing. Thanks to EthanolTurbo I've got his F80-e46 M3 modified carbon driveshaft on the bench to measure and test. More detailed numbers here: https://nam3forum.com/forums/forum/m...945#post318945

    Click image for larger version

Name:	IMG_6521.jpg
Views:	230
Size:	129.2 KB
ID:	318967 Click image for larger version

Name:	IMG_6515.jpg
Views:	233
Size:	91.3 KB
ID:	318966

    Leave a comment:


  • Bry5on
    replied
    Originally posted by karter16 View Post
    This is such an incredible project! 2005-me would have been blown away to imagine this being in the realms of possibility for an individual to achieve!
    Seriously, that makes two of us. Very cool to have been able to use both generative design and 3D printing for a personal project! The last 3D printing project I was involved with was very much more complex than this, it’s pretty incredible what you can do nowadays.

    Leave a comment:


  • karter16
    replied
    This is such an incredible project! 2005-me would have been blown away to imagine this being in the realms of possibility for an individual to achieve!

    Leave a comment:
