    Some more maintenance. I think I mentioned it earlier, but while doing headers/CPV, I notice the Exhaust cam sensor was leaking. I decided to just replace both sensors (intake/exh).

    Here's the leak (only exh side)

    Click image for larger version

Name:	CPS (0).jpg
Views:	521
Size:	99.8 KB
ID:	141620

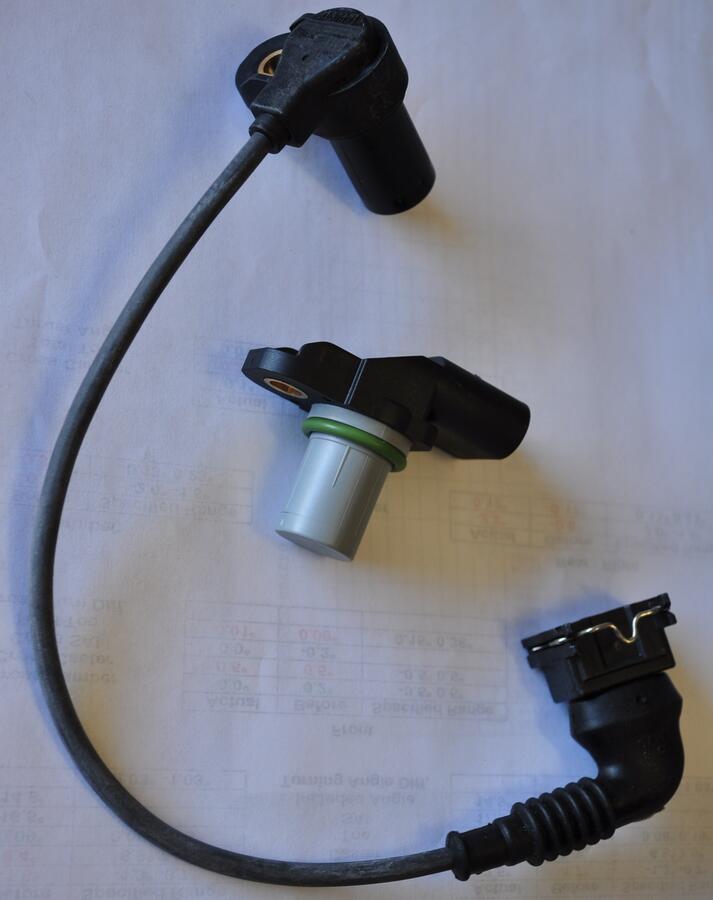

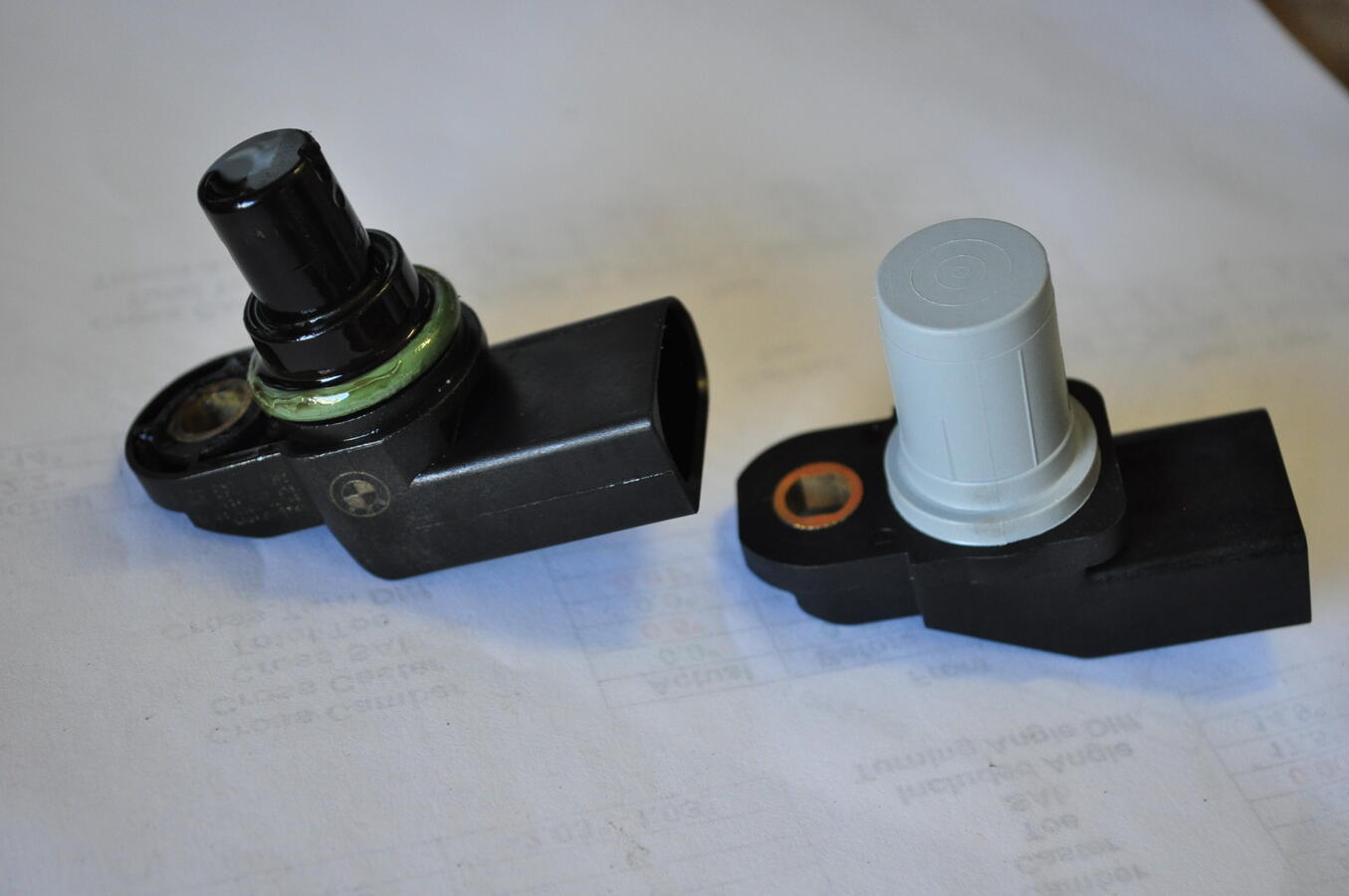

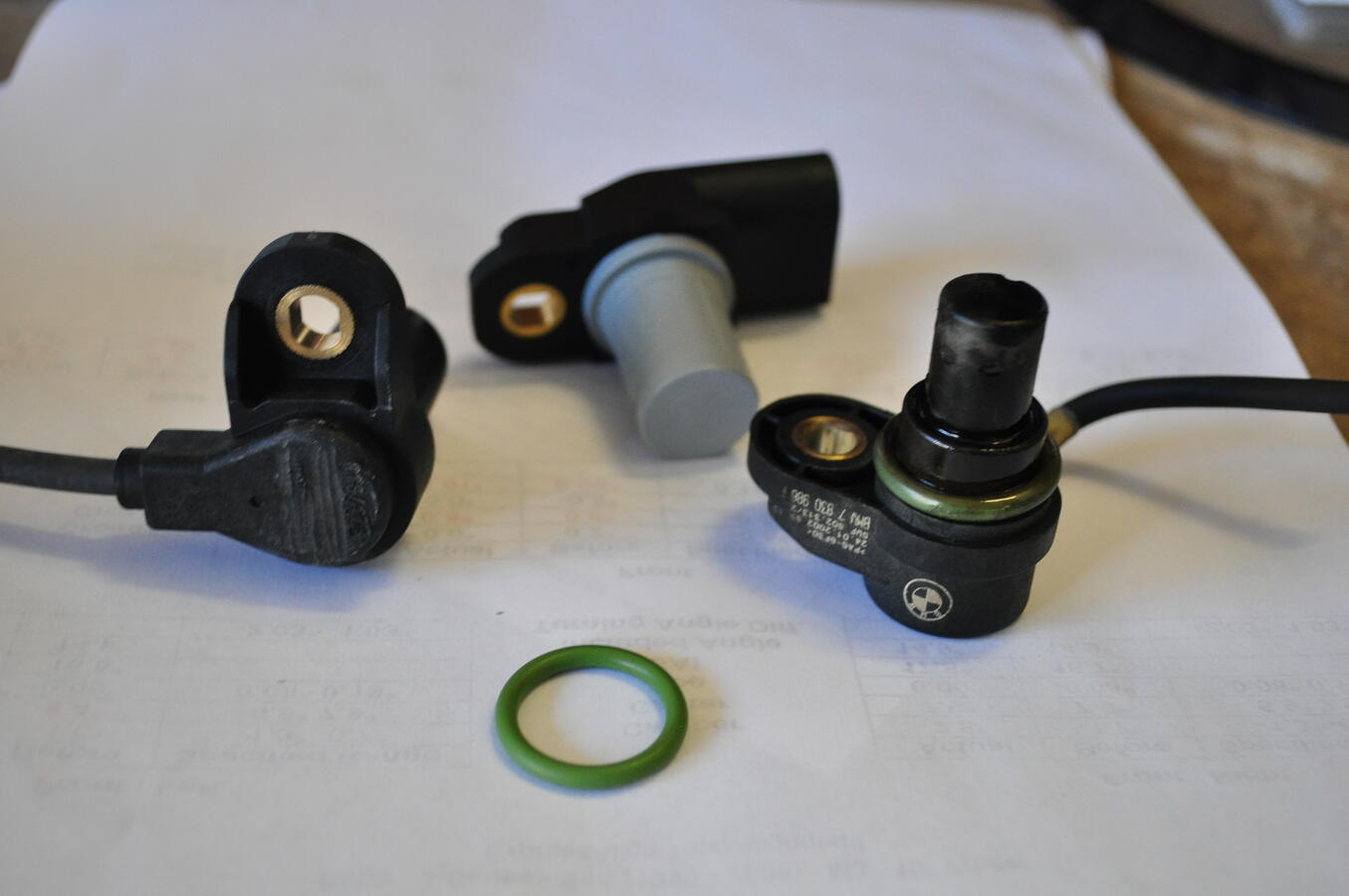

    New OES(upplier) part from FCPeuro. Newer one is now gray and larger. Make sure to buy the o-ring! The intake comes with new o-ring, but not exh!

    Click image for larger version

Name:	CPS (1).JPG
Views:	510
Size:	66.4 KB
ID:	141619
    Click image for larger version

Name:	CPS (8).JPG
Views:	492
Size:	64.9 KB
ID:	141621

    You can see the BMW logo ground off, it's a genuine part for half cost. Another pic of new sensors:

    Click image for larger version

Name:	CPS (4).JPG
Views:	501
Size:	42.8 KB
ID:	141622

    Exhaust is easy to change, just need a 5mm hex bit/key. Intake, however, is a PITA. Not only do you have to remove the manifold, but technically, you're supposed to remove the air and even fuel rail as the plug and wire for the sensor is hiding behind. I took a short cut that I'll explain.

    Click image for larger version

Name:	CPS (2).JPG
Views:	492
Size:	95.9 KB
ID:	141618

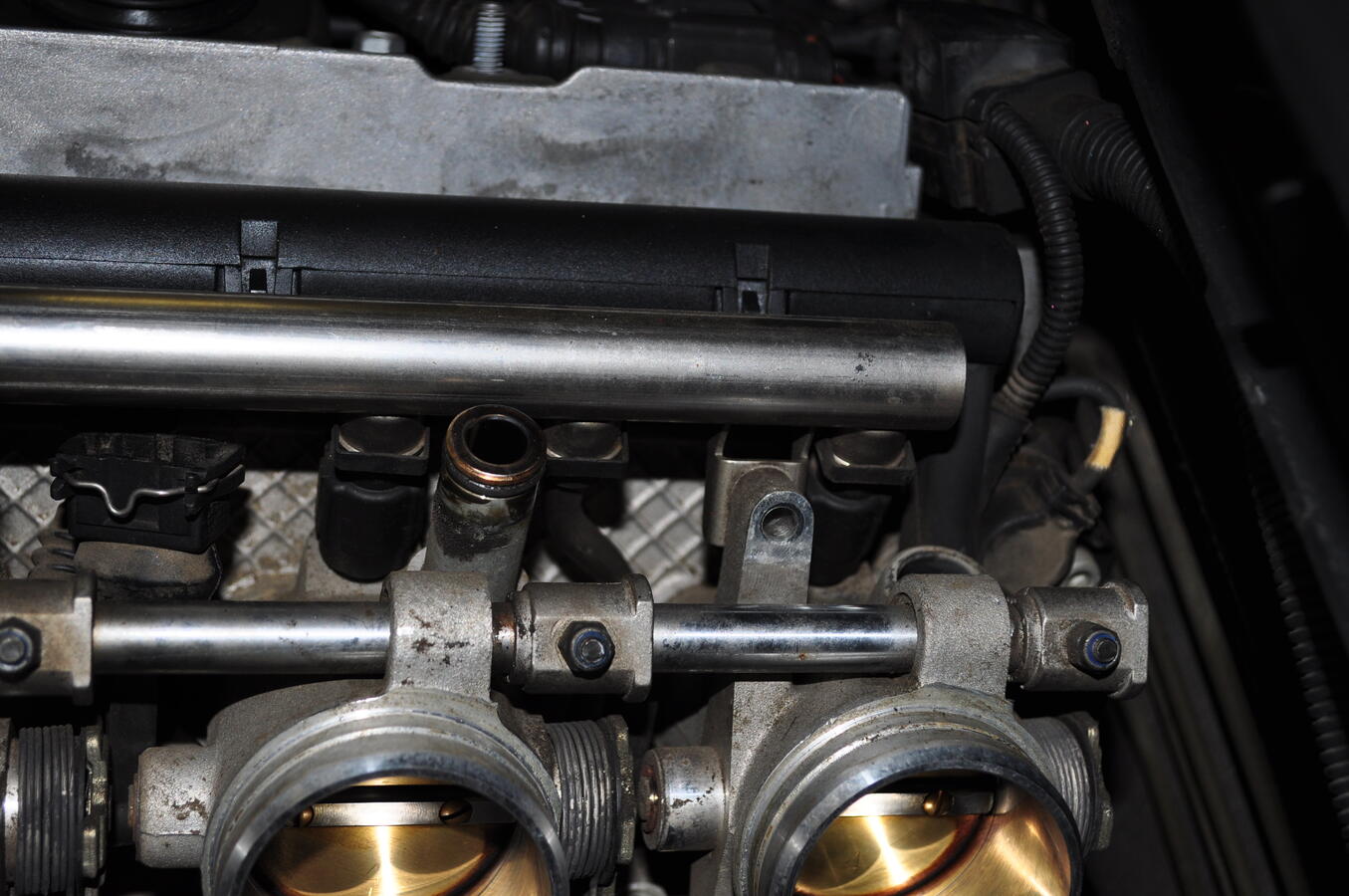

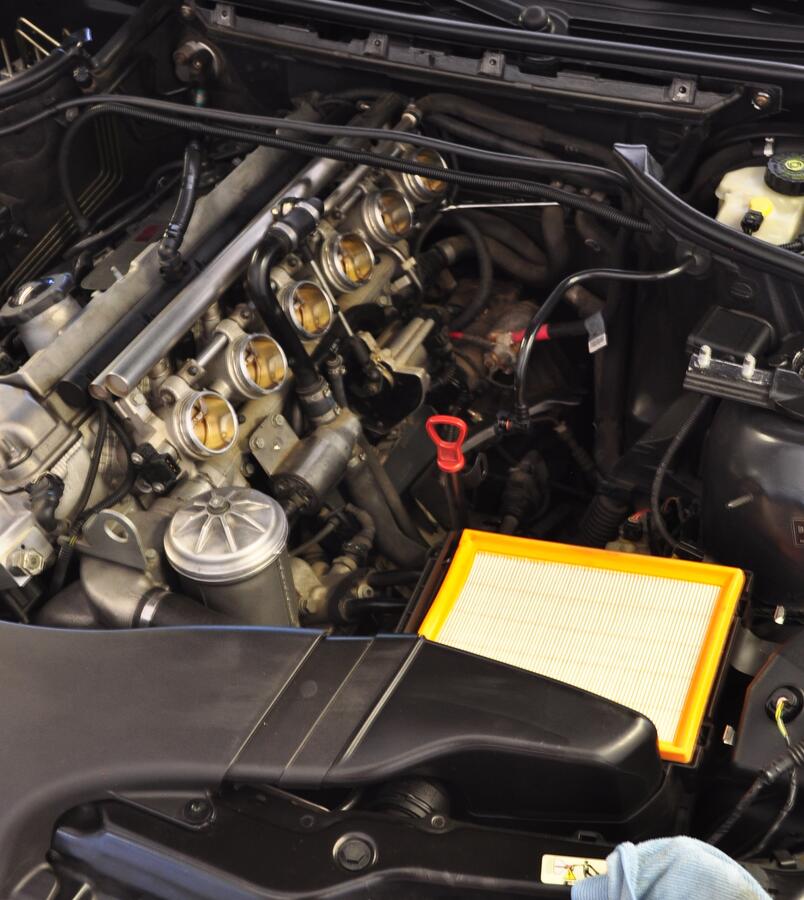

    There's a little plastic "cage" that you have to get out of the way

    Click image for larger version

Name:	CPS (3).JPG
Views:	523
Size:	71.3 KB
ID:	141617

    Now, you can get your 5mm hex bit back there, a wobble helps.

    Click image for larger version

Name:	CPS (7).JPG
Views:	490
Size:	69.7 KB
ID:	141623

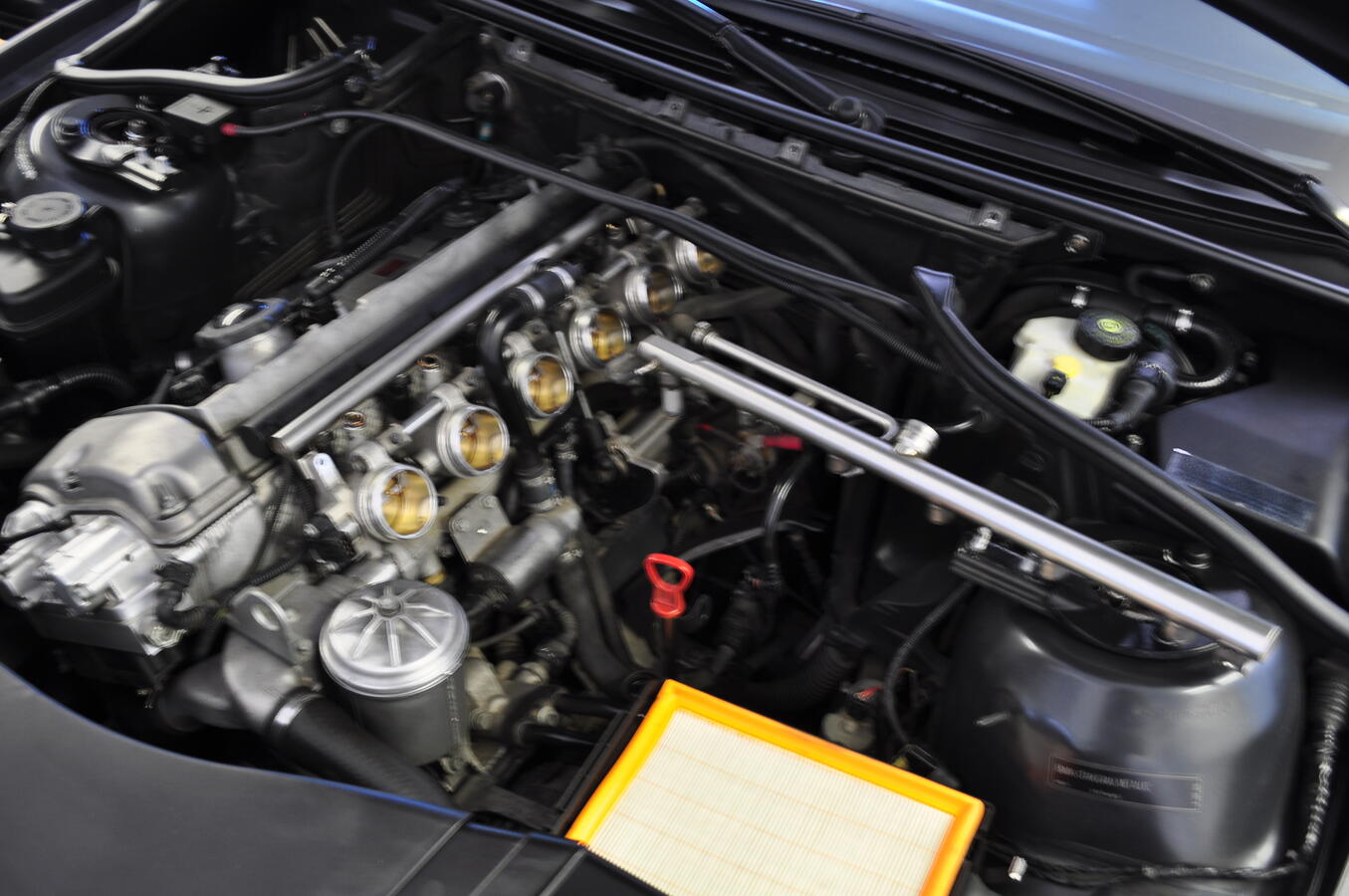

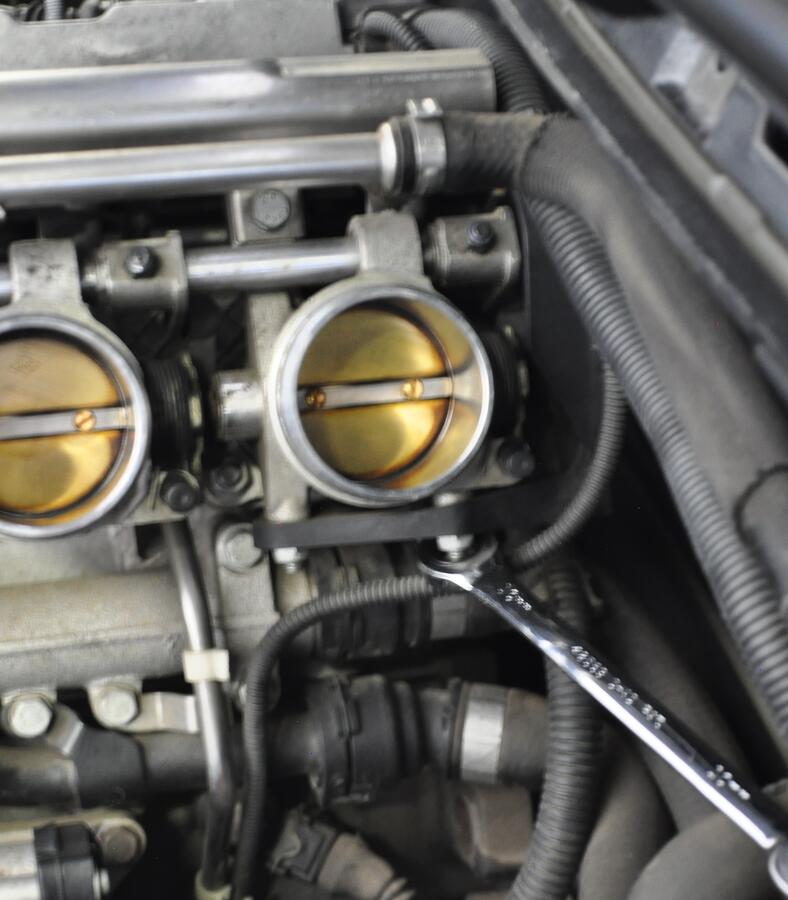

    Since it's easy to do (2 x 10mm bolts), I removed the air rail for more access

    Click image for larger version

Name:	CPS (5).JPG
Views:	490
Size:	141.7 KB
ID:	141624

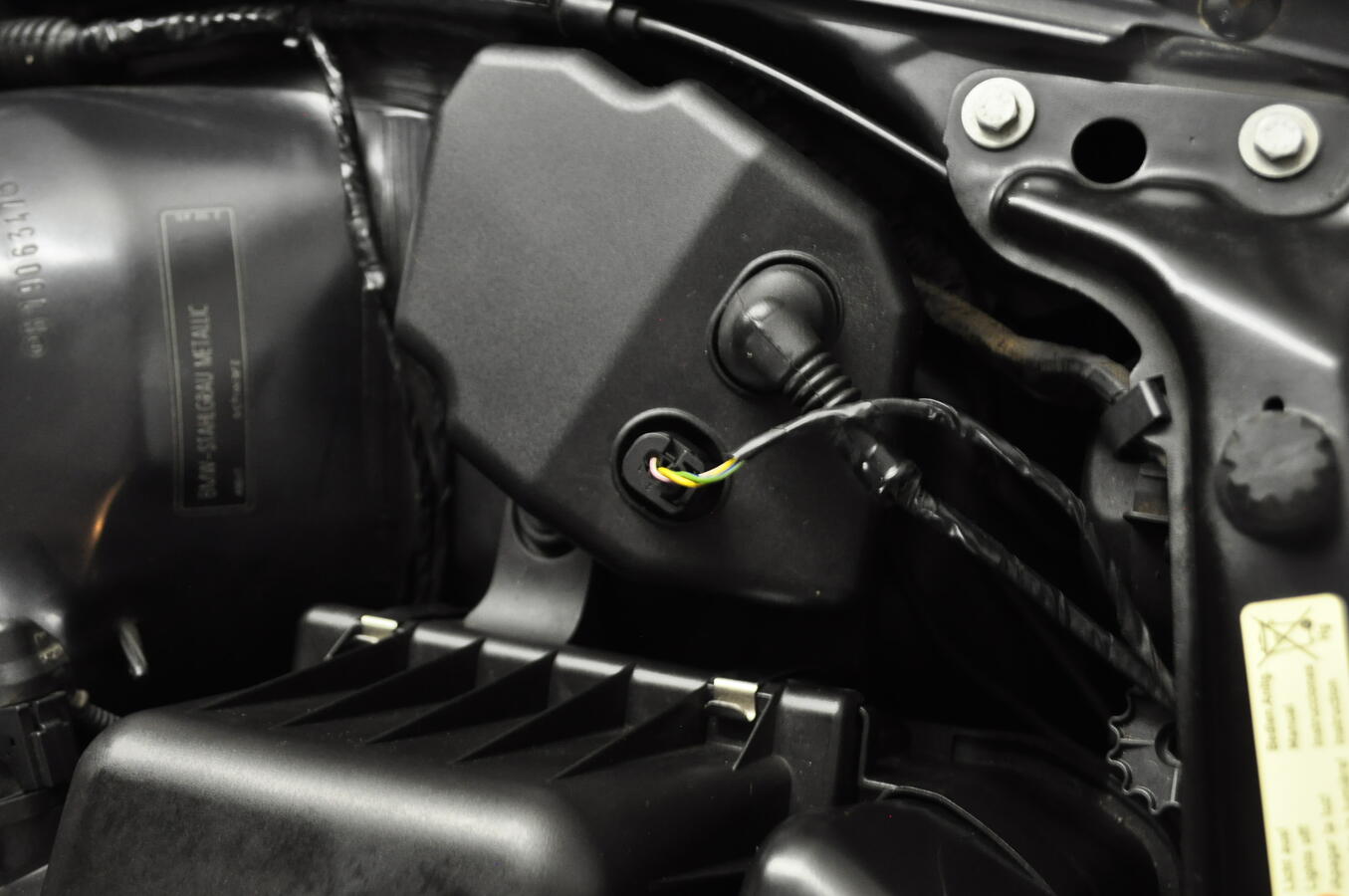

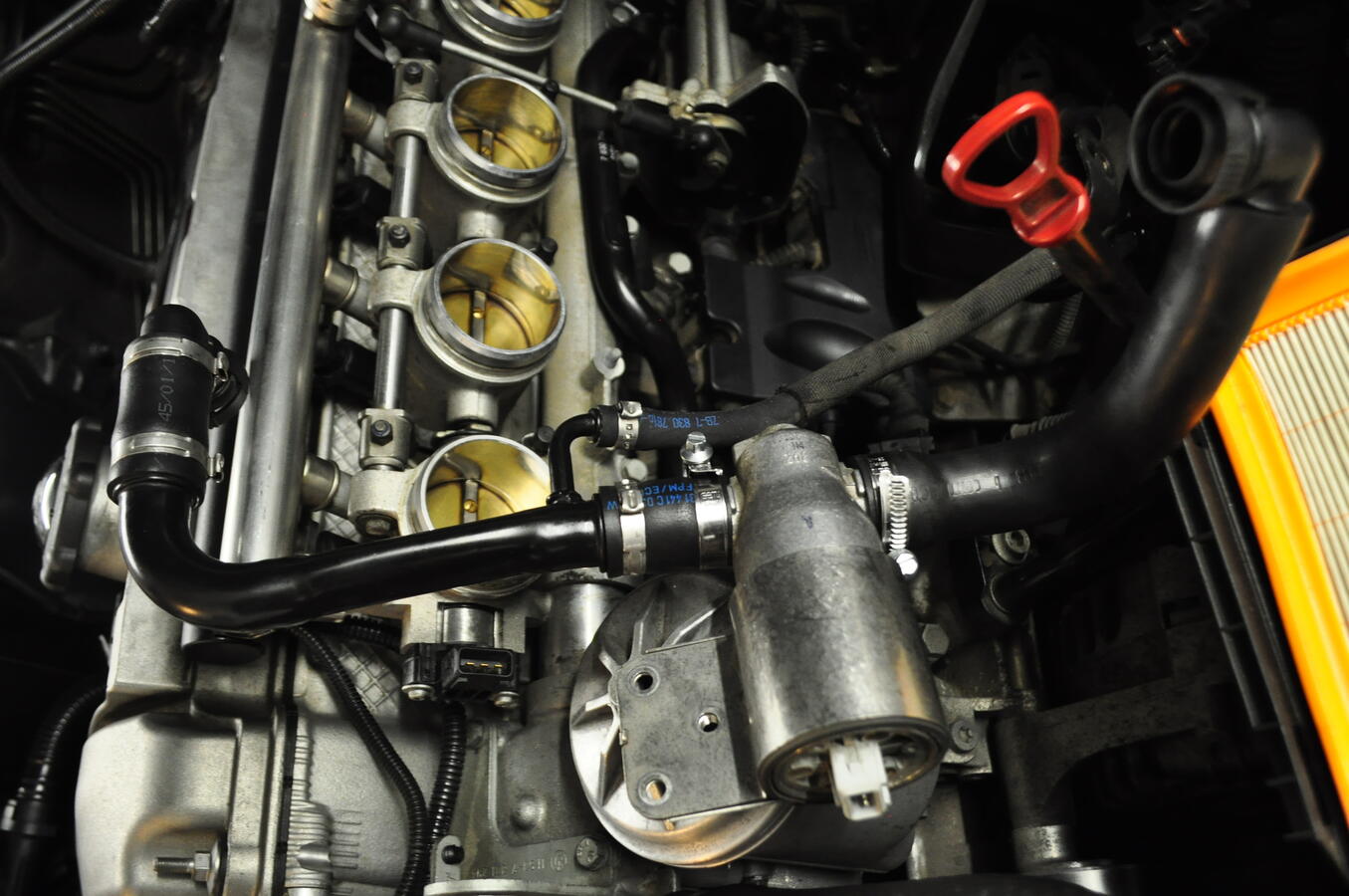

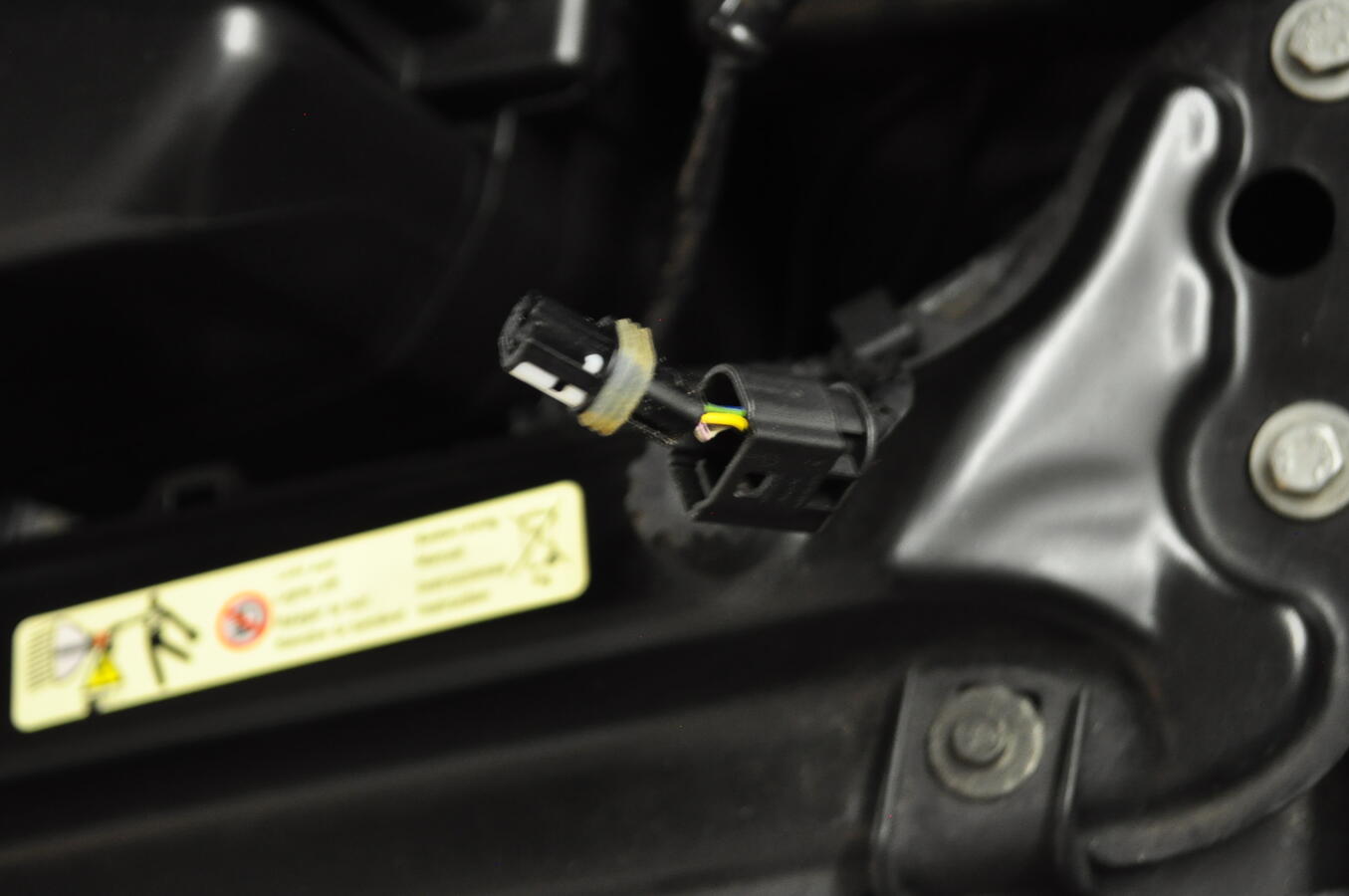

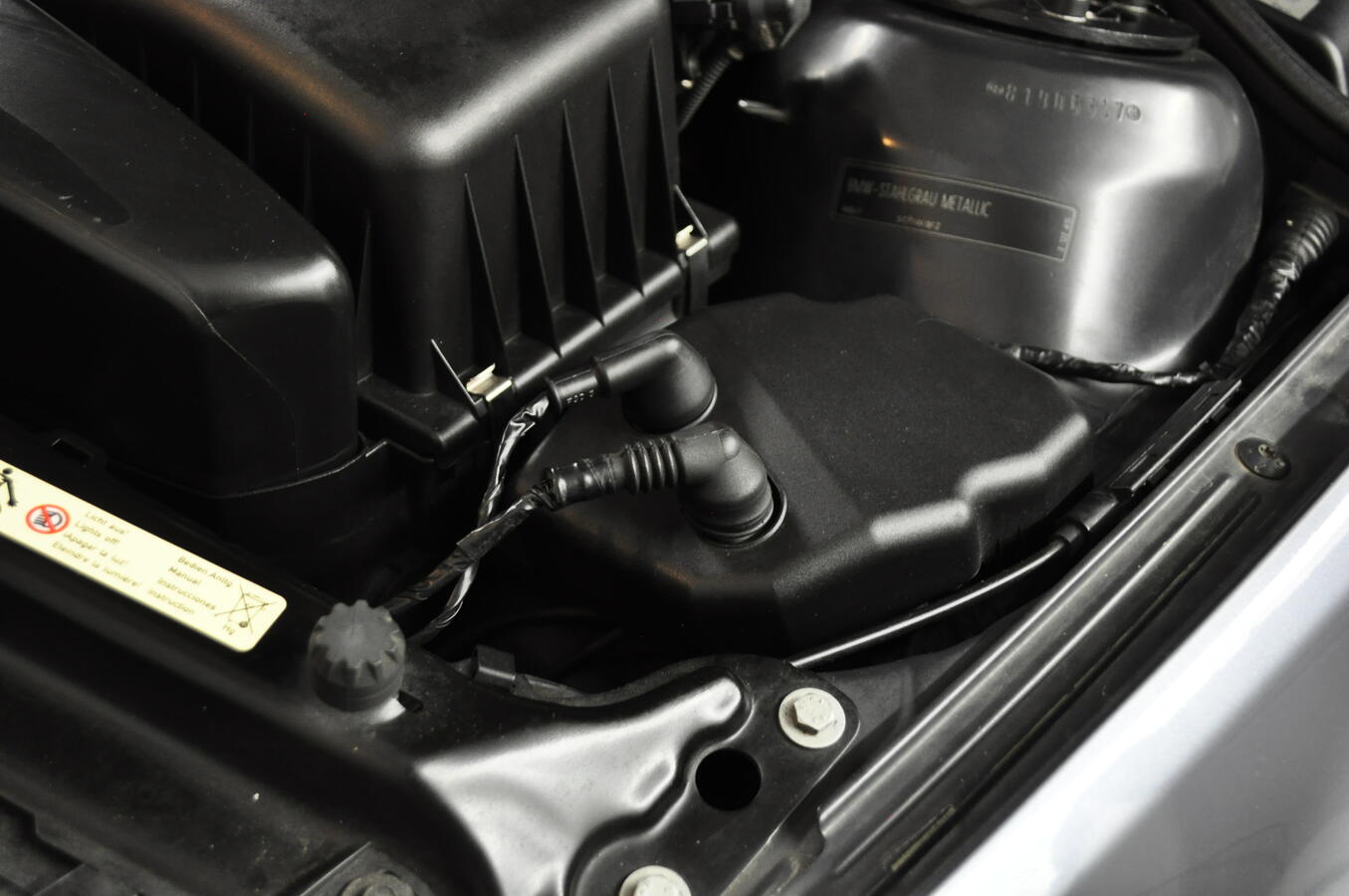

    Here, you can see the sensor's harness snug as a bug behind the fuel rail. So instead of removing the fuel rail and dealing with all those bitch clips, I just cut the harness so I could pull it out. Then, after installing new intake sensor, I plugged the harness in, and just stuffed the extra wire behind the fuel rail.

    Click image for larger version

Name:	CPS (6).JPG
Views:	486
Size:	144.8 KB
ID:	141625


    Also, even though I did a quick cleanout of the ICV, since the airbox was off, I wanted to do a better job. I got some new hose clamps as the oetikers are one-time-use, and I pulled the hoses of and cleaned everything thoroughly.

    Click image for larger version

Name:	ICV3.JPG
Views:	496
Size:	145.8 KB
ID:	141626
    DD: /// 2011.5 Jerez/bamboo E90 M3 · DCT · Slicktop · Instagram
    /// 2004 Silvergrey M3 · Coupe · 6spd · Slicktop · zero options
    More info: https://nam3forum.com/forums/forum/m...os-supersprint

    Comment


      Ok, last bit of wet sanding, I promise...

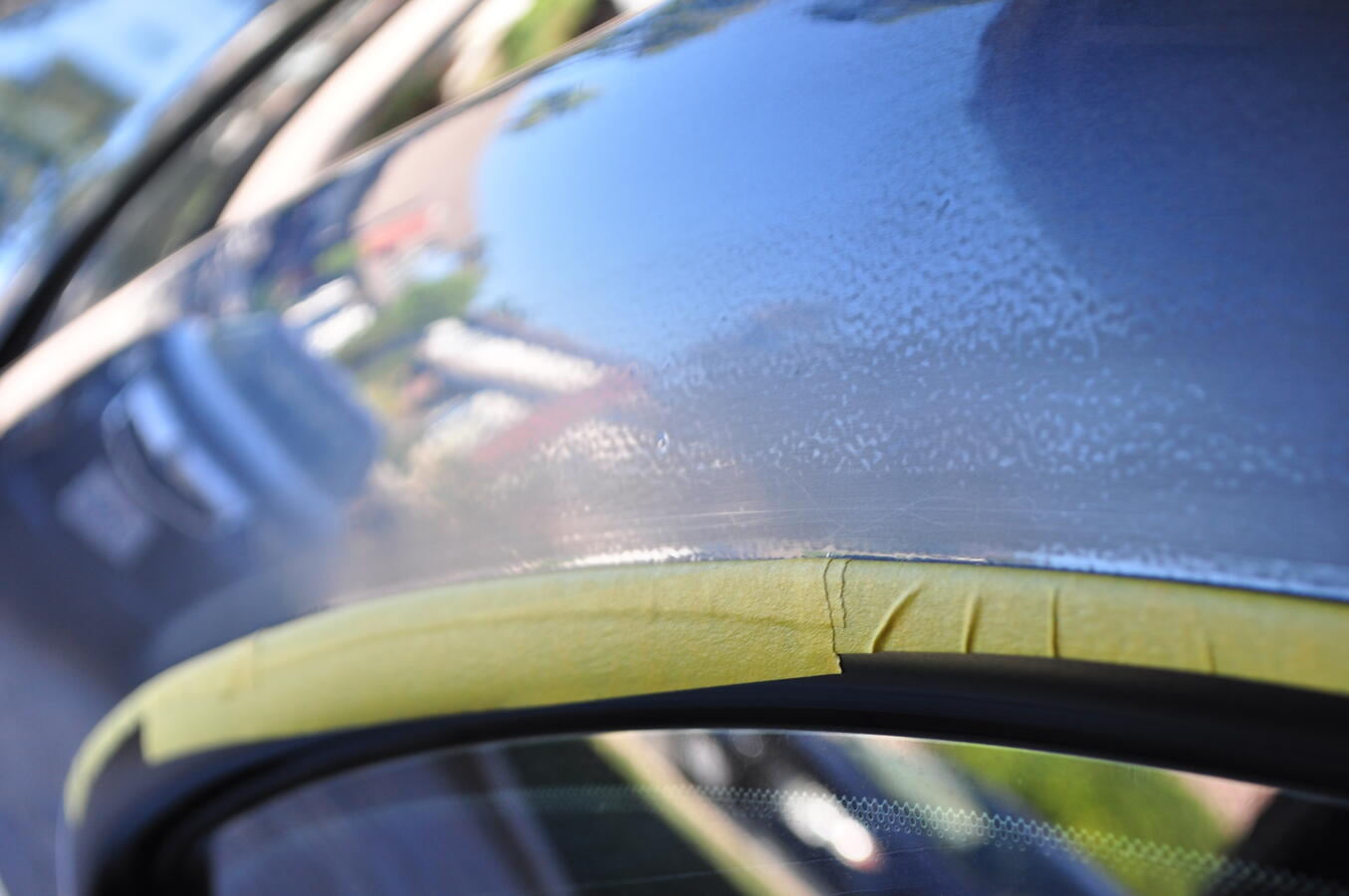

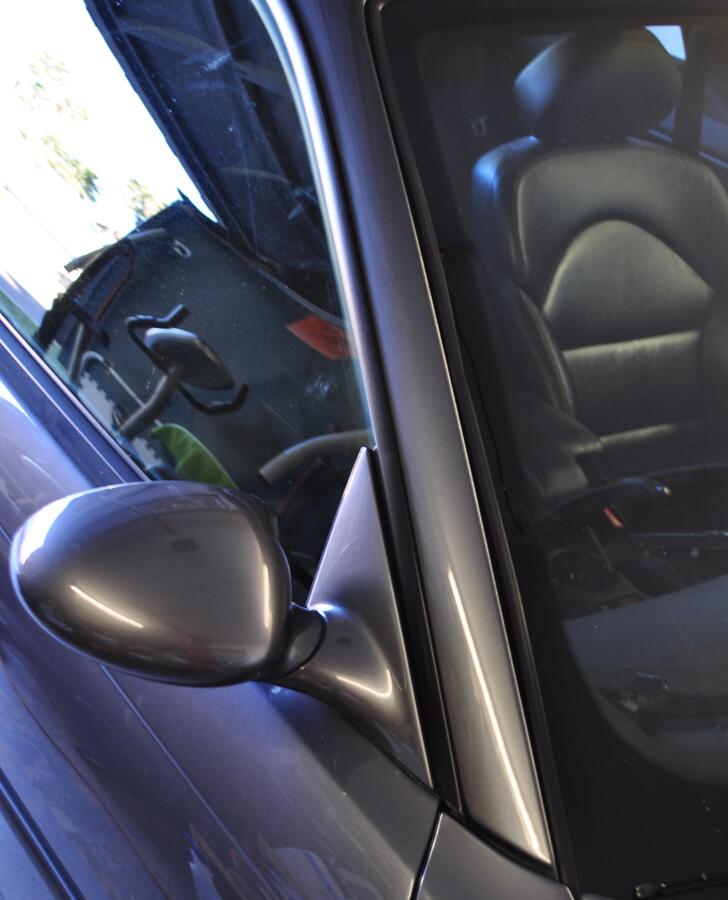

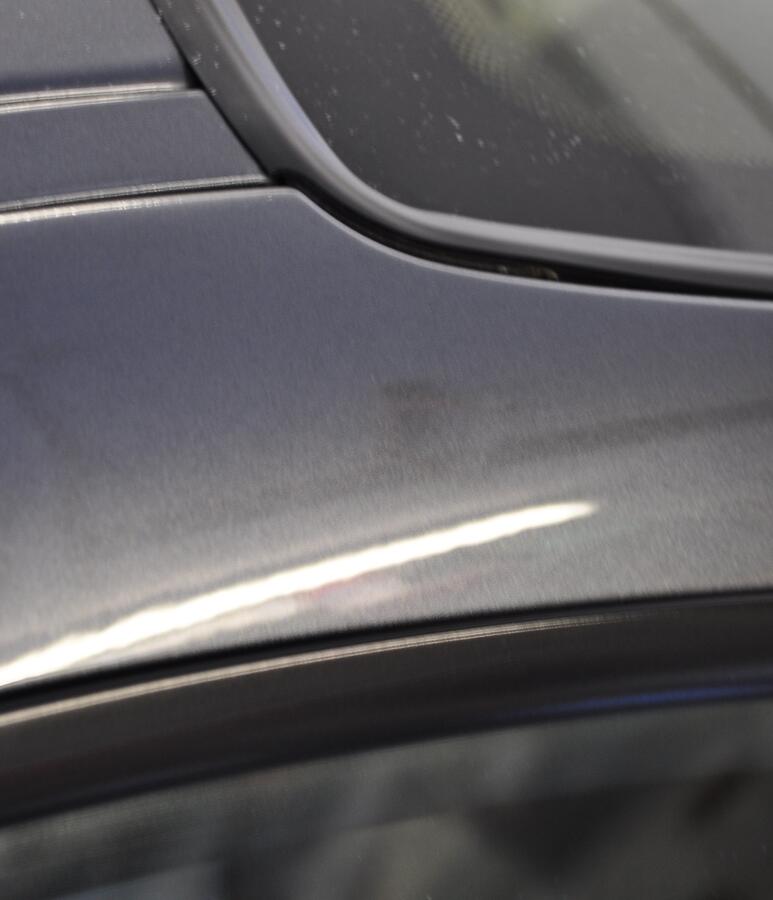

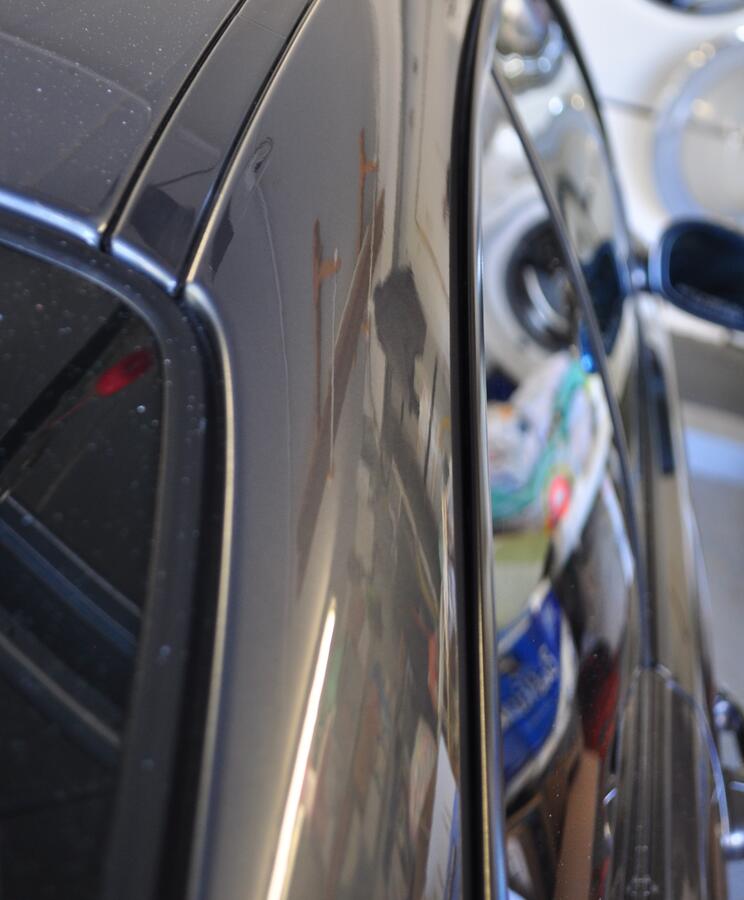

      All that remained was the very top pillar "rail" of the passenger QP (respray)

      Not the worst finish, but pretty rough where it meets the trim, as I assume the shop did not remove trim for the paint job. Example:

      Click image for larger version  Name:	Pillar (0).JPG Views:	0 Size:	75.4 KB ID:	144831

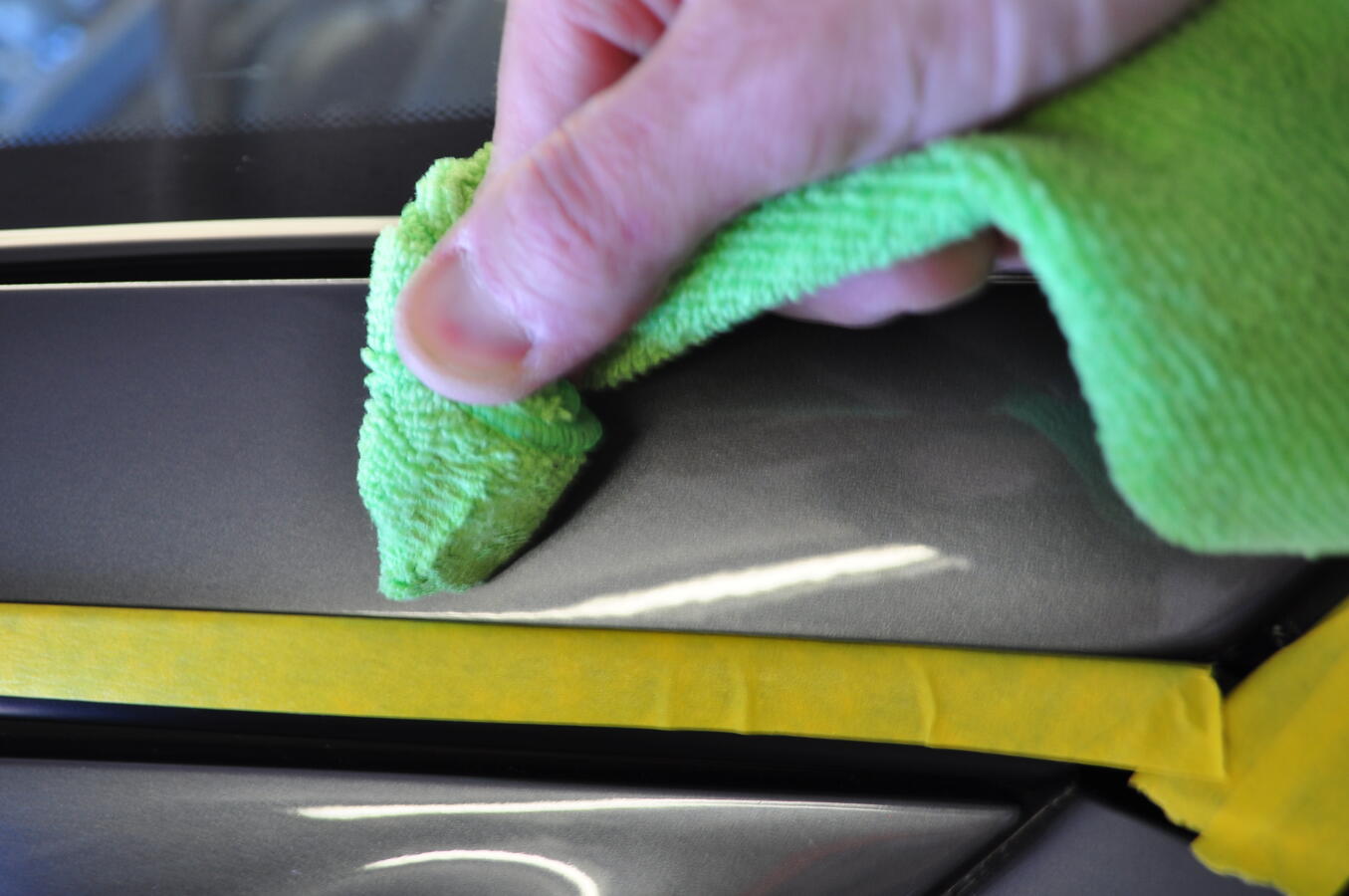

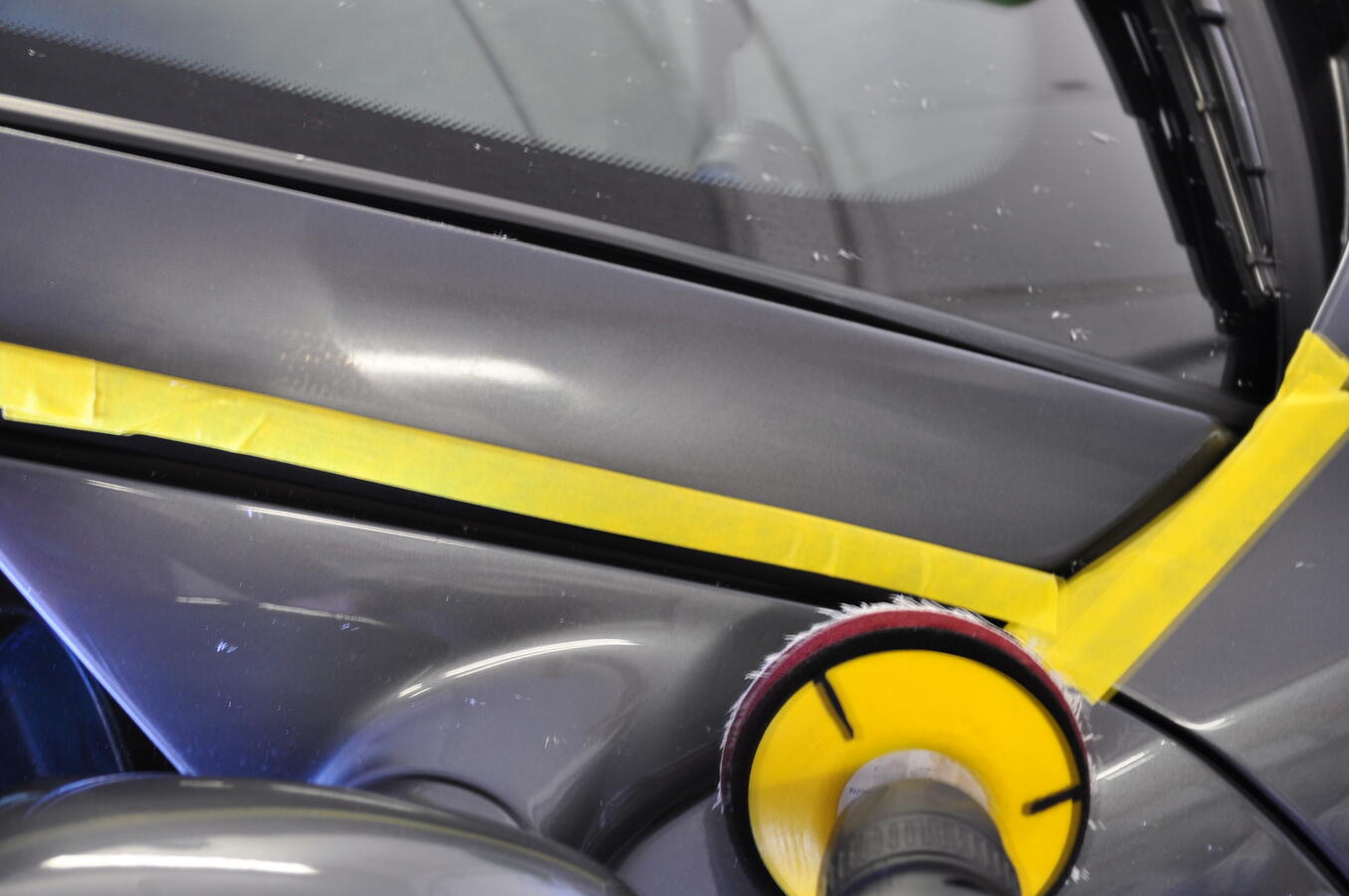

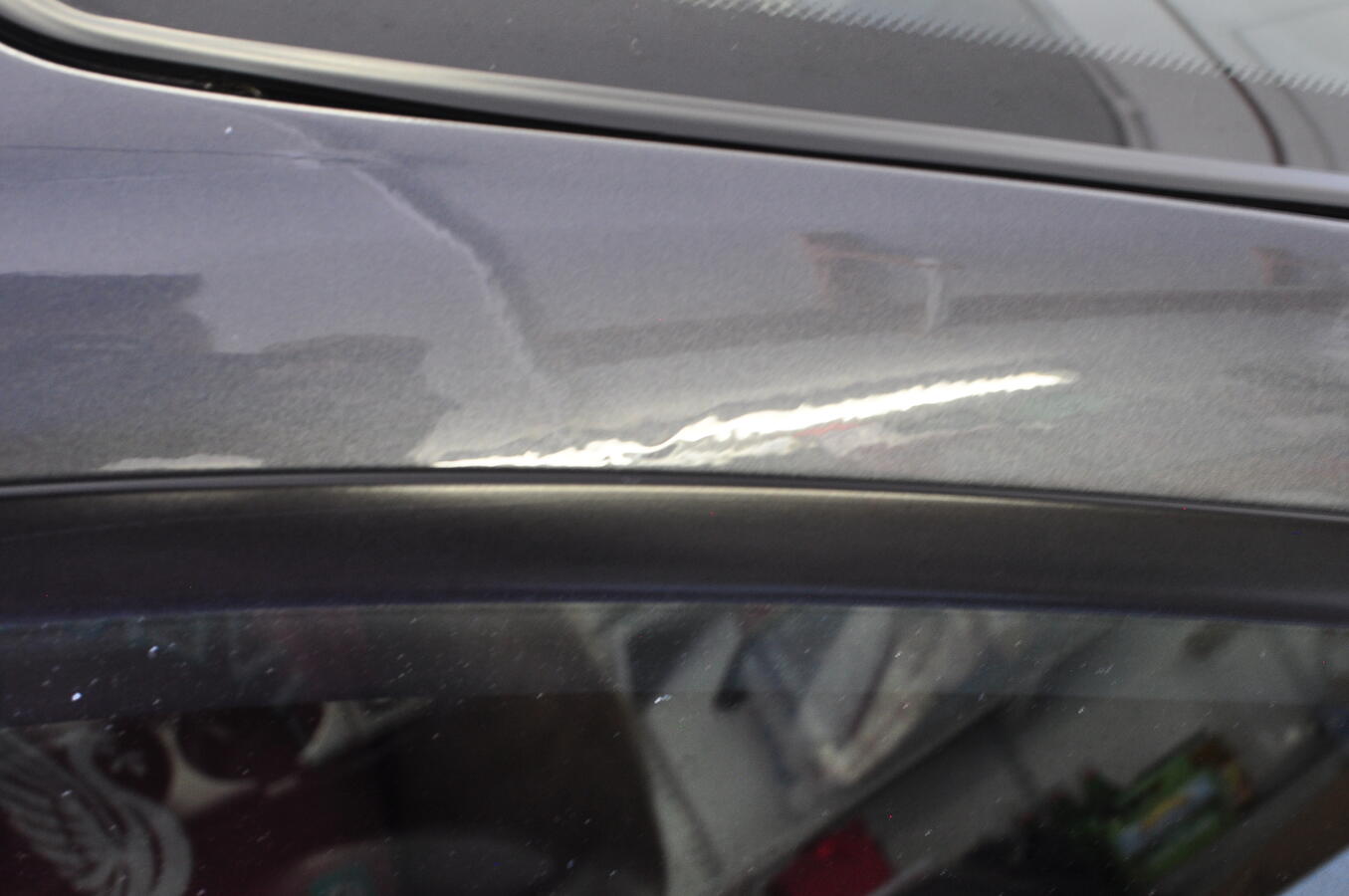

      I took it pretty easy, just using 2500 grit, putting some more pressure where the trim is as that did need the most flattening.

      Click image for larger version  Name:	Pillar (2).JPG Views:	0 Size:	79.7 KB ID:	144830
      Click image for larger version  Name:	Pillar (1).JPG Views:	0 Size:	63.8 KB ID:	144829 Click image for larger version  Name:	Pillar (4).JPG Views:	0 Size:	87.1 KB ID:	144828

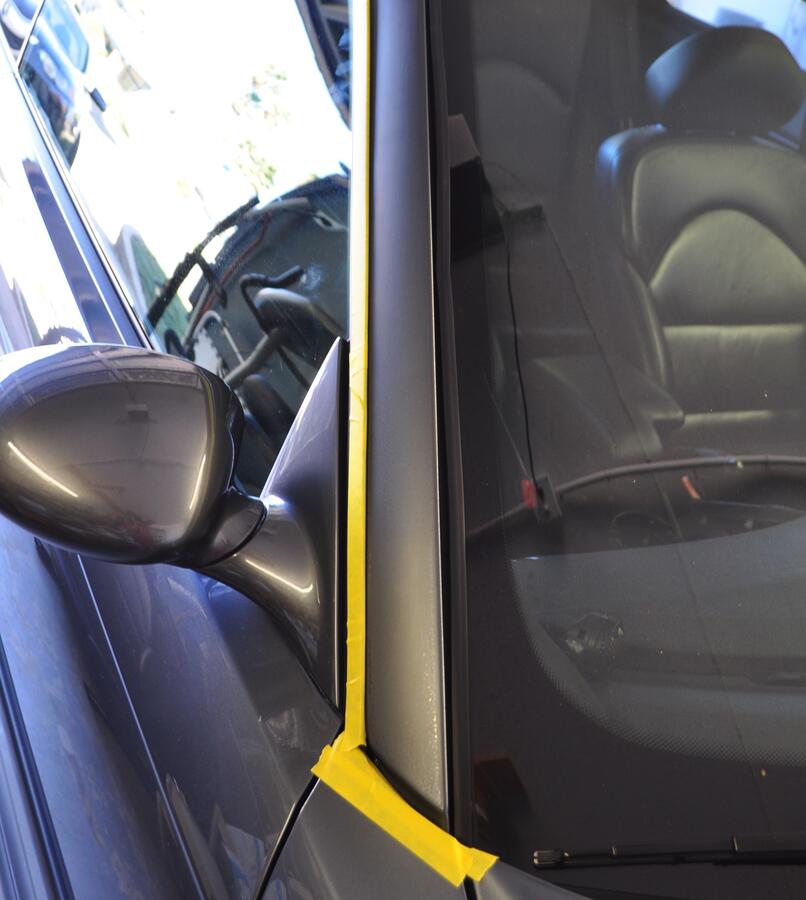

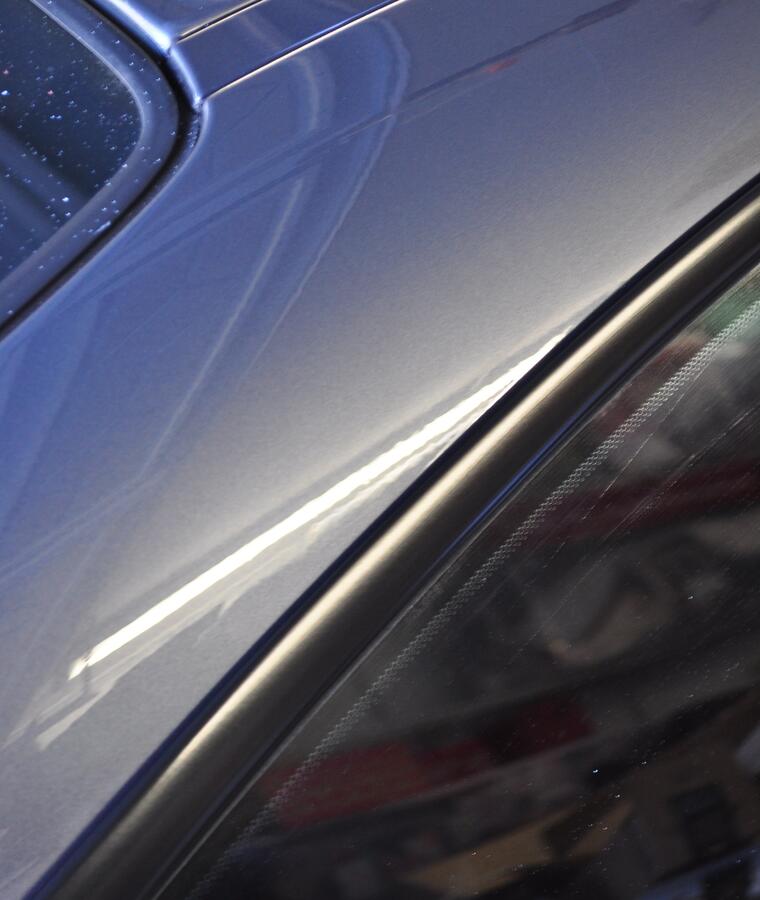

      Alright, all done sanding. I took it easy on the edge near glass as it's a sharp angle. I really wasn't looking to take the OP down too much here, just trying to match it to factory as much as possible since this is the last of the respray.

      Click image for larger version  Name:	Pillar (5).JPG Views:	0 Size:	64.3 KB ID:	144832

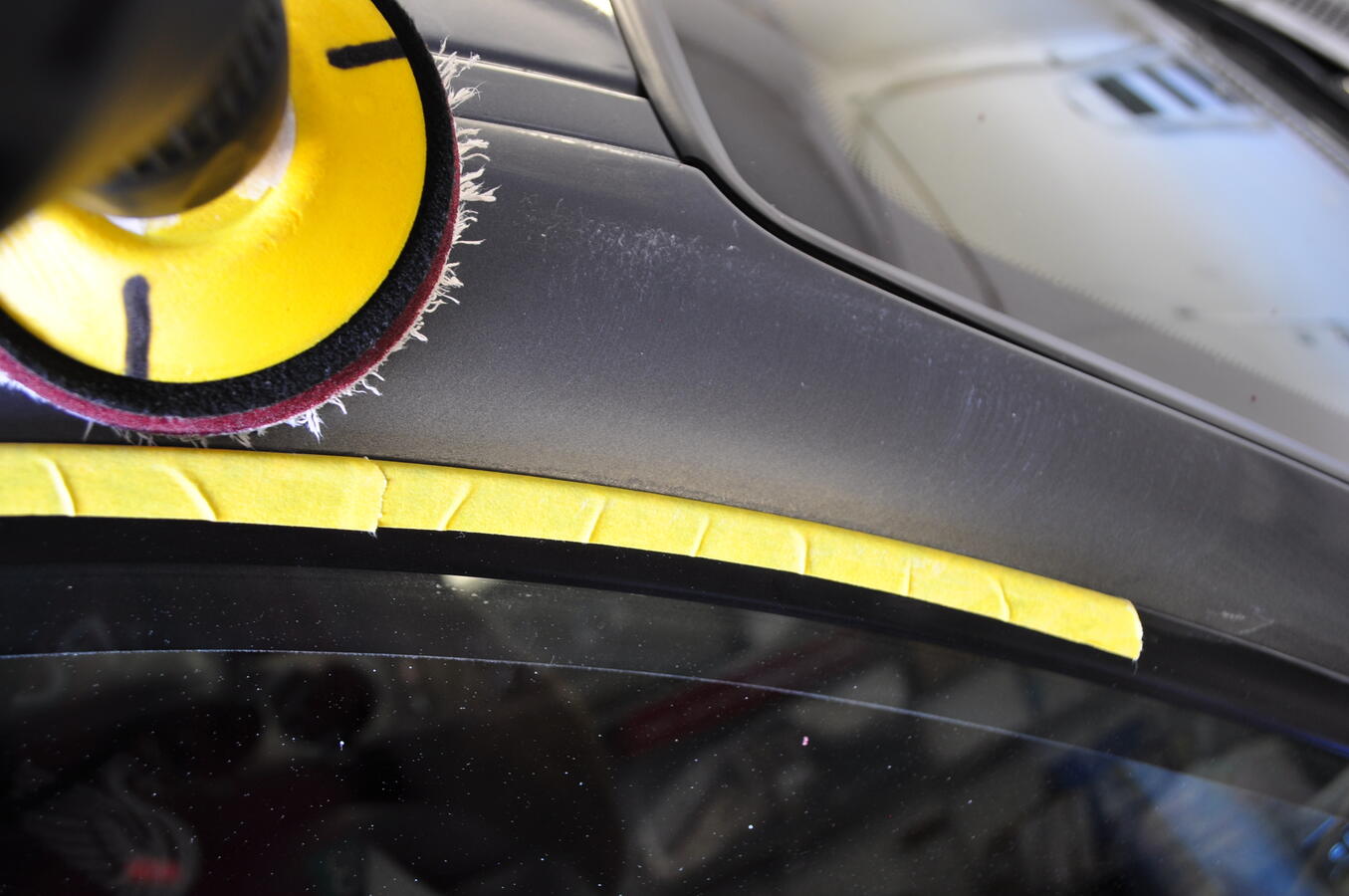

      Time to buff

      Click image for larger version  Name:	Pillar (7).JPG Views:	0 Size:	94.4 KB ID:	144834

      Had to do some by hand, right where the trim is

      Click image for larger version  Name:	Pillar (8).JPG Views:	0 Size:	95.9 KB ID:	144833
      Click image for larger version  Name:	Pillar (10).JPG Views:	0 Size:	104.8 KB ID:	144837

      All done!

      Click image for larger version  Name:	Pillar (12).JPG Views:	0 Size:	58.6 KB ID:	144835
      Click image for larger version  Name:	Pillar (14).JPG Views:	0 Size:	57.7 KB ID:	144836

      Still a little sloppy closer to the trim, but I didn't want to burn through the clear, so this is the best I could do.

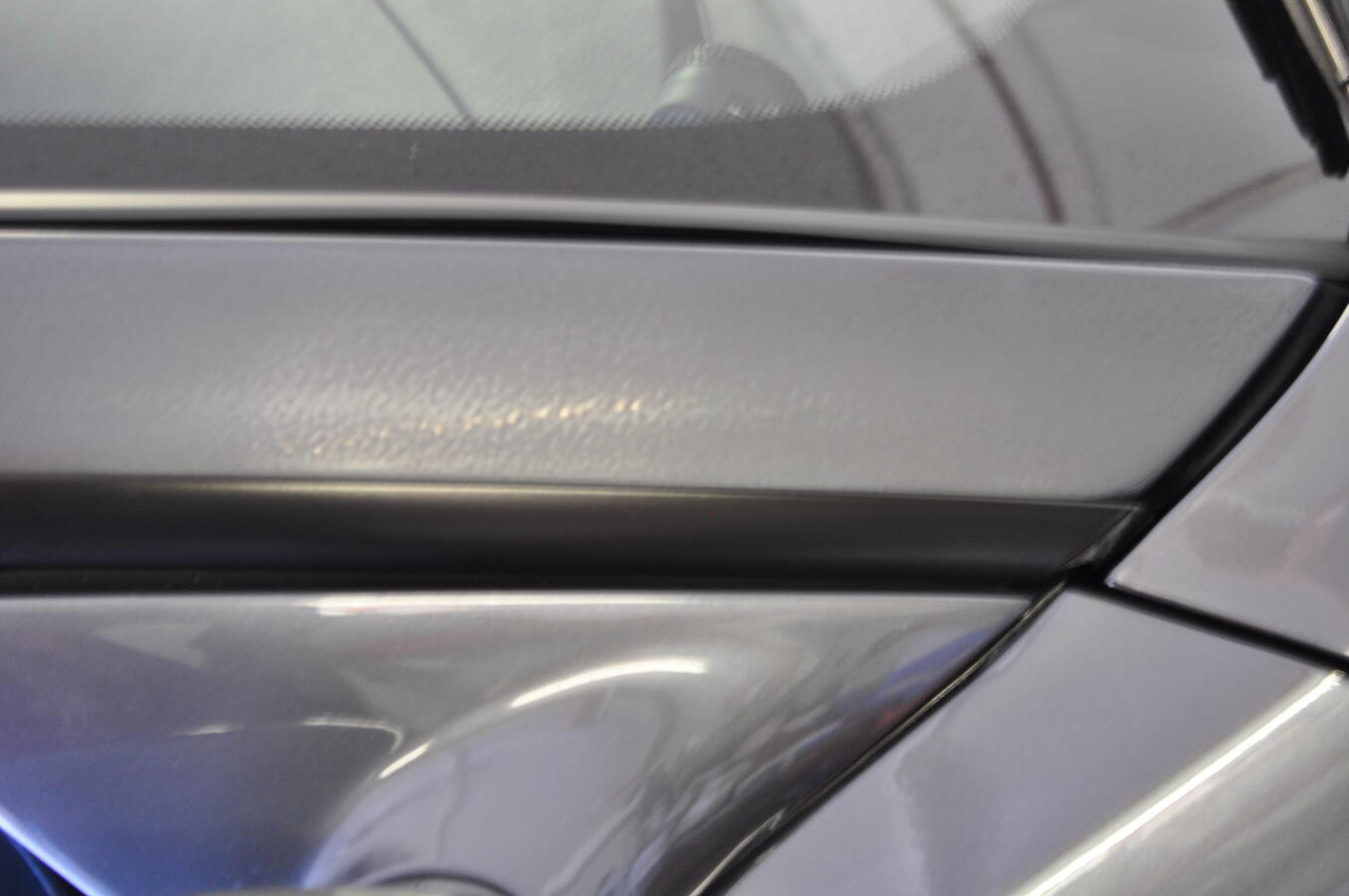

      Almost exact orange peel as factory, comparing to other panels:

      Click image for larger version  Name:	Pillar (16).JPG Views:	0 Size:	82.2 KB ID:	144840

      This area was pretty rough, but now basically factory looking

      Click image for larger version  Name:	Pillar (17).JPG Views:	0 Size:	41.1 KB ID:	144838

      Happy to be done, though it is kind of fun

      Click image for larger version  Name:	Pillar (19).JPG Views:	0 Size:	57.0 KB ID:	144839

      Very proud of the restoration I've done to the exterior of this car. Pictured below is a recent pic, so no more body work. Hard, almost impossible, to tell it's not original (only hood/fender are factory):

      Click image for larger version  Name:	lunchshot204.JPG Views:	0 Size:	175.8 KB ID:	144843
      Last edited by Tbonem3; 12-20-2021, 03:48 PM.
      DD: /// 2011.5 Jerez/bamboo E90 M3 · DCT · Slicktop · Instagram
      /// 2004 Silvergrey M3 · Coupe · 6spd · Slicktop · zero options
      More info: https://nam3forum.com/forums/forum/m...os-supersprint

      Comment

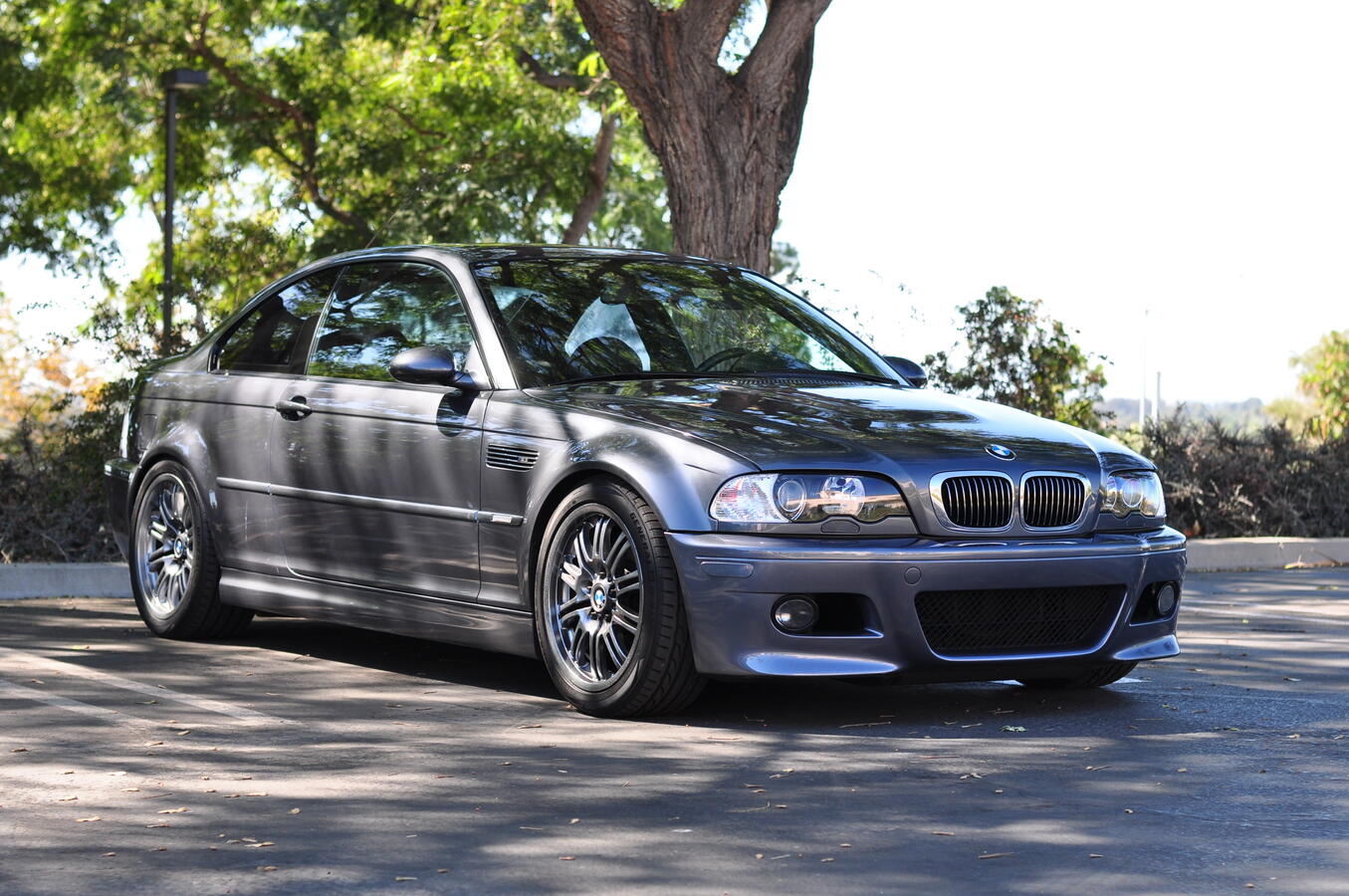

        Figure now's a fine time to share some recent pics. I didn't feel the car was quite there yet until recently. It's still just a stock looking car with rashed 18s.

        Click image for larger version

Name:	lunchshot206.JPG
Views:	433
Size:	72.1 KB
ID:	144890 Click image for larger version

Name:	lunchshot110.JPG
Views:	424
Size:	214.6 KB
ID:	144892
        Click image for larger version

Name:	lunchshot224.JPG
Views:	426
Size:	167.2 KB
ID:	144888
        Click image for larger version

Name:	20211106_223708.jpg
Views:	432
Size:	134.3 KB
ID:	144887 Click image for larger version

Name:	lunchshot112.JPG
Views:	421
Size:	204.0 KB
ID:	144891 Click image for larger version

Name:	20211103_085843.jpg
Views:	425
Size:	93.6 KB
ID:	144889
        DD: /// 2011.5 Jerez/bamboo E90 M3 · DCT · Slicktop · Instagram
        /// 2004 Silvergrey M3 · Coupe · 6spd · Slicktop · zero options
        More info: https://nam3forum.com/forums/forum/m...os-supersprint

        Comment


          You should be proud of the work done to bring this car to the state it is now. Looks fantastic, Tbone. Exceptional work.
          Build thread: Topaz Blue to Shark Blue

          Comment


            Thank you very much
            DD: /// 2011.5 Jerez/bamboo E90 M3 · DCT · Slicktop · Instagram
            /// 2004 Silvergrey M3 · Coupe · 6spd · Slicktop · zero options
            More info: https://nam3forum.com/forums/forum/m...os-supersprint

            Comment


              A couple of little things...

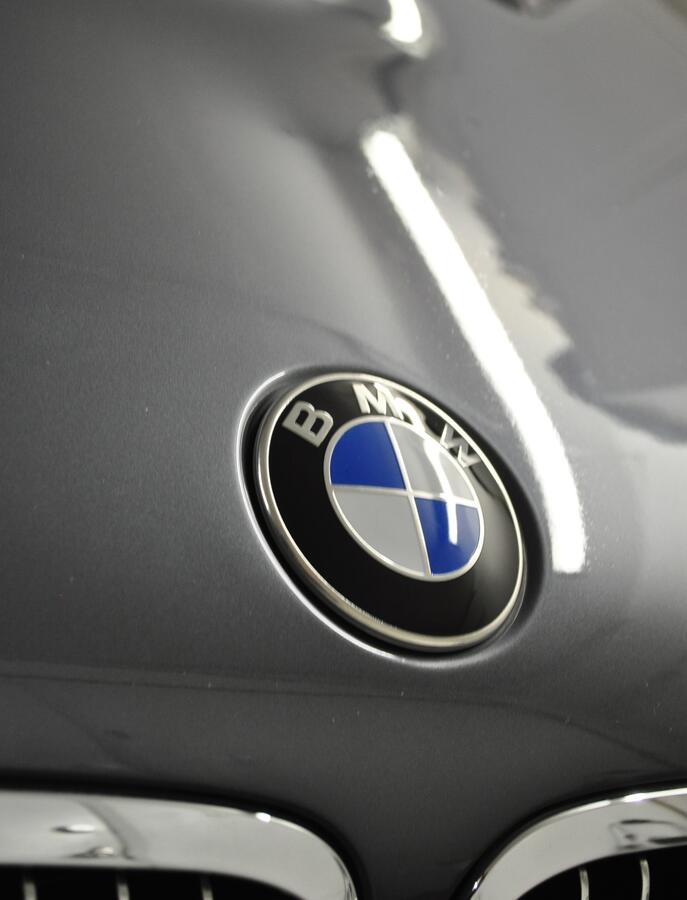

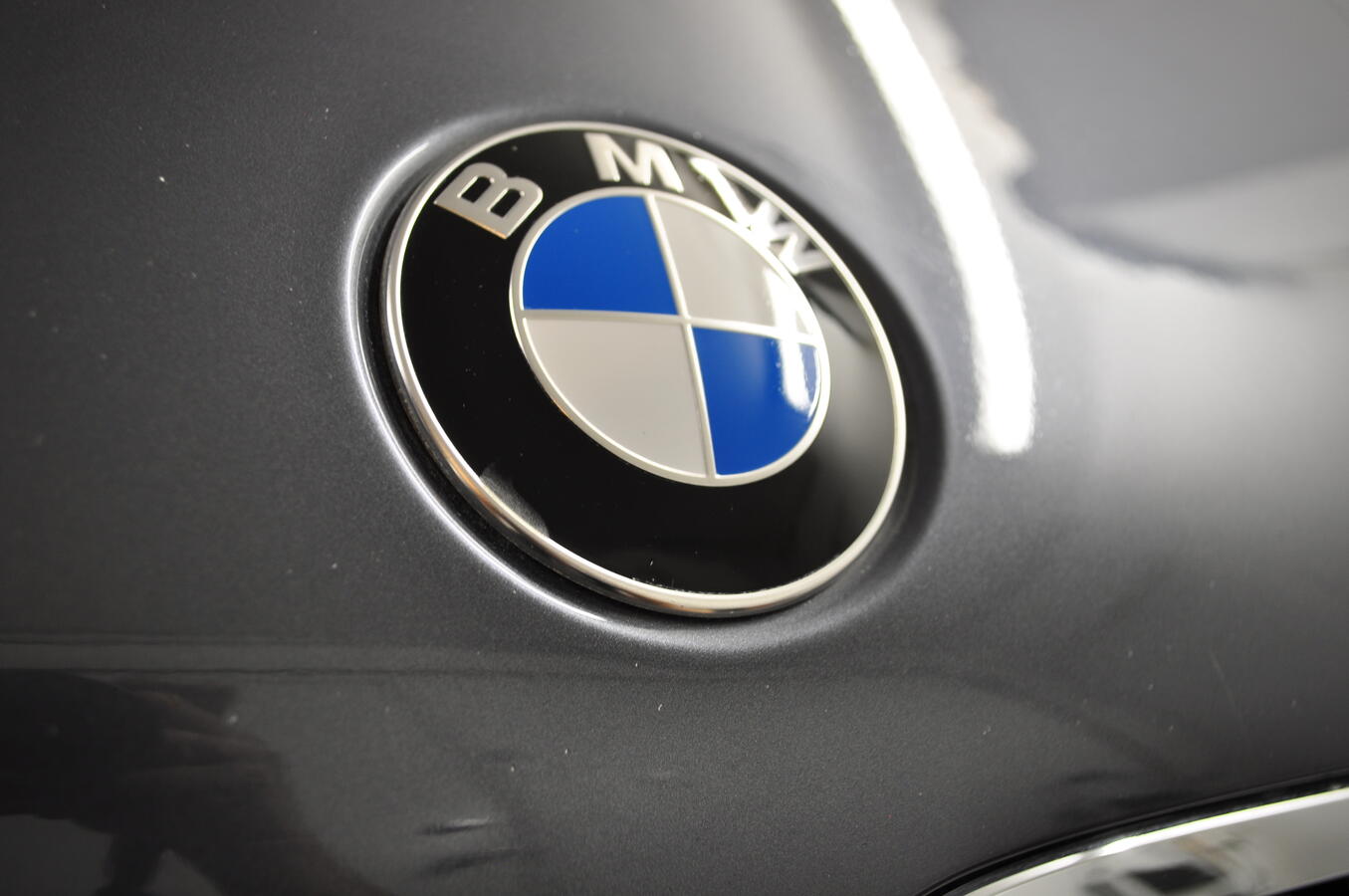

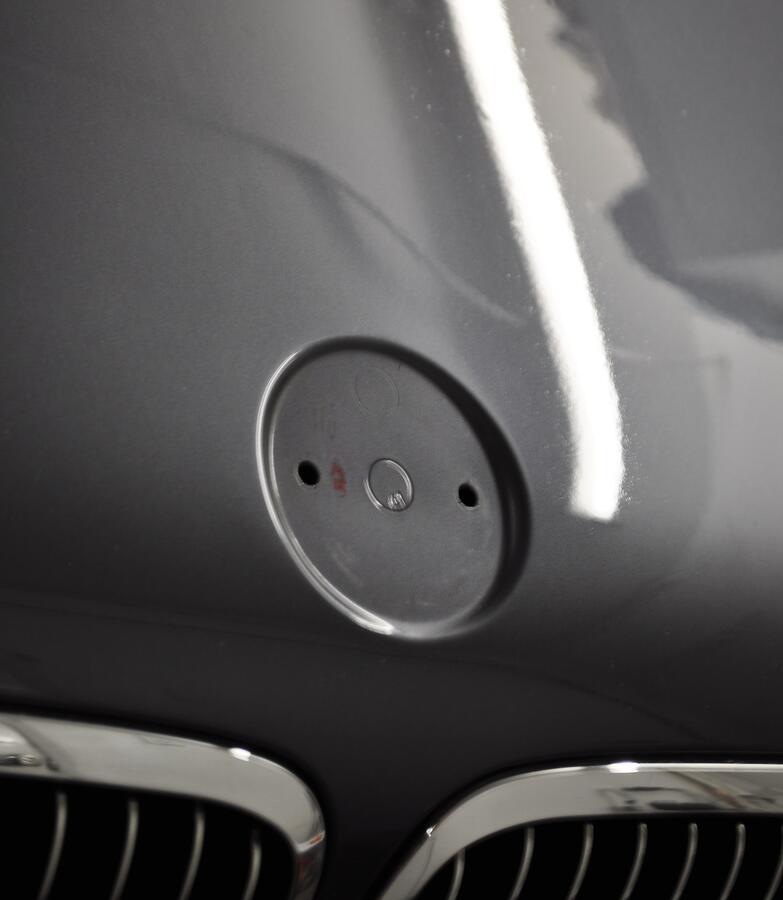

              The front roundel is in surprising great shape, except for a spot at 7:30 that's badly worn. Can't cheap out now that the car is basically finished exterior-wise, so I ordered a new one.

              Click image for larger version  Name:	hoodroundel04.JPG Views:	0 Size:	82.1 KB ID:	145179

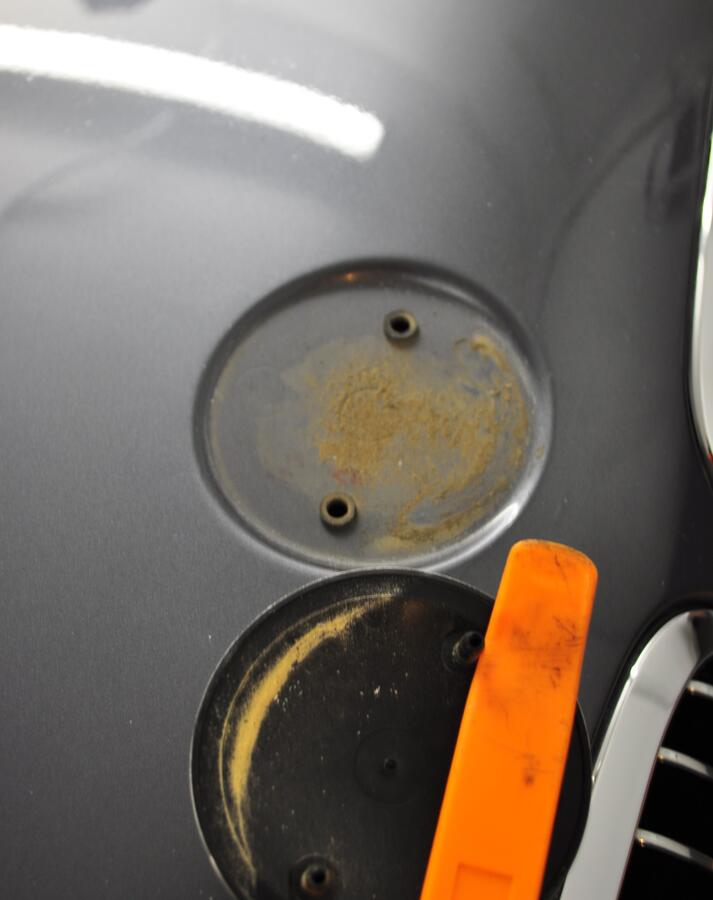

              Popped it off, and what do you know, more dirt.

              Click image for larger version  Name:	hoodroundel05.JPG Views:	0 Size:	40.3 KB ID:	145178

              Cleaned

              Click image for larger version  Name:	hoodroundel06.JPG Views:	0 Size:	35.4 KB ID:	145177

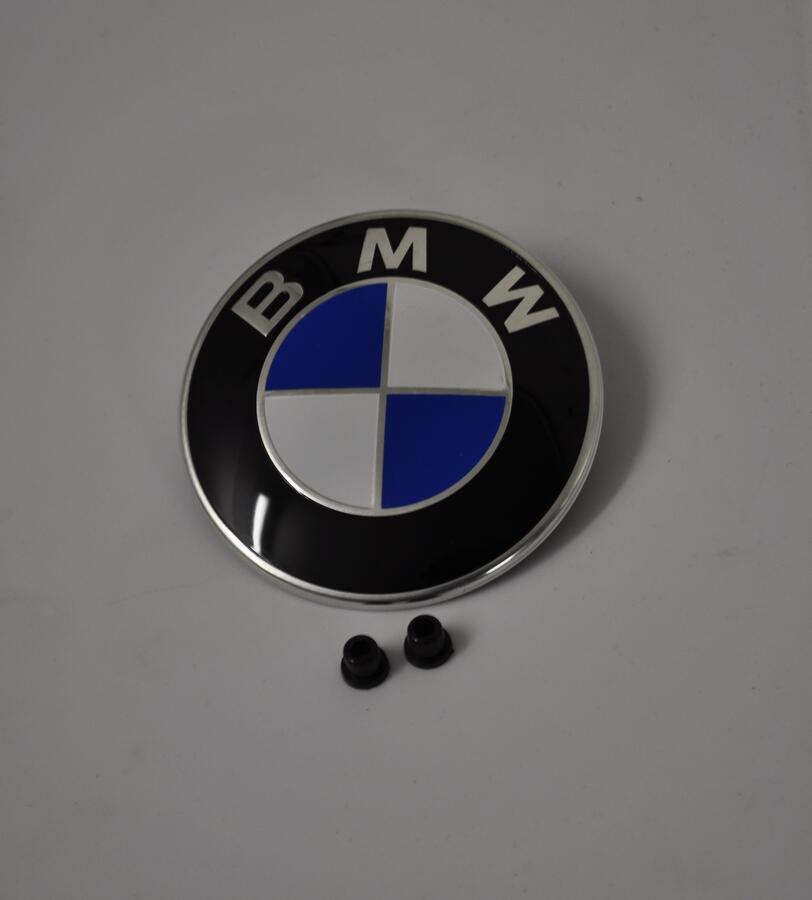

              New emblem and grommets

              Click image for larger version  Name:	hoodroundel07.JPG Views:	0 Size:	22.8 KB ID:	145176

              Fresh

              Click image for larger version  Name:	hoodroundel12.JPG Views:	0 Size:	40.1 KB ID:	145181
              Click image for larger version  Name:	hoodroundel13.JPG Views:	0 Size:	43.2 KB ID:	145180


              One of the xenon plug boots is missing, which seems to be a common issue. I think it's usually this left one, I think it's looser. Anyway, I happened to find a replacement while browsing realOEM, but I had to figure out how to replace it!

              Click image for larger version  Name:	xenonboot1.JPG Views:	0 Size:	91.9 KB ID:	145182

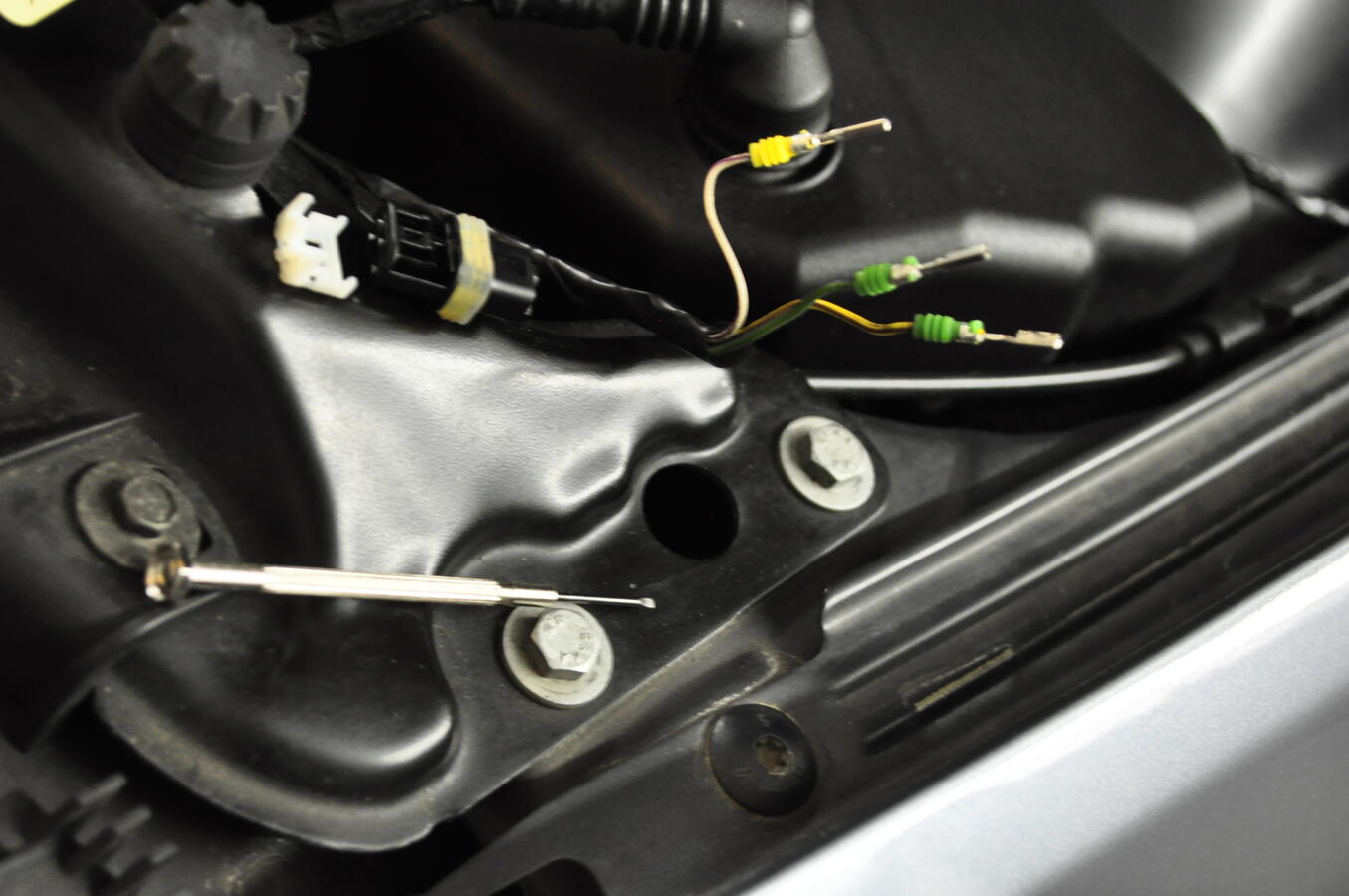

              I remembered another forum member saying that all our plugs can be disassembled (pin out?) so I fiddled with the plug and a small flat driver. Didn't take long, and I had it all apart:

              Click image for larger version  Name:	xenonboot3.JPG Views:	0 Size:	58.8 KB ID:	145183
              Click image for larger version  Name:	xenonboot4.JPG Views:	0 Size:	96.2 KB ID:	145184 Click image for larger version  Name:	xenonboot5.JPG Views:	0 Size:	117.1 KB ID:	145186

              et voila

              Click image for larger version  Name:	xenonboot6.JPG Views:	0 Size:	102.3 KB ID:	145185
              DD: /// 2011.5 Jerez/bamboo E90 M3 · DCT · Slicktop · Instagram
              /// 2004 Silvergrey M3 · Coupe · 6spd · Slicktop · zero options
              More info: https://nam3forum.com/forums/forum/m...os-supersprint

              Comment


                I always thought it was weird only one of those plugs for the xenon ballast had a boot. Thanks for posting the part number too.
                Build thread: Topaz Blue to Shark Blue

                Comment


                  Car looks fantastic. Thanks for posting so many before / after photos, too!

                  Comment


                    You're welcome guys, Merry Christmas!

                    Originally posted by Will View Post
                    Car looks fantastic.
                    Thanks!
                    DD: /// 2011.5 Jerez/bamboo E90 M3 · DCT · Slicktop · Instagram
                    /// 2004 Silvergrey M3 · Coupe · 6spd · Slicktop · zero options
                    More info: https://nam3forum.com/forums/forum/m...os-supersprint

                    Comment


                      I am 99% sure pre LCi cars only came with one boot. My car, and literally every other car I’ve seen only had one. I did the same as you and added the other.
                      Just some old shitty cars.

                      Comment


                        Weird
                        DD: /// 2011.5 Jerez/bamboo E90 M3 · DCT · Slicktop · Instagram
                        /// 2004 Silvergrey M3 · Coupe · 6spd · Slicktop · zero options
                        More info: https://nam3forum.com/forums/forum/m...os-supersprint

                        Comment


                          Speechless on the resto work. Your hard work can definitely be seen. Has your wife's uncle seen the car recently?

                          Comment


                            Thank you! Ya he just keeps quiet lol
                            DD: /// 2011.5 Jerez/bamboo E90 M3 · DCT · Slicktop · Instagram
                            /// 2004 Silvergrey M3 · Coupe · 6spd · Slicktop · zero options
                            More info: https://nam3forum.com/forums/forum/m...os-supersprint

                            Comment

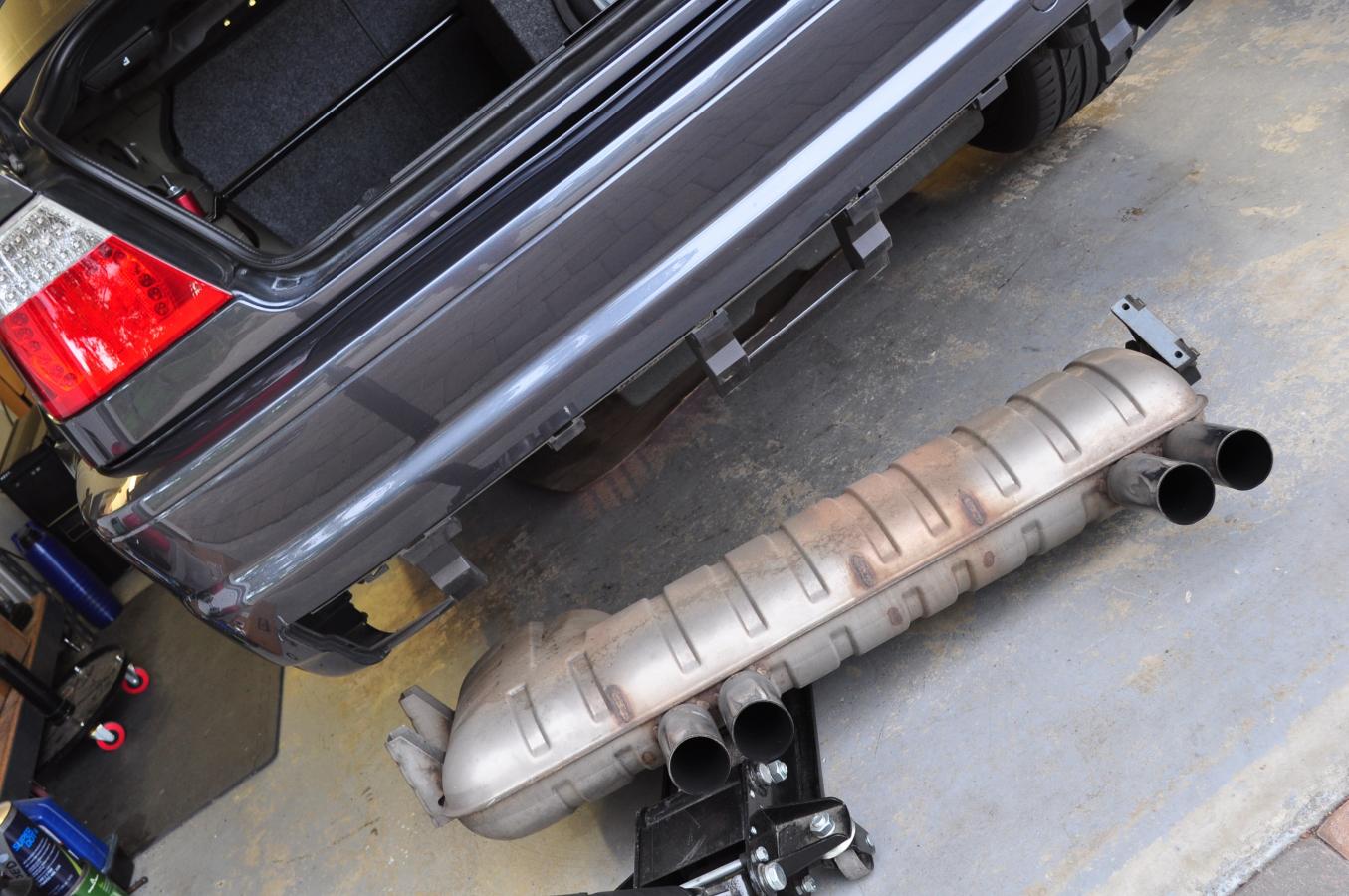

                              Time to address the sagging/dented bumper and throw on my scorza muffler!

                              Boat anchor down - also take note of the dent or warping of the bumper up top

                              Click image for larger version  Name:	rearbumper01.jpg Views:	0 Size:	159.9 KB ID:	151239

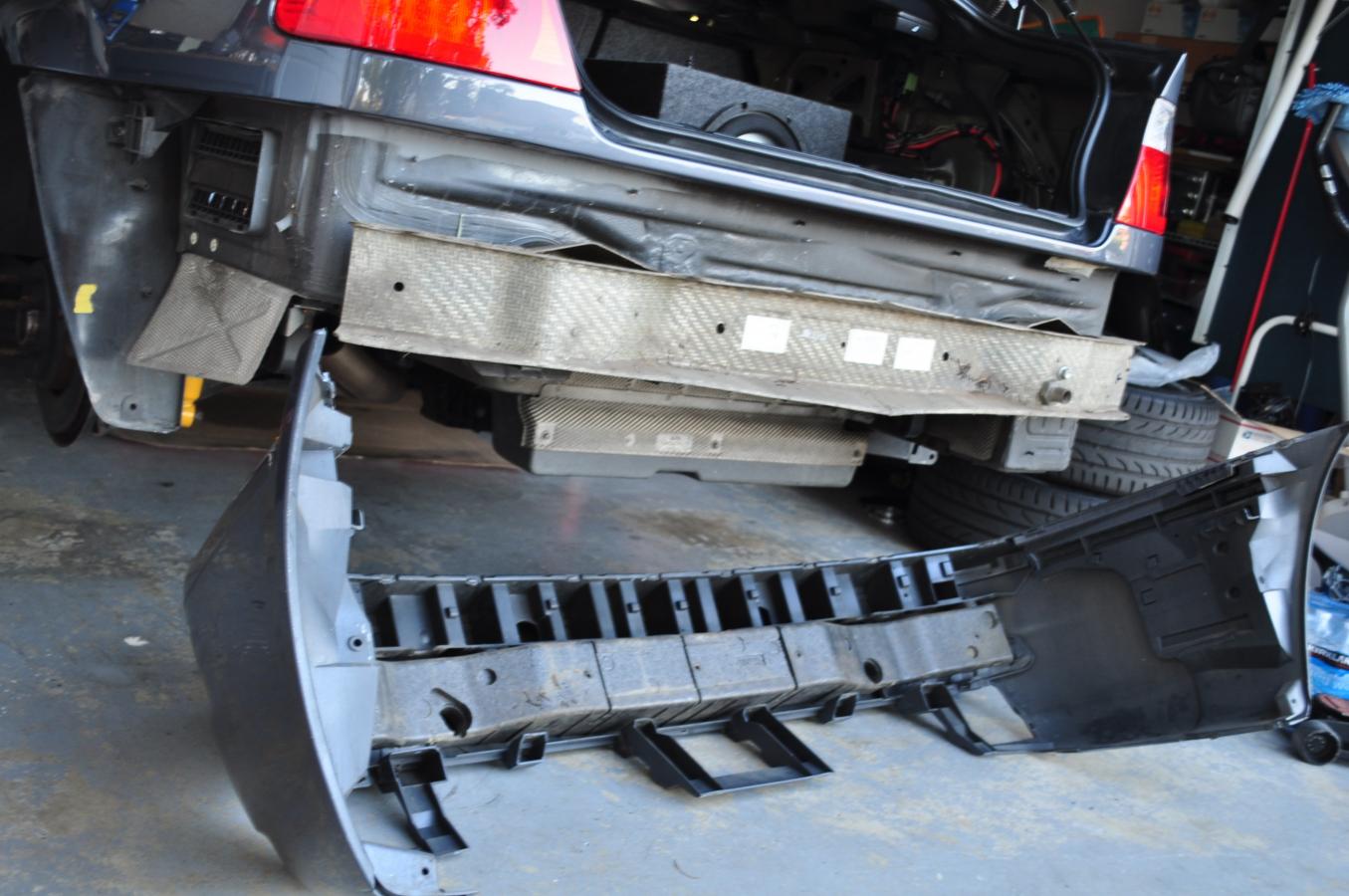

                              I've never removed a rear cover before, never had to. Surprisingly easy. A few screws/rivets at the back fender liner and a couple of "screws" in the trunk under the tail lights.

                              Click image for larger version  Name:	rearbumper03.jpg Views:	0 Size:	71.6 KB ID:	151237

                              And it slides off.

                              Click image for larger version  Name:	rearbumper05.jpg Views:	0 Size:	137.0 KB ID:	151238

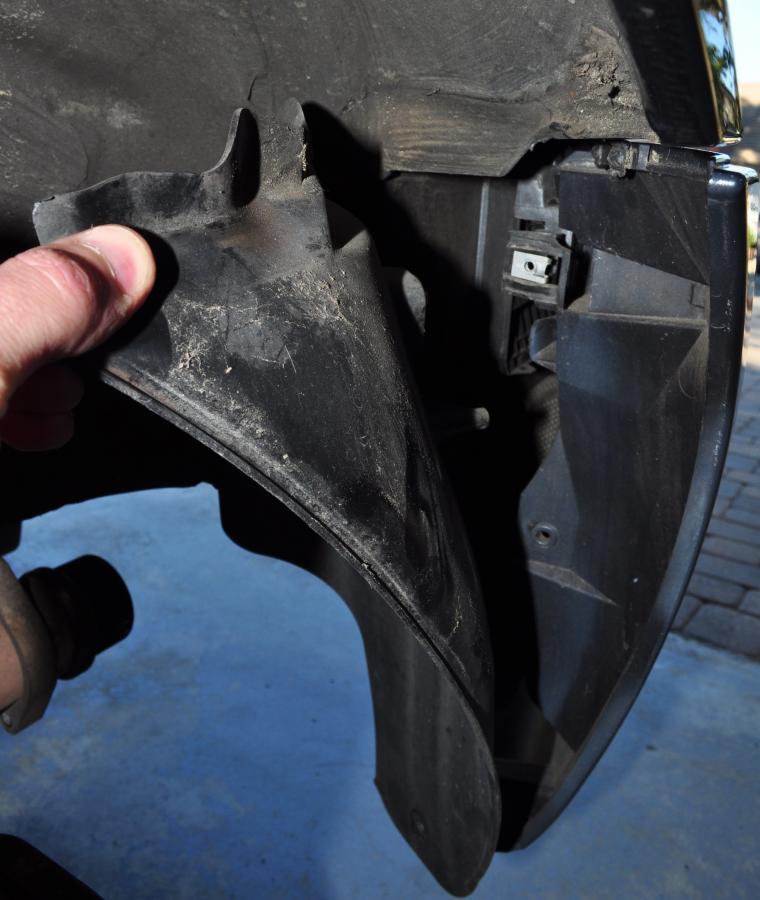

                              It looks like the plastic just collapsed here. I'm not sure why, but I will try to shim it (the kevlar carrier slides right under so I can shim in between kevlar and the plastic.

                              Click image for larger version  Name:	rearbumper06.jpg Views:	0 Size:	72.2 KB ID:	151240

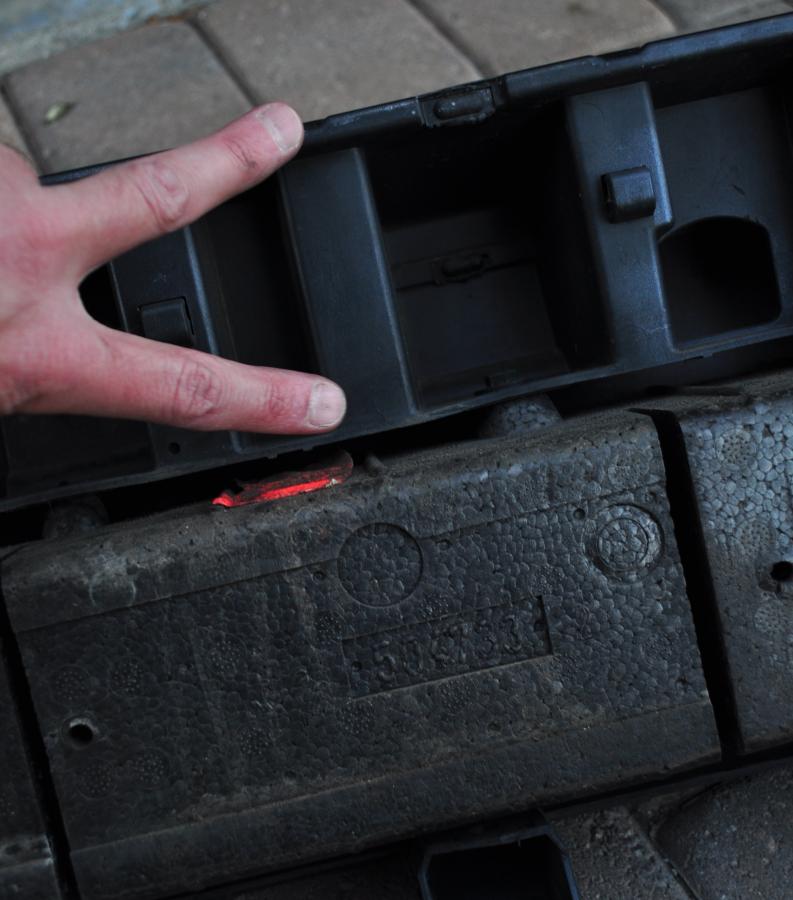

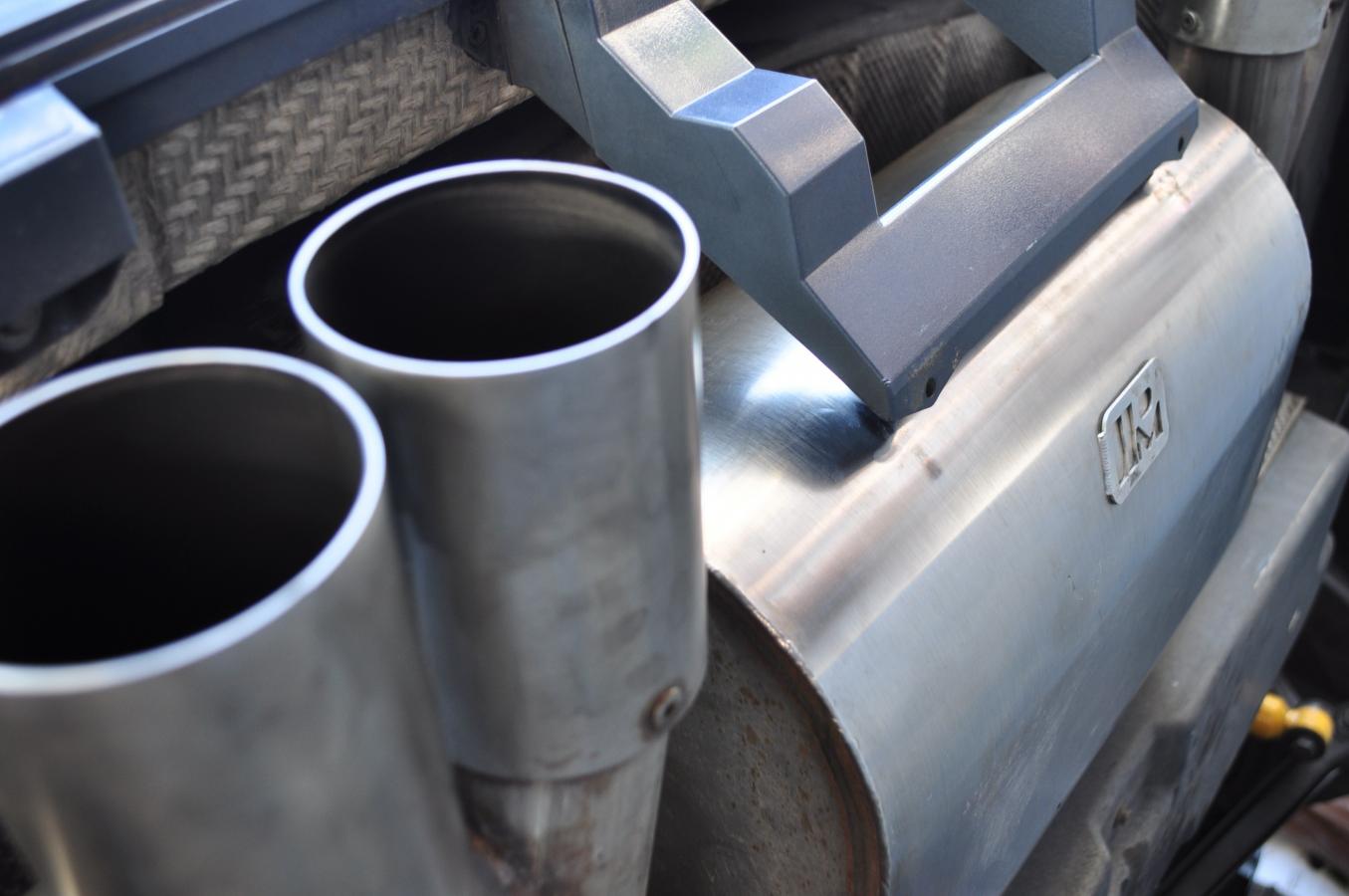

                              Bumper back on, Slipped some dense rubber sheet in between kevlar and bumper cover - it evened out well! & Scorza on!

                              Click image for larger version  Name:	rearbumperscorza01.jpg Views:	0 Size:	154.3 KB ID:	151242

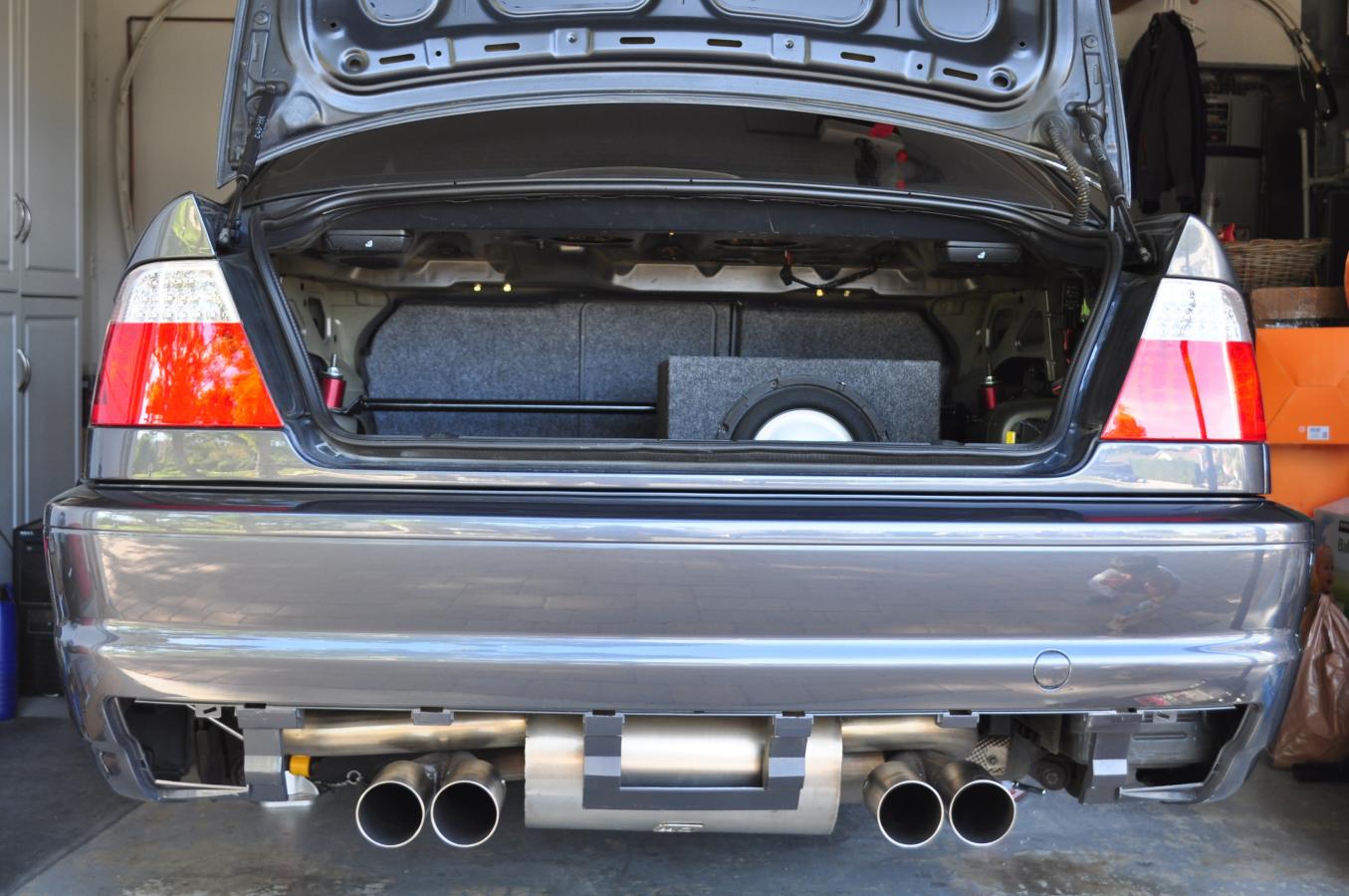

                              Love this muffler. Rarely see any posts about them or being for sale at all anymore. I had the SGT version on for a bit (on my other car), but it didn't quite sound as good. Not quite as loud or throaty. Less of that wail this thing makes. I'm really looking forward to how it sounds on this car with Fabspeeds' 55mm outlets. I always thought it sounded better with my 55mm euro headers or my friend's 55mm SSv2s than it did on my 63.5mm v1s.

                              Click image for larger version  Name:	rearbumperscorza05.jpg Views:	0 Size:	91.4 KB ID:	151241

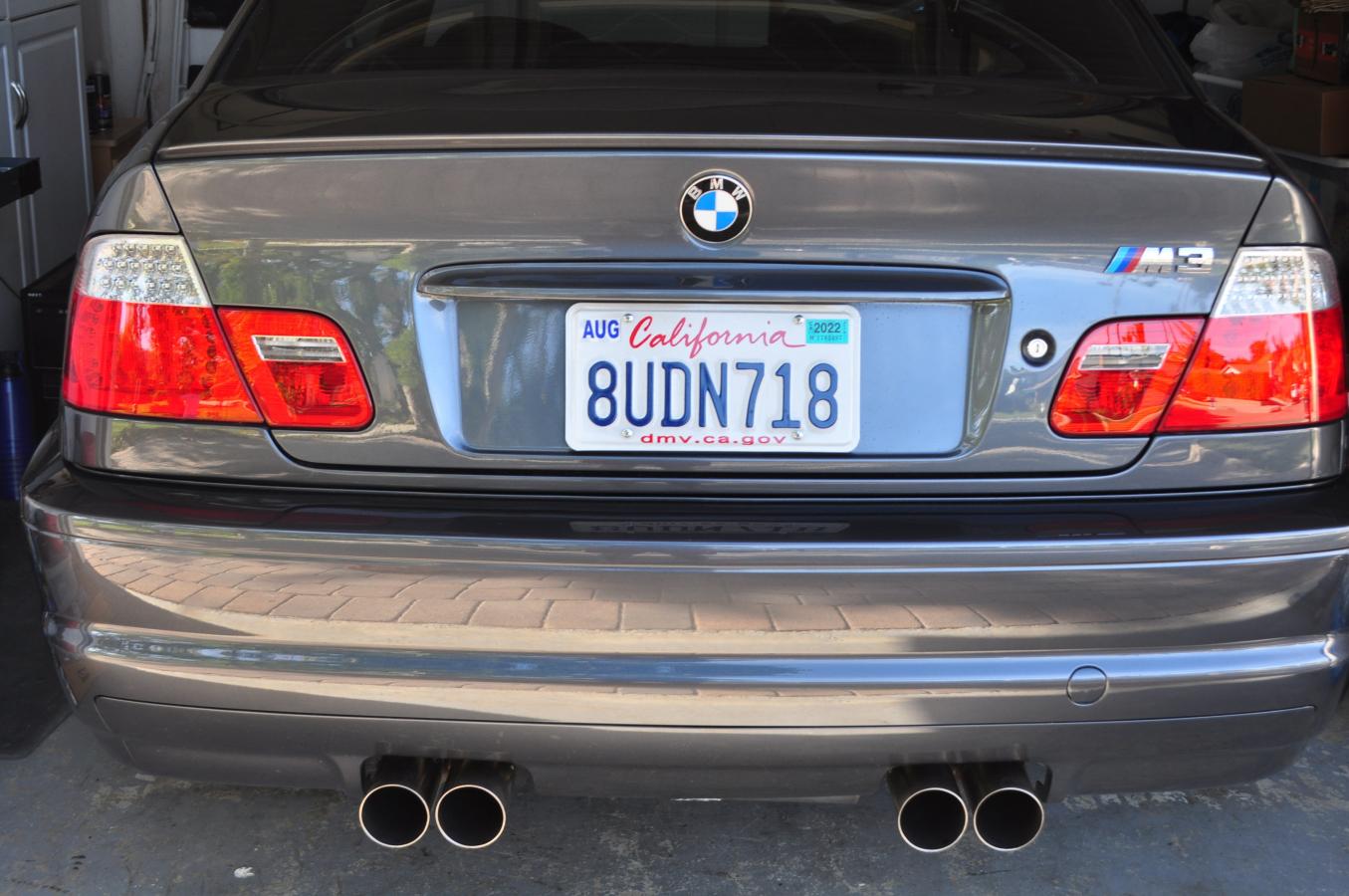

                              Diffuser back on, everything done now.

                              Click image for larger version  Name:	rearbumperscorza11.jpg Views:	0 Size:	143.6 KB ID:	151243 Click image for larger version  Name:	stahlrear1.jpg Views:	0 Size:	191.1 KB ID:	151245

                              A little video I took while my friend was driving it. so fuckin' güt:

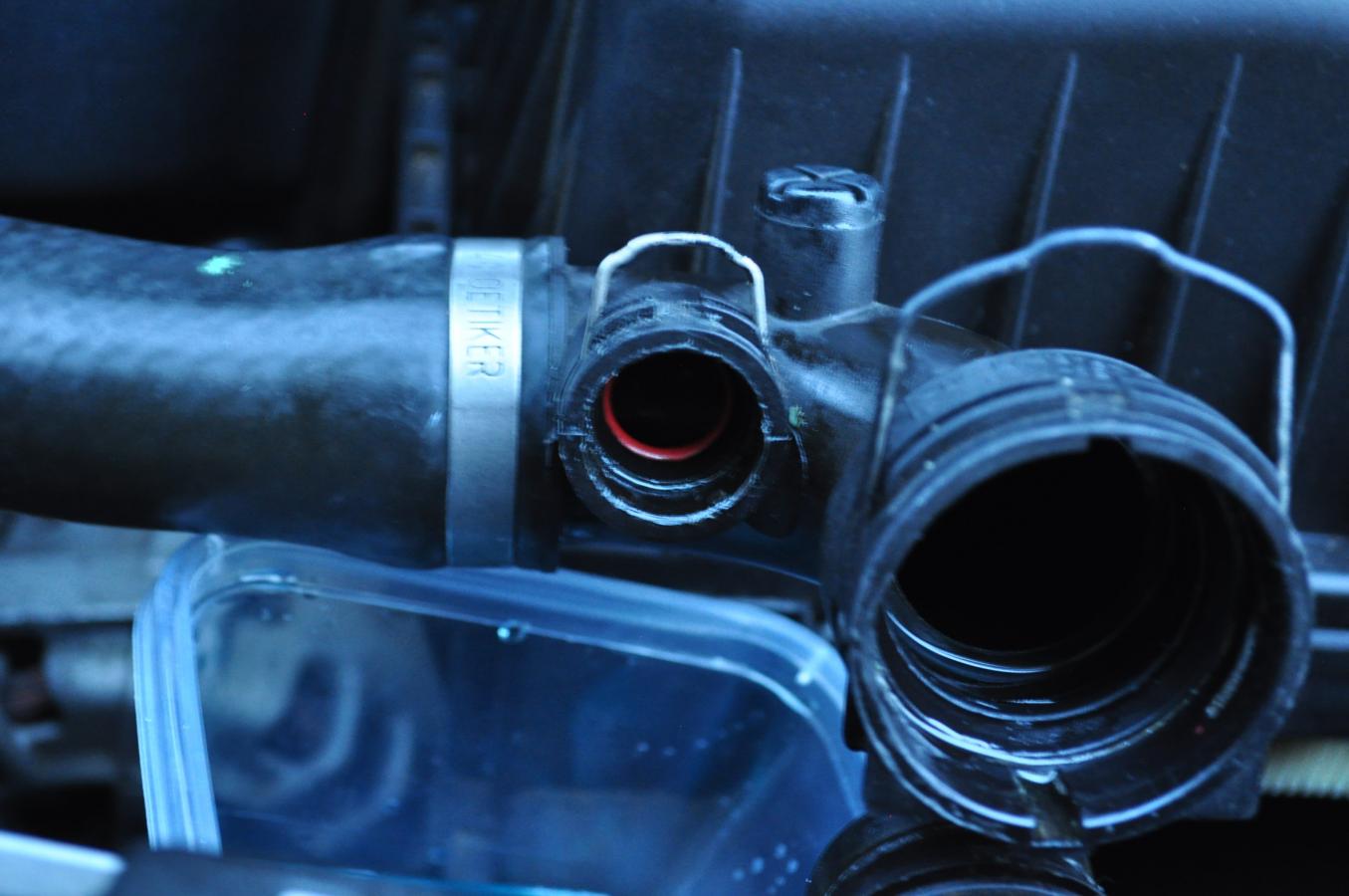

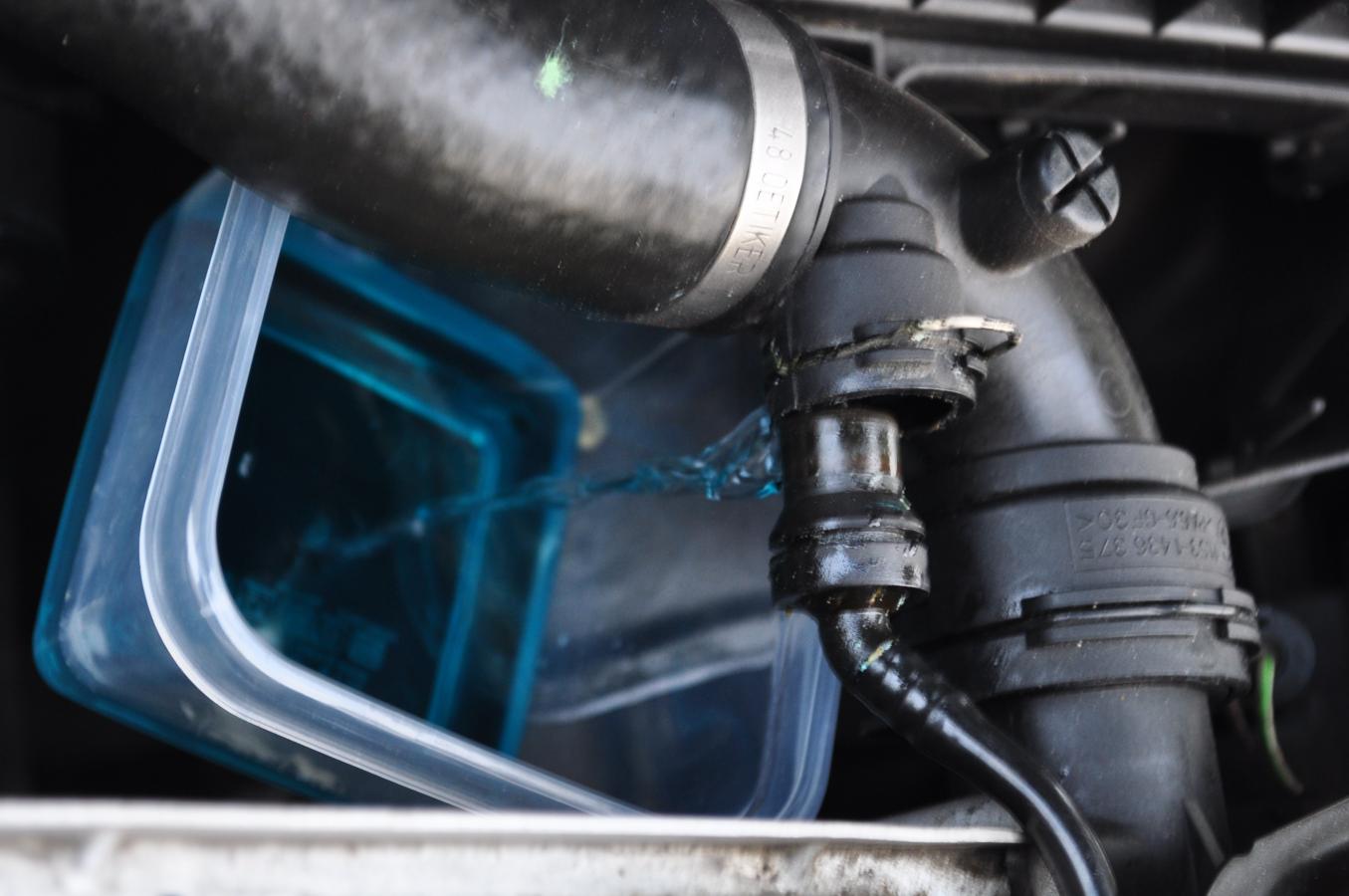

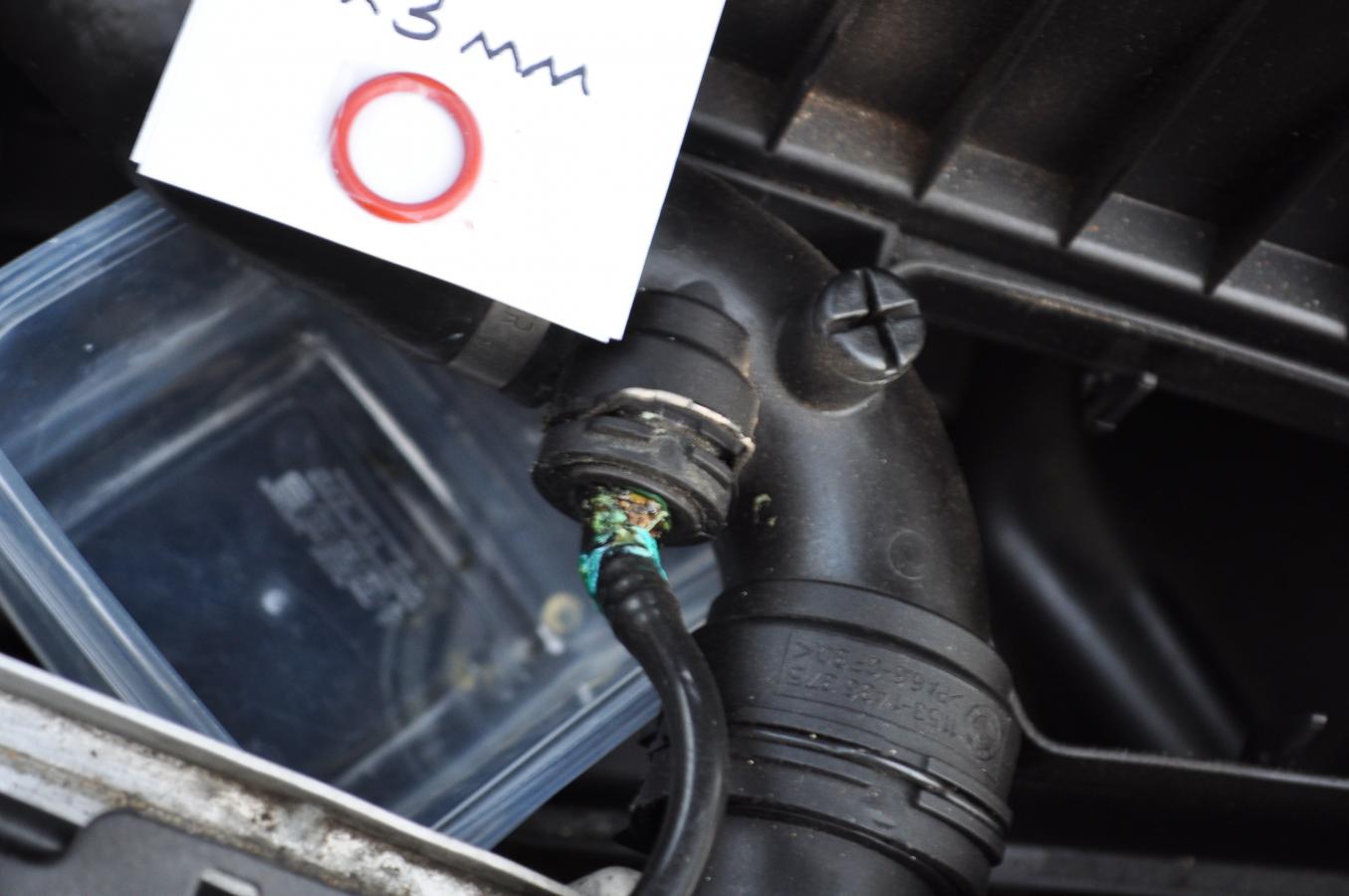

                              Little thing: I noticed coolant was coming out the little expansion line. The o-ring was a new OEM Rein part, but we know those aren't the best. I didn't expect it to leak this bad so quickly. WOLFN8TR to the rescue with a new one

                              Click image for larger version  Name:	steelexporing1.jpg Views:	0 Size:	89.1 KB ID:	151244

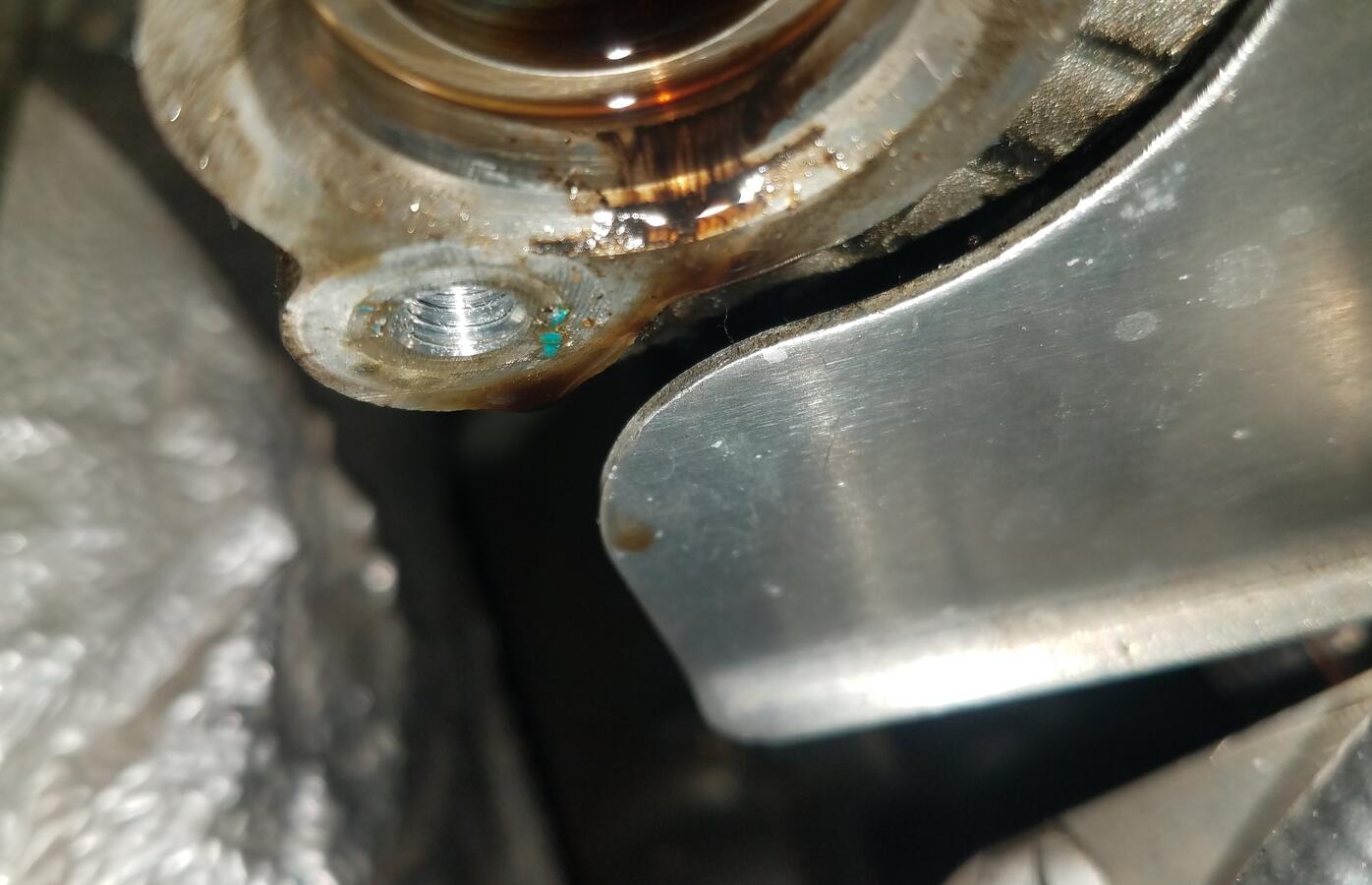

                              Luckily, the neck of the line wasn't damaged - it was all the coolant crusted up. Drained some coolant.

                              Click image for larger version  Name:	steelexporing2.jpg Views:	0 Size:	97.8 KB ID:	151247

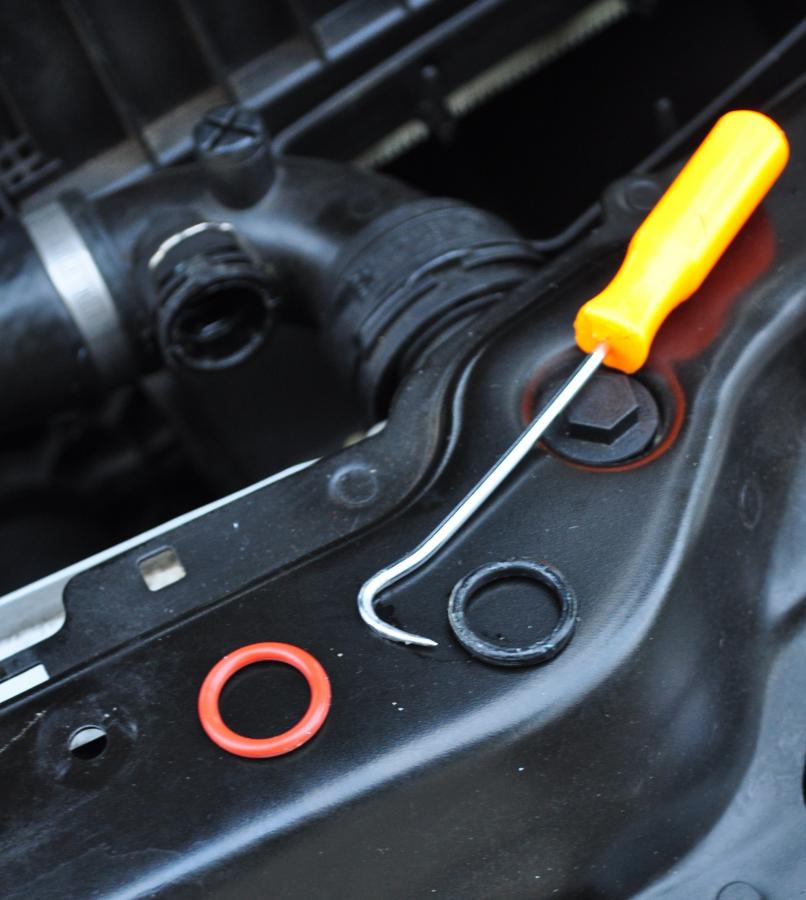

                              Getting the o-ring out is easy enough with a pick, but putting the new one is was a bear actually. I had to remove entire hose end to catch the new o-ring if I inserted it too far.

                              Click image for larger version

Name:	image_31734.jpg
Views:	334
Size:	69.1 KB
ID:	151246
                              Click image for larger version  Name:	steelexporing5.jpg Views:	0 Size:	95.5 KB ID:	151248
                              DD: /// 2011.5 Jerez/bamboo E90 M3 · DCT · Slicktop · Instagram
                              /// 2004 Silvergrey M3 · Coupe · 6spd · Slicktop · zero options
                              More info: https://nam3forum.com/forums/forum/m...os-supersprint

                              Comment


                                Sounds really good that Scorza
