MSS6x Flasher - Now released!

[Martyn]

Could you send it to me too please? Many thanks!

[Lambda1]

Would be curious to see that Wiesmann backup. And if you happen to have any motorsport dumps, would love to get my hands on those.

Hi, no problem.
Ive sent you processor l+r via KTag BDM via message.

Regards and keep the job going on.
For MSS60 the tools works awesome so far.

[terra]

Would be curious to see that Wiesmann backup. And if you happen to have any motorsport dumps, would love to get my hands on those.

[Lambda1]

So will this work with a MSV70?

I dont think so.

Does anyone has any OE Dumps from an MSS65 Manual or SMG Cars?

Here attached. I also got Wiesmann MF5 backup and other mss60, mss65 backups.

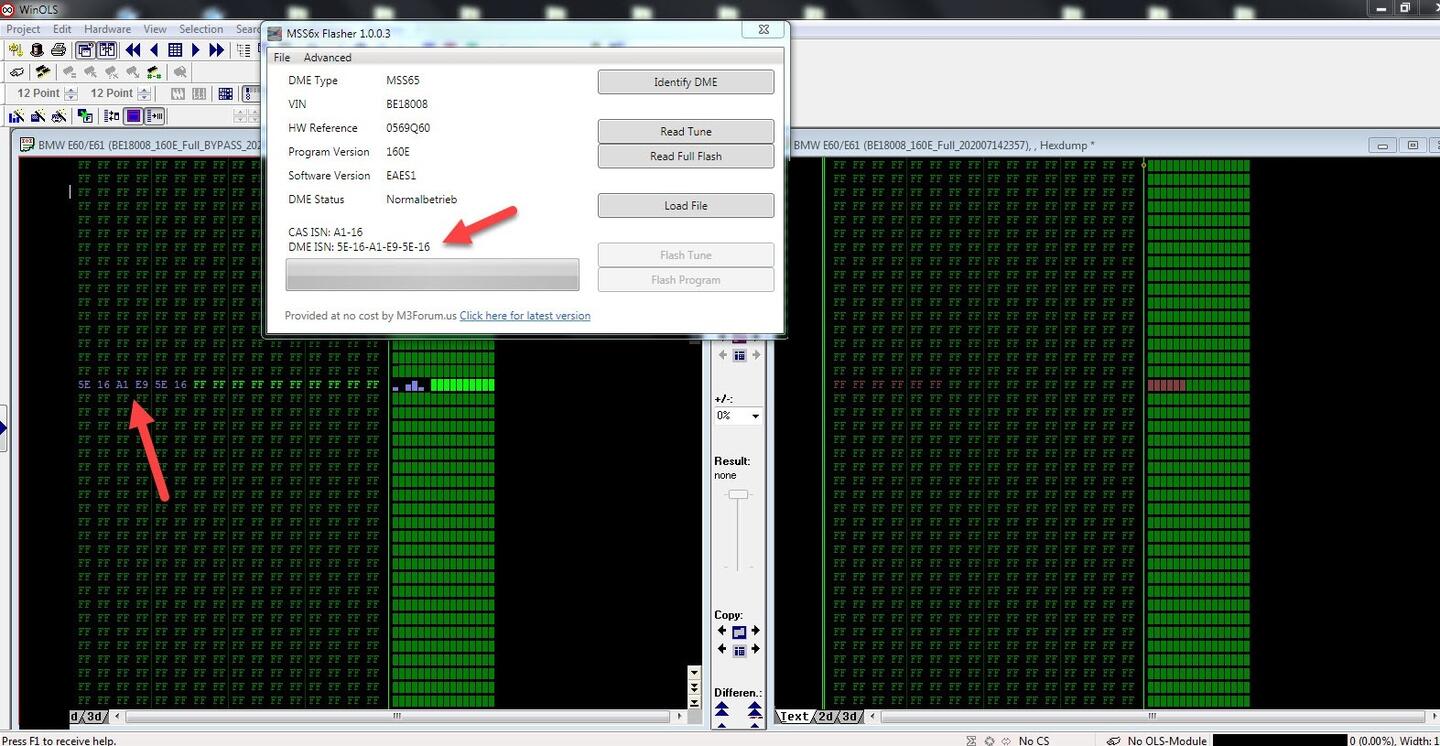

For me tool works fine with MSS60 atm at bench, for MSS65 it doesn't show VIN => cant safe file :/. Need to check if its DME problem.

[ZiMMie]

Does anyone has any OE Dumps from an MSS65 Manual or SMG Cars?

[jmcgikk]

So will this work with a MSV70?

[FritzP]

HI,

CAN SOMEONE POST BENCH FLASHING PINOUT FOR MSS60 ?

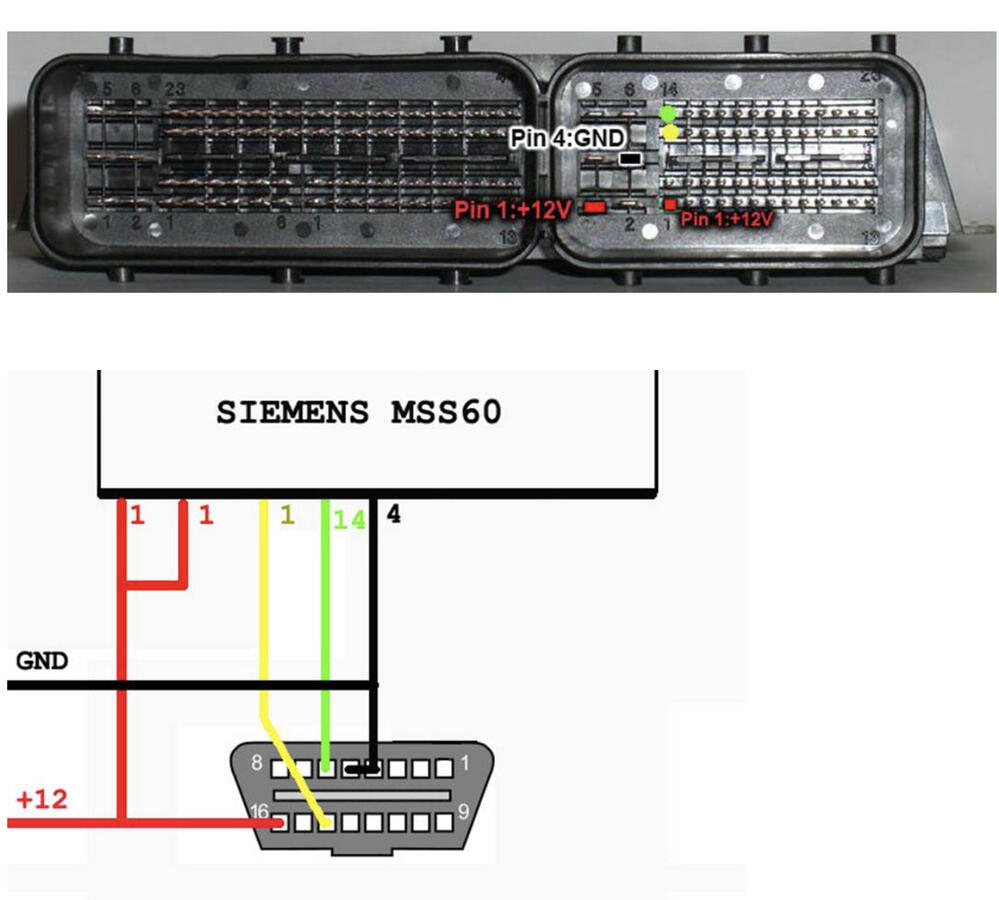

I have used this pinout for bench-connection with good success: see attached picture.
You will need to set your cable to D-CAN.

[nymike]

HI,

CAN SOMEONE POST BENCH FLASHING PINOUT FOR MSS60 ?

[demos]

Great job guys. Still waiting for the D-kan cable to arrive. I have a bricked MSS60 that I'd like to unlock its large connector side mpc56x even if it means deleting entire content of cpu. Is there an option to do that?

[SYT_Shadow]

From Wikipedia:
"Background debug mode (BDM) interface is an electronic interface that allows debugging of embedded systems. Specifically, it provides in-circuit debugging functionality in microcontrollers. It requires a single wire and specialized electronics in the system being debugged. It appears in many Freescale Semiconductor products."

FWIW Freescale is the developer of the MPC563 processors used in the MSS60/65 DMEs. So those processors (and many, many, many others) implement BDM as a method for debugging.

BDM access requires removing the DME from the vehicle and opening the case. Access is usually through a set of pads on the circuit board. There are inexpensive clones of tools like KTAG which can be used to BDM read/write the MPC563. You will also need a device to allow stable contact with pads or you'll have to solder a header to them for that purpose.

It doesn't sound like this is something I can do on my own

[dpaul]

What is BDM?

From Wikipedia:
"Background debug mode (BDM) interface is an electronic interface that allows debugging of embedded systems. Specifically, it provides in-circuit debugging functionality in microcontrollers. It requires a single wire and specialized electronics in the system being debugged. It appears in many Freescale Semiconductor products."

FWIW Freescale is the developer of the MPC563 processors used in the MSS60/65 DMEs. So those processors (and many, many, many others) implement BDM as a method for debugging.

BDM access requires removing the DME from the vehicle and opening the case. Access is usually through a set of pads on the circuit board. There are inexpensive clones of tools like KTAG which can be used to BDM read/write the MPC563. You will also need a device to allow stable contact with pads or you'll have to solder a header to them for that purpose.

[SYT_Shadow]

You'll have to read it via BDM after unlocking the DME.

Process would generally be:

1) Restore DME to stock and read that backup
2) Unlock the left CPU (this will delete the contents of that CPU in its entirety).
3) Restore your backup to that left CPU via BDM
4) Flash your tune back using your tuner's cable or whatever
5) Read the tune via BDM

From there, one could probably figure out what needs to be changed to allow OBD reads with the tuned program.

What is BDM?

[scoopy128]

Hi whats the difference between the kdcan cable for s54 to s65

[terra]

In theory we would indeed be able to reflash our tune afterwards, as we already had it to begin with.

I'm just not sure how to read it when the program says it cannot read

You'll have to read it via BDM after unlocking the DME.

Process would generally be:

1) Restore DME to stock and read that backup
2) Unlock the left CPU (this will delete the contents of that CPU in its entirety).
3) Restore your backup to that left CPU via BDM
4) Flash your tune back using your tuner's cable or whatever
5) Read the tune via BDM

From there, one could probably figure out what needs to be changed to allow OBD reads with the tuned program.

[SYT_Shadow]

I don’t think so. The used dme I bought had a build date near there and was locked until I unlocked it.

If you’d be able to reflash your tune afterwards, I suppose you can restore to stock, do a full backup, unlock the dme, restore the backup, flash the tune, and then read the full contents over bdm.

In theory we would indeed be able to reflash our tune afterwards, as we already had it to begin with.

I'm just not sure how to read it when the program says it cannot read
