Picking my car up today with new CSL trunk lid & still haven’t finalized M3 badge placement.
-
'01 M3, JB/IR, SS, TCK DA, Apex, TMS CSL, HTE, 4:10 gears - original owner
'00 slicktop Touring converting to full M3 Touring -
Somewhere (I'll try to find it) there is a post that shows where it goes.
2004 Silbergrau Metallic 6MT
Karbonius/OEM Snorkel/Flap/HTE Tuned
Ssv1/Catted Sec. 1/SS 2.5" Sec. 2/SCZA
OE CSL Bootlid/AS SSK/BC Coils/4.10 Gears/ Sportline 8S Wheels/Cobra Nogaros
RACP Plates/Vincebar/CMP/Turner RTAB/Beisan
2006 M6 Black Saphire SMG
Instagram -
Originally posted by 01M3Fan View Post
The badge placement needs to be adjusted slightly without the "CSL" portion.
You might want to wait a few weeks before installing the badge to let the paint fully cure; otherwise, the badge can create an indent in the clearcoat and you'll see it if you remove it in the future.
Comment
-

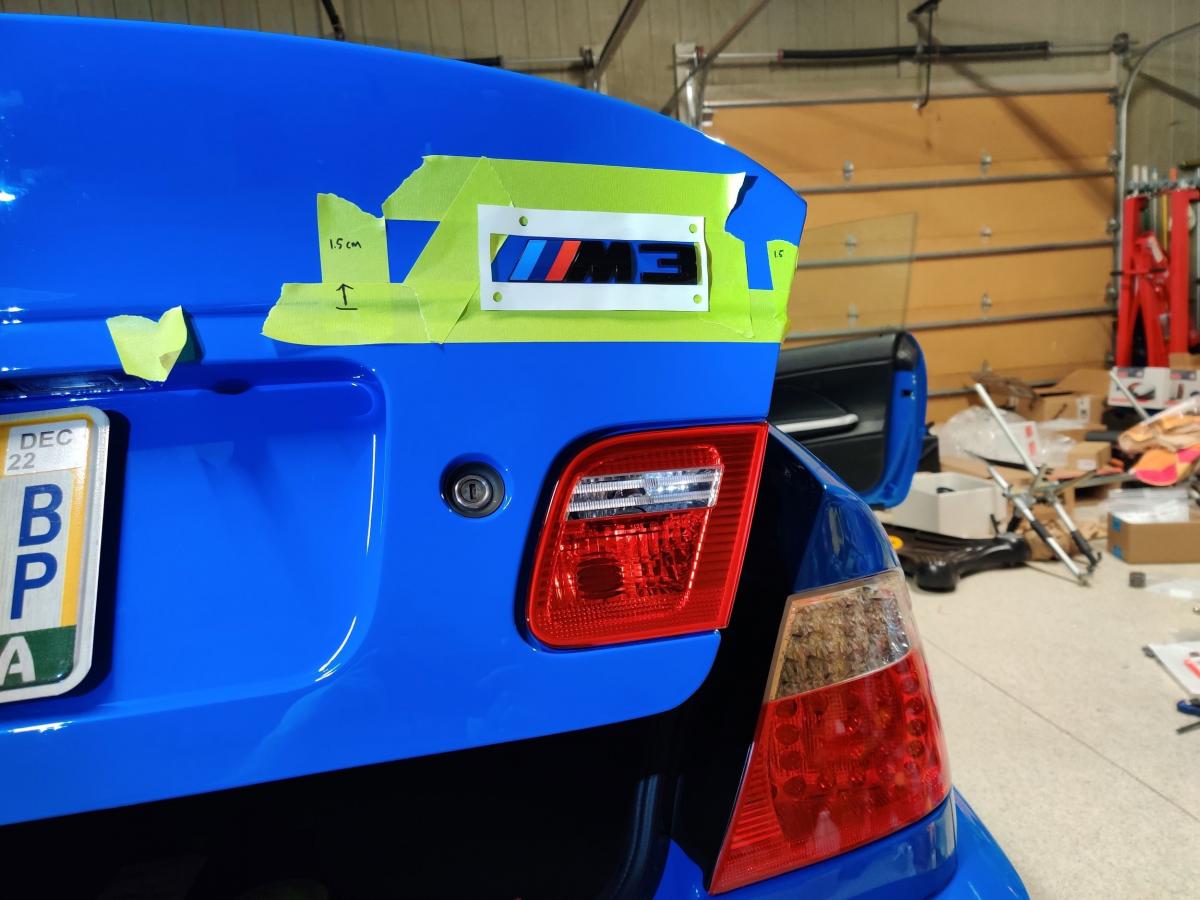

Looks like 41mm from right edge and 15mm up - thx for sharing'01 M3, JB/IR, SS, TCK DA, Apex, TMS CSL, HTE, 4:10 gears - original owner
'00 slicktop Touring converting to full M3 TouringComment
-

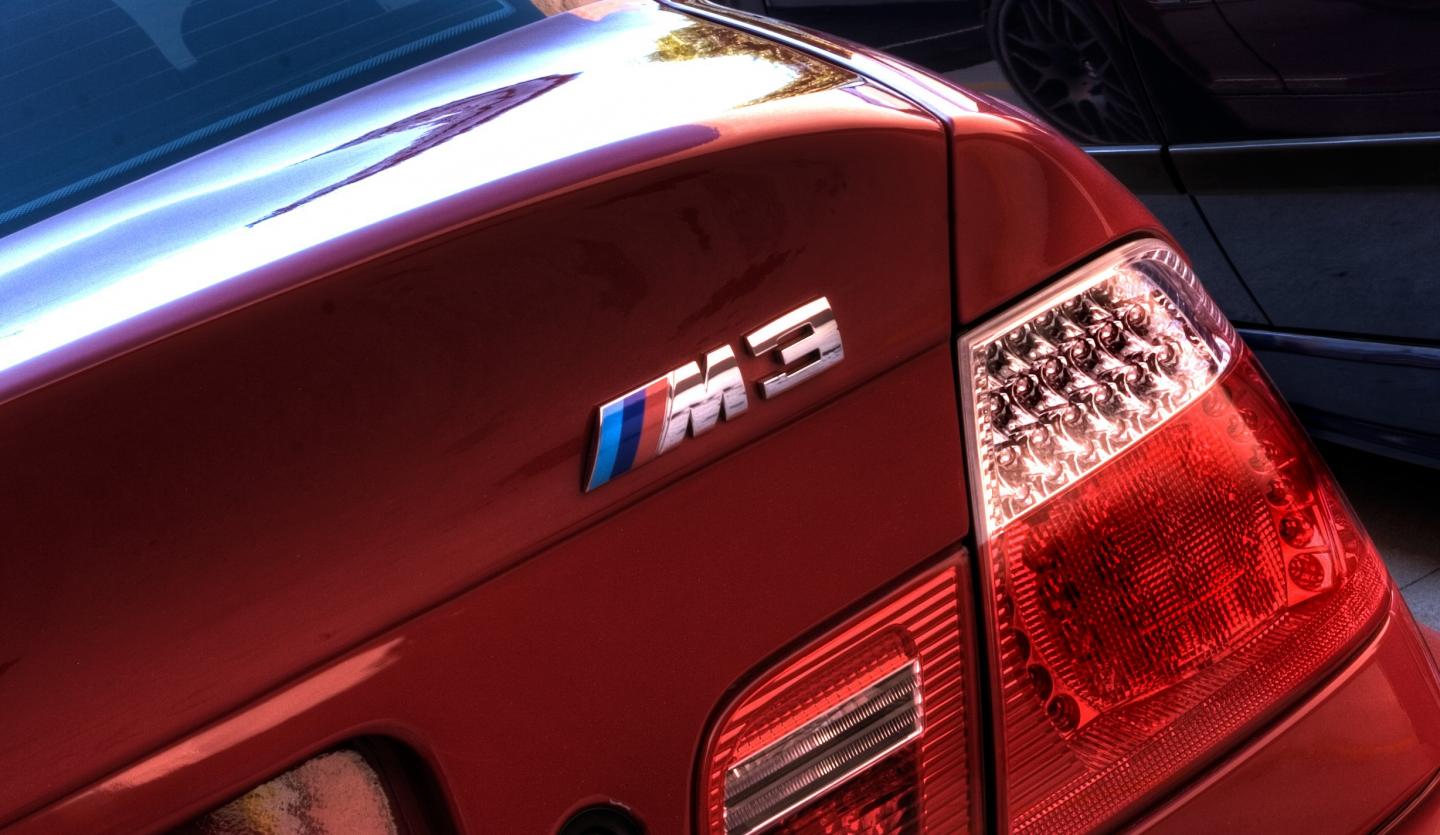

I stuck mine on the same center line as the CSL. Looks weird to me if it's shifted all the way to the right portion of the CSL badge.

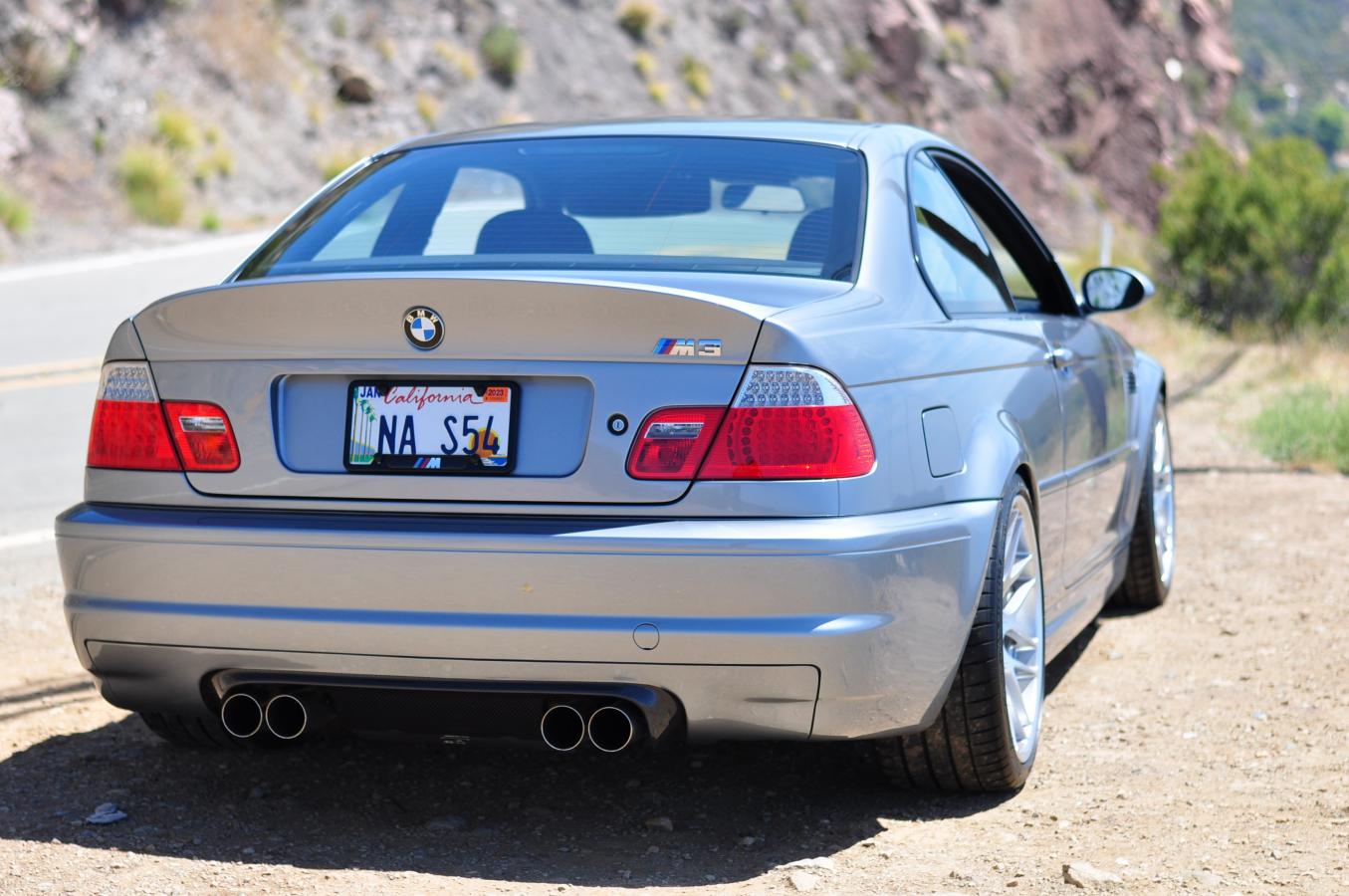

Only pic I have on hand on my work computer:
2005 IR/IR M3 Coupe
2012 LMB/Black 128i
2008 Black/Black M5 SedanComment
-
..
DD: /// 2011.5 Jerez/bamboo E90 M3 · DCT · Slicktop · Instagram
/// 2004 Silvergrey M3 · Coupe · 6spd · Slicktop · zero options
More info: https://nam3forum.com/forums/forum/m...os-supersprintComment
-

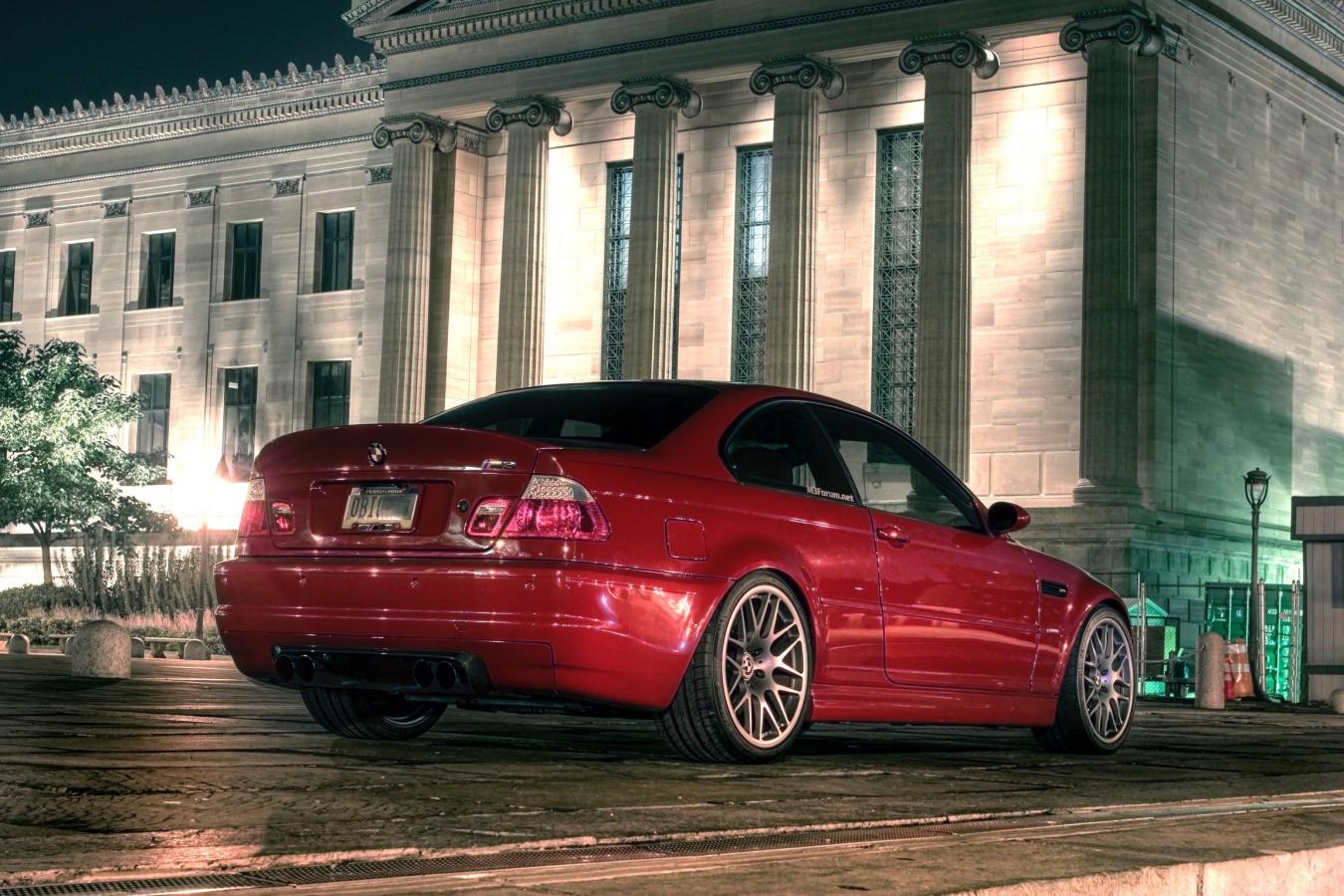

Pictures from the photoshoot used to be the desktop background on the family computer when I was in high school 🤣Originally posted by Obioban View Post
'02 ///M3 Alpine White / Cinnamon 6MTComment
-

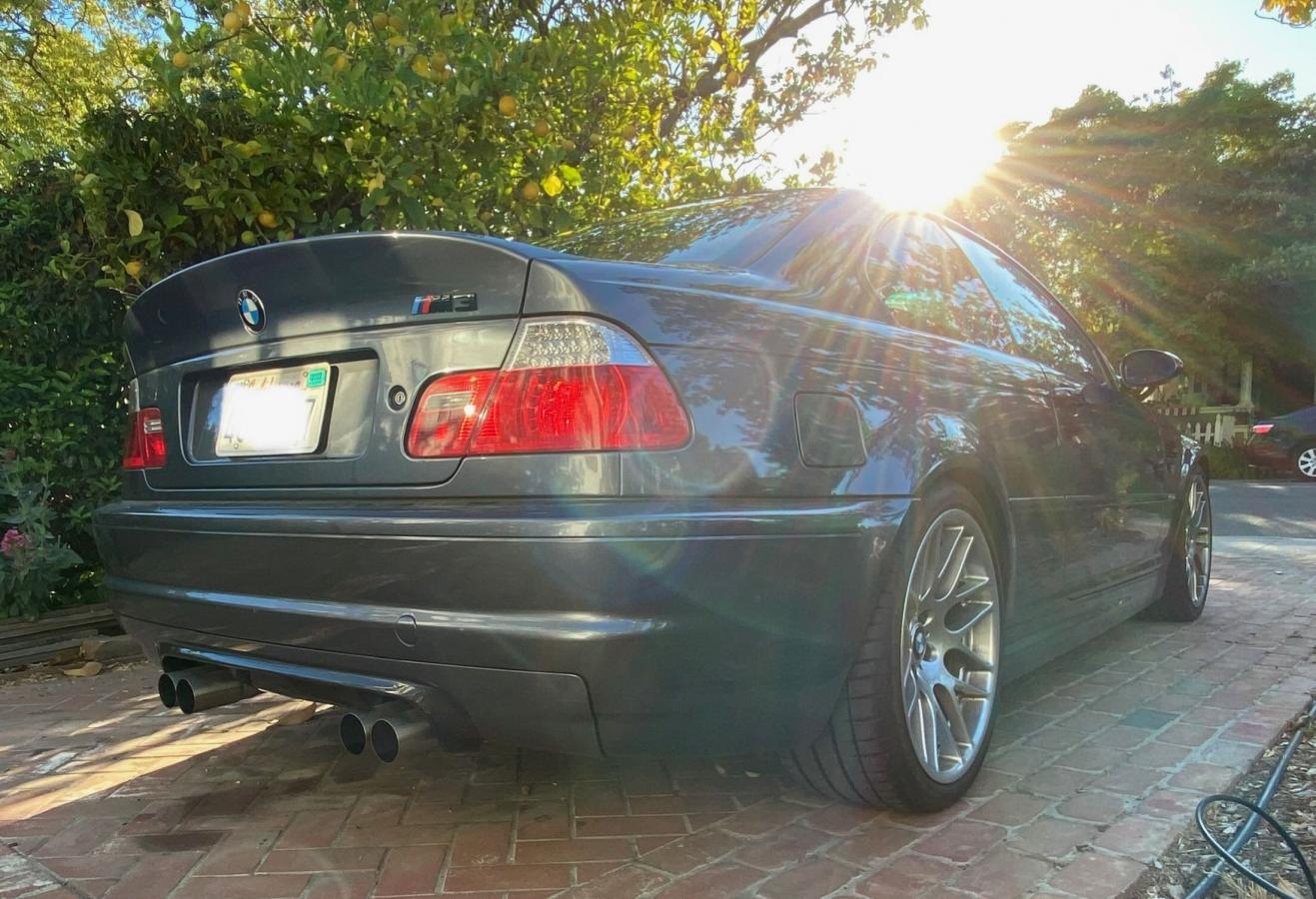

Here’s mine I eyeballed…Comment
-

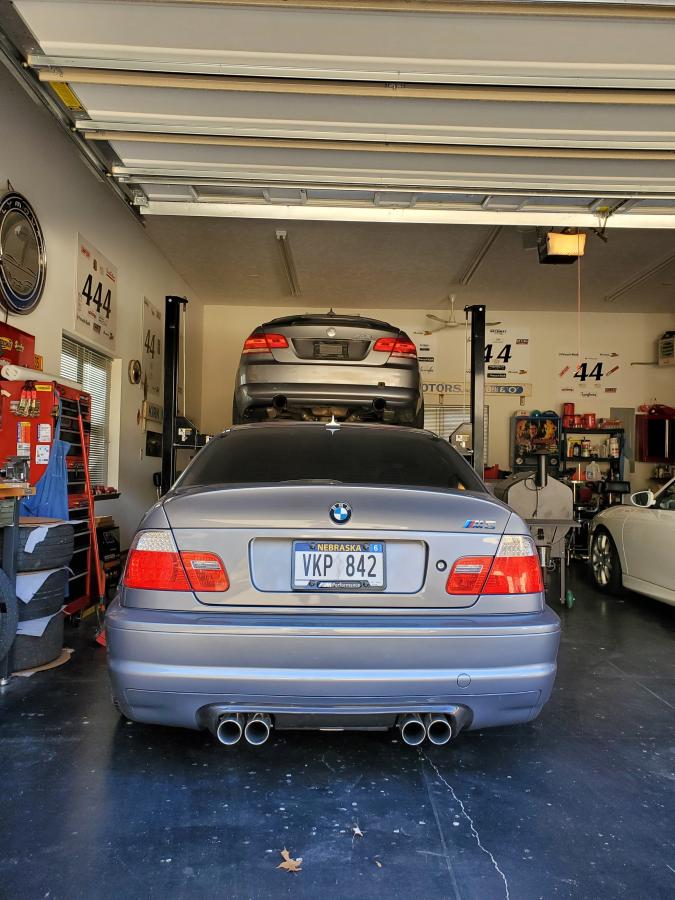

Here’s what I ended up going with. RE:fresh paint, car was baked twice and it’s also probably 2 weeks old now before we applied the M3 decal
'01 M3, JB/IR, SS, TCK DA, Apex, TMS CSL, HTE, 4:10 gears - original owner
'00 slicktop Touring converting to full M3 TouringComment
-

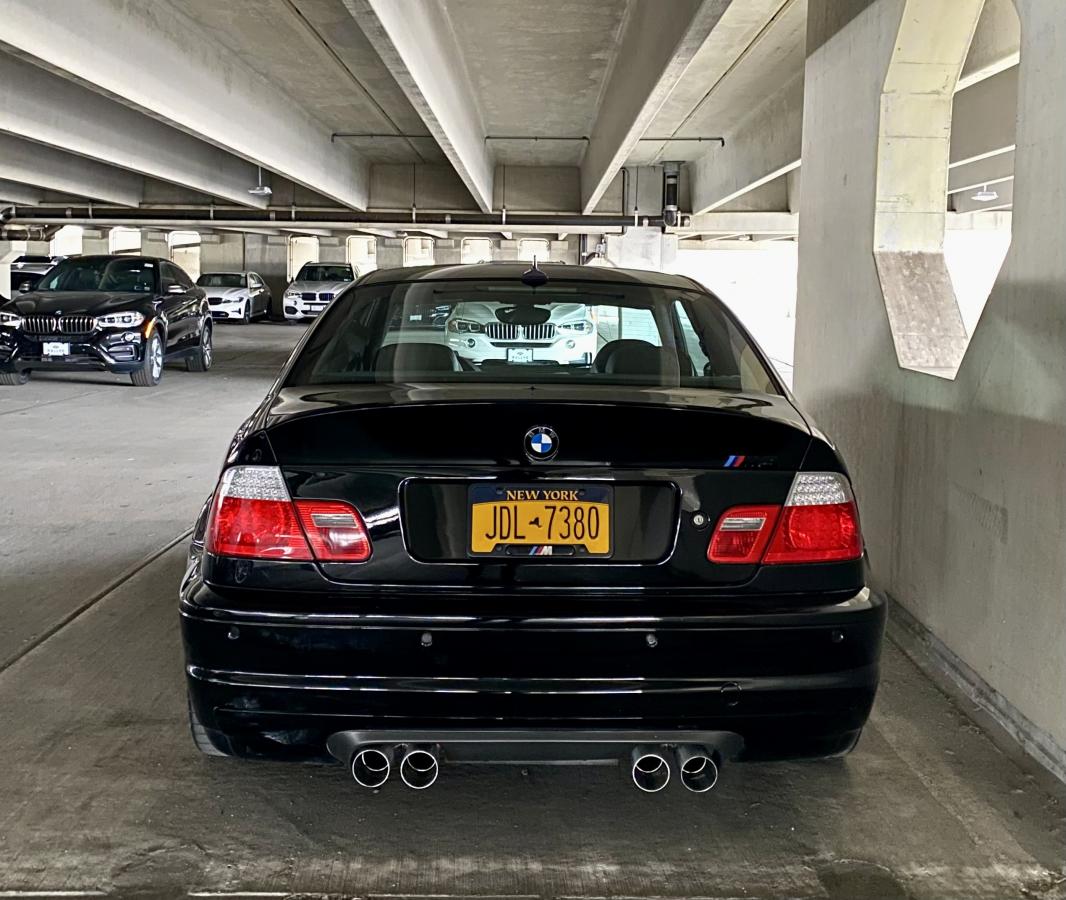

Mine is a little lower than some of the others on here. Definitely make it even/level with the ridge that goes across the trunk
Comment
-
Perfect 👌
Comment
-
Low ridaDD: /// 2011.5 Jerez/bamboo E90 M3 · DCT · Slicktop · Instagram
/// 2004 Silvergrey M3 · Coupe · 6spd · Slicktop · zero options
More info: https://nam3forum.com/forums/forum/m...os-supersprintComment
-

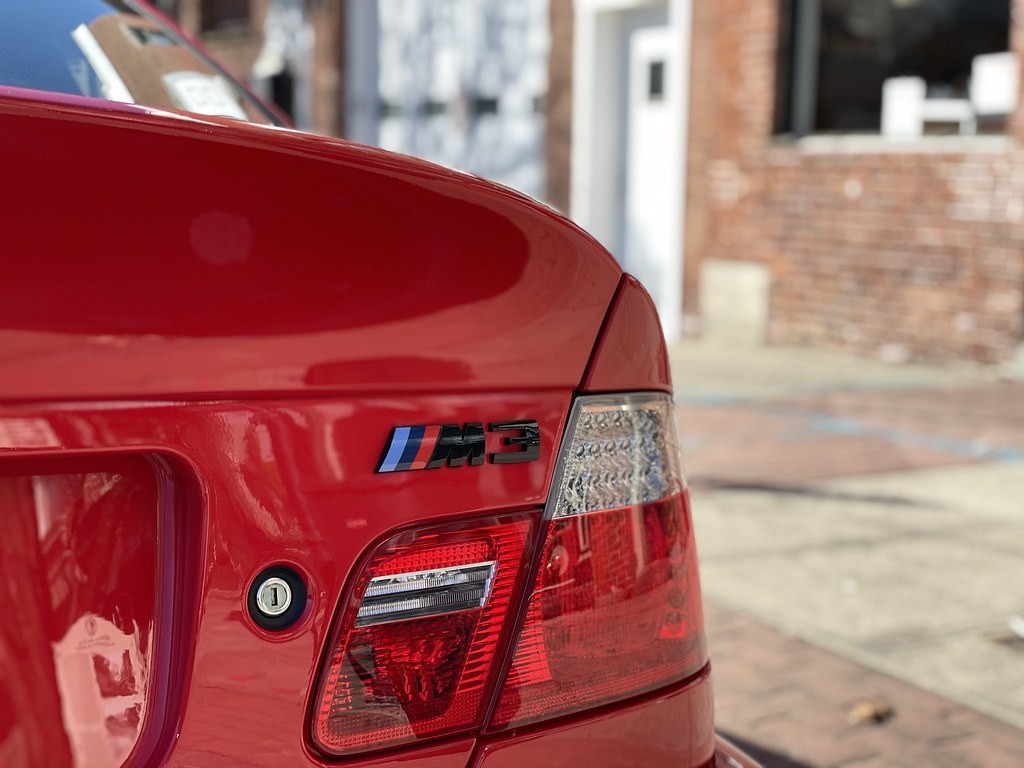

Used gloss black F80 M3 emblem - M3 badge position is halfway between "stock" and CSLLast edited by azmirm5; 04-15-2023, 11:45 AM.Comment
-

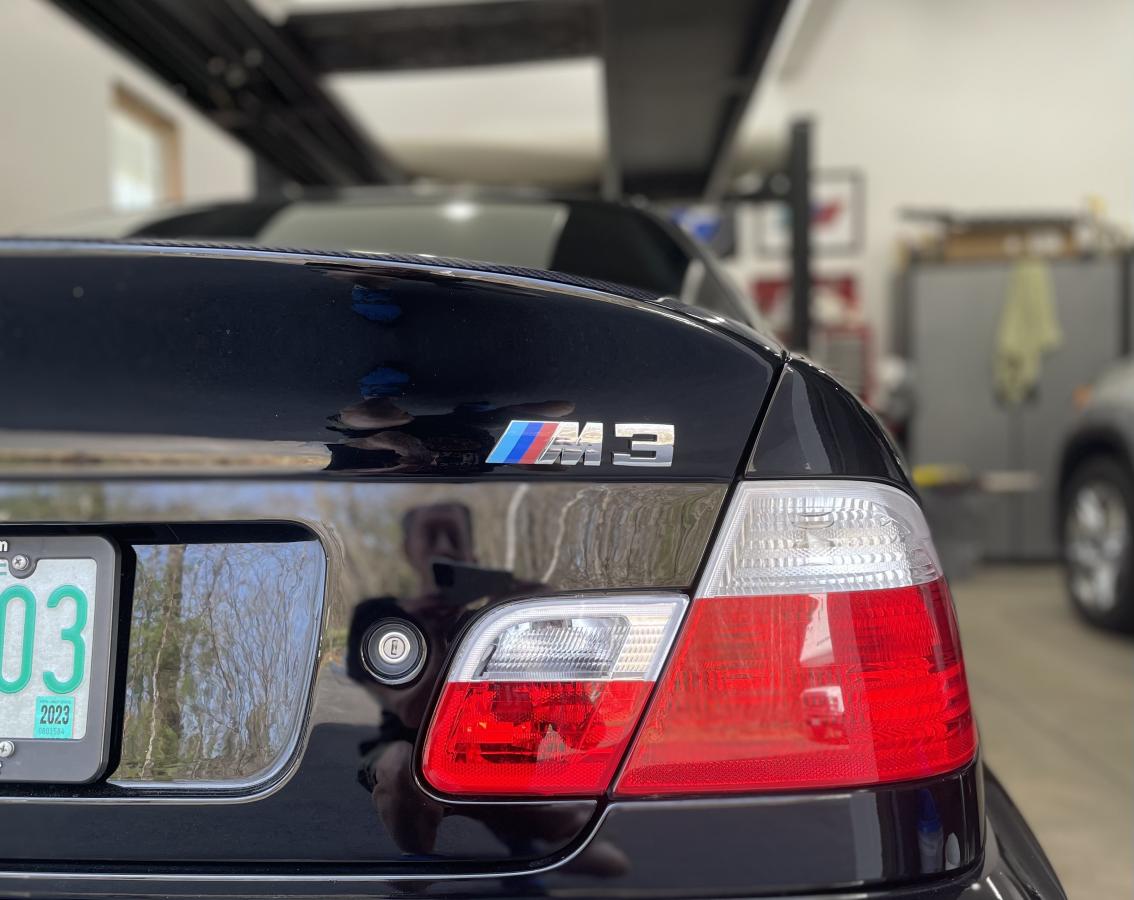

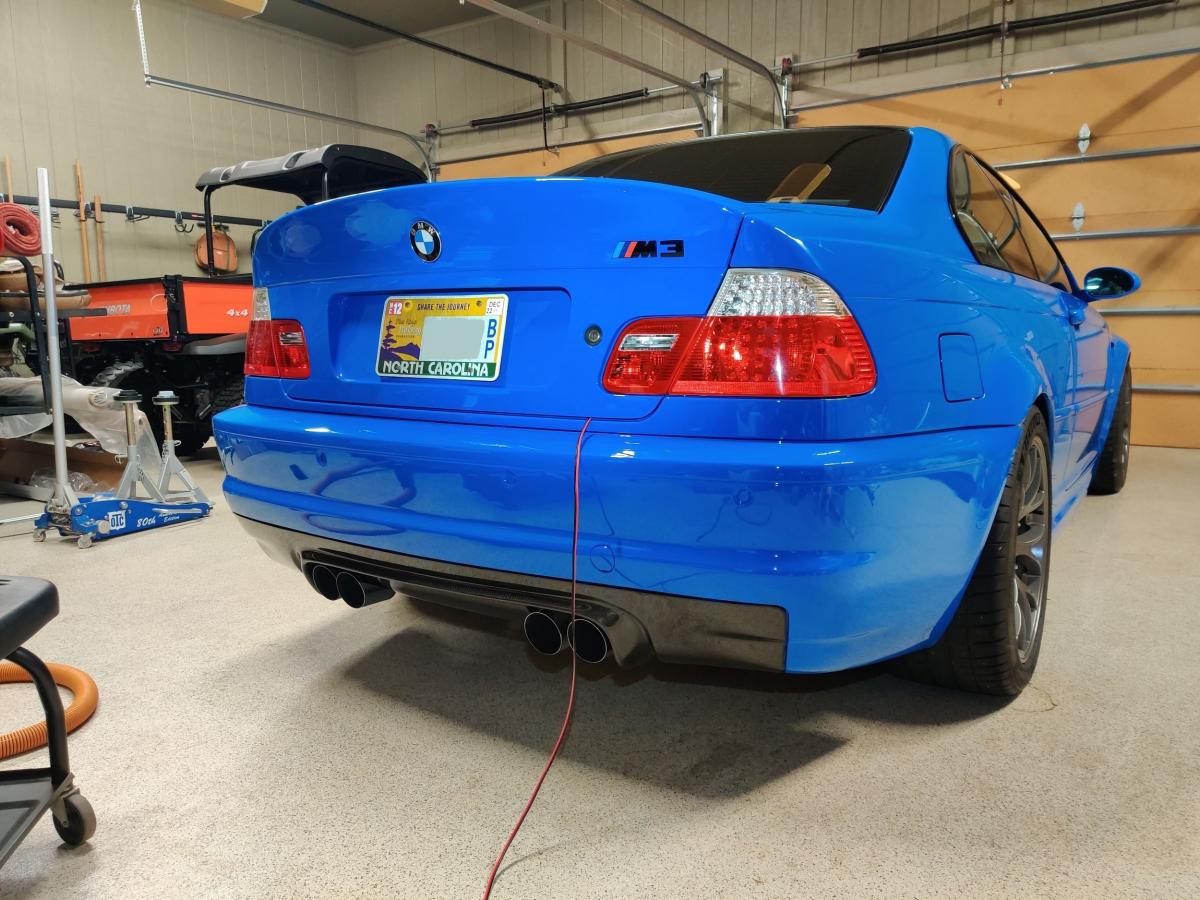

Here is where I put mine:
I explained why in this post:
https://nam3forum.com/forums/forum/m...077#post183077
EDIT: I didn't realize you had done this, but this is why I positioned mine where I did too:
Originally posted by Obioban View Post
Last edited by Casa de Mesa; 04-16-2023, 03:58 AM.Build thread: Topaz Blue to Shark BlueComment
-
A friend of mine has no M3 badge on his CSL trunk, and it actually looks pretty great.
2005 IR/IR M3 Coupe
2012 LMB/Black 128i
2008 Black/Black M5 SedanComment
