    e46 M3 torque spec thread-- every bolt on the car on diagrams

    Thanks to Flow, back on M3forum:

    Original Flow PDF: http://sawashie.free.fr/M3/TorqueSpe...SPECS%20LR.pdf
    Updated PDF with suggestions from this thread: https://drive.google.com/file/d/1NMI...ew?usp=sharing
    Last edited by heinzboehmer; 01-18-2023, 09:33 AM.

    2005 IR/IR M3 Coupe
    2012 LMB/Black 128i
    2008 Black/Black M5 Sedan


    For Sale: CSL Cabin Air Filter Housing

    #2
    Great reference - thanks for re-posting here.

    Comment


      #3
      Oh man Ian! Excellent info.
      I copied it to my iBooks/iPad so referencing it offline is possible.

      Comment


        #4
        Downloaded - thanks for saving it and posting it here!

        Comment


          #5
          Glad this wasn’t lost, I printed this and made a binder, color coded, for when I did my s54 swap on my e36 M3. This was invaluable

          Comment


            #6
            Originally posted by T3amfish View Post
            Glad this wasn’t lost, I printed this and made a binder, color coded, for when I did my s54 swap on my e36 M3. This was invaluable
            I have it printed out to wallpaper my shop

            2005 IR/IR M3 Coupe
            2012 LMB/Black 128i
            2008 Black/Black M5 Sedan


            For Sale: CSL Cabin Air Filter Housing

            Comment


              #7
              Thanks for posting, this is gold! Somehow I managed to miss this using m3forum, time saver for sure.

              Comment


                #8
                I think there may be an updated version of this somewhere. This one incorrectly lists the rear brake caliper bracket torque as 81ft lbs. It should be 48.

                https://nam3forum.com/forums/forum/m...ource#post4089

                Comment


                  #9
                  We need to correct the linked file then if everyone uses it as gospel. Sorry you had to break the bolt to find this out.
                  All jobs done as diy - clutch, rod bearings, rear subframe rebush, vanos, headers, cooling, suspension, etc.

                  PM for help in NorCal. Have a lot of specialty tools - vanos, pilot bearing puller, bushing press kit, valve adjustment, fcab, wheel bearing, engine support bar, etc.

                  Comment


                    #10

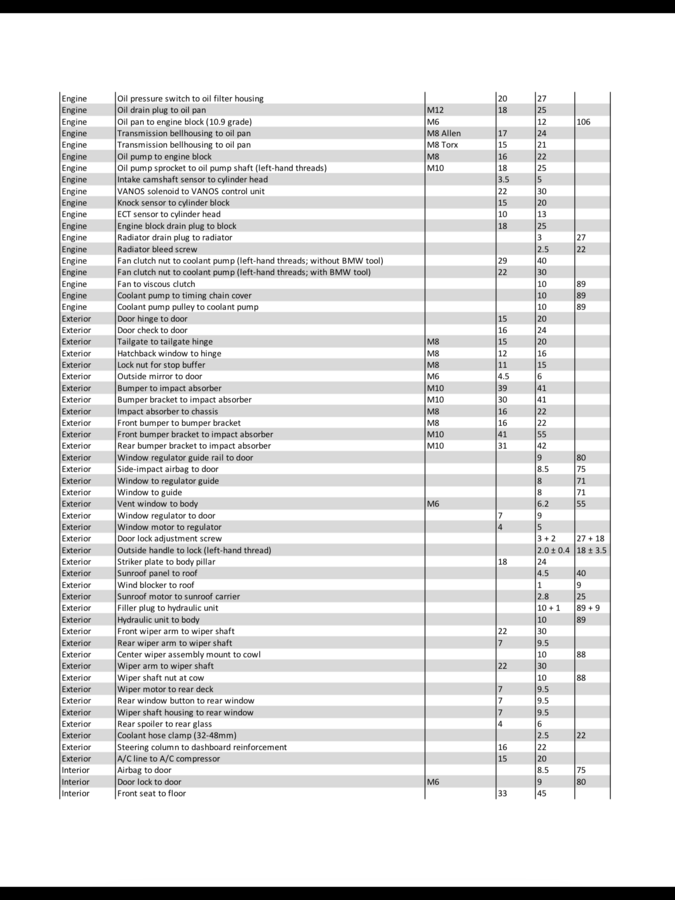

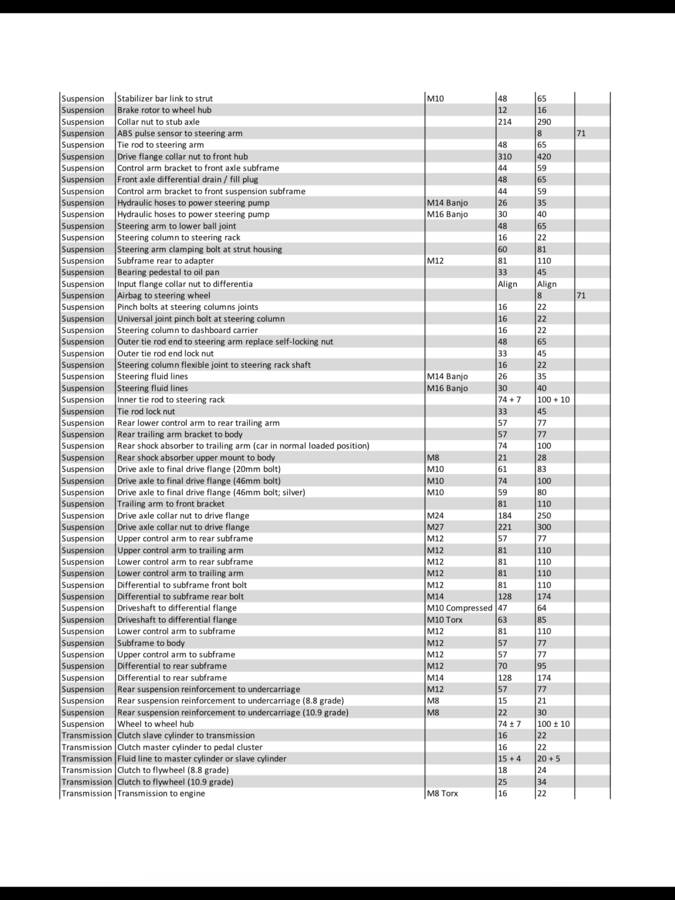

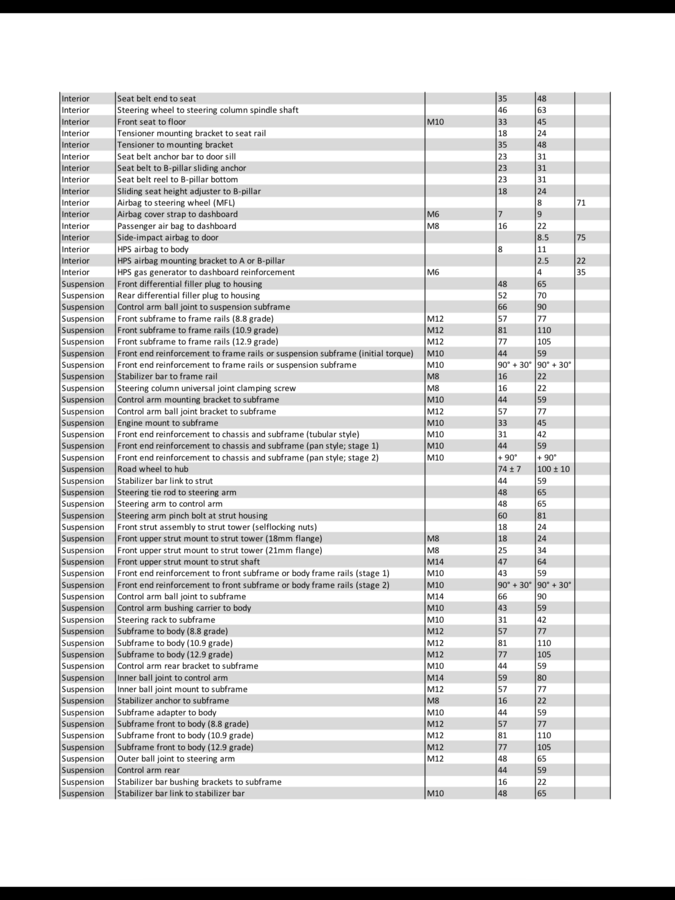

                    The Enthusiast website, Build Journal, has a bolt torque guide.
                    https://thebuildjournal.com/tech-gui...ue-spec-guide/

                    Click image for larger version

Name:	BBAEBCD4-4725-4A0F-82A5-8ADFB3B65BD1.png
Views:	7977
Size:	74.8 KB
ID:	4157 Click image for larger version

Name:	F69E2458-43BE-489C-9AD1-BB466204BFCE.png
Views:	12308
Size:	289.0 KB
ID:	4158 Click image for larger version

Name:	D5A68D37-CC86-41B0-BE2B-A02901011C3D.png
Views:	7380
Size:	111.9 KB
ID:	4159 Click image for larger version

Name:	8868142A-E70F-4063-BCB6-A95CE3677B35.png
Views:	7442
Size:	91.6 KB
ID:	4160 Click image for larger version

Name:	A984C82E-E29E-404E-861C-ACDC75DC381C.png
Views:	8877
Size:	108.3 KB
ID:	4161

                    Comment


                      #11
                      Yeah but there are no pictures. We want pictures too.
                      This is my Unbuild Journal and why we need an oil thread
                      https://nam3forum.com/forums/forum/m...nbuild-journal

                      "Do it right once or do it twice"

                      Comment


                        #12
                        This is an awesome reference. I've been looking for something like this for a while. Thank you!!
                        2005 BMW M3 ZCP Black/Black - HTE Tuning | Kassel CSL DME | 288/280 Schrick Cams+DLC Followers | Lang Head | Dinan TBs | Bosch 550cc | Radium Fuel System | Karbonious CSL Airbox+OE Snorkel | SS V1 Stepped+Catted Sec 1+Resonated Twin Pipe+Race | 3.91, 3 stage clutch | FCM 400/600 | Vorshlag Camber Plates, RSM | Rogue ASP | AKG FCABs, SFBs | TMS Front Sway, Camber Arms, Monoball RTABs, Pullies | Mason Race Strut + X-Brace | AS 30% SSK | SPAL | Redish Plates | Turbo Toys V2 Hub | WPC Rod Bearings

                        Comment


                          #13
                          Found a link to the updated version in bimmerfan08's rod bearing DIY. We should probably update the link in the original post

                          http://d.pr/f/1jtRu

                          Comment


                            #14
                            Originally posted by bimmer View Post
                            Found a link to the updated version in bimmerfan08's rod bearing DIY. We should probably update the link in the original post

                            http://d.pr/f/1jtRu

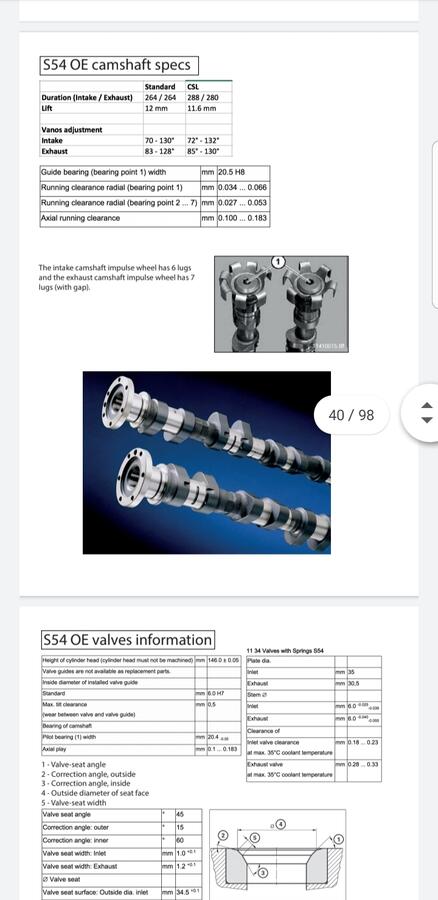

                            While that has the right torque value, I'm not sure that is the latest version. A few of the latest updates had pages on cams/valves (around page 40), etc per screenshot, and total page count was around 98.

                            Weird that this particular value is incorrect...

                            Click image for larger version

Name:	Screenshot_20200331-230929_Drive.jpg
Views:	7443
Size:	50.1 KB
ID:	5090
                            All jobs done as diy - clutch, rod bearings, rear subframe rebush, vanos, headers, cooling, suspension, etc.

                            PM for help in NorCal. Have a lot of specialty tools - vanos, pilot bearing puller, bushing press kit, valve adjustment, fcab, wheel bearing, engine support bar, etc.

                            Comment


                              #15
                              Originally posted by mrgizmo04 View Post

                              While that has the right torque value, I'm not sure that is the latest version. A few of the latest updates had pages on cams/valves (around page 40), etc per screenshot, and total page count was around 98.

                              Weird that this particular value is incorrect...

                              Click image for larger version

Name:	Screenshot_20200331-230929_Drive.jpg
Views:	7443
Size:	50.1 KB
ID:	5090
                              Yeah really strange. Do you have the file that you took the screenshot from? I'm happy to host it somewhere for people to download.
