Tuned! 332whp! My Engine Build - Cams, Airbox, LTW Flyhweel & more :)

[Tbonem3]

Looks like there were 2 but they broke off

[0-60motorsports]

I'm surprised by the lack of vertical supports on your airbox. Will be interesting to see if you get any noticeable flex under vacuum once you get it installed.

This is their new design

[Syfon]

I'm surprised by the lack of vertical supports on your airbox. Will be interesting to see if you get any noticeable flex under vacuum once you get it installed.

It didn't occur to me other boxes have vertical supports inside. No idea how I will tell if it does flex under vacuum?

Edit: Just read 0-60motorsports comment above.

[heinzboehmer]

This is their new design

Wonder why/how they decided that these were no longer needed in their new design. Maybe the wall thickness went up and that negates the need for them?

It didn't occur to me other boxes have vertical supports inside. No idea how I will tell if it does flex under vacuum?

Edit: Just read 0-60motorsports comment above.

Eh I don't think it'll be that big of a deal. Just get someone to rev the car while you stare at it, once you get it installed.

[Arith2]

Looks like there were 2 but they broke off

Yeah it looks like adhesive between 2 and 3 then 4 and 5 at the bottom. Could be just be bad resin job.

I'm curious to see how you like the flywheel. There's so few reviews on it.

[Syfon]

Yeah it looks like adhesive between 2 and 3 then 4 and 5 at the bottom. Could be just be bad resin job.

I'm curious to see how you like the flywheel. There's so few reviews on it.

I'll pull it out of the box and have another look.

Yeah I'm really keen to see how it feels! Along with all the other goodies

[Syfon]

Update!

So I'm waiting on a friend to fix the mesh that covers the secondary oil pump pickup. Mine was broken when I originally removed the sump. I should pick that part up today or tomorrow! Hoping to continue with the engine build this weekend; timing gear installed, head on, vanos in, motor timed, sump on.

I've set myself the target of getting her on the road by xmas. Told my wife I want to get in the M3 on xmas day and go for a ride

Everything else is clean, prepped and ready to go!

More updates coming soon

[trudriv3r]

Let's get some more pics brotha!

[Syfon]

Update!

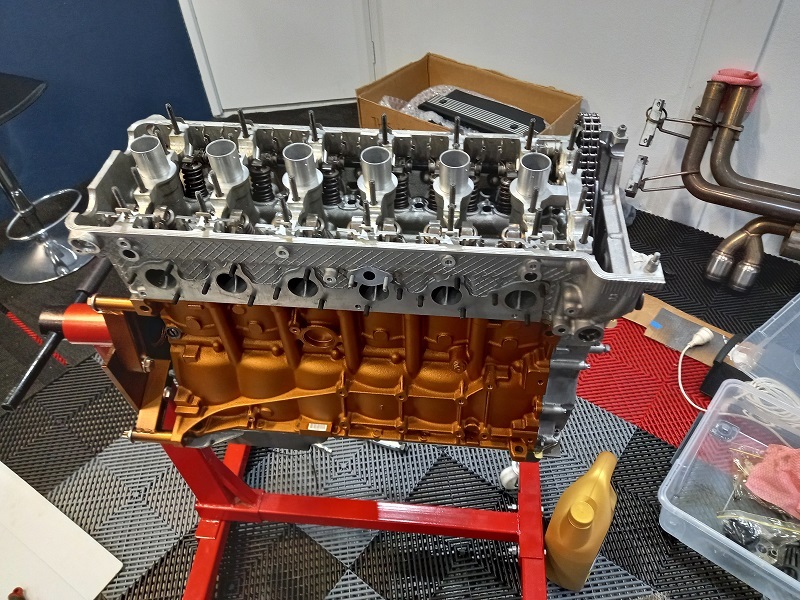

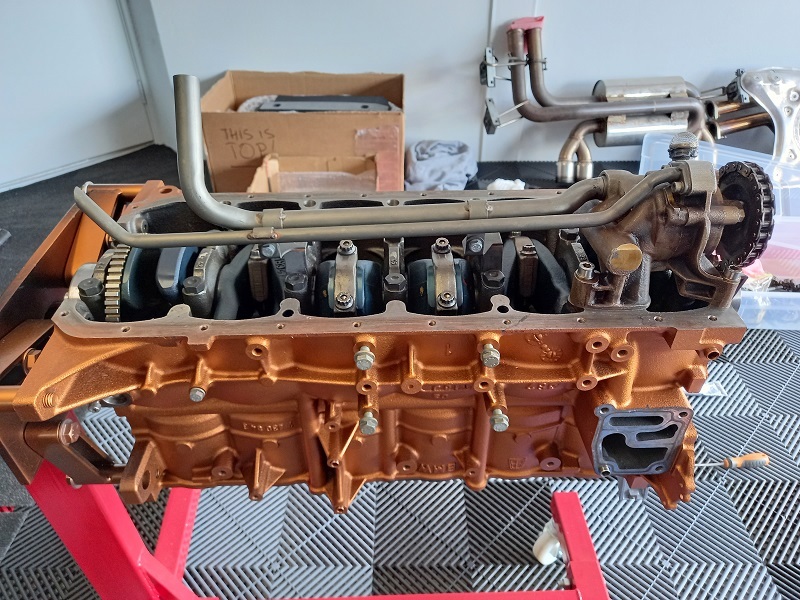

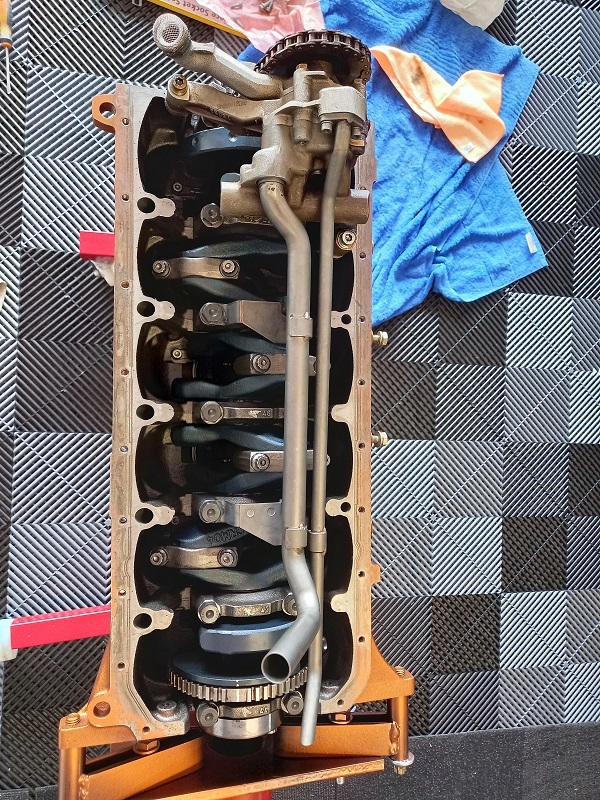

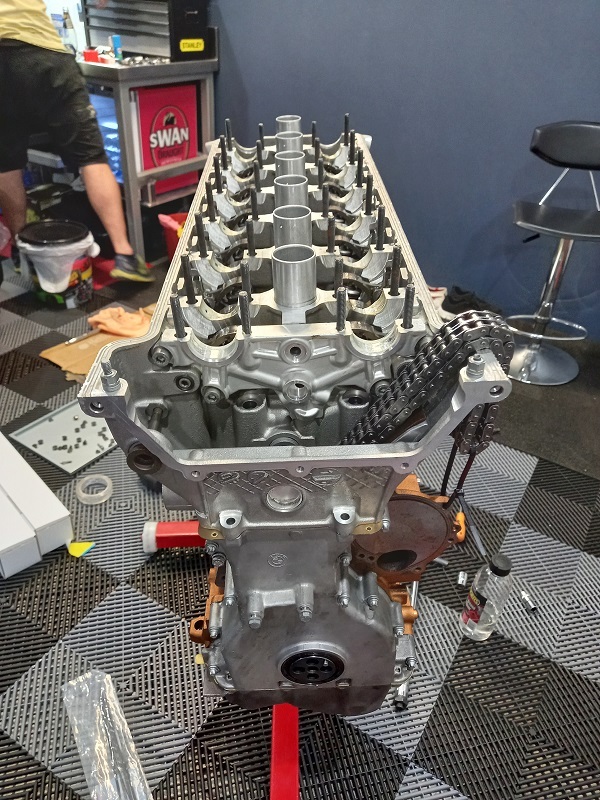

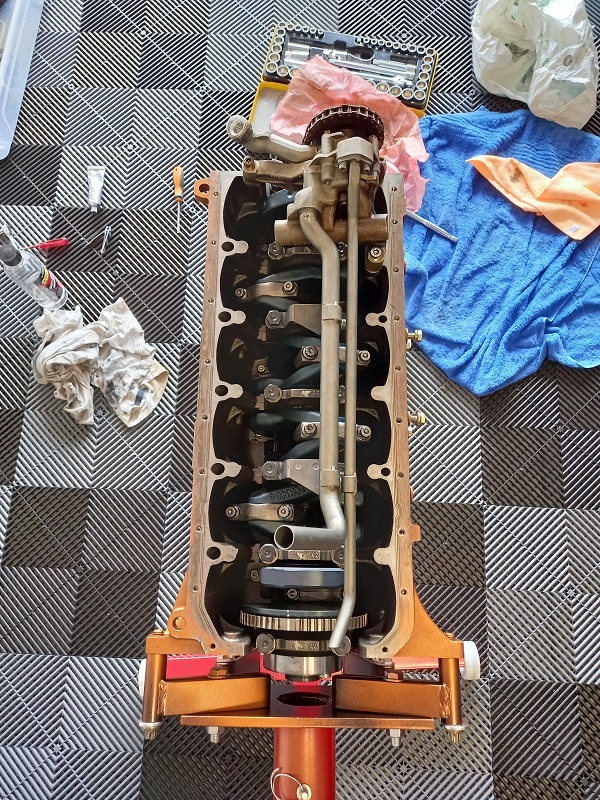

Oil pump in, sump on, rear main mount/seal on, timing gear & case cover on, head on, cams in!

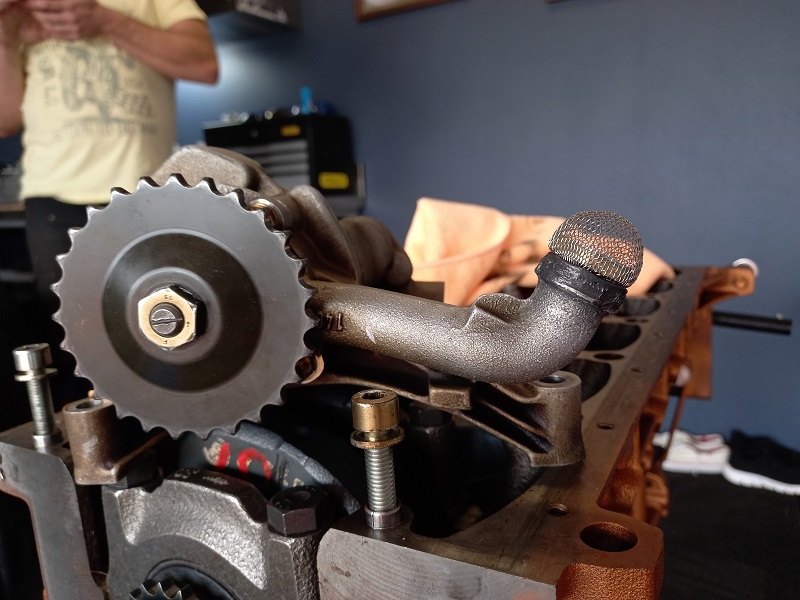

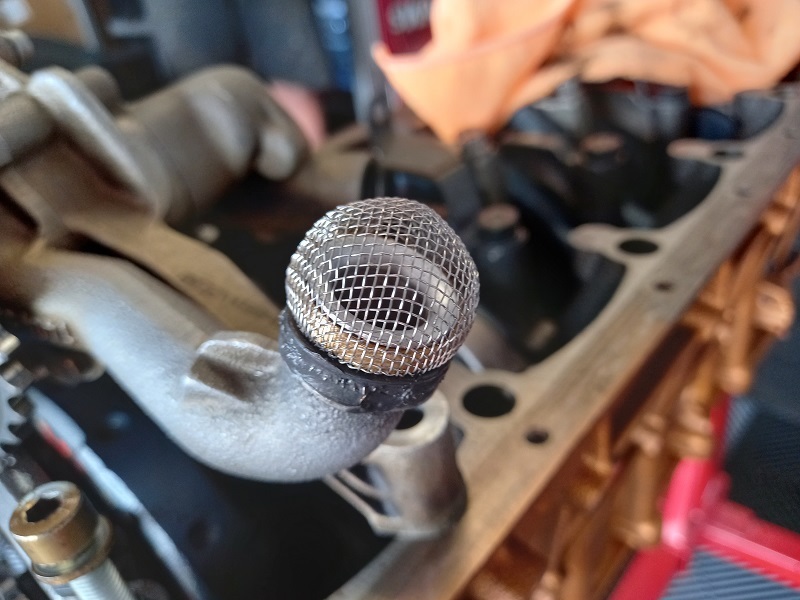

Secondary oil pump pick up mesh was fixed as a home diy job thanks to a usefull kitchen item

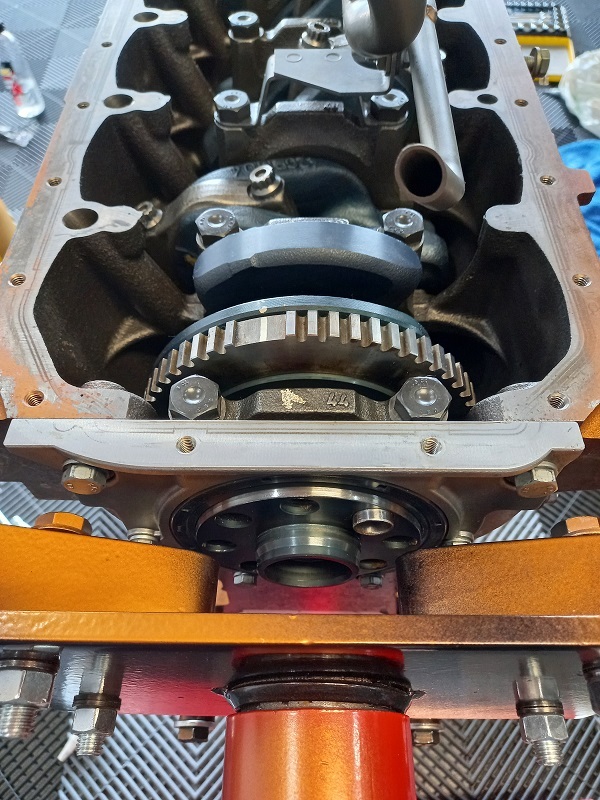

Rear main and sump went on without an issue. Used BMW Sealing Compound Drei Bond 1209 on the joins, as directed by the relevant newtis article/s.

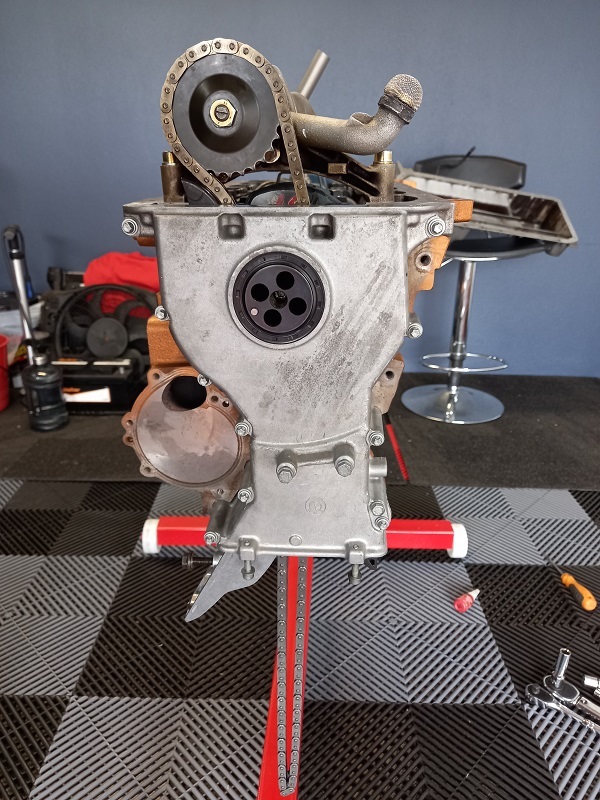

Timing guides, chain, case cover all went on with ease.

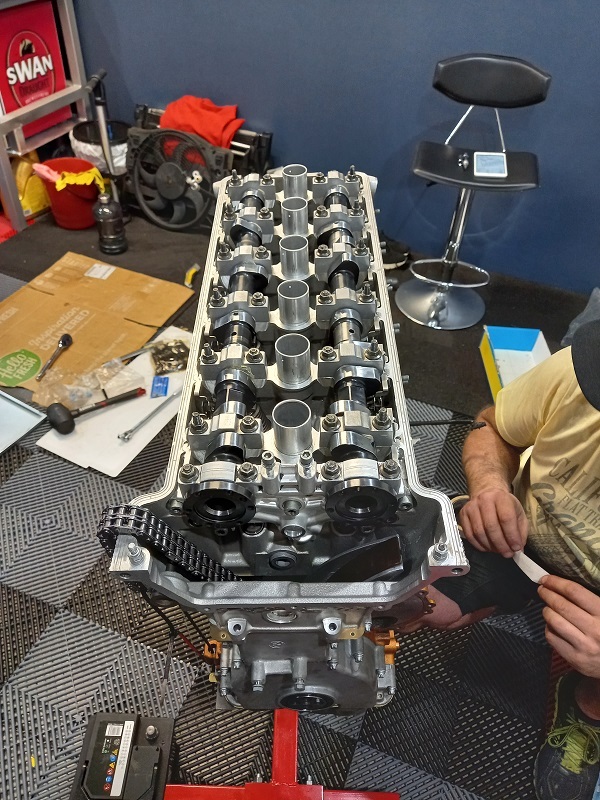

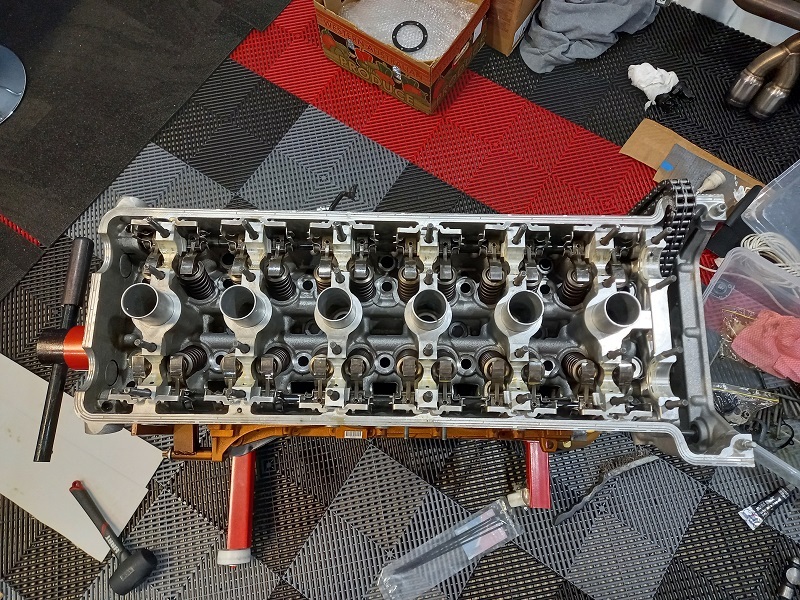

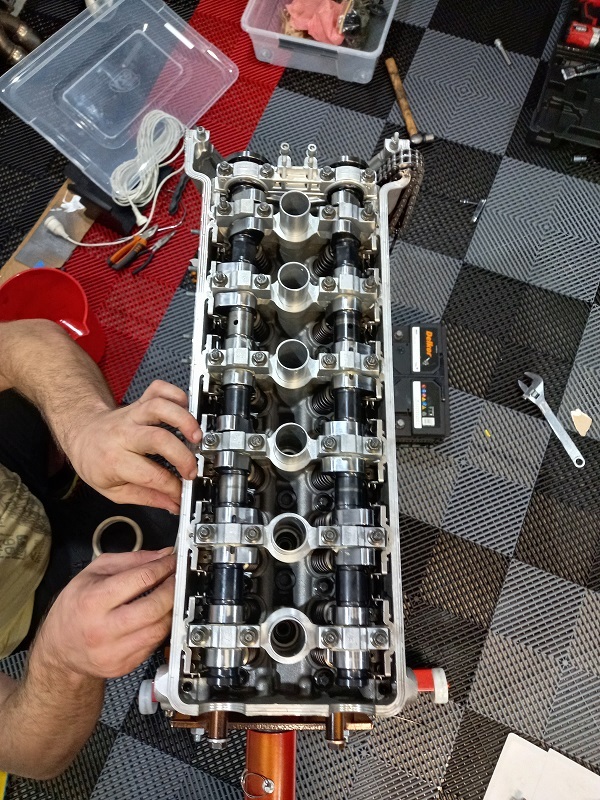

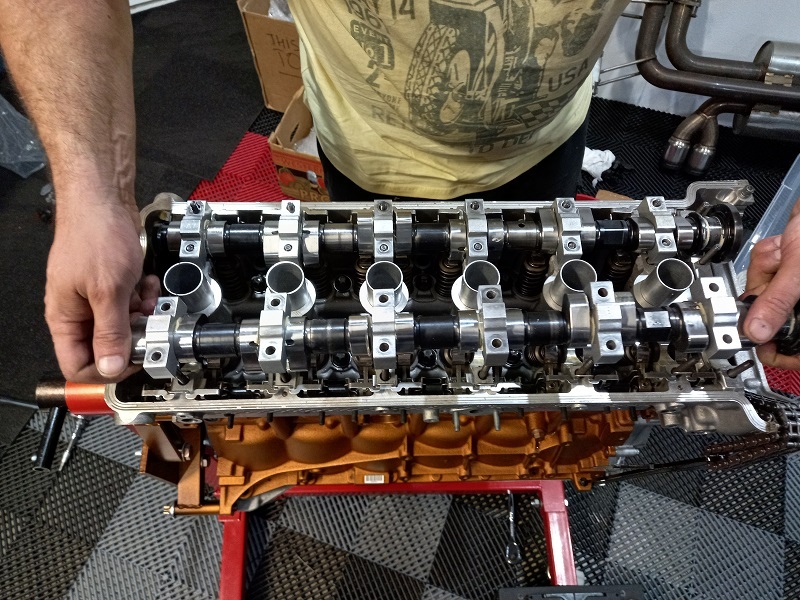

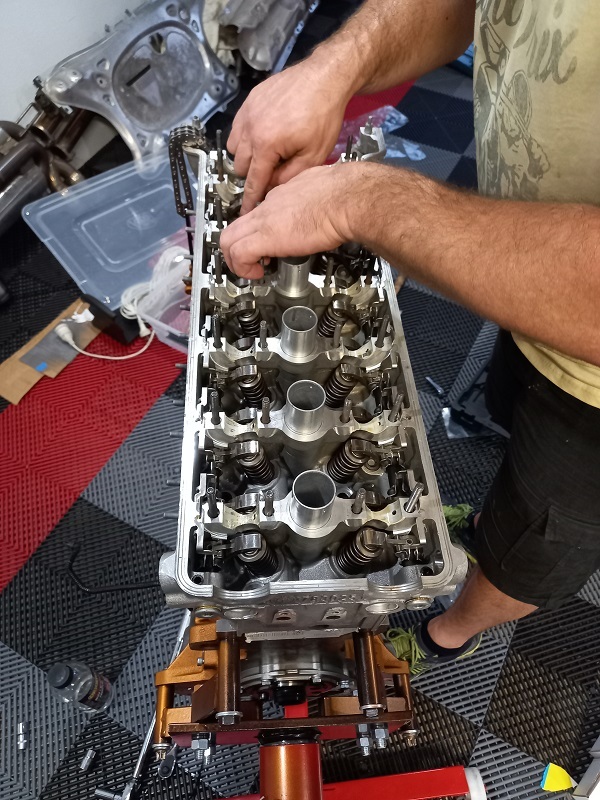

Head went on pretty easy. Was an interested experience torqueing the head bolts per the newtis article. Cams also in.

Crank was set to TDC prior to head going on. Cams have been set to the approximate TDC positions for cylinder 1.

Hoping to get the motor timed and vanos installed this weekend.

Xmas skids coming right up hahaha

This project is finally getting some serious traction!

[Cubieman]

Great work! That block just looks absolutely gorgeous.
Removal/replacement of the cams is something I eventually want to do myself, too bad newtis is gone.
Any stripped/damaged bolts so far that needed replacement?

[Syfon]

Great work! That block just looks absolutely gorgeous.
Removal/replacement of the cams is something I eventually want to do myself, too bad newtis is gone.
Any stripped/damaged bolts so far that needed replacement?

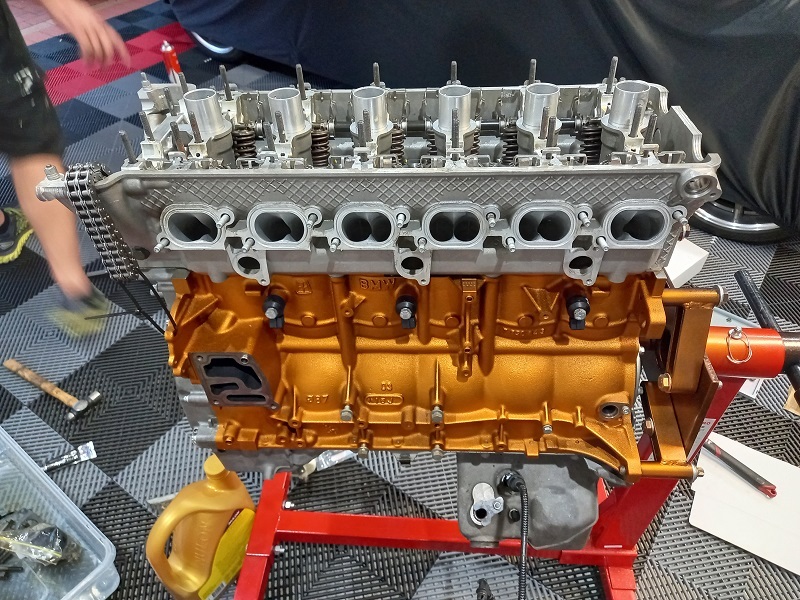

Thank you! If you're curious the colour is VHT Burnt Copper

https://www.amazon.com.au/VHT-SP402-Engine-Metallic-Copper/dp/B002NUFVRW

Once the vanos is removed, it's really quite easy to get the cams out.

You can still access newtis, just sign up. Easy to figure out

No damaged or stripped bolts thus far. I've been quite careful removing everything. Also cleaning every nut and bolt prior to re-installation. I want the motor to be as clean as possible!

Side note; pending replacement of the clutch in my m-sport 325ti, the s54 should be timed and vanos installed this weekend. Then I'm on the home stretch

[F1Dryvr]

Such a fun and cool project/experience to rebuild this engine. Good luck getting her going again and look forward to seeing the end result!

[RedM3/4]

Hi,
Rearching cams, supposing you didn't change pistons or rods, which cam durations and lifts did you choose and why?
I'm not changing internals, have eventuri airbox, single step headers, mod'd section 1 and SS street muffler.
I can't even find definitive answer on what csl cams were much less all the alternatives. Obviously won't do the 300+ duration, and want zero risk of valves hitting pistons, so willing to go up a bit on lift, but not enough to add risk at say 8200 RPM (likely to leave mine limited to 8000 but it obviously goes over that a bit from time to time).

Thanks!

ADS

[digger]

IMO with stock displacement and 288/280 you would want to be buzzing it quite a bit north of 8k to properly utilise the added duration, or on a stroker 288/280 it will work better/more effectively at a slightly lower rpm range because the engine has more cubic inches. So 280/272 might be a happy medium for stock displacement. i don't think anyone has ever properly tested 288/280 vs 280/272 on same engine. With mild cams you're limited in what's available for lift anyway so shouldn't be a issue with hurting the something if the valve train is fresh and in good order to start with.

The CSL cams were between stock and 280/272 for duration, it is only a very mild upgrade over stock. Someone will link the document i remember seeing in within last few months

[heinzboehmer]

Someone will link the document i remember seeing in within last few months

CSL cams are 268/264.
