Originally posted by George Hill View Post
Also, completely unsolicited (and you might do this already when in use), but you should route those shoulder harness straps in between the headrest posts. If those slip off the seat in a crash, you're gonna have a real bad time.2002 Topasblau M3 - Coupe - 6MT - Karbonius CSL Airbox - MSS54HP Conversion - SSV1 - HJS - Mullet Tune - MK60 Swap - ZCP Rack - Nogaros - AutoSolutions - 996 Brembos - Slon - CMP - VinceBar - Koni - Eibach - BlueBus - Journal
2012 Alpinweiss 128i - Coupe - 6AT - Slicktop - Manual Seats - Daily - Journal
- Likes 2
Comment
-
Originally posted by heinzboehmer View PostAlso, completely unsolicited (and you might do this already when in use), but you should route those shoulder harness straps in between the headrest posts. If those slip off the seat in a crash, you're gonna have a real bad time.
'09 HP2S, '12 R12GSA, '00 Black 323iT, '02 Alpine 325iT (Track Wagon), '02 Alpine 330iT
Instagram @HillPerformanceBimmers
Email to [email protected]
Comment
-
Originally posted by George Hill View PostDefinitely! That's a pic from like 5yrs ago when I was mocking everything up, still has the 2.5L from looking at the instrument cluster, just the best interior photo I have, lol.2002 Topasblau M3 - Coupe - 6MT - Karbonius CSL Airbox - MSS54HP Conversion - SSV1 - HJS - Mullet Tune - MK60 Swap - ZCP Rack - Nogaros - AutoSolutions - 996 Brembos - Slon - CMP - VinceBar - Koni - Eibach - BlueBus - Journal
2012 Alpinweiss 128i - Coupe - 6AT - Slicktop - Manual Seats - Daily - Journal
Comment
-
Originally posted by heinzboehmer View PostAlso, completely unsolicited (and you might do this already when in use), but you should route those shoulder harness straps in between the headrest posts. If those slip off the seat in a crash, you're gonna have a real bad time.
Comment
-
Originally posted by bigjae46 View PostI didn't catch that. I was going to ask about the rear door panels. What's the point? 🤣
'09 HP2S, '12 R12GSA, '00 Black 323iT, '02 Alpine 325iT (Track Wagon), '02 Alpine 330iT
Instagram @HillPerformanceBimmers
Email to [email protected]
- Likes 1
Comment
-
Man, life has really gotten in the way of car projects these last couple months. And unfortunately, I don't see that changing in the near future. Currently building myself a new garage, so until that's finished, no big car projects for me.
I've been trying to spend some time finishing the cabin air filter housing design, but I really haven't progressed much.
Given that bigjae46 is already adapting my design for use in his own car, I'm thinking that I should post what I have for broader consumption. This basically includes the design and documentation for everything but the custom cabin air filter housing.
If you're interested, be on the lookout for some post by me. Will try to compile everything in the next few days and share.2002 Topasblau M3 - Coupe - 6MT - Karbonius CSL Airbox - MSS54HP Conversion - SSV1 - HJS - Mullet Tune - MK60 Swap - ZCP Rack - Nogaros - AutoSolutions - 996 Brembos - Slon - CMP - VinceBar - Koni - Eibach - BlueBus - Journal
2012 Alpinweiss 128i - Coupe - 6AT - Slicktop - Manual Seats - Daily - Journal
- Likes 6
Comment
-

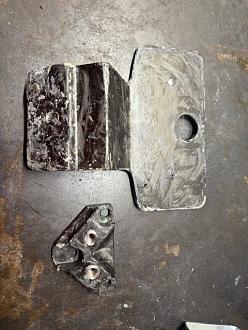

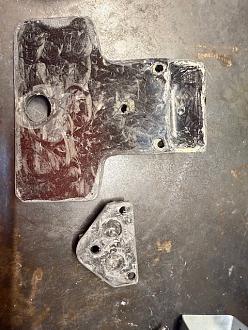

Yup, here is the forged carbon version (still have to clean up some wax and clay). Big thanks to heinzboehmer for providing some 3D printed parts.
I am going to bond the two pieces together. I don't need access to the area behind this since I don't have a blower motor or wipers. Also saves money on 4 threaded inserts. I molded in threaded inserts and will insert a stud with loctite in place of the pressed in studs. I could have used studs but those are $21 each.
This main mounting is a good candidate for a forged carbon part and cost about $400 in materials to make. The small stud plate is more difficult. Some of the details are a challenge. Might be worth modifying the part to make a carbon part. I think it would make sense to keep the small stud plate aluminum especially in a street car where the mounting needs to be 2 pieces.
Last edited by bigjae46; 09-25-2025, 05:54 PM.
- Likes 3
Comment
-
Originally posted by bigjae46 View PostThis main mounting is a good candidate for a forged carbon part and cost about $400 in materials to make. The small stud plate is more difficult. Some of the details are a challenge. Might be worth modifying the part to make a carbon part. I think it would make sense to keep the small stud plate aluminum especially in a street car where the mounting needs to be 2 pieces.
Originally posted by ethan View PostCan it all be machined 3 axis?
The other part is maybe still doable on a three axis, but getting the bearing planes flat would be fairly challenging.
That being said, no "machining-as-a-service" company is gonna bother spending the time to do these on a three axis. They're just gonna throw it at the five axis and charge you for it. Really only worth attempting the three axis if you're doing it yourself (or your buddy or whatever).2002 Topasblau M3 - Coupe - 6MT - Karbonius CSL Airbox - MSS54HP Conversion - SSV1 - HJS - Mullet Tune - MK60 Swap - ZCP Rack - Nogaros - AutoSolutions - 996 Brembos - Slon - CMP - VinceBar - Koni - Eibach - BlueBus - Journal
2012 Alpinweiss 128i - Coupe - 6AT - Slicktop - Manual Seats - Daily - Journal
Comment
-
Originally posted by heinzboehmer View PostThat being said, no "machining-as-a-service" company is gonna bother spending the time to do these on a three axis. They're just gonna throw it at the five axis and charge you for it. Really only worth attempting the three axis if you're doing it yourself (or your buddy or whatever).
- Likes 1
Comment
-
Originally posted by ethan View Post
I have a DIY router with a steel frame and Mitsubishi servos which handles 6061 pretty well, so I'd be tempted to make a fixture and see what I can do - might be good enough. I'll keep an eye on the thread for if/when you go public with the models.
There's a couple surfaces (the sides and the bottom rear of the flat) where flatness is not at all critical. You could leave a good chunk of stock there for rigidity and fixturing, machine all the other features, then hold from the sides and machine the bottom surface flat.

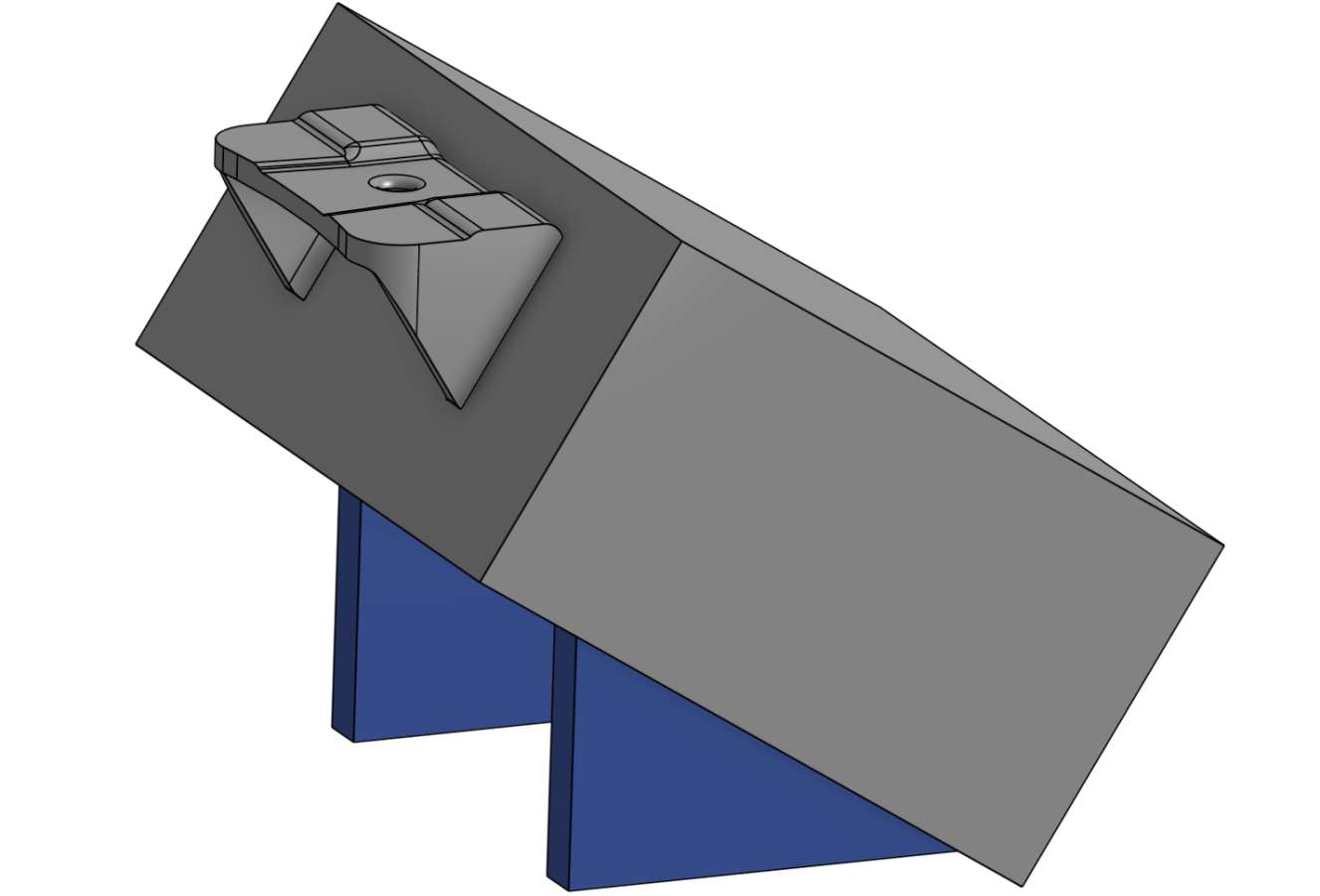

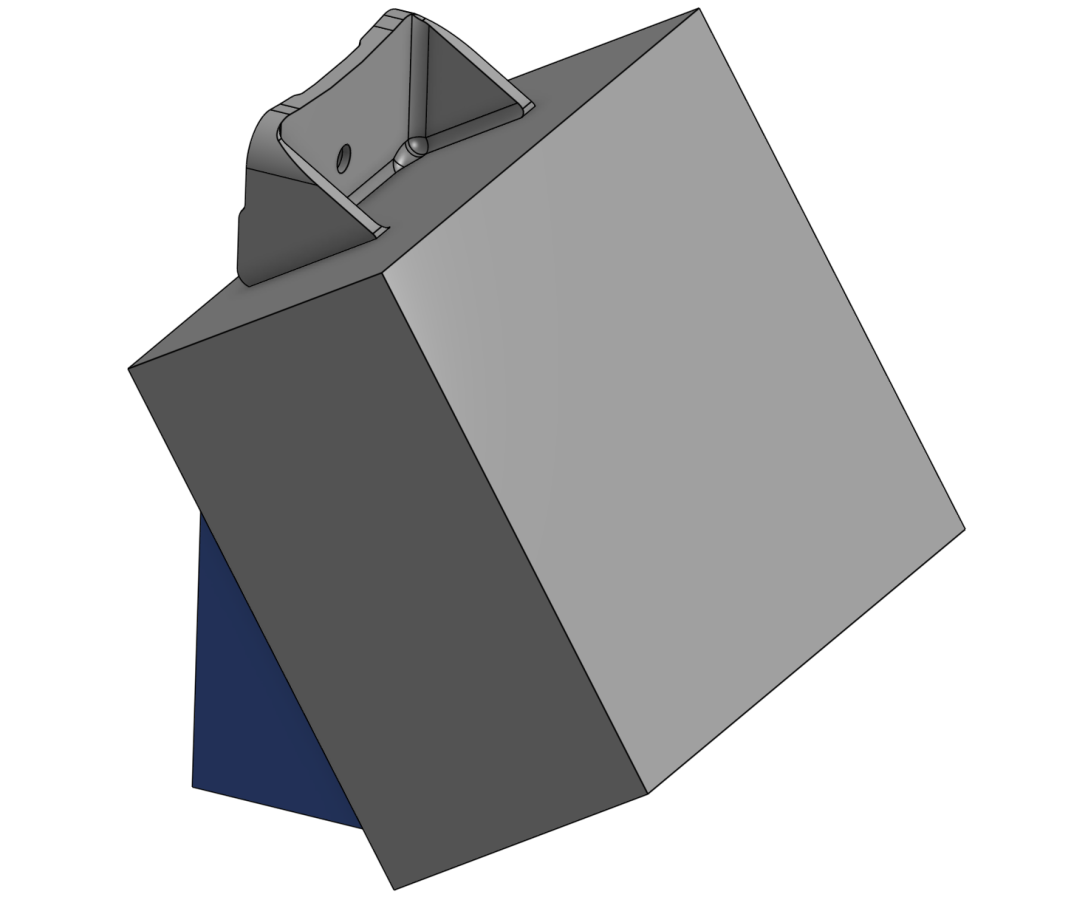

Edit: I have no CNC experience, so this might be dumb, but this is roughly how I would approach the machining on a three axis. Excuse the crudeness of the images.- Prop the stock on some angle blocks (blue), then machine the angled surface (square end mill) and pocket (ball end mill). Surface with the hole gets bonded to the chassis and needs to be fairly flat, so prefer to do it this way vs ramping to avoid interpolation artifacts.
- Reposition stock + blocks, drill out hole and clean up draft in the front clearance feature.

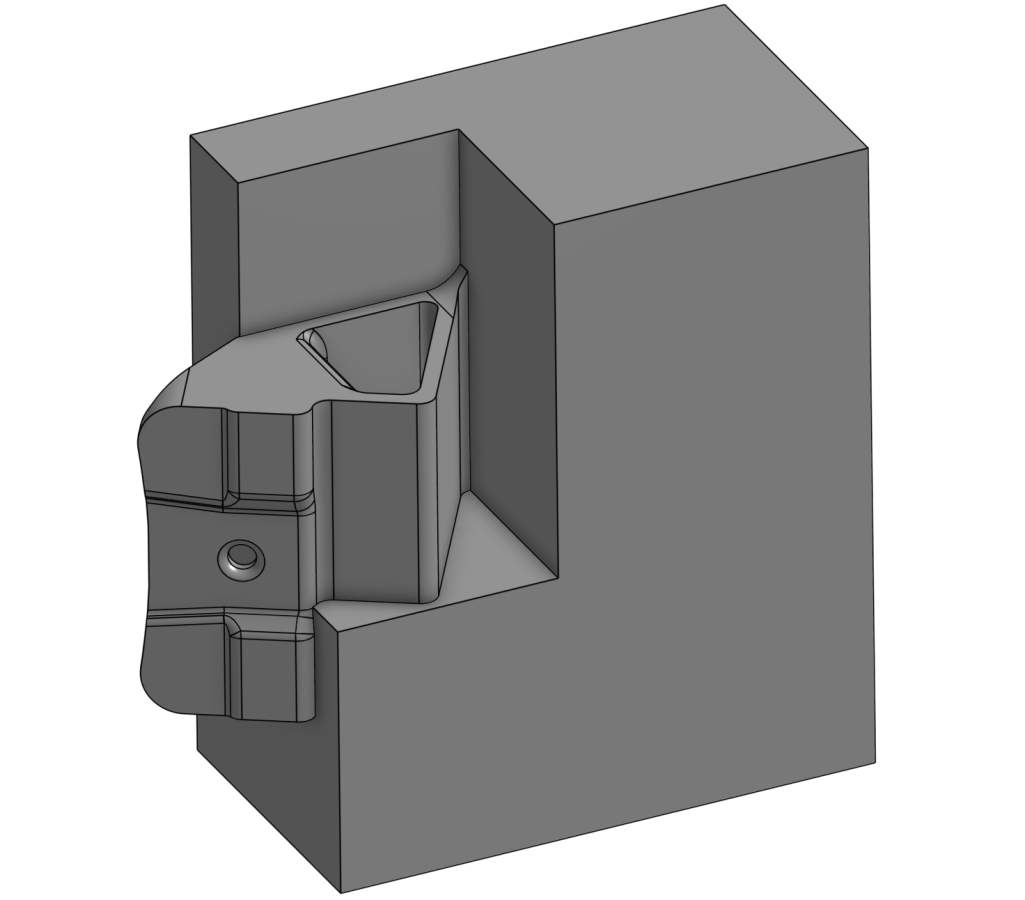

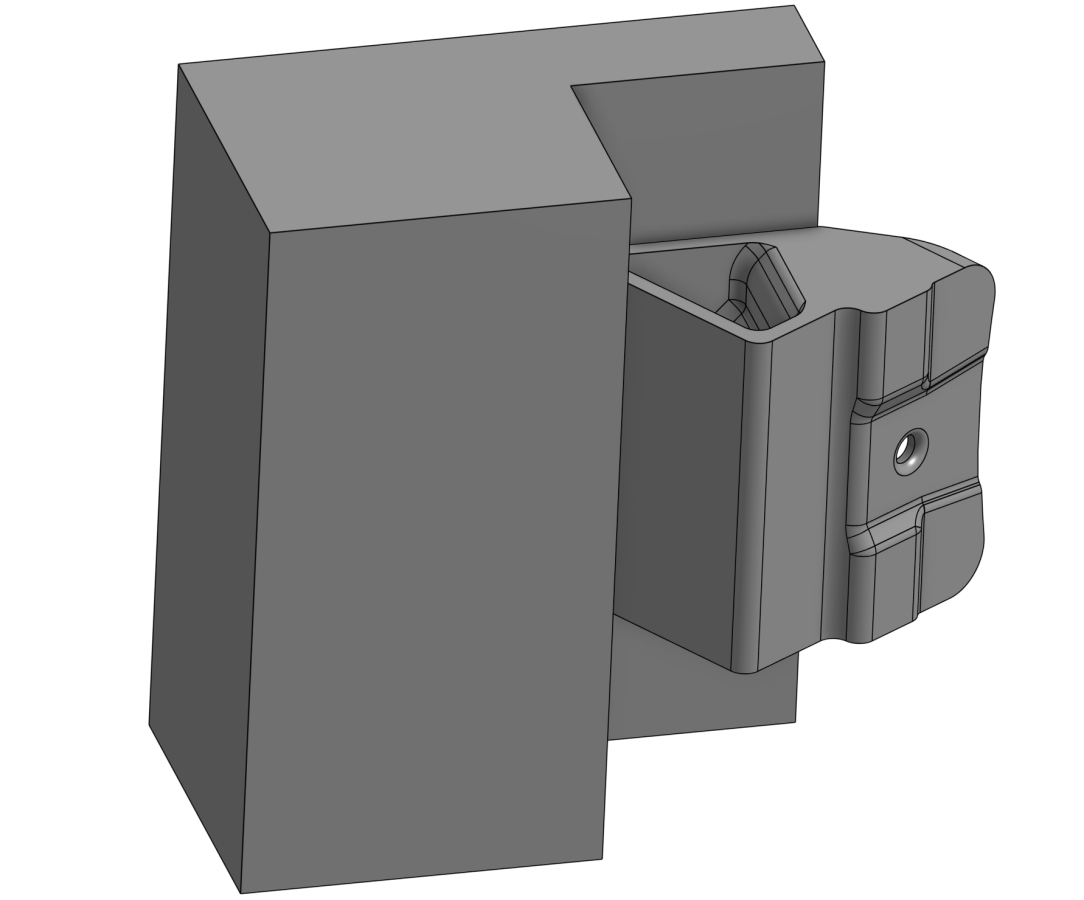

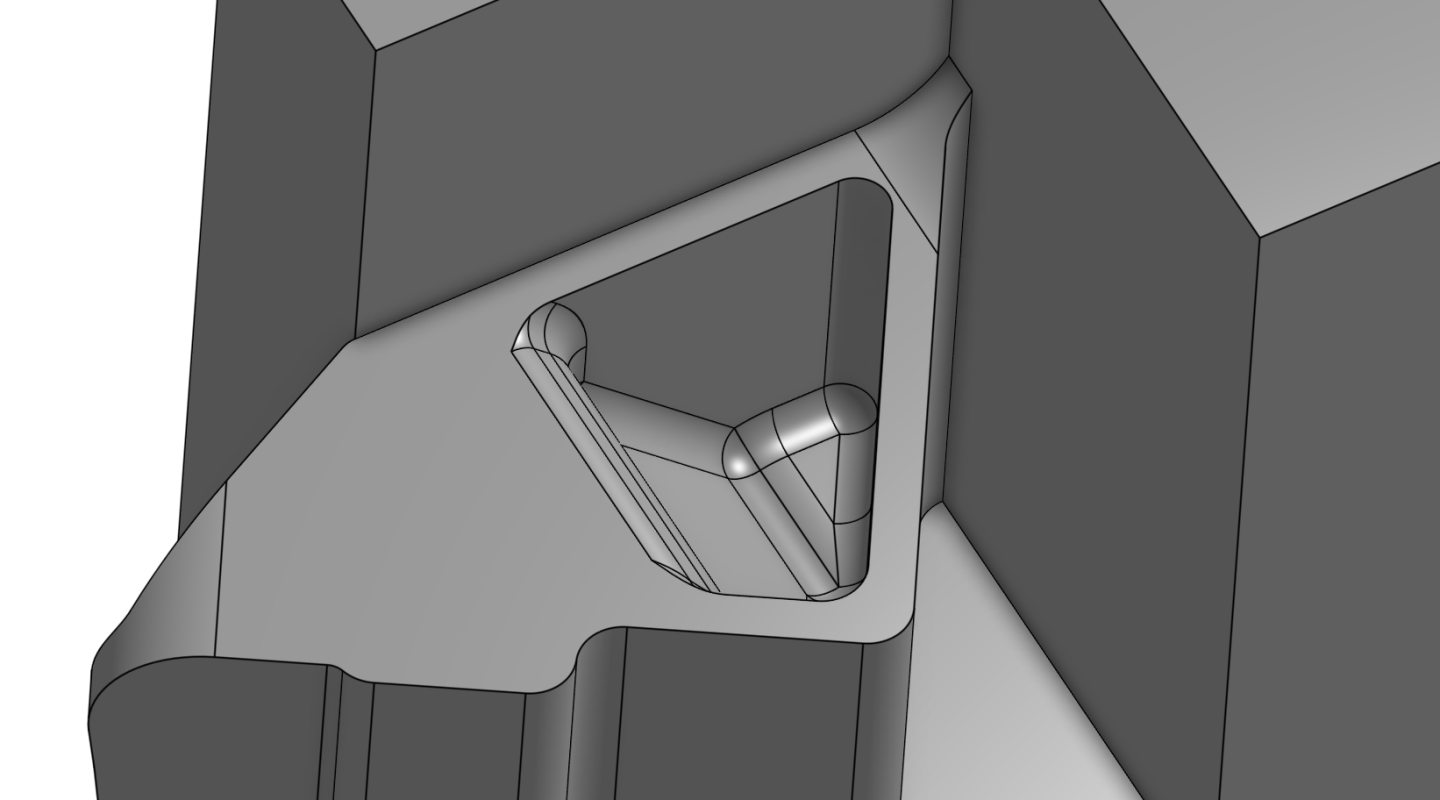

- Lay stock on its side and machine one of the pockets (ball end) + part of the surface (square). Surface gets bonded to chassis, so same comment about interpolation. You might be able to get the entire surface from this side, depending on the capabilities of your machine.
- Lay stock on its other side and machine the other pocket + rest of surface if necessary.

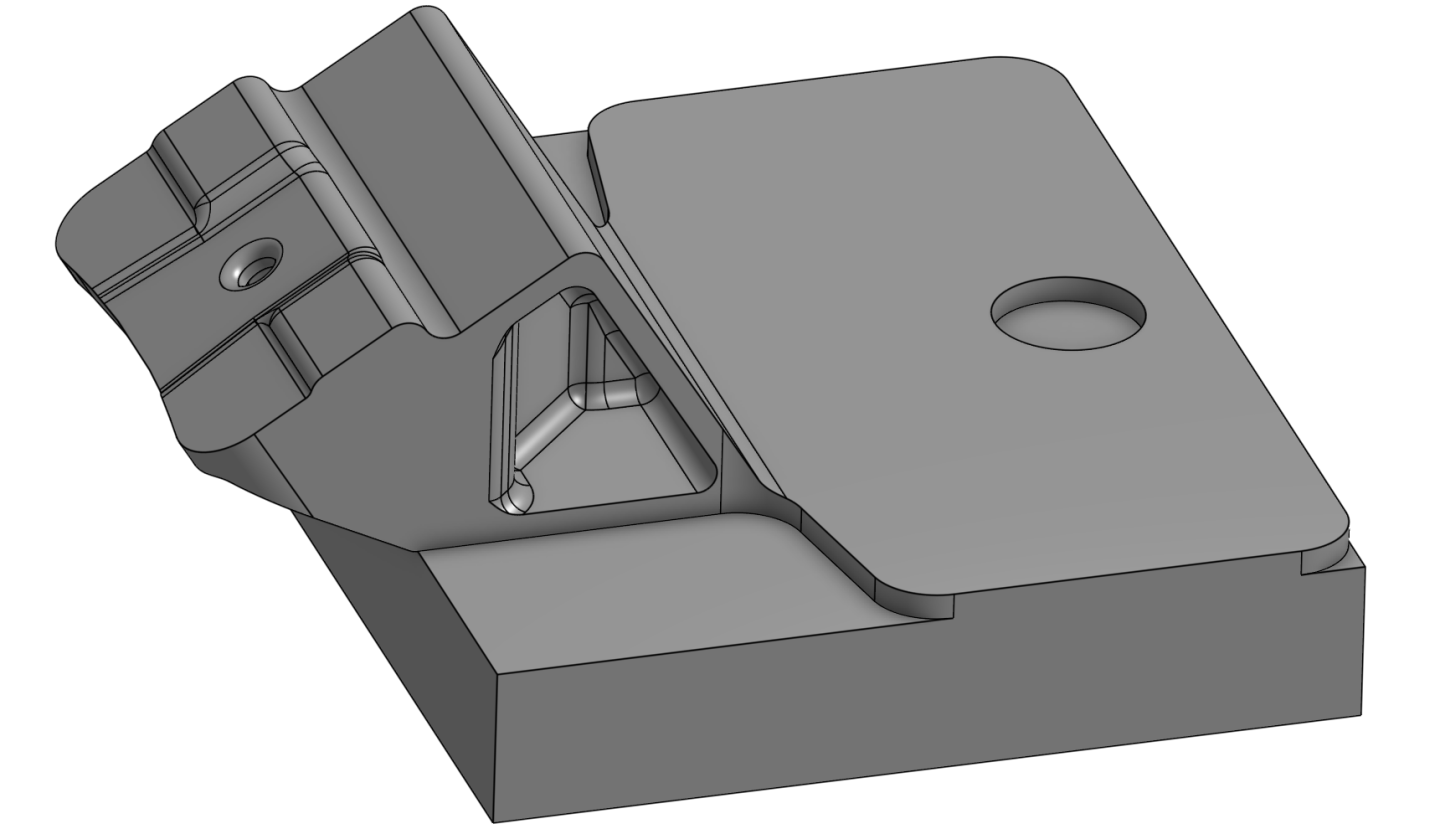

- Lay stock flat and machine/slit large chunk off of the rear. This top surface also needs to be flat for bonding.

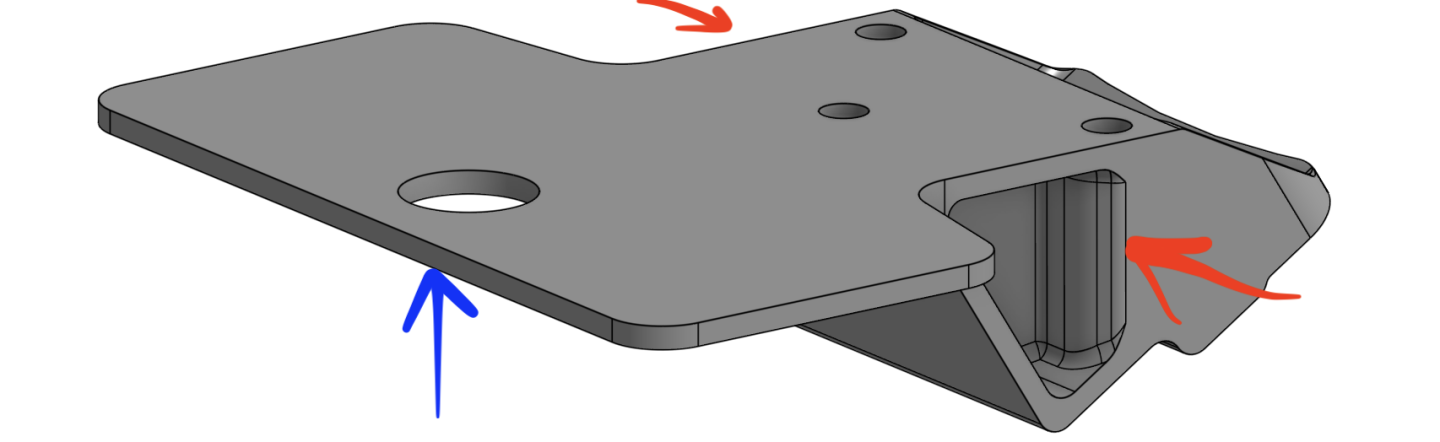

- Grab part by the sides in vise (red arrows), support large flat cantilever with something (blue arrow) and machine the bottom surface. Only the front part of this surface (where the three holes are) needs to be flat, so deflection in the rear is not a huge deal. This setup should result in a fairly flat surface though.
So yeah, fairly involved process, but totally doable.

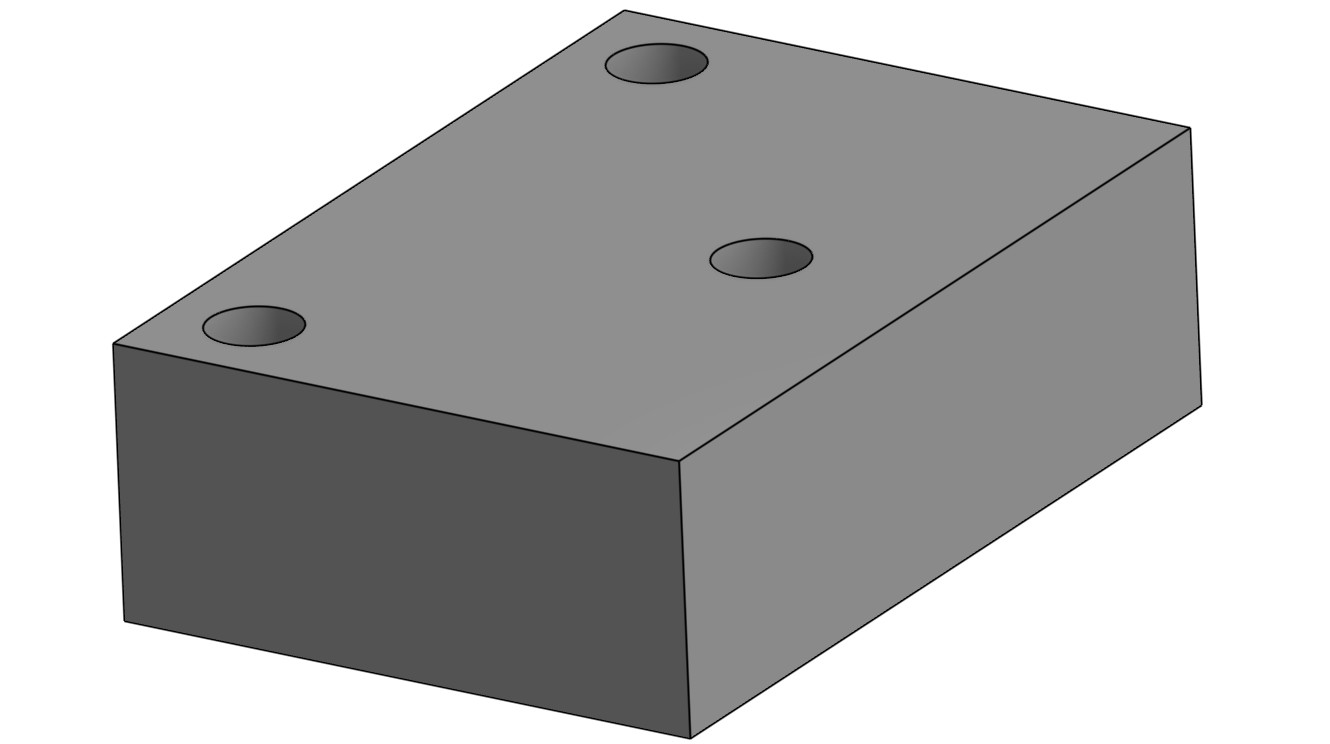

Edit 2: While we're at it, here's how I would approach the smaller piece. Actually seems easier than how I imagined it yesterday. Again, excuse the crudeness.- Start by drilling the three holes for the mounting hardware.

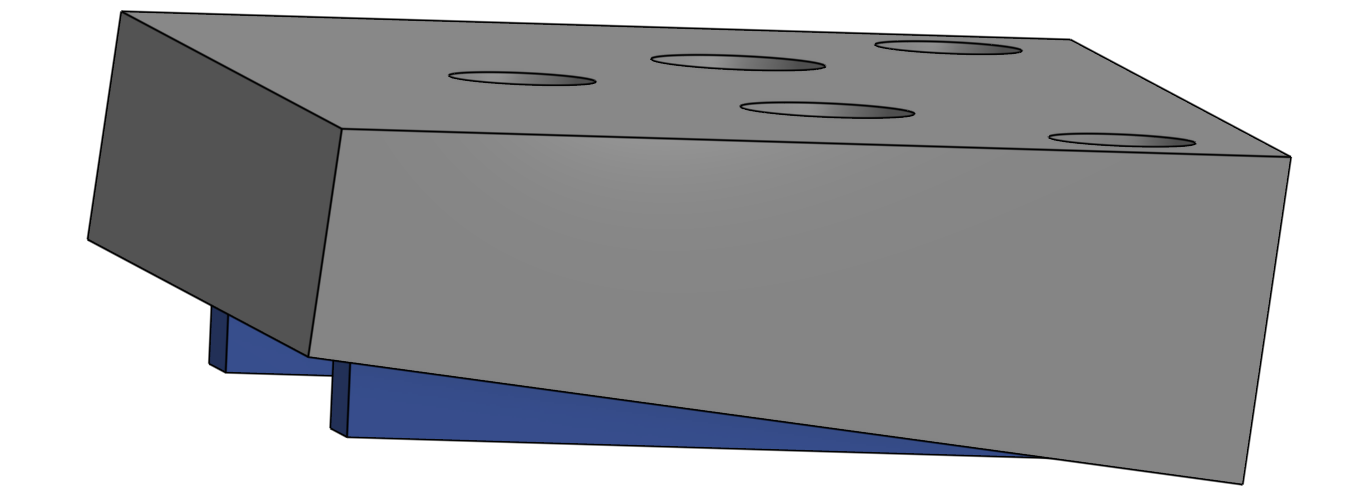

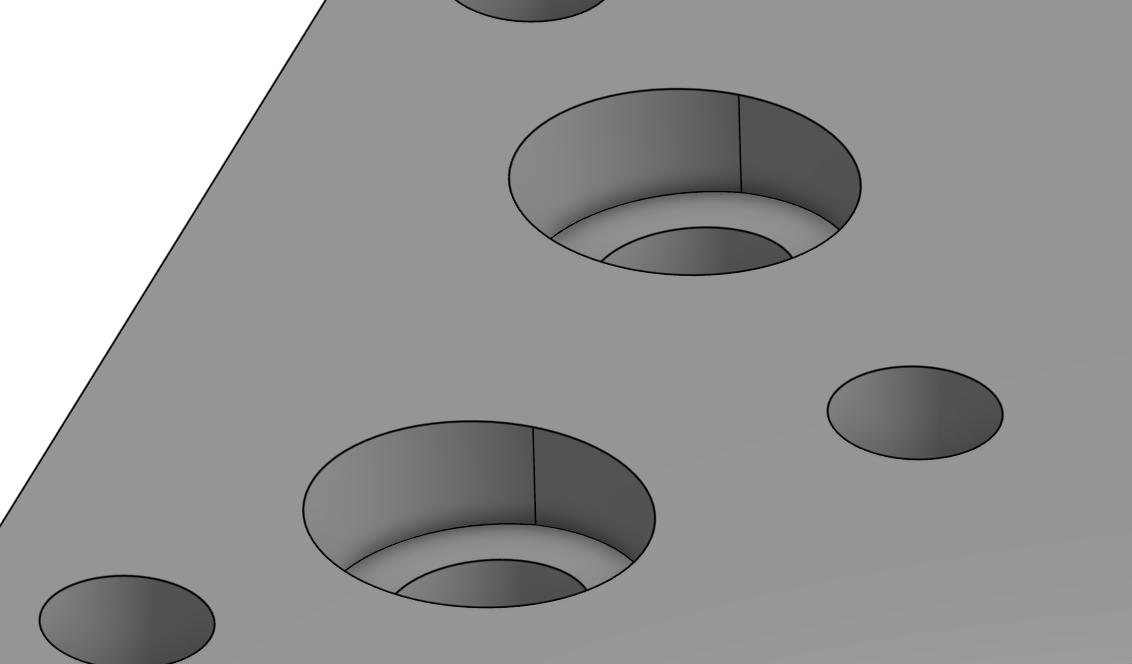

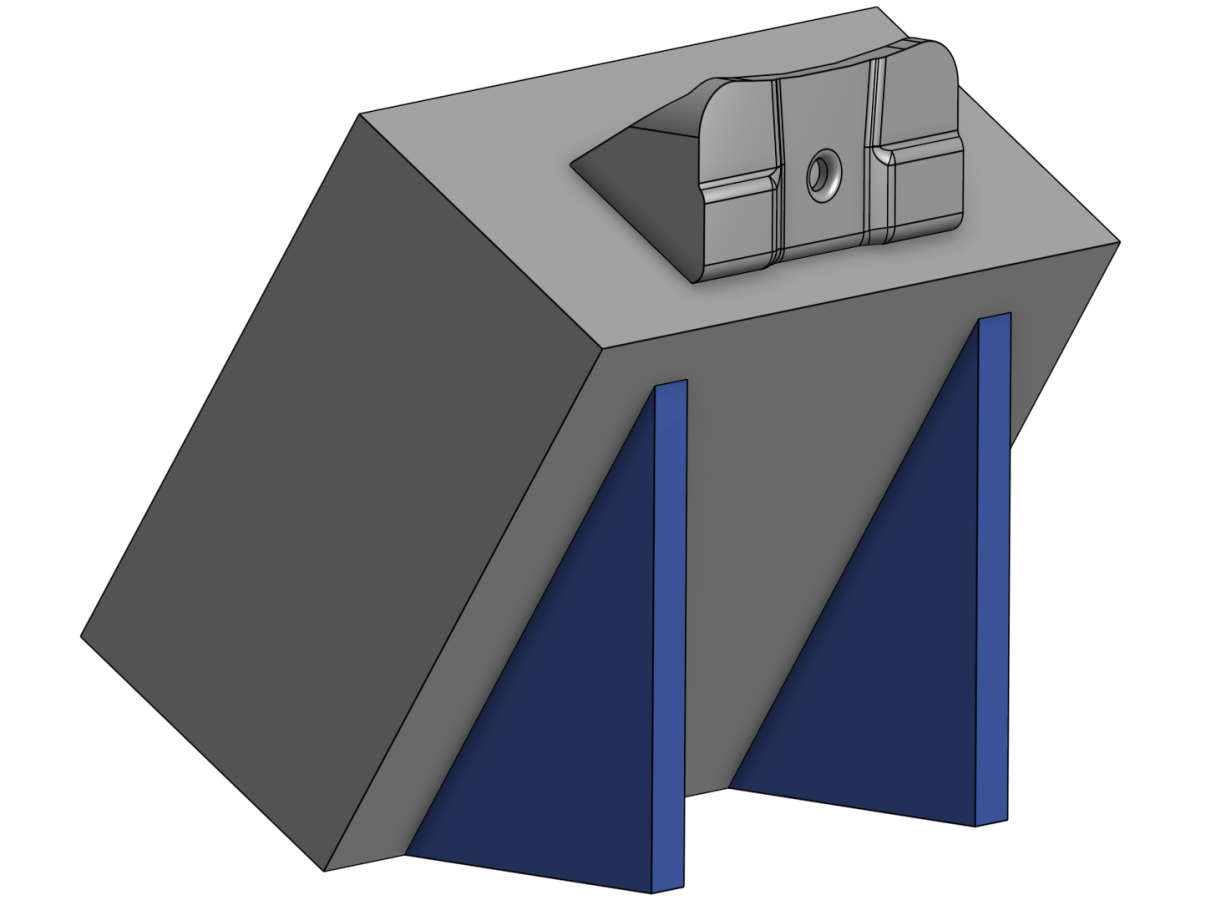

- Prop on angle blocks and drill holes for studs + bore out clearance for stud heads.

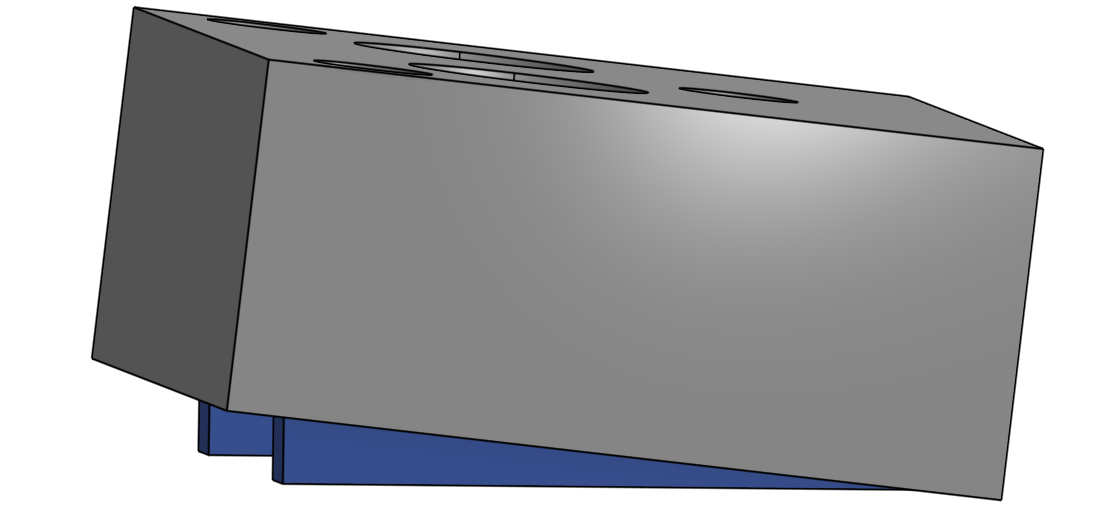

- Flip over and prop on another set of angle blocks to machine surface that the E86 braces bolt to.

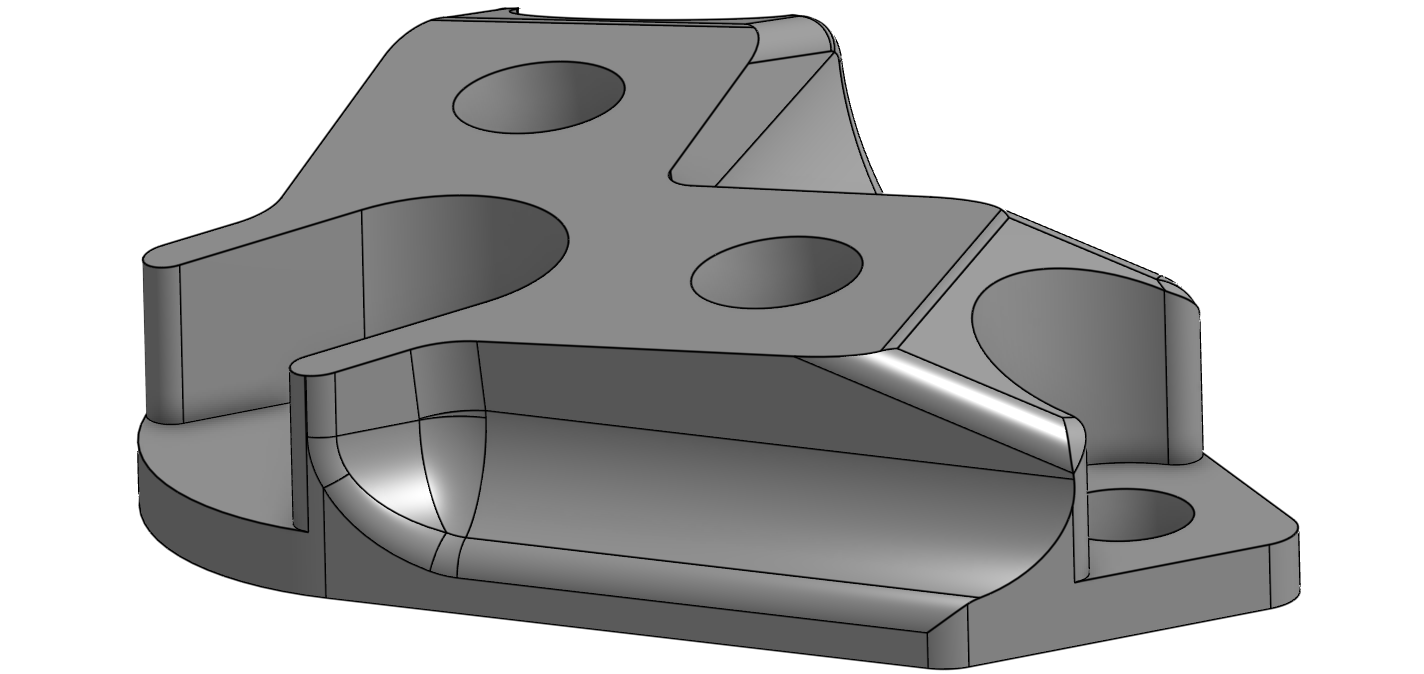

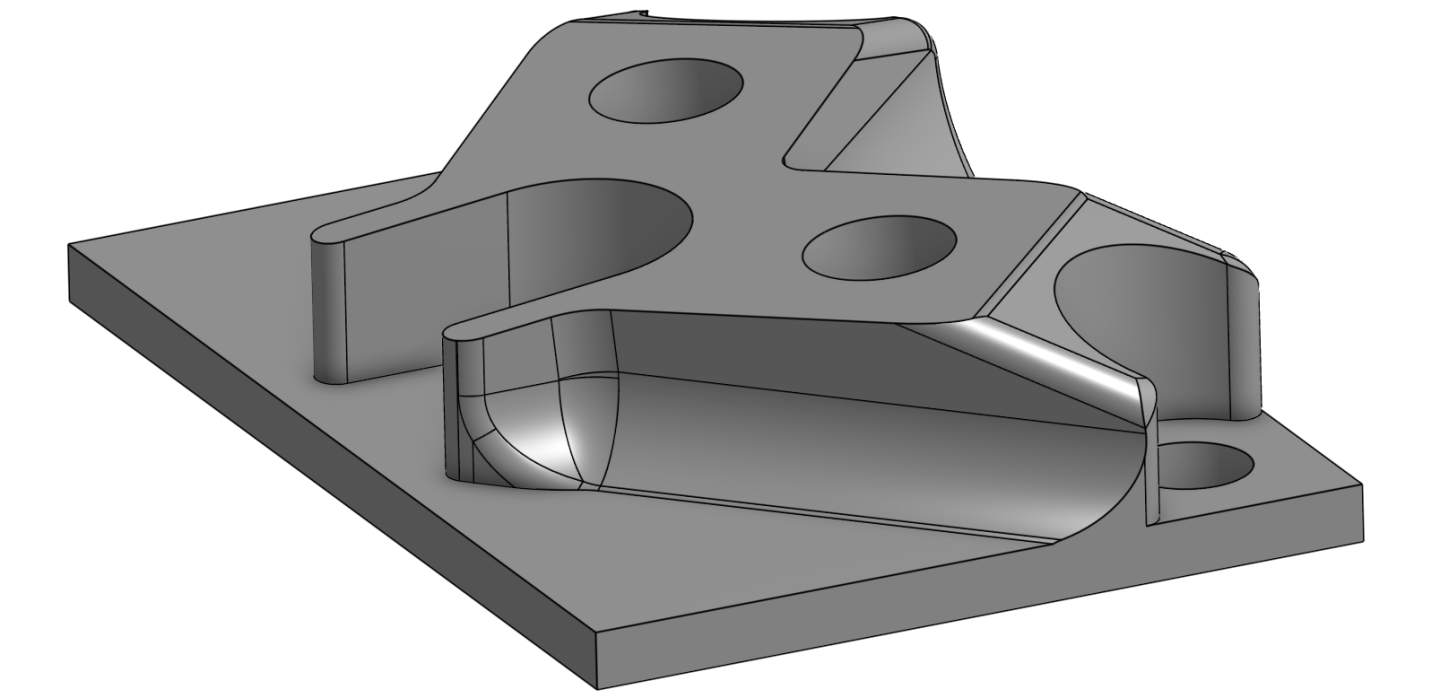

- Lay flat and let the CNC do what it does best. None of these features are too critical, they're just there for brace and fastener clearance.
- Bolt the part down to the work surface using the three mounting holes and clean up the perimeter.
Last edited by heinzboehmer; 09-26-2025, 10:13 AM.2002 Topasblau M3 - Coupe - 6MT - Karbonius CSL Airbox - MSS54HP Conversion - SSV1 - HJS - Mullet Tune - MK60 Swap - ZCP Rack - Nogaros - AutoSolutions - 996 Brembos - Slon - CMP - VinceBar - Koni - Eibach - BlueBus - Journal
2012 Alpinweiss 128i - Coupe - 6AT - Slicktop - Manual Seats - Daily - Journal
- Likes 3
Comment
- Prop the stock on some angle blocks (blue), then machine the angled surface (square end mill) and pocket (ball end mill). Surface with the hole gets bonded to the chassis and needs to be fairly flat, so prefer to do it this way vs ramping to avoid interpolation artifacts.
-
Aaaand documented to the present day: https://nam3forum.com/forums/forum/m...fit#post3210602002 Topasblau M3 - Coupe - 6MT - Karbonius CSL Airbox - MSS54HP Conversion - SSV1 - HJS - Mullet Tune - MK60 Swap - ZCP Rack - Nogaros - AutoSolutions - 996 Brembos - Slon - CMP - VinceBar - Koni - Eibach - BlueBus - Journal
