CSL '0401' Program Binary Disassembly Notes

[karter16]

Continuing on with the MAP sensor work. I'll write this up properly and put it in the MAP sensor wiki, but for now here's the disassembled code listing. This is the function that takes the raw MAP sensor AD values from the ring buffer and calculates MAP pressure and manifold vacuum pressure.

It really would be very nice to have the actual parameter/variable names, but you'll have to suffer through my made up names (identified as all lowercase) :-)

Key things of note:
- The code loops through the ring buffer every time it runs and pulls and averages a number of valid samples (by default it's actually only 1 valid value that it samples).
- It then takes the raw value and offsets it and scales it according to the MAP scaler and offset parameters that have been known for some time.
- Manifold vacuum pressure is calculated as P_UMG (ambient pressure from the on-DME pressure sensor) minus MAP pressure.
- The function runs in both the segment task and the 10ms task.

[karter16]

Today I finally got round to trying setting k_rf_cfg to 0x02 (from 0x12) to take the MAP sensor out of the final RF calculation path.

The result is that the car behaves and drives in the same way as if the MAP sensor is physically disconnected. The car runs in AlphaN + TABG adjustment mode.

I didn't personally have any doubt that this would be the case (although I know others did), but good to prove this. I think I mentioned previously that it seems like this would be good practice to take the MAP sensor out of the RF calculation path when doing the VE tuning process. I can't think of an objective way to measure this though. If anyone has any ideas I'm all ears!

[ac427]

Today I finally got round to trying setting k_rf_cfg to 0x02 (from 0x12) to take the MAP sensor out of the final RF calculation path.

The result is that the car behaves and drives in the same way as if the MAP sensor is physically disconnected. The car runs in AlphaN + TABG adjustment mode.

I didn't personally have any doubt that this would be the case (although I know others did), but good to prove this. I think I mentioned previously that it seems like this would be good practice to take the MAP sensor out of the RF calculation path when doing the VE tuning process. I can't think of an objective way to measure this though. If anyone has any ideas I'm all ears!

What difference did you notice with k_rf_cfg to 0x02, poor part throttle performance?

[karter16]

What difference did you notice with k_rf_cfg to 0x02, poor part throttle performance?

Yep less responsive part throttle and more jerkiness. Exactly the same effect as disconnecting (electrically) the MAP sensor and going for a drive.

[ac427]

Today I finally got round to trying setting k_rf_cfg to 0x02 (from 0x12) to take the MAP sensor out of the final RF calculation path.

The result is that the car behaves and drives in the same way as if the MAP sensor is physically disconnected. The car runs in AlphaN + TABG adjustment mode.

I didn't personally have any doubt that this would be the case (although I know others did), but good to prove this. I think I mentioned previously that it seems like this would be good practice to take the MAP sensor out of the RF calculation path when doing the VE tuning process. I can't think of an objective way to measure this though. If anyone has any ideas I'm all ears!

Me neither but it would be interesting to compare the VE tuning output from both with and without the MAP sensor tuning results.

[karter16]

Well being sick has given me the excuse to spend some more time working on the disassembly. I've been focused on the calculation of rg_m which is the mass of residual gas in the cylinder and is one of three components which results in the final calculation of mass of gas in the cylinder (which is key to the calculation of final RF).

I'm very pleased to have completely figured out the EVAN (intake cam) component of the calculation of rg_m. The position of the intake camshaft influences the amount of residual gas left in the cylinder. I've *almost* figured out the exhaust cam component of it as well, but am not quite there yet. I haven't yet figured out the units of the curves at 0xe6d6 and 0xe708 ( ppm008 if you're around I'd love a hint on these :-)).

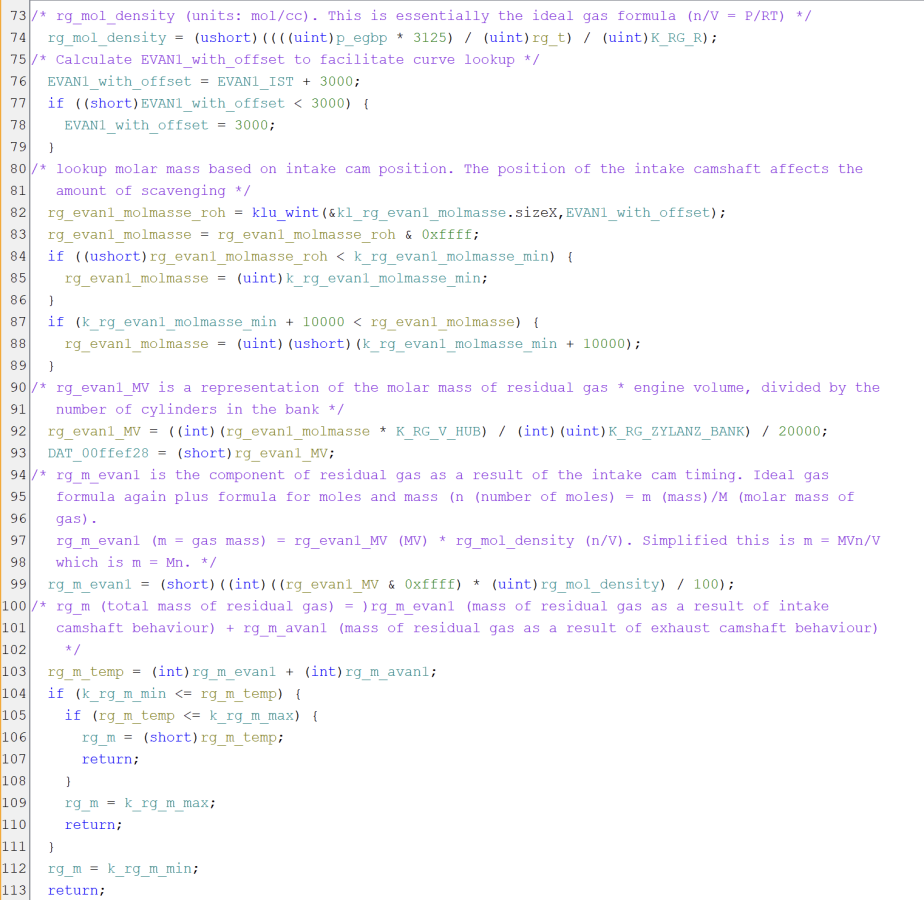

Anyway - here's the intake component of the function. Once I've got the entire function figured out I'll do a write up and add it to the wiki page

I'm really pleased to have figured this out as MPowerE36's analysis hadn't gone in to this aspect of the mass calculation, and as far as I know no one has (publicly) figured this out.

[karter16]

I posted the below in the a quick and easy way to street tune your csl conversion for drivability thread, and thought I'd also put here for reference:


For what it's worth I've just been working through this in my disassembly project and thought it would be worth noting here. Below is a summary of how it comes together:

AQ_ABS (absolute cross-sectional opening) = AQ_ABS_LLS (absolute cross-sectional opening of idle control valve) + AQ_ABS_WDK (absolute cross-sectional opening of throttle plates)

AQ_REL (relative cross-sectional opening (%)) = (AQ_ABS - K_AQ_ABS_MIN (minimum possible cross-sectional opening)) / (K_QA_ABS_MAX (maximum possible cross-sectional opening) - K_AQ_ABS_MIN)

This AQ_REL value is what's used in the standard M3 software, a commonly referenced example of this is the VANOS maps - AQ_REL is the y-axis in those tables.


The important thing to know is that AQ_REL isn't used directly in the CSL AlphaN maps. It's actually a modified version of AQ_REL that is used.

For the purposes of this explanation I will call this modified value AQ_REL_ALPHA_N it is calculated thusly:

AQ_REL_ALPHA_N = AQ_REL / AQ_REL_ALPHA_N_FAKT

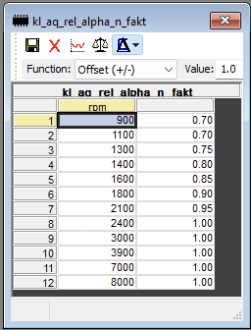

So what's AQ_REL_ALPHA_N_FAKT? It's just my name for the output of the lookup curve at: 0xE056




x axis is N (rpm) and the output is a scaling factor.

Essentially what this means is that AQ_REL_ALPHA_N will be a smaller value (between 0-30% smaller dependent on RPM) than actual AQ_REL beneath 2400 RPM.

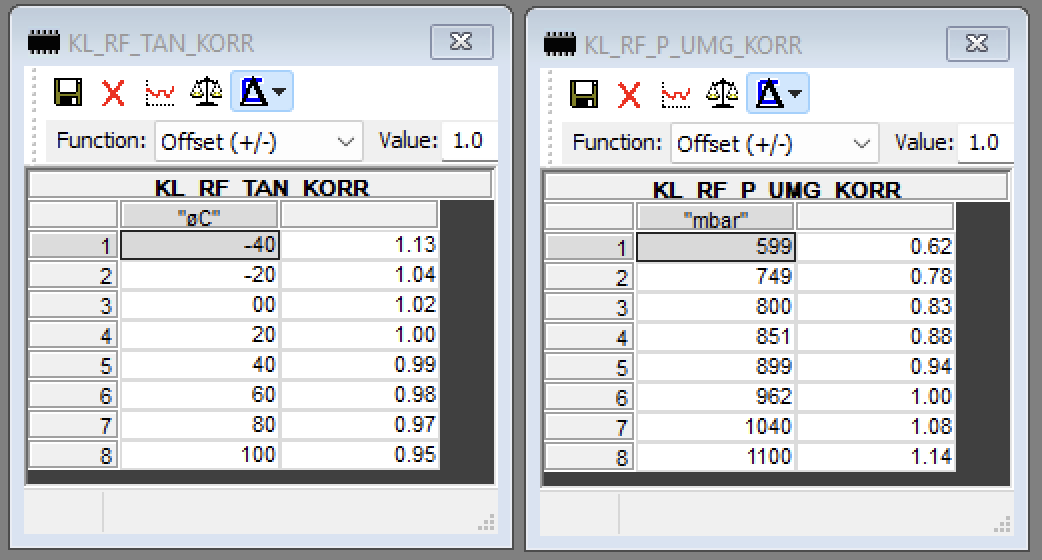

Additionally there is another value that is also calculated in the same routine, let's call it AQ_REL_ALPHA_N_PT_KORR which is additionally scaled based on P_UMG (Ambient air pressure) and TAN (Intake air temperature).



This value isn't used in the CSL AlphaN maps (or in other operational code), but it is used in two routines which seem to be involved in the sending/export of data (I haven't figured out yet if these are the DS2 routines or something else). Crucially AQ_REL_ALPHA_N is NOT referenced in any sending/export routines. Which raises the possibility that the "Relative Opening" datapoint that we are logging in TestO isn't even the same data point that is actually used as an input to the VE table (indeed it could even be the standard AQ_REL variable). Looking at the two tables above they are normalized around 20 degrees C intake temp and ambient air pressure of 962mbar, so it's not going to be too far off either way, but for example today in Auckland was 1016mbar at 20C, so PRESUMING THIS IS THE CASE I'd be looking at a 4% variance.

I will spend more time looking at this to see if I can establish with certainty which of the two variables "Relative Opening" represents.


Also worth mentioning that the MAP sensor does not have any part in the calculation of AQ_REL. The MAP sensor is used in the calculation of air mass, which in turn is used in the calculation of final Relative Fill (an adjustment to the value obtained from the VE table).


I realize this post is more focused on the "academic" side but hopefully of use to the collective understanding.

[karter16]

Okay - so I've categorically confirmed that the AQ_REL_ALPHA_N value which is used as the y axis in the CSL Alpha N map is NOT available over DS2. AQ_REL is available over DS2 as is AQ_REL_ALPHA_N_PT_KORR (on the DME side at least).

I'm 90% sure that it's AQ_REL that's exposed in TestO as "Relative Opening", which would make sense on pretty much every level, but I have a bit more work to go to be 100% confident in that.

Either way, it looks as though the VE tuning process can be made more accurate with the appropriate compensation for this.

[karter16]

100% confirmed that the value exposed in TestO is AQ_REL. AQ_REL_ALPHA_N_PT_KORR is not exposed at all in TestO.

[karter16]

So I don't really have any particular use case for it right now, but I'm pretty confident I've worked out enough about the DS2 telegrams and how they are constructed in the DME, and then interpreted in TestO to be able to replace an existing telegram with any set of variables I like from the DME. I'll try to prove this out in the next few weeks with a simple example (I'm thinking I could make AQ_REL_ALPHA_N available in TestO as a demonstration - although this wouldn't actually really be useful as a general solution for the VE tuning as it will be much easier to create a modified version of heinzboehmer's spreadsheet that applies the interpolation factor to AQ_REL).

What are the limitations?
- Replacing an existing value with another value of the same size (byte, word, etc.) is no problem as it's simply replacing one memory address with another in the code.
- The DS2 telegrams tend to have room in them to insert additional values (array elements set to 0), but this is not as easy as a move instruction is 6 bytes vs a clr instruction at 2 bytes. It would mean greater modification to the code to jump out to another location would be required.
- Doing any of this means flashing a custom program binary. It also means while the DME is running the custom binary other DS2 tools (like INPA) won't read the modified values correctly.

Is there actually a use case for this?
I don't really know to be honest. Maybe other people can think of some useful examples? I'm more envisaging this as potentially being useful for testing/debugging/learning to expose variables that otherwise aren't exposed outside of the DME.

[Bry5on]

Any chance you're able to increase the frequency/speed that the telegrams reply? I'm assuming it's on an interval routine. This would make the tuning process a lot more useful and quick as well.

The more useful thing is to broadcast more values over CAN

[karter16]

Any chance you're able to increase the frequency/speed that the telegrams reply? I'm assuming it's on an interval routine. This would make the tuning process a lot more useful and quick as well.

The more useful thing is to broadcast more values over CAN

I haven't managed to unpick that far back yet. The DS2 handler seems to be called via interrupt, so working out what it is that's calling it is the next bit to try work out.

Definitely broadcasting over CAN would be ideal - I have a rough idea how that would work, it will just be a lot of effort to pull off. When I get a chance I'll do a bit of a write up on how I see that possibly working. I think I adding an additional CAN ARBID isn't necessarily the hard bit. The challenge is the Master/Slave arrangement.

With DS2 the master handles telegrams that have values that originate from Master and likewise the slave handles telegrams for values that originate from slave.

With CAN the Master handles it all. Therefore broadcasting any values from the slave that aren't already exposed over the DPR (dual ported RAM) is harder.


Sent from my iPhone using Tapatalk

[S54B32]

Any chance you're able to increase the frequency/speed that the telegrams reply? I'm assuming it's on an interval routine. This would make the tuning process a lot more useful and quick as well.

The more useful thing is to broadcast more values over CAN

karter16 should get in contact with sda2 (robin)! He did similar improvements and changes to the DS2 routines on ms43. And added also CAN ID's for tuning/logging

i would love to see ignition retards cylinder specific from knockcontrol, on DS2.
DS2 it self is so easy (on tester side), with a small display and a esp32/arduino or other mcu you can easily build a data acquisition display I would say even with limited knowledge about programming. Did that some years ago, but I was limited to available DS2 commands

[karter16]

Okay so with the latest prodding from Bry5on I've spent a bit more time looking at options around sending values over CAN. Here's my thoughts on how it could be achieved.

The DME sends 3 different CAN messages to the bus every 10ms (4 if SMG). It does this by calling a function in the 10ms task on the Master CPU.

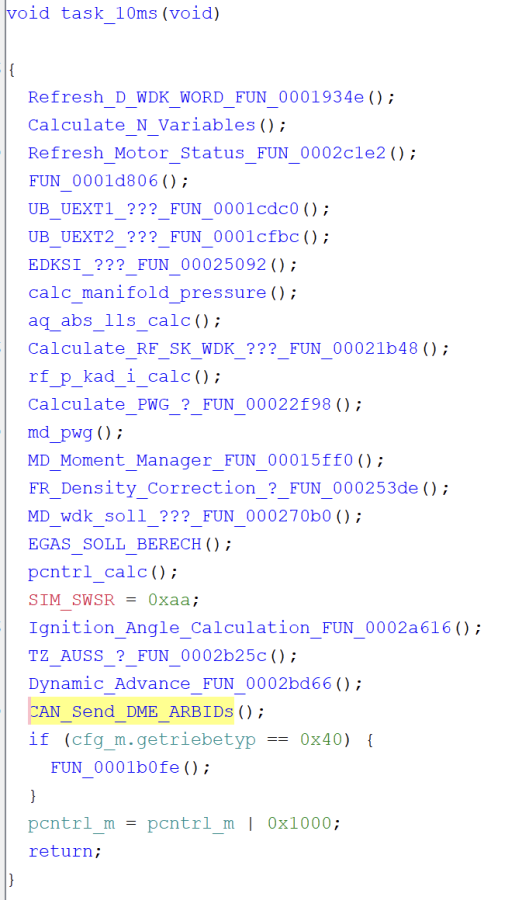

This function looks like this:

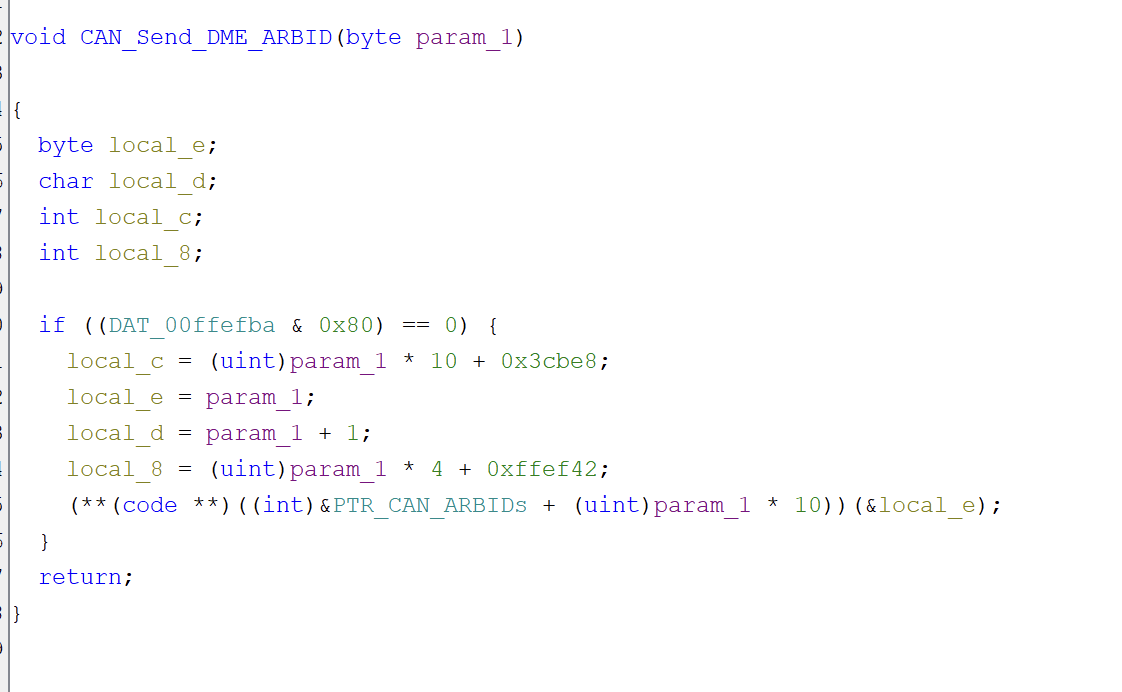

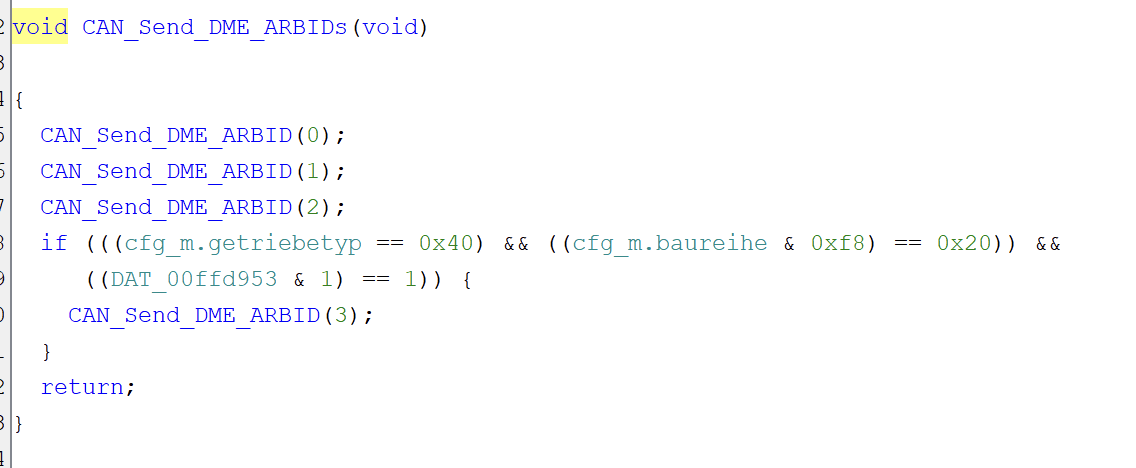

and the CAN_Send_DME_ARBID() function looks like this:

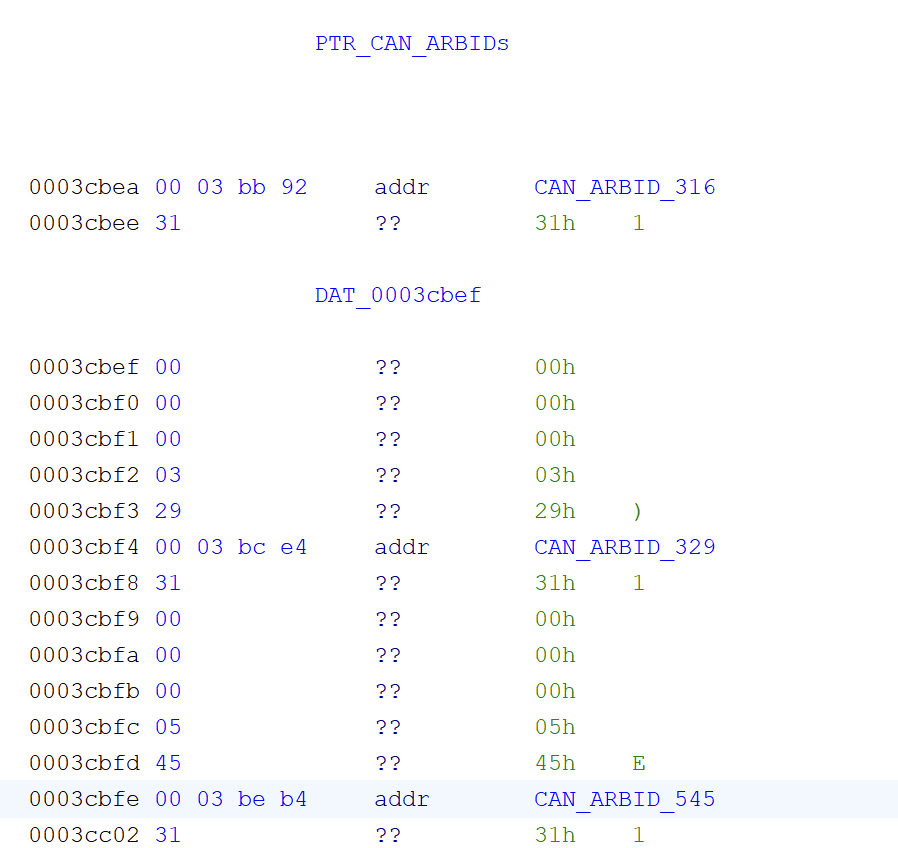

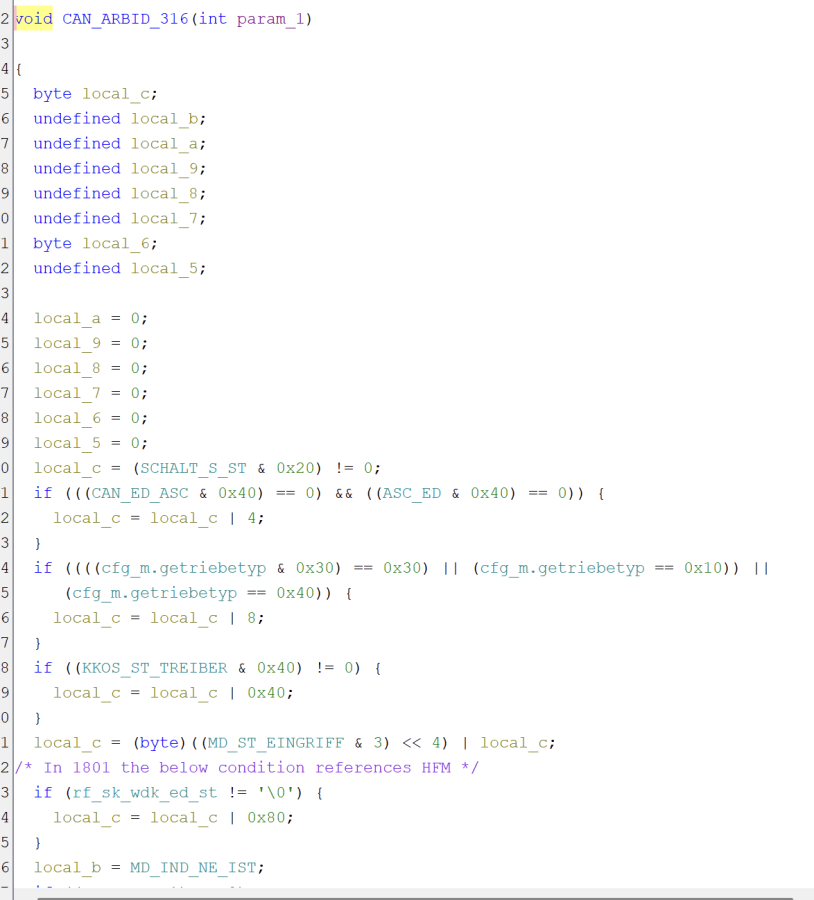

In turn the PTR points to an array of memory locations which in turn points to the specific functions for each CAN message:






So where does this leave us?

I think the best approach is to add in a new additional CAN message. This would give us 8 additional bytes that we could poke our values into. And I think that the best way to do that is to replace CAN_Send_DME_ARBIDs() with a new replacement function.

1: It's an easy change in the 10ms task to call a function at a different memory location. No change in length of code, just the memory address to jump to.
2: We can then build out a copy of CAN_Send_DME_ARBIDs() but add in the extra code to call a new function for our new CAN message.
3: We don't need to try to inject a value into the existing array of CAN messages (which there isn't room to do).
4: We can then build out a new function to send our new CAN message.

By doing it this way we maximize our flexibility and minimize any changes to existing code and data. It also leaves open a tantalizing opportunity.

By adding another layer of abstraction to our new function that constructs our CAN message I believe it would be possible to store the memory addresses of the variables we want to poke into the new CAN message in the partial (tune) binary. This additional layer of abstraction would mean that it would be possible for the end user to control what 8 bytes of data they wanted to make available in the CAN message by editing only the partial binary. There would be some limitations and considerations (e.g. the aforementioned issue of variables not available over the DPR, dealing with 8/16 bit values and how those are mapped (this could be dealt with with some additional config bytes), some variables are produced by functions that run less frequently than every 10ms, so there would be limited value in sending them over CAN so often, etc.)

This assumes that the DME has enough headroom to send a 5th message in the 10ms task. I see nothing to suggest that the DME is being pushed that close to the limit already so I doubt that would be an issue in practice. If it is given a sufficiently low-priority ID it wouldn't matter too much I don't think.

[Bry5on]

Holy crap this is amazing! I think I had an ideal list of variables at some point back. This is all above my pay grade to easily jump in, how can I help?
