    Originally posted by pawelgawel View Post
    can anyone tell me the torque specs for the bellhousing and the trany?
    Edit: Updated to latest version:
    Edit 2: Link to direct post doesn't work. Post #17 in this thread
    https://nam3forum.com/forums/forum/main-forum/e46-2001-2006/414-e46-m3-torque-spec-thread-every-bolt-on-the-car-on-diagrams?p=5291#post5291
    which links to:

    Page 73/75
    Last edited by Shonky; 04-22-2021, 03:14 AM.

    Comment


      ECS has the clutch switch 700 listed on sale, but I just chatted with someone and its not Brown, its Black.

      Comment


        question regarding PIN 2 on the clutch switch, I have installed the ID sensor, do I have to splice this into something or just straight into pin 20 in DME?
        this DME part has me a little confused... I take out the SMG modual all together and salomon relay.. do I need to move over a wire from there over to the main DME?
        Last edited by pawelgawel; 04-22-2021, 12:46 PM.

        Comment

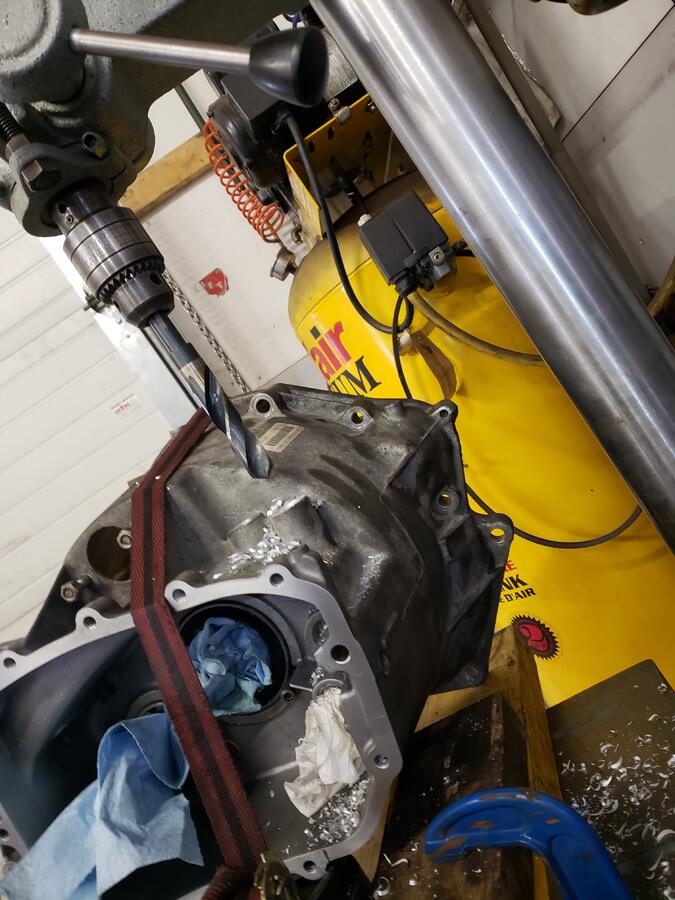

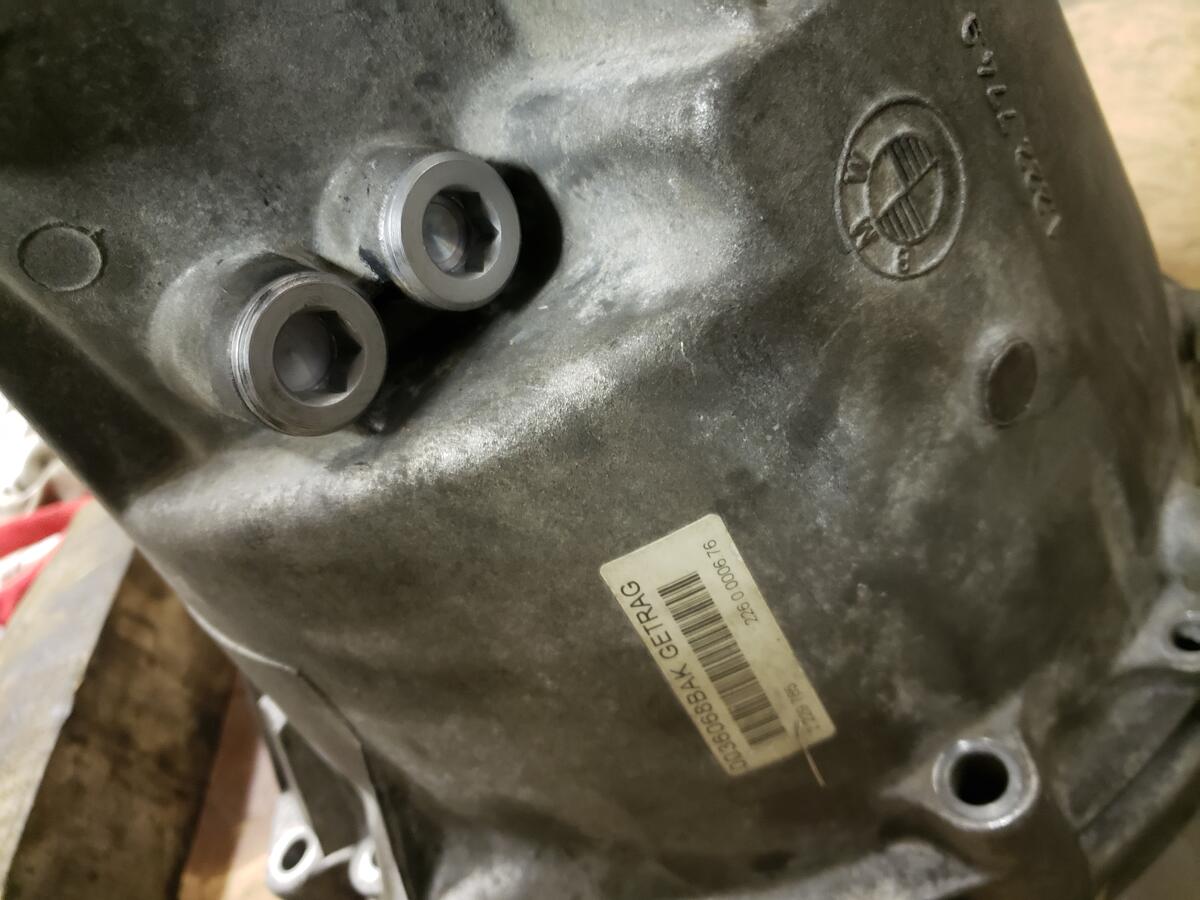

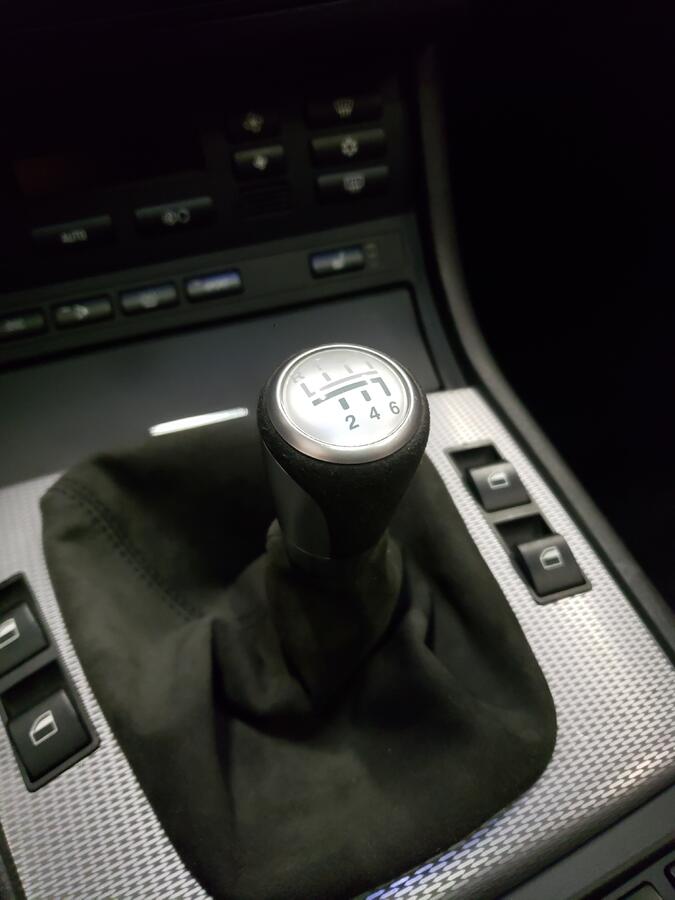

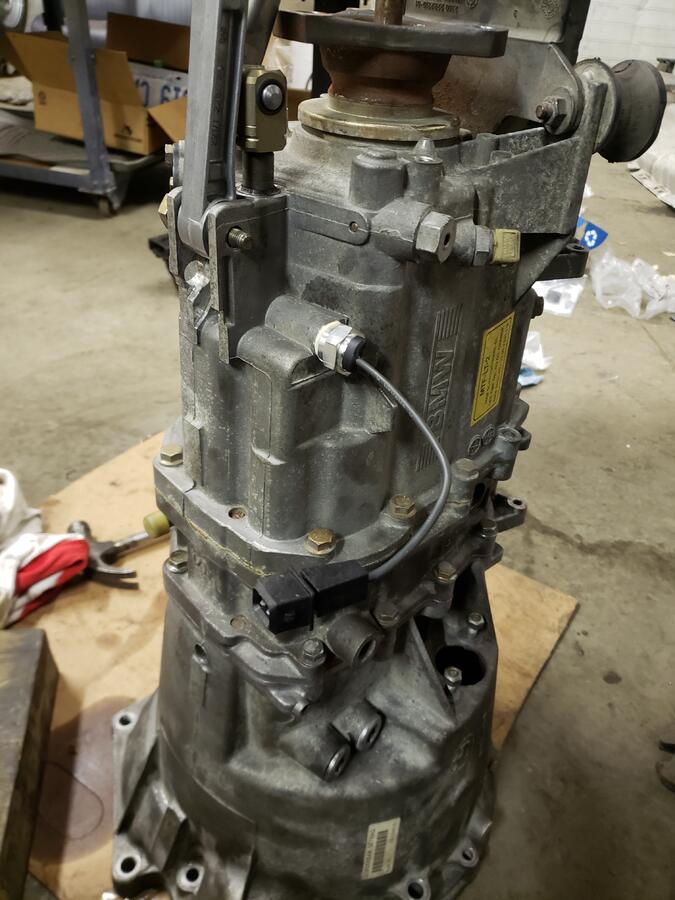

          Well she's done ✔

          Last thing is programing... but everything went well.. had to order a pilot bearing from BMW (koyo) as all aftermarket bearings were not the actual proper size. I decided to go with the UPDATED LuK TOB, and im ok with that, there is a memo out in 2015 the front plate shifts for better surface contact on the plate..
          overall, I feel confident and I'd do it again since im familiar now with all that needs to be done.
          Attached Files

          Comment


            Originally posted by pawelgawel View Post
            ECS has the clutch switch 700 listed on sale, but I just chatted with someone and its not Brown, its Black.
            https://www.ecstuning.com/BMW-E46-M3-S54_3.2L/Checkout/
            Here in germany I have no problem to order m3 clutch switches directly from bmw dealer. One is brown and one is green (700 and 701)
            …under construction.

            Comment


              Originally posted by S54B32 View Post

              Here in germany I have no problem to order m3 clutch switches directly from bmw dealer. One is brown and one is green (700 and 701)
              Would you proxy a 61319122700 switch to the US?

              Comment


                Originally posted by S54B32 View Post

                Here in germany I have no problem to order m3 clutch switches directly from bmw dealer. One is brown and one is green (700 and 701)
                yeah lol please help us out ... need one. I see one on ebay in Lithuania but itll take about 2 months to get that from them. I know Air Canada flyes to Frankfurt everyday so airmail is possible. PM me if you can do that plsI need the 700 one

                Comment


                  The number has changed, you can order it here.


                  Modul Kupplungsschalter - 35426876898, 35 42 6 876 898, 6876898, 35-42-6-876-898 - Passt zu Modell: E81 E82 E87 E87LCI E88 F20 F20LCI F21 F21LCI F40 F52 F22 F22 LCI F23 F23 LCI F44 Gran Coupé F45 SAT F45 SAT LCI F46 MPV F46 MPV LCI F87 M2 F87 M2 LCI E46 E90 E90LCI E91 E91LCI E92 E92LCI E93 E93LCI F30 F30 LCI F31 F31 LCI F34GT F34 GT LCI F35 F35 LCI F80 M3 F80 LCI M3 G20 G21 F32 F32 LCI F33 F33 LCI F36 F36 LCI F82 M4 F82 LCI M4 F83 M4 Cabrio F83 LCI M4 Cabriolet E39 E60 E60LCI E61 E61LCI F10 F10 LCI F11 F11 LCI F18 G30 G31 E63 E63LCI E64 E64LCI F06 GC F06 GC LCI F12 F12 LCI F13 F13 LCI X1 (E84) X1 (F48) X1 (F48LCI) X1 (F49) X2 (F39) X3 (E83) X3LCI (E83LCI) X3 (F25) X3 (G01) X4 (F26) X5 (E53) Z4 E85 Z4 E86 Z4 E89 Z4 (G29) R50 R52 R53 R55 R55LCI R56 R56LCI R57 R57 LCI R58 R59 R60 R61 F54 F54LCI F55 F56 F57 F60 Motorsport coupé models

                  Comment


                    Originally posted by Andy2424 View Post
                    The number has changed, you can order it here.


                    https://www.schmiedmann.de/de/produk...5-42-6-876-898
                    seems you don't read up.. superseded # does not mean the #700 that M3 needs in NA. 898 will not work

                    Comment


                      Apparently you have no idea what you are writing

                      Comment


                        Originally posted by Andy2424 View Post
                        Apparently you have no idea what you are writing
                        just read this entire thread please. North American ECUs require 700 series chip "which is Brown", to have full cc functionality without any other additional programing. the regular black 898 will not work without more coding.

                        Comment


                          It's not just North American cars, euro cars will only allow cruise to operate with the brown '700' switch too. No amount of coding will make it work without a '700' switch.

                          Comment


                            does not matter. Then just buy this one.


                            https://www.hubauer-shop.de/de/advan...0&inc_subcat=1

                            if you want, I'll buy it for you and send it to America

                            Didn't read it all the way sorry
                            Last edited by Andy2424; 04-27-2021, 10:40 AM.

                            Comment


                              Originally posted by pawelgawel View Post

                              just read this entire thread please. North American ECUs require 700 series chip "which is Brown", to have full cc functionality without any other additional programing. the regular black 898 will not work without more coding.
                              To clarify things, as explained earlier in this thread...You can use 700 or 701 switch. ONLY these 2 switches work with MSS54(Hp) because ECU need to read signal HIGH (+12v) instead of LOW (GND). I tested this on bench and also have both switches here and can confirm this.
                              With 701 switch on US and Japan cars you need to code out Clutch interlock in ews Modul or bridge clutch signal on EWS plug. This switch in green.

                              With 700 switch you will have start/clutch interlock in EWS working. Working also in every other M3( also in M3’s without clutch start interlock). This switch is brown.

                              pawelgawel : if you really find absolute no other way to get the switch, I can send you a switch if you pay the switch and shipping...
                              Last edited by S54B32; 04-27-2021, 11:53 AM.
                              …under construction.

                              Comment


                                You guys should be able to order a 701 here. I did that from the dealer. 700 auto supersedes in the system but doesnt do it for 701.
                                2003.5 Titanium Silver / Black 6M/T (Gone)
                                2003.5 Carbon Black / Laguna Seca Blue SMG (Dusted)
                                2004 Carbon Black / Black SMG converted to 6M/T(Current)
