Was having trouble getting the CSL duct to fit, so I figured I would take the opportunity and fix my bumper fitment. Most of the foam on top of the carrier has been missing for as long as I can remember, so first order of business was to replace that.

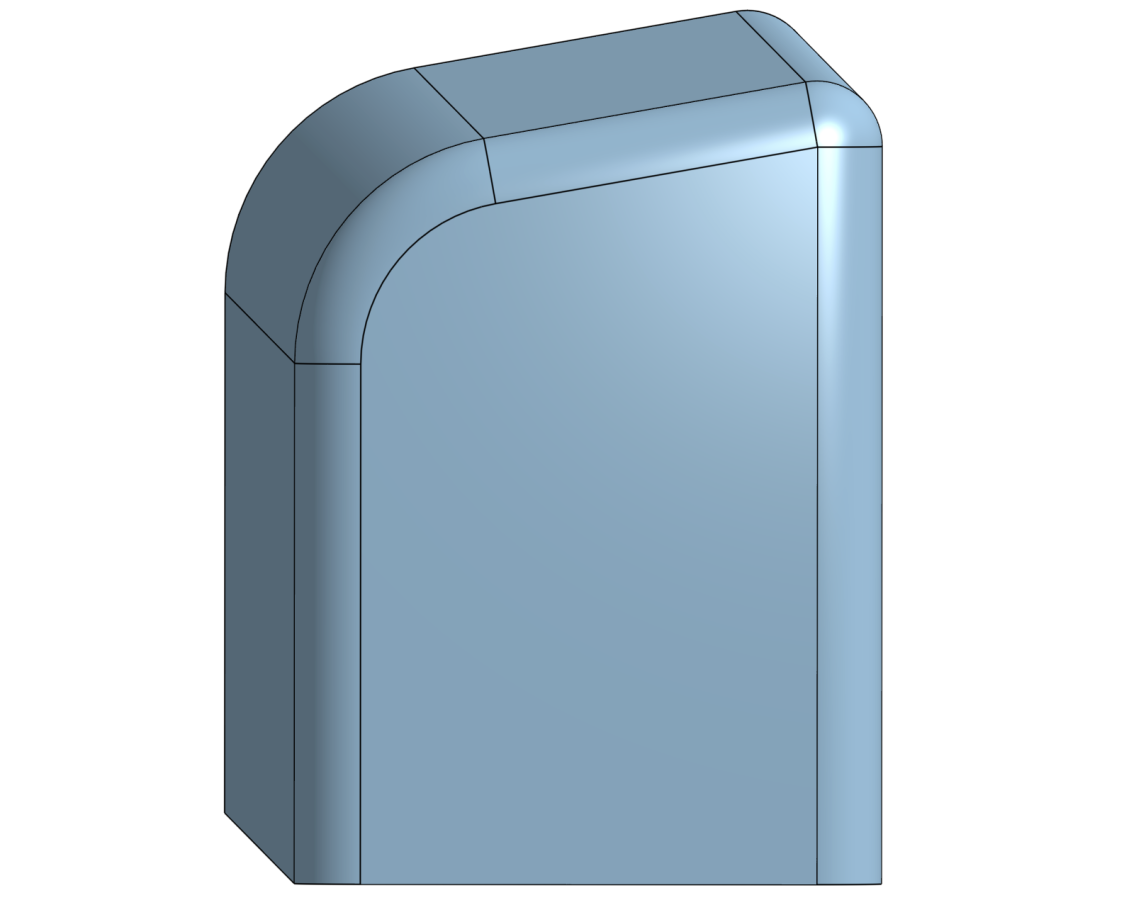

I was too lazy to go out looking for a suitable material and the printer was already loaded with TPU, so I figured why not. Quickly designed some foam replacement pieces and printed them out. My recreation incorporates both the radius of the stock pieces and the draft on the top surface to butt the seal up against the rest of the front end assemblies:

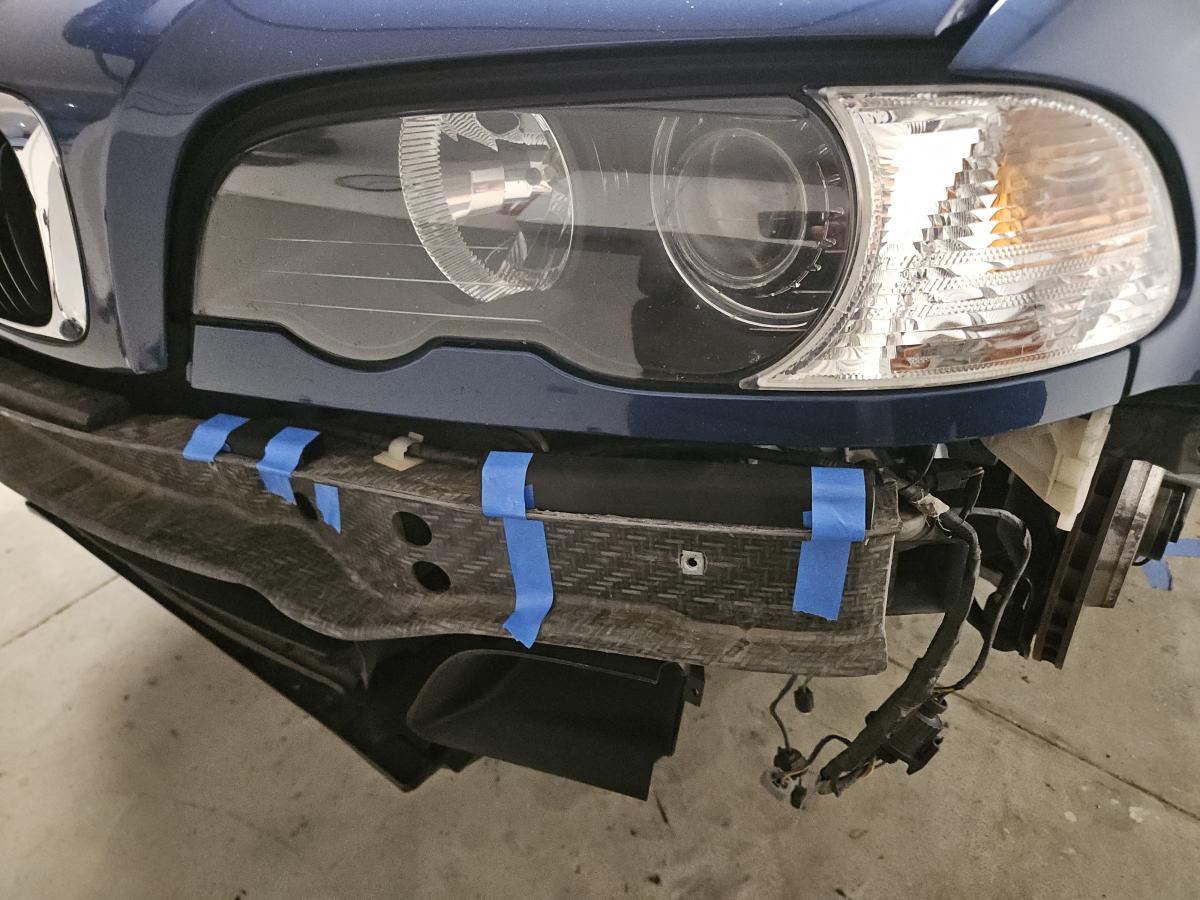

First test fit:



First attempt was very close, just needed a couple tweaks to get the fit where I wanted it.

While V2 was printing, I prepped the carrier. Started by removing the old adhesive, which was as fun as it usually is. With all that mess gone, I gave the surface a quick scuff and mixed up some epoxy.

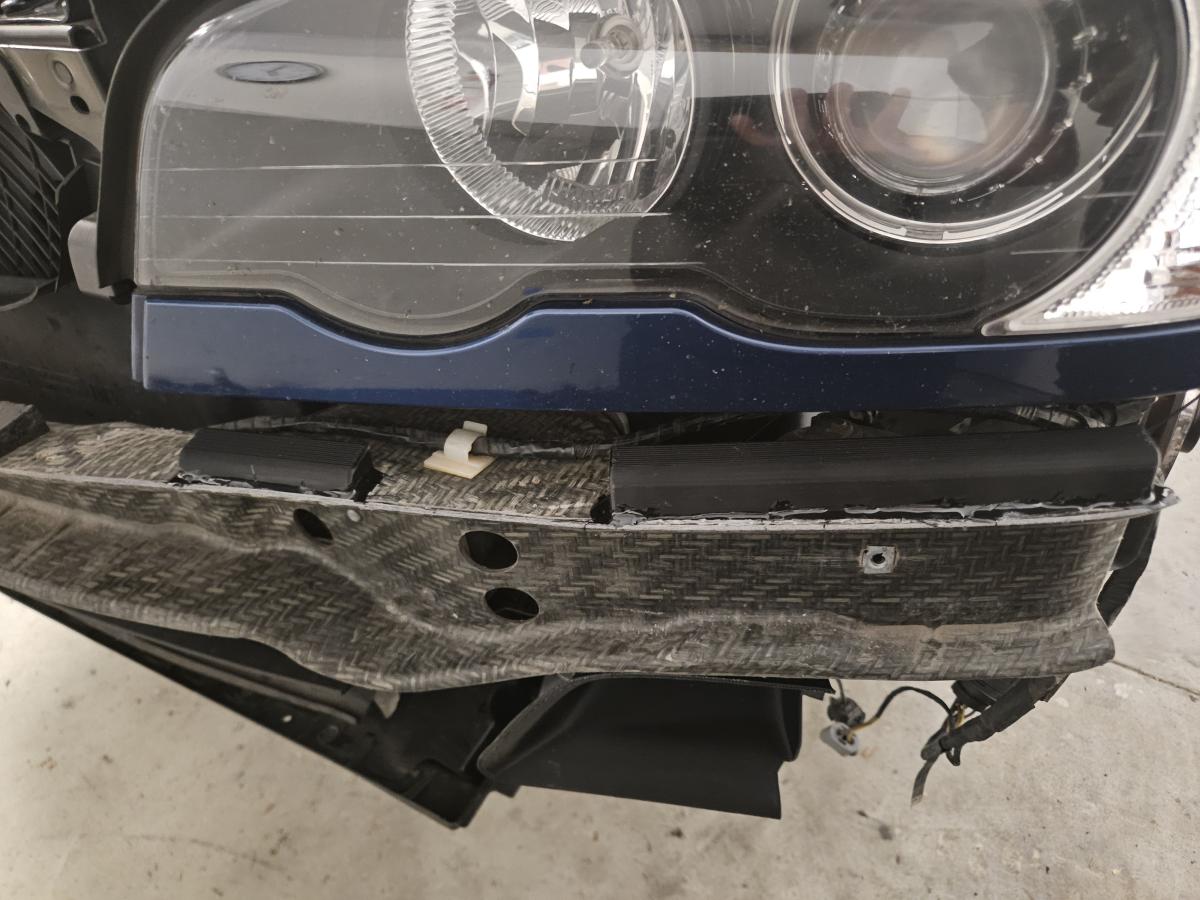

Bonding went smoothly. I even had some adhesive left over to form a bit of a fillet on the pieces. Hoping that helps make it a permanent repair:



Final touch was to add some Krytox to the surfaces that the bumper will slide over, in an attempt to avoid ripping these pieces out in the future.

Of course, I forgot to take pictures of everything reassembled, but trust me, it looks way better!

[bmwfnatic]

Well, bad news. Looks like a detail was overlooked in my conversations with Carphonics.

Turns out Alpine CD53 headunits can't receive the stage 2 upgrade, so no nicer amps for me. As far as I can tell, only euro Siemens CD53s can be upgraded? Not entirely sure...

I still want to do some semi-scientific A/B testing against the junkyard unit, so my unit is on its way back. Would be nice to know if the increase in sound quality came from the maintenance done to the HK amp or from the headunit.

This also means that driving the speakers directly has been put on the back burner. If I'm really itching for some extra weight savings in the future, I'll stuff a modern amp into the CD53 and do it that way.

I have a mint, last revision euro siemens CD53 if you want.
They should work fine in the US, I think?

[Obioban]

Anyway, back to more interesting things.

(Forking this off from this post in Bryson's build journal, to avoid clutter over there: https://nam3forum.com/forums/forum/m...909#post305909)

Was having trouble getting the CSL duct to fit, so I figured I would take the opportunity and fix my bumper fitment. Most of the foam on top of the carrier has been missing for as long as I can remember, so first order of business was to replace that.

I was too lazy to go out looking for a suitable material and the printer was already loaded with TPU, so I figured why not. Quickly designed some foam replacement pieces and printed them out. My recreation incorporates both the radius of the stock pieces and the draft on the top surface to butt the seal up against the rest of the front end assemblies:


First test fit:



First attempt was very close, just needed a couple tweaks to get the fit where I wanted it.

While V2 was printing, I prepped the carrier. Started by removing the old adhesive, which was as fun as it usually is. With all that mess gone, I gave the surface a quick scuff and mixed up some epoxy.

Bonding went smoothly. I even had some adhesive left over to form a bit of a fillet on the pieces. Hoping that helps make it a permanent repair:



Final touch was to add some Krytox to the surfaces that the bumper will slide over, in an attempt to avoid ripping these pieces out in the future.

Of course, I forgot to take pictures of everything reassembled, but trust me, it looks way better!

...

Why didn't I think of that.

Final files in the CAD thread, please :P

[heinzboehmer]

I have a mint, last revision euro siemens CD53 if you want.
They should work fine in the US, I think?

Thanks! I was originally gonna reach out to you for a euro unit to avoid having to ship mine halfway around the world (twice). However, I was told that the euro tuner was not compatible with the US radio frequencies and just went along with that. I probably should have looked into it myself instead of just blindly trusting, but whatever, that's in the past.

I think I'm just gonna stick with what I have for now. I farmed this job out cause it was easy to just pay for the service vs doing it myself, but now I just want a functional radio back in the car.

...

Why didn't I think of that.

Final files in the CAD thread, please :P

Posted!

[heinzboehmer]

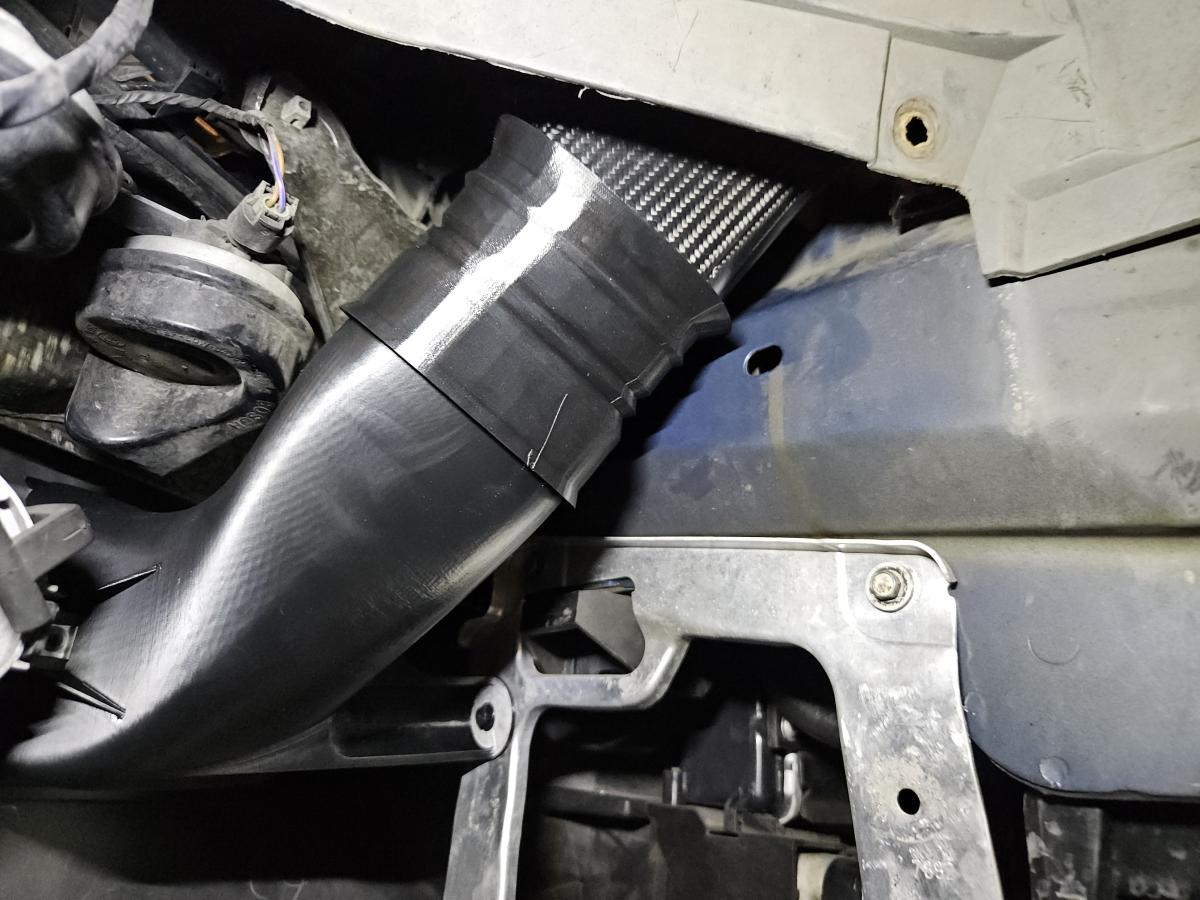

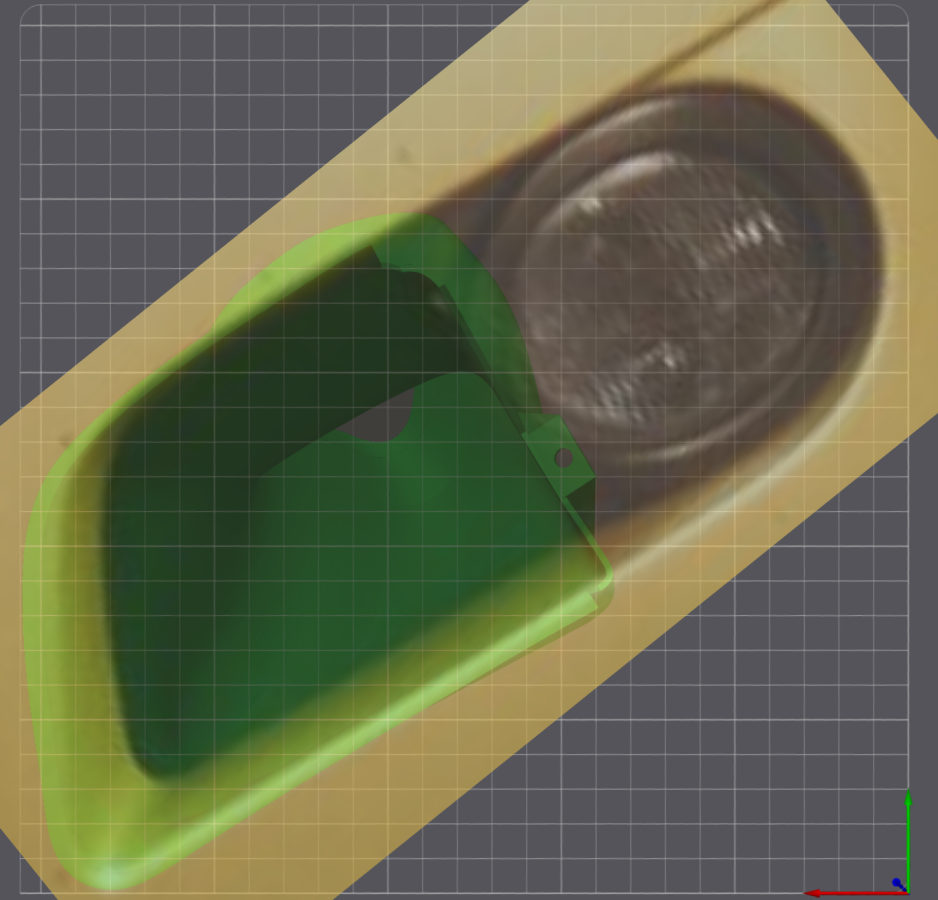

Took the airbox off today to check if the wishbone bracket was interfering with the fitment of Bryson's duct. Here's how everything fits with the bracket fully removed:




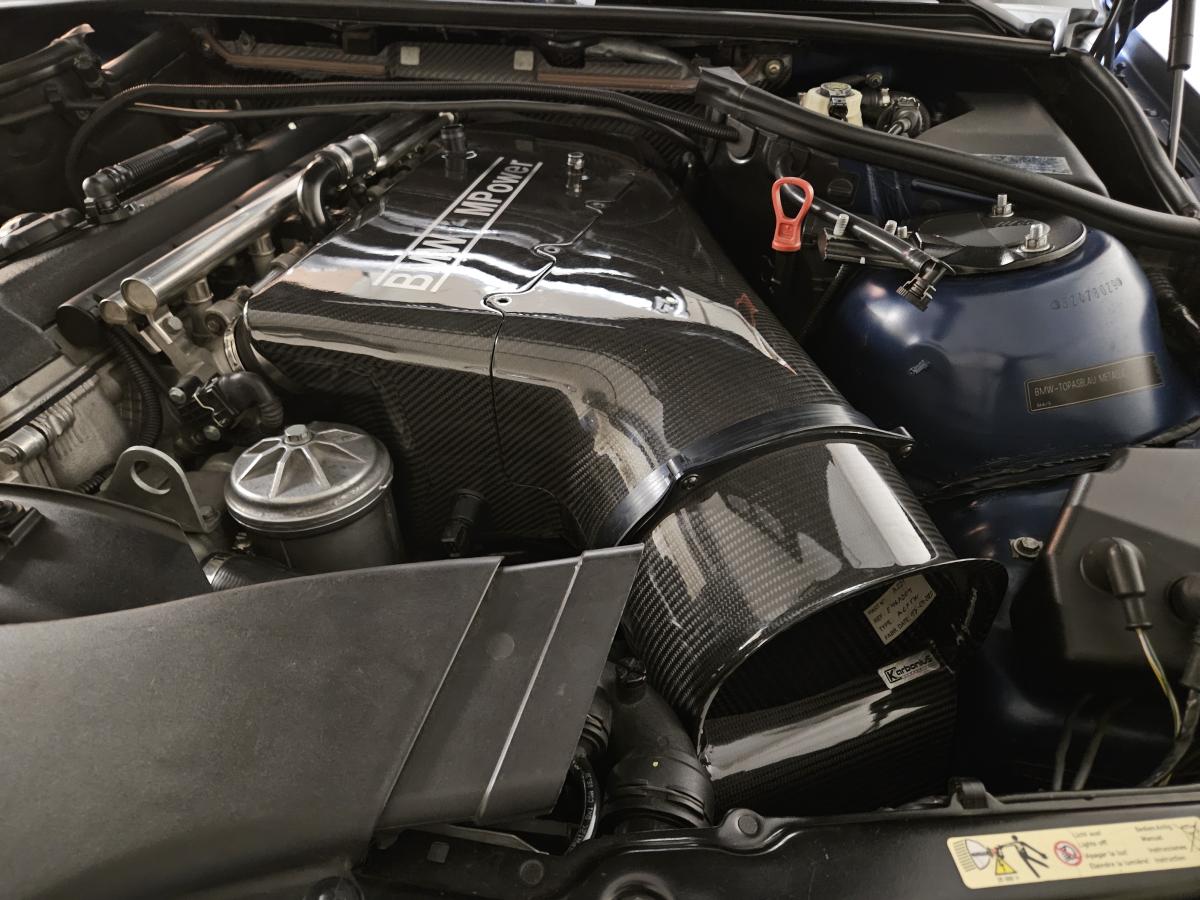

Spot on! Must be something wrong with the bracket then...




Well, there you go. Turns out my car was the issue all along.

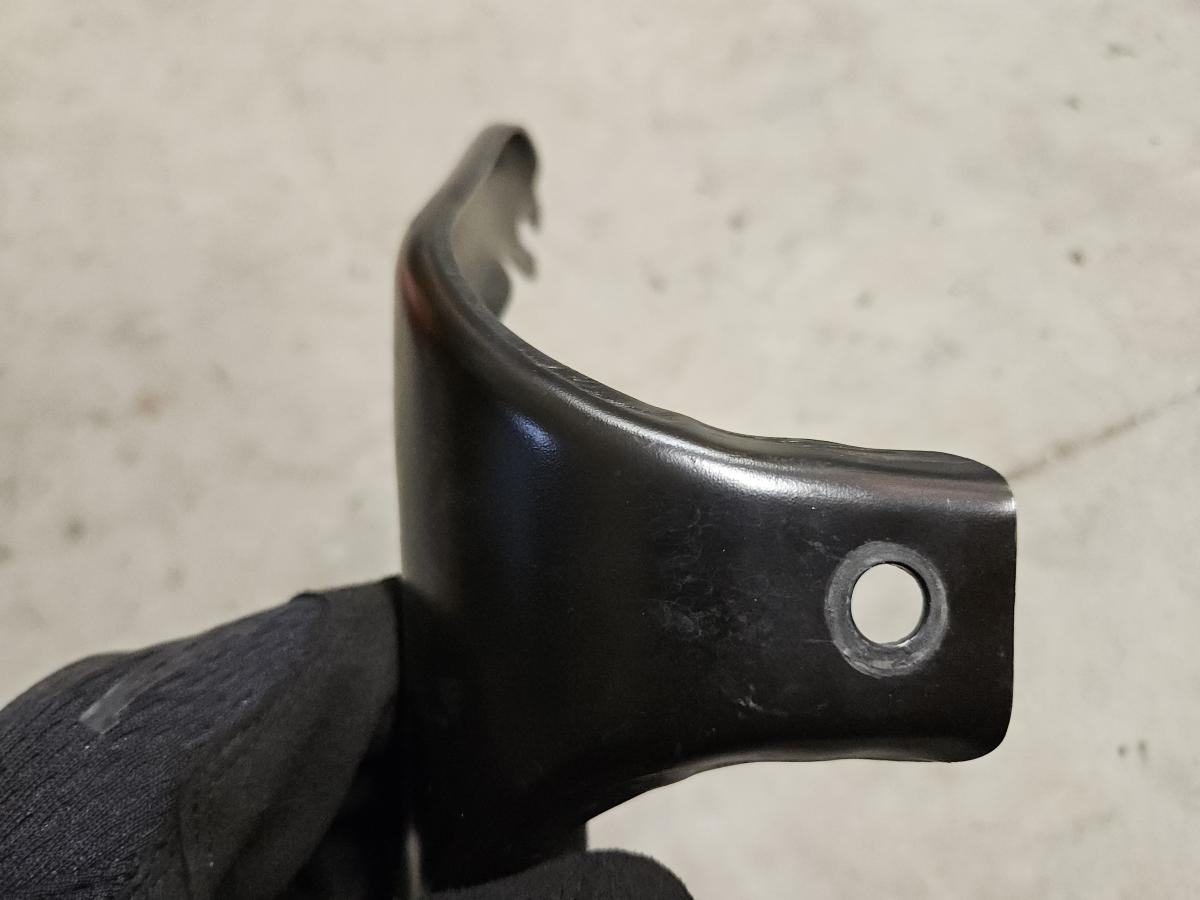

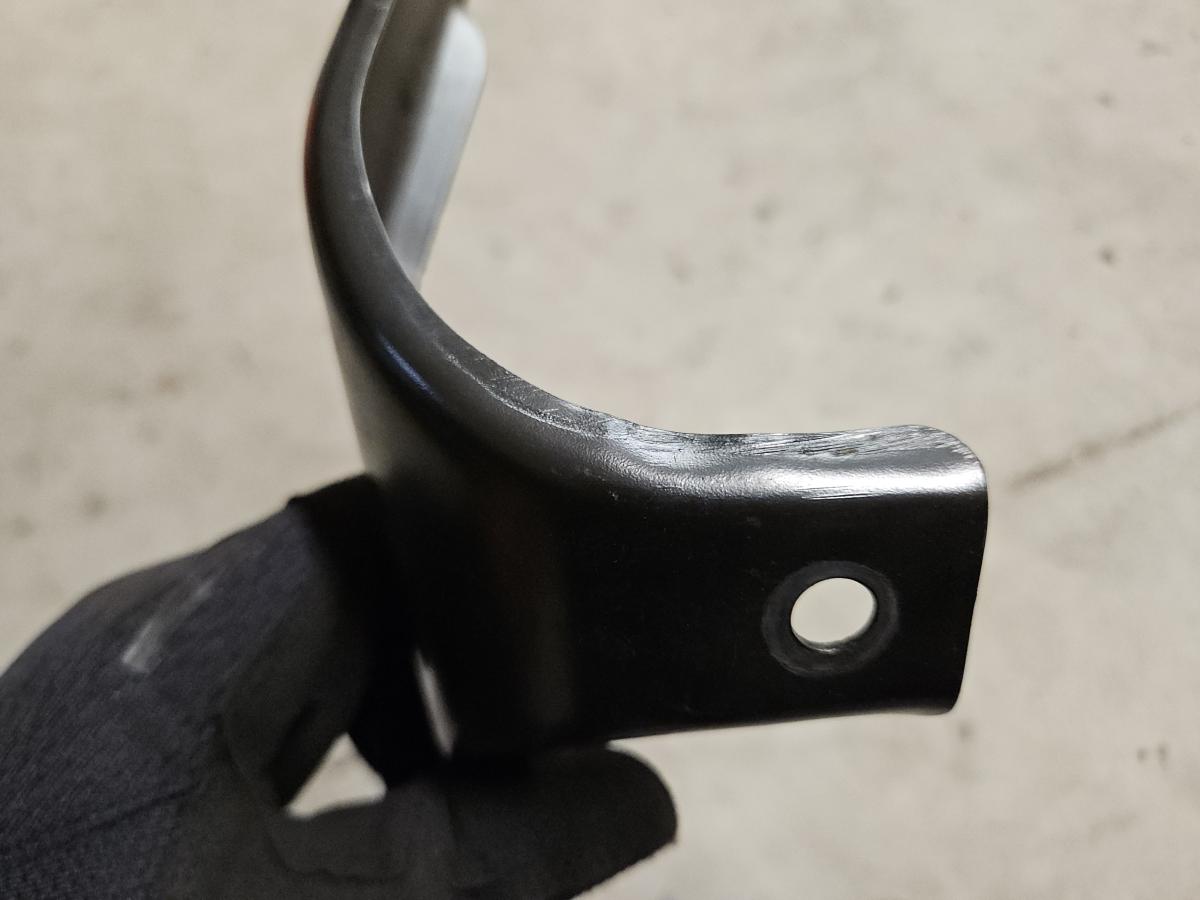

Tried so many things when the solution was as simple as just bending that bracket back. Oh well, at least my bumper fits pretty great now!
